Honeywell CC-PAOX01 | Experion C300 16-Ch HART Analog Output Module

Honeywell CC-PAOX01 | Experion C300 16-Ch HART Analog Output Module

Original price was: $2,600.00.Current price is: $2,200.00.

  • Description: Honeywell Experion PKS C300 16-Channel HART Analog Output Module
  • Brand/Original Manufacturer: Honeywell Process Solutions (USA)
  • System Platform: Experion PKS Series / C300 Controller System
  • Hardware Module Model: CC-PAOX01
  • Associated Terminal Assembly: CC-TAOX01 / CC-TAOX11 (Analog Output IOTA)
  • Output Channels: 16 Single-Ended / Isolated Channels (4 to 20 mA DC with HART pass-through)
  • Signal Support: Standard 4 to 20 mA Current Loop & HART Protocol v5/v6/v7 Final Control Elements
  • Condition: 100% Brand New Original Factory Sealed / Certified Tested Surplus
  • Country of Origin: USA / Puerto Rico
Get a Quote
Category: SKU: CC-PAOX01 Tags: Brand:
  • Need Help?
  • +86 13313703791
  • +86 13313703791
  • seren@ymgkplc.com
库存图标
100,000+ Models in Stock
保修图标
One-Year Warranty
响应图标
24h Fast Response

Description

1. Product Overview

The Honeywell CC-PAOX01 is a high-performance, industrial-grade 16-Channel HART Analog Output Module engineered specifically for Honeywell’s Experion PKS C300 Distributed Control System (DCS). It serves as a primary control interface that converts digital control algorithm values from the C300 processor into precise 4 to 20 mA analog current loops to drive final control elements such as control valves, I/P converters, and variable speed drives.

In addition to reliable analog signal transmission, the CC-PAOX01 features integrated HART modems that enable bi-directional digital data transfer. This allows the Experion platform and Field Device Manager (FDM) to continuously read valve position feedback, device temperature, and diagnostic alert statuses directly from HART-enabled smart positioners without interrupting primary loop control.

Key Applications:

  • Refining & Petrochemical Processing: Precision throttling control for critical process valves, bypass lines, and flow regulators.
  • Power & Utility Facilities: High-reliability command telemetry for feedwater valves, steam dampers, and fan drives.
  • Water & Wastewater Treatment: Continuous output loop control for dosing pumps and automated flow actuators.
  • Experion PKS DCS Expansions: Direct slot-in expansion for active Series C C300 HART analog output IOTA structures.



2. Technical Features

Feature Technical Specification
Product Model String Honeywell Reference CC-PAOX01
Primary Function High-density controller-to-field analog current signal driving with HART data
Channel Count 16 Fully Configurable 4 to 20 mA Output Channels
Mounting Architecture Direct plug-in fitment to CC-TAOX01 / CC-TAOX11 IOTA bases
Circuit Protection Onboard short-circuit and overvoltage protection on all output loops
Thermal Performance Convection-cooled enclosure designed for high-density cabinet layouts
Front Diagnostic LEDs Clear visual indicators for Power, Module Status, and I/O Health



3. Shipping & Corporate Procurement Terms

  1. Model & Label Cross-Check: Send us a photo of your existing module label or failed rack slot; our technical team instantly verifies CC-PAOX01 codes to confirm physical and functional fitment.
  2. Quotation Transparency: Receive quick, competitive tier-pricing detailing immediate warehouse availability, bulk volume rates, and fast shipping options.
  3. Smooth Customs Clearance: Immediate preparation of international shipping invoices, HS codes, and customs documentation to prevent transit holds.
  4. Proforma Invoice Transmission: Corporate Proforma Invoices (PI) delivered within hours to streamline your company’s internal purchasing workflow.
  5. Verified Monetary Settlement: Flexible corporate payment options via wire transfer (T/T) or verified secure global payment channels.
  6. Rigorous Pre-Shipment Check: Every card undergoes visual connector pin inspection, status LED verification, and housing latch checks before final packing.
  7. Heavy-Duty Protective Packaging: Sealed inside anti-static ESD bags with moisture desiccants, cushioned with conductive shock foam, and boxed in rigid export cartons.
  8. Express Air Freight Routing: Direct dispatch via DHL Express, FedEx, or UPS with trackable tracking numbers provided immediately upon shipment.



4. Visual Resource Library

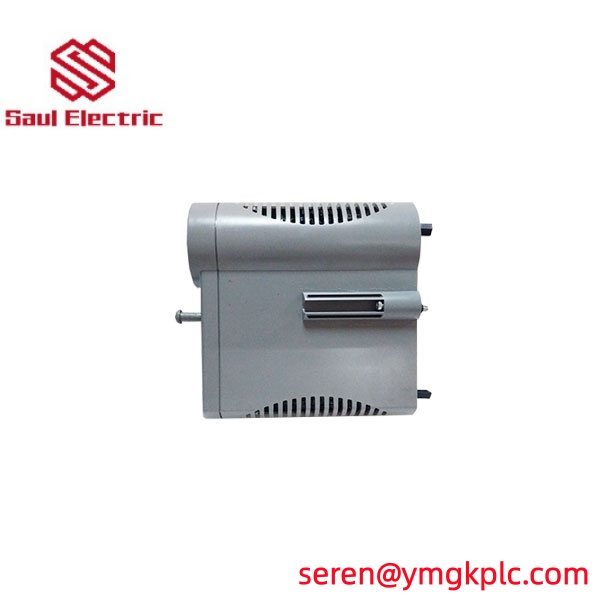

  • [Product Photo 1]: Straight portrait profile view of the Honeywell CC-PAOX01 module showing clean status labels and mounting latches.

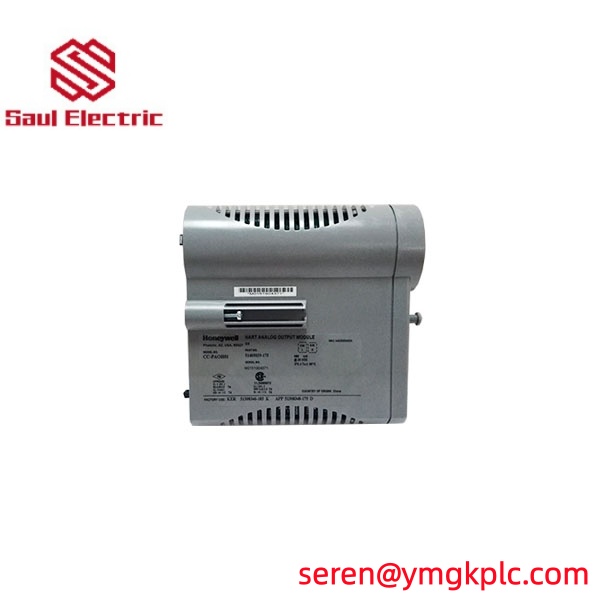

  • [Product Photo 2]: Side profile view showing the plastic casing vents and backplane connector pins.

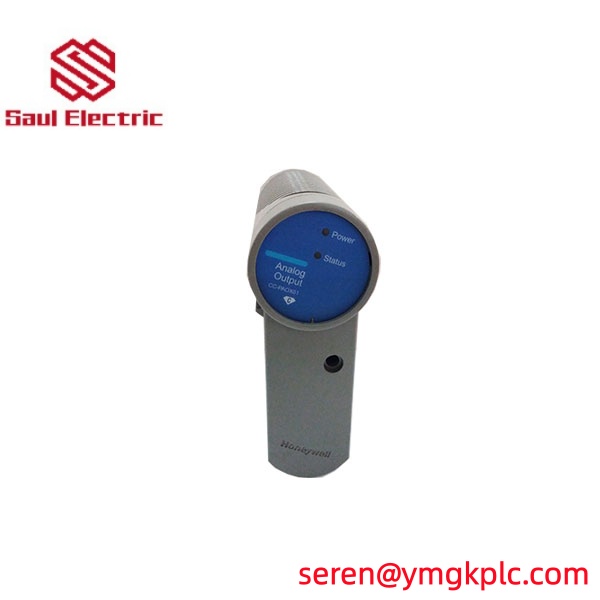

  • [Product Photo 3]: Close-up detail verification image capturing the factory label displaying CC-PAOX01.
