1. Product Overview
The Honeywell CC-PAIH51 is an enhanced, high-density industrial-grade 16-Channel HART Analog Input Module designed specifically for Honeywell’s flagship Experion PKS C300 Distributed Control System (DCS). Serving as a critical interface between field smart transmitters (measuring temperature, pressure, flow, and level) and the C300 controller, this module simultaneously processes standard 4 to 20 mA analog signals alongside secondary HART digital diagnostic data.
Engineered to operate reliably in harsh electromagnetic and high-vibration plant environments, the CC-PAIH51 features onboard optical noise isolation and independent channel transient protection. By passing real-time field device calibration and self-diagnostic information up to Experion’s Field Device Manager (FDM), it eliminates unnecessary manual field inspections and supports predictive maintenance strategies across continuous process facilities.
Key Applications:
- Oil & Gas Refineries: Monitoring critical process pressure and flow transmitters across hazardous distillation units.
- Power Generation Facilities: Capturing high-accuracy temperature and steam telemetry loops on main turbine controllers.
- Chemical & Pharmaceutical Plants: Managing multi-loop chemical reaction monitoring systems with active HART diagnostics.
- Experion PKS DCS Upgrades: Direct module replacement or hardware refresh for active C300 Series C I/O racks.
2. Technical Features
| Feature | Technical Specification |
| Product Model String | Honeywell Reference CC-PAIH51 |
| Primary Function | High-density field-to-controller HART analog signal processing |
| Channel Count | 16 Fully Configurable 4 to 20 mA HART Input Channels |
| Mounting Architecture | Direct plug-in fitment to CC-TAIX01 / CC-TAIX11 IOTA bases |
| Circuit Protection | Onboard transient surge suppression diodes protecting internal ADC loops |
| Thermal Performance | Convection-cooled enclosure designed for high-density cabinet layouts |
| Front Diagnostic LEDs | Clear visual indicators for Power, Module Status, and I/O Health |
3. Shipping & Corporate Procurement Terms
- Model & Label Cross-Check: Send us a photo of your existing card label or failed rack slot; our technical logistics team instantly verifies CC-PAIH51 codes to confirm exact physical and functional fitment.
- Quotation Transparency: Receive quick, competitive tier-pricing detailing immediate warehouse availability, bulk volume rates, and fast shipping options.
- Smooth Customs Clearance: Immediate preparation of international shipping invoices, HS codes, and customs documentation to prevent transit holds.
- Proforma Invoice Transmission: Corporate Proforma Invoices (PI) are delivered within hours to streamline your company’s internal purchasing workflow.
- Verified Monetary Settlement: Flexible corporate payment options via wire transfer (T/T) or verified secure global payment channels.
- Rigorous Pre-Shipment Check: Every card undergoes visual connector pin inspection, status LED verification, and housing seal checks before final packing.
- Heavy-Duty Protective Packaging: Sealed inside anti-static ESD bags and encased in shock-proof foam and rigid outer shipping boxes.
- Express Air Freight Routing: Direct dispatch via DHL Express, FedEx, or UPS with trackable tracking numbers provided immediately upon shipment.
4. Visual Product Showcase

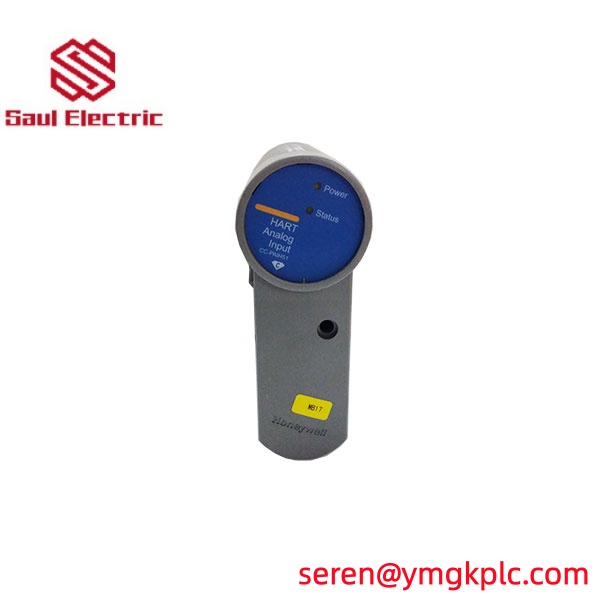

- [Product Photo 1]: Full front profile view of the Honeywell CC-PAIH51 module highlighting the blue Series C status faceplate.

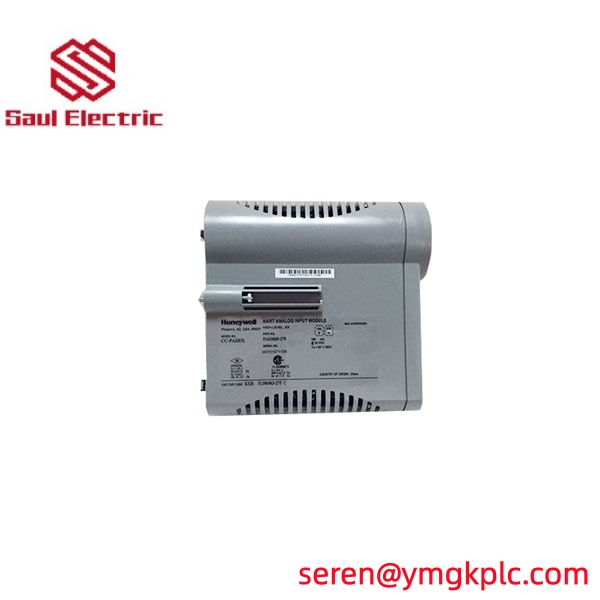

- [Product Photo 2]: Close-up detail capturing the white Honeywell factory label displaying CC-PAIH51 and serial tracking numbers.
5. Matching Honeywell Experion C300 Spares
- Honeywell CC-TAIX01 / CC-TAIX11 (Analog Input I/O Terminal Assemblies – IOTA)
- Honeywell CC-PAOH51 / CC-PAOH01 (16-Channel HART Analog Output Modules)
- Honeywell CC-PCNT01 / 8C-PCNT02 (C300 Controller Processor Modules)
- Honeywell CC-PAIH02
- Honeywell CC-PAIH01
6. Warranty Protection & Continuous Supply Assurances
- Extended 12-Month Supplier Warranty: Full 1-year replacement warranty protecting against internal electronic hardware defects under normal operating conditions.
- Authenticity Guarantee: We supply original factory-spec Honeywell hardware to ensure performance matches OEM standards.
- Automated Freight Tracking: Instant transmission of tracking coordinates for complete visibility from dispatch to facility delivery.
7. FAQ
Q: We have a critical HART transmitter loop offline on our C300 system. How fast can this CC-PAIH51 module ship out?
Orders for in-stock Honeywell CC-PAIH51 modules are processed immediately. Once payment confirmation is received, your package is dispatched via express air freight (DHL/FedEx Priority) within 24 hours to minimize plant downtime.
Q: Does replacing a CC-PAIH51 module require re-wiring the field terminals?
No. The Experion C300 architecture separates the active electronics module (CC-PAIH51) from the field wiring base (IOTA). You simply unlatch and unplug the old card from the IOTA board and snap the new module in place without touching a single field wire.
