Honeywell CC-PAIH01 | Experion C300 16-Ch HART Analog Input Module

Honeywell CC-PAIH01 | Experion C300 16-Ch HART Analog Input Module

Original price was: $2,350.00.Current price is: $2,050.00.

  • Description: Honeywell Experion PKS C300 HART Analog Input Module (16-Channel)
  • Brand/Original Manufacturer: Honeywell Process Solutions (USA)
  • System Platform: Experion PKS Series / C300 Controller System
  • Hardware Module Model: CC-PAIH01
  • Associated Terminal Assemblies: CC-TAIX01 / CC-TAIX11 (Unfused / Fused IOTA)
  • Input Channels: 16 Single-Ended Analog Input Channels with HART Protocol Support
  • Signal Range: 4 to 20 mA Current Loop / Smart Transmitter Integration
  • Condition: 100% Brand New Original Factory Sealed / Certified Tested Surplus
  • Country of Origin: USA / Puerto Rico
Get a Quote
Category: SKU: CC-PAIH01 Tags: Brand:
  • Need Help?
  • +86 13313703791
  • +86 13313703791
  • seren@ymgkplc.com
库存图标
100,000+ Models in Stock
保修图标
One-Year Warranty
响应图标
24h Fast Response

Description

1. Product Overview

The Honeywell CC-PAIH01 is a high-density, industrial-grade 16-Channel HART Analog Input Module designed specifically for Honeywell’s flagship Experion PKS C300 Distributed Control System (DCS). Serving as a critical interface between field smart transmitters (measuring temperature, pressure, flow, and level) and the C300 controller, this module simultaneously processes standard 4 to 20 mA analog signals alongside secondary HART digital diagnostic data.

Engineered to operate reliably in harsh electromagnetic and high-vibration plant environments, the CC-PAIH01 features onboard optical noise isolation and independent channel transient protection. By passing real-time field device calibration and self-diagnostic information up to Experion’s Field Device Manager (FDM), it eliminates unnecessary manual field inspections and supports predictive maintenance strategies across continuous process facilities.

Key Applications:

  • Emergency DCS Control Cabinet Swap-Outs: Rapidly replacing faulted analog loops on active refinery or power plant control systems.
  • Automated Process Line Overhauls: Restoring accurate multi-channel transmitter telemetry to the C300 controller.
  • Obsolescence Management: Securing genuine Honeywell C300 Series C modules for long-term plant fleet support.
  • System Expansion Projects: Instantly adding HART-enabled measurement capacity to existing IOTA terminal bases.



2. Technical Features

Feature Technical Specification
Module Identifier Honeywell Model CC-PAIH01
Input Channel Density 16 Channels supporting 4 to 20 mA analog signals
HART Communication Dedicated HART modem per module for continuous multi-drop digital polling
Analog-to-Digital Precision 16-bit A/D conversion resolution for ultra-low signal drift
Power Dissipation Low-power thermal architecture designed for high-density cabinet mounting
Hot-Swappable Design Full Live Insertion and Removal (LIR) capability without interrupting active loops
Compliance Certifications UL Listed, CE Mark, Class I Div 2 Hazardous Location Approved



3. Shipping & Corporate Procurement Terms

  1. Model & Label Cross-Check: Send us a photo of your existing card label or failed rack slot; our technical logistics team instantly verifies CC-PAIH01 codes to confirm exact physical and functional fitment.
  2. Quotation Transparency: Receive quick, competitive tier-pricing detailing immediate warehouse availability, bulk volume rates, and fast shipping options.
  3. Smooth Customs Clearance: Immediate preparation of international shipping invoices, HS codes, and customs documentation to prevent transit holds.
  4. Proforma Invoice Transmission: Corporate Proforma Invoices (PI) are delivered within hours to streamline your company’s internal purchasing workflow.
  5. Verified Monetary Settlement: Flexible corporate payment options via wire transfer (T/T) or verified secure global payment channels.
  6. Rigorous Pre-Shipment Check: Every card undergoes visual connector pin inspection, status LED verification, and housing seal checks before final packing.
  7. Heavy-Duty Protective Packaging: Sealed inside anti-static ESD bags and encased in shock-proof foam and rigid outer shipping boxes.
  8. Express Air Freight Routing: Direct dispatch via DHL Express, FedEx, or UPS with trackable tracking numbers provided immediately upon shipment.



4. Visual Resource Library

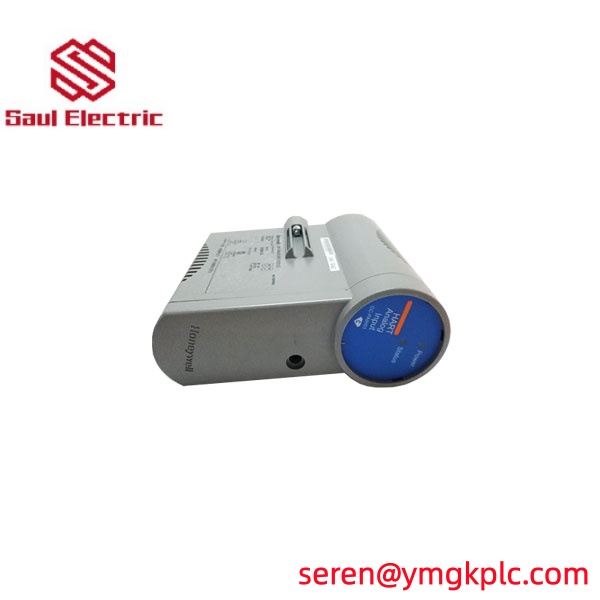

  • [Product Photo 1]: Straight portrait profile view of the Honeywell CC-PAIH01 module showing clean status labels and mounting latches.

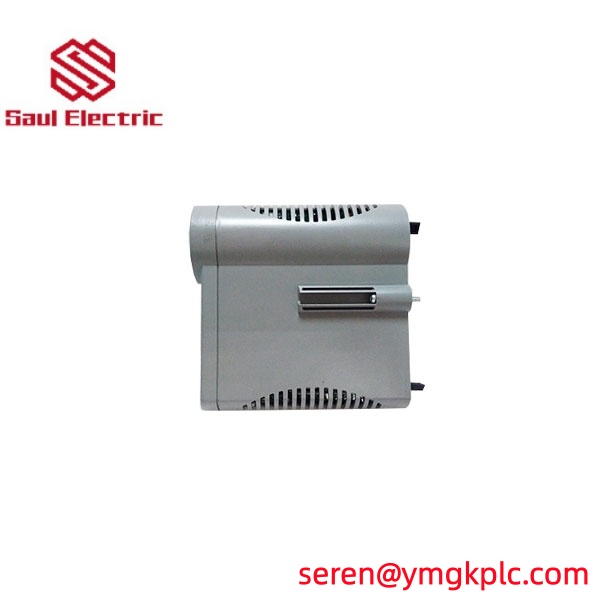

  • [Product Photo 2]: Side profile view showing the plastic casing vents and backplane connector pins.

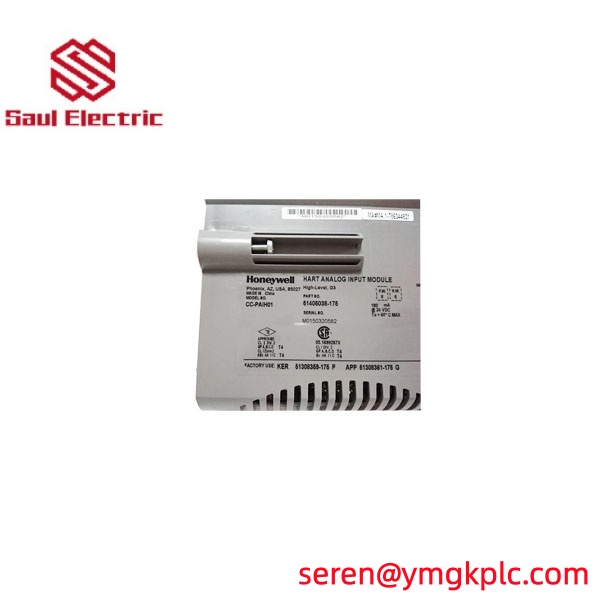

  • [Product Photo 3]: Close-up detail verification image capturing the factory label displaying CC-PAIH01.

5. Matching Honeywell Experion C300 Spares

  • Honeywell CC-TAIX01 / CC-TAIX11 (Analog Input I/O Terminal Assemblies – IOTA)
  • Honeywell CC-PAOH01 (16-Channel HART Analog Output Module)
  • Honeywell CC-PCNT01 / 8C-PCNT02 (C300 Controller Processor Modules)



6. Enterprise After-Sales Guarantees

  • Full 12-Month Vendor Warranty: Complete replacement warranty shielding your purchase against electronic internal component defects under standard operation.
  • Certified Original Hardware Guarantee: We supply 100% authentic Honeywell factory hardware to ensure seamless integration into active DCS networks.
  • Technical Document Provision: Digital access to official Honeywell C300 I/O specification sheets and IOTA wiring schematics.
