Honeywell CC-PAIH02 | 16-Channel HLAI Module with HART for Experion PKS C300

Description

1. Product Overview

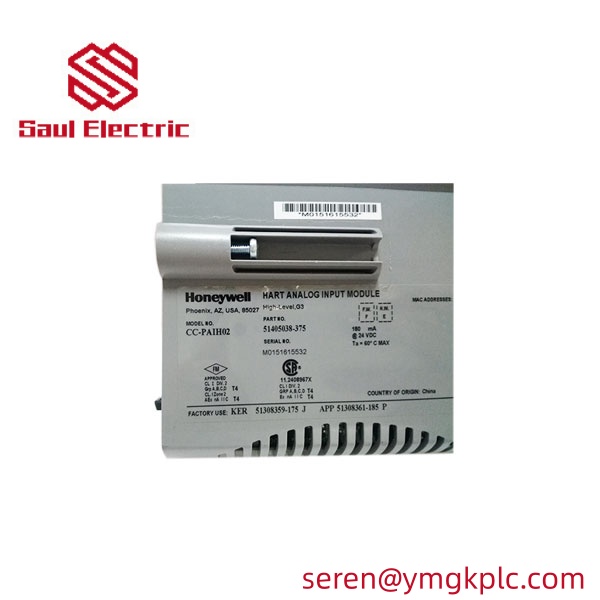

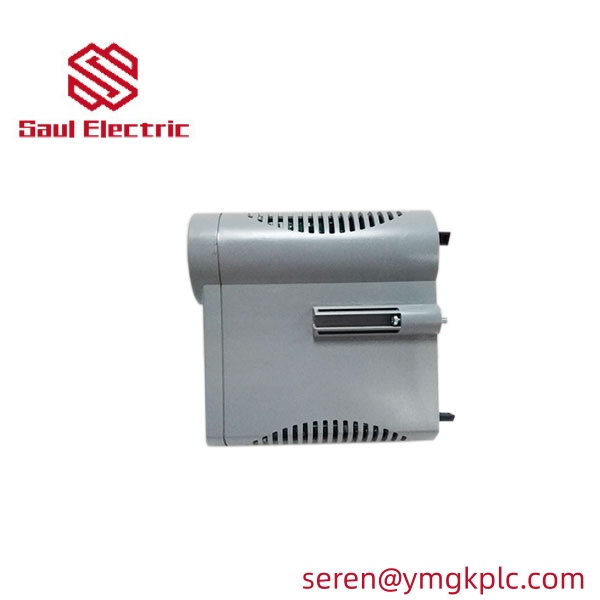

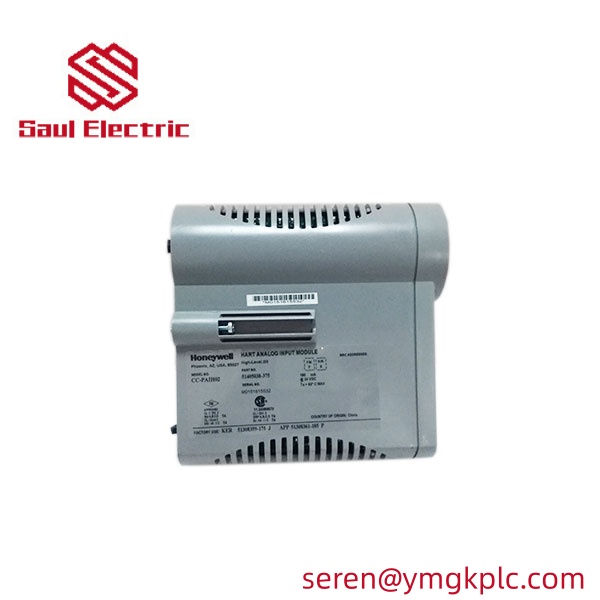

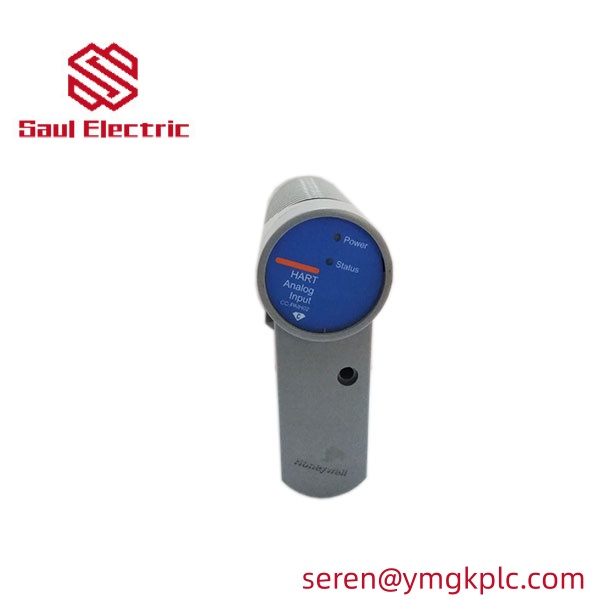

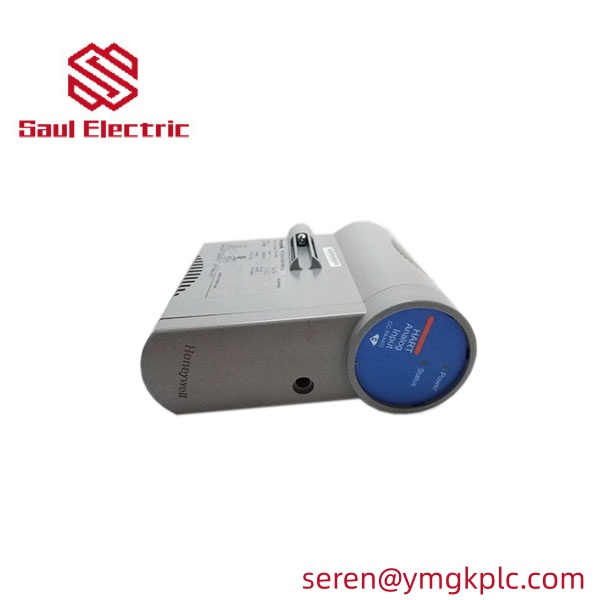

The Honeywell CC-PAIH02 is a high-density Analog Input Module designed for the Experion PKS C300 controller platform. It features 16 differential input channels, each capable of processing standard 4-20mA signals from high-level analog field devices.

What sets the CC-PAIH02 apart is its integrated HART (Highway Addressable Remote Transducer) capability. This allows for seamless digital communication with smart field instruments, enabling the control system to access advanced diagnostics, secondary variables, and remote configuration data without additional hardware. The module is engineered for the “Series C” form factor, ensuring superior heat dissipation and vibration resistance in critical process environments.

Key Applications:

• Oil & Gas Refineries: Real-time monitoring of pressure, temperature, and flow transmitters in hazardous areas.
• Chemical Processing: Precise data acquisition for complex control loops and reactor monitoring.
• Power Generation: High-reliability signal input for turbine and boiler control systems.
• Pharmaceutical Manufacturing: Ensuring accurate measurement for batch processing and regulatory compliance.

2. Data Sheet

3. Procurement Process

1. Technical Match: We verify the CC-PAIH02 hardware revision to ensure it is compatible with your current Experion PKS software (e.g., R400, R510).
2. Formal Quotation: Receive a detailed quote including competitive pricing, current stock status, and global express shipping options.
3. Order Confirmation: Finalizing quantities and any required certifications (e.g., Certificate of Conformance, CoC).
4. Sales Agreement: Issuance of a Proforma Invoice (PI) for secure transaction management.
5. Secure Payment: Payment accepted via T/T (Bank Wire Transfer).
6. Quality Inspection: 100% verification of Honeywell factory seals, serial numbers, and physical connector integrity.
7. Robust Packaging: Industrial-grade anti-static and shock-proof packaging designed for international air freight.
8. Global Distribution: Fast worldwide shipping via DHL, FedEx, or UPS to minimize plant downtime.

4. Products Showcase (Photos & Video)

5. Related Models

• Honeywell CC-PAOH01 (16-Channel Analog Output with HART)
• Honeywell CC-PDIL01 (Digital Input 24V Low Level)
• Honeywell CC-PDOB01 (Digital Output 24V Bussed)
• Honeywell CC-TCNT01 (Control Network Module)
• Honeywell 8C-TAIH01 (IOTA for HLAI with HART)

6. Warranty & After-Sales

• 12-Month Global Warranty: Full 1-year coverage against manufacturing defects or functional failures.
• 100% Authenticity Guaranteed: We supply only genuine, factory-new Honeywell parts; no refurbished or used units.
• Expert Technical Guidance: Assistance with IOTA mounting and HART configuration within the Experion environment.

7. FAQ

Q: Can I use CC-PAIH02 to replace an older CC-PAIH01?

Yes, the CC-PAIH02 is the updated version of the PAIH01. It is designed to be backward compatible in most Experion C300 systems, often offering improved component longevity.

Q: Does this module require a specific IOTA?

Yes, the CC-PAIH02 is typically mounted on a 16-channel IOTA, such as the 8C-TAIH01 or 8C-TAIH11. Ensure your IOTA supports the HART pass-through function.

Q: What is the benefit of the “PAIH” designation?

“PA” stands for the Series C form factor, “I” for Input, and “H” specifically denotes HART capability. This distinguishes it from standard analog modules that do not support digital transmitter diagnostics.
