Honeywell CC-PAIM01 | Experion C300 16-Ch Low-Level Analog Input Module

Honeywell CC-PAIM01 | Experion C300 16-Ch Low-Level Analog Input Module

Original price was: $1,250.00.Current price is: $1,020.00.

  • Description: Honeywell Experion PKS C300 Low-Level Analog Multiplexer Input Module (16-Channel)
  • Brand/Original Manufacturer: Honeywell Process Solutions (USA)
  • System Platform: Experion PKS Series / C300 Controller System
  • Hardware Module Model: CC-PAIM01
  • Associated Terminal Assembly: CC-TAIM01 (Low-Level Analog Multiplexer IOTA)
  • Input Channels: 16 Differential Low-Level Input Channels (Thermocouple / mV)
  • Signal Support: Types J, K, T, E, R, S, B, N Thermocouples & \pm 100 mV Signals
  • Condition: 100% Brand New Original Factory Sealed / Certified Tested Surplus
  • Country of Origin: USA / Puerto Rico
Get a Quote
Category: SKU: CC-PAIM01 Tags: Brand:
  • Need Help?
  • +86 13313703791
  • +86 13313703791
  • seren@ymgkplc.com
库存图标
100,000+ Models in Stock
保修图标
One-Year Warranty
响应图标
24h Fast Response

Description

1. Product Overview

The Honeywell CC-PAIM01 is a high-precision, industrial-grade 16-Channel Low-Level Analog Multiplexer Input Module designed specifically for Honeywell’s flagship Experion PKS C300 Distributed Control System (DCS). Serving as a direct signal interface for millivolt devices and thermocouple sensors, this module measures microvolt-level sensor outputs across furnace, boiler, and reactor temperature monitoring applications without requiring external signal transmitters.

Engineered to operate in high electromagnetic interference (EMI) process environments, the CC-PAIM01 features advanced noise filtering, high common-mode rejection (CMRR), and integrated Cold Junction Compensation (CJC) capabilities. By digitizing temperature telemetry right at the I/O rack, it minimizes thermal EMF drift and delivers ultra-accurate data processing back to the C300 controller.

Key Applications:

  • Emergency DCS Control Cabinet Swap-Outs: Rapidly replacing faulted thermal telemetry loops on active refinery or power plant control systems.
  • Automated Thermal Process Overhauls: Restoring accurate multi-point thermocouple telemetry to the C300 controller.
  • Obsolescence & Fleet Upgrades: Securing genuine Honeywell C300 Series C modules for long-term plant fleet support.
  • System Expansion Projects: Instantly adding thermocouple/mV measurement capacity to existing CC-TAIM01 terminal bases.



2. Technical Features

Feature Technical Specification
Module Identifier Honeywell Model CC-PAIM01
Input Channel Density 16 Differential Channels dedicated to Thermocouple and \pm 100 mV inputs
Signal Conversion Precision High-resolution A/D conversion optimized for microvolt-level accuracy
Cold Junction Compensation Automatic CJC integrated via matching CC-TAIM01 terminal assembly sensors
Power Dissipation Low thermal footprint prevents localized temperature drift on adjacent cards
Hot-Swappable Design Full Live Insertion and Removal (LIR) capability without interrupting active bus operations
Compliance Certifications UL Listed, CE Mark, Class I Div 2 Hazardous Location Approved



3. Shipping & Corporate Procurement Terms

  1. Model & Label Cross-Check: Send us a photo of your existing card label or failed rack slot; our technical logistics team instantly verifies CC-PAIM01 codes to confirm exact physical and functional fitment.
  2. Quotation Transparency: Receive quick, competitive tier-pricing detailing immediate warehouse availability, bulk volume rates, and fast shipping options.
  3. Smooth Customs Clearance: Immediate preparation of international shipping invoices, HS codes, and customs documentation to prevent transit holds.
  4. Proforma Invoice Transmission: Corporate Proforma Invoices (PI) are delivered within hours to streamline your company’s internal purchasing workflow.
  5. Verified Monetary Settlement: Flexible corporate payment options via wire transfer (T/T) or verified secure global payment channels.
  6. Rigorous Pre-Shipment Check: Every card undergoes visual connector pin inspection, status LED verification, and housing seal checks before final packing.
  7. Heavy-Duty Protective Packaging: Sealed inside anti-static ESD bags and encased in shock-proof foam and rigid outer shipping boxes.
  8. Express Air Freight Routing: Direct dispatch via DHL Express, FedEx, or UPS with trackable tracking numbers provided immediately upon shipment.



4. Visual Product Showcase

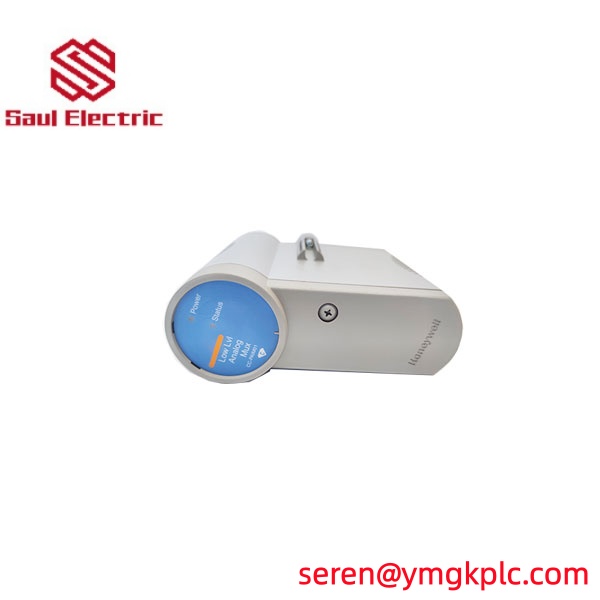

  • [Product Photo 1]: Full front profile view of the Honeywell CC-PAIM01 module highlighting the dark blue “Low Lvl Analog Mux” faceplate display.

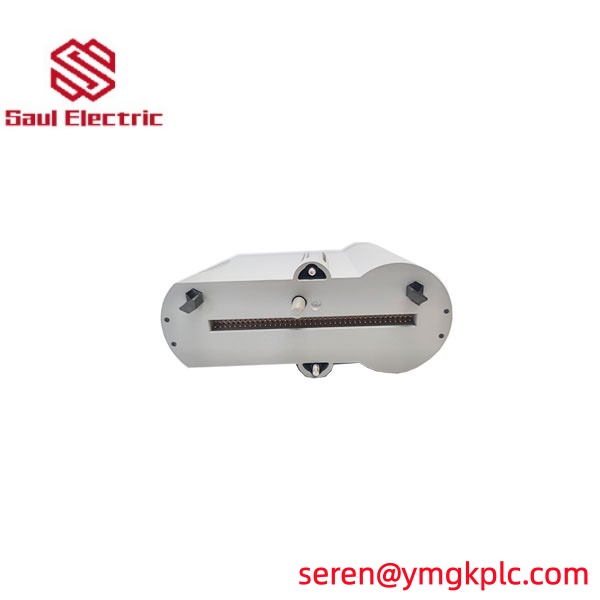

  • [Product Photo 2]: Detail photo focusing on the rear backplane multi-pin connector and side heat dissipation vents.

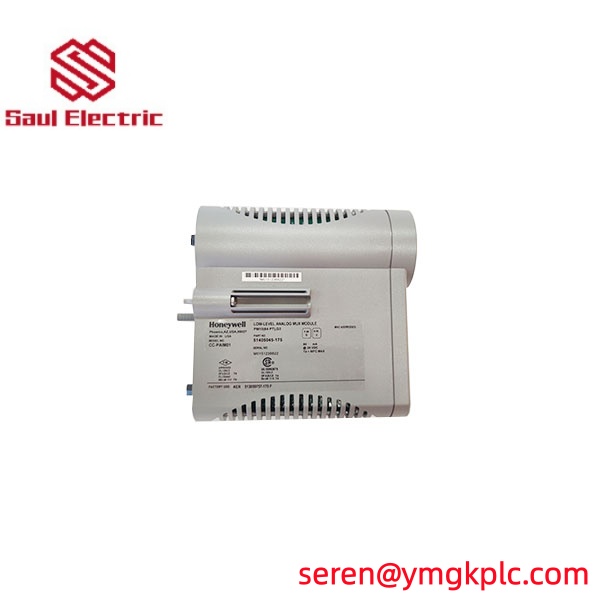

  • [Product Photo 3]: Close-up detail capturing the white Honeywell factory label displaying CC-PAIM01 and serial tracking numbers.

5. Matching Honeywell Experion C300 Spares

  • Honeywell CC-TAIM01 (Low-Level Analog Input Terminal Assembly – IOTA)
  • Honeywell CC-PAIH51 / CC-PAIH01 (16-Channel High-Level HART Analog Input Modules)
  • Honeywell CC-PCNT01 / 8C-PCNT02 (C300 Controller Processor Modules)



6. Warranty Protection & Continuous Supply Assurances

  • Extended 12-Month Supplier Warranty: Full 1-year replacement warranty protecting against internal electronic hardware defects under normal operating conditions.
  • Authenticity Guarantee: We supply original factory-spec Honeywell hardware to ensure performance matches OEM standards.
  • Automated Freight Tracking: Instant transmission of tracking coordinates for complete visibility from dispatch to facility delivery.



7. FAQ

Q: We have a critical boiler thermocouple loop offline on our C300 system. How fast can this CC-PAIM01 module ship out?

Orders for in-stock Honeywell CC-PAIM01 modules are processed immediately. Once payment confirmation is received, your package is dispatched via express air freight (DHL/FedEx Priority) within 24 hours to minimize plant downtime.

Q: Does replacing a CC-PAIM01 module require re-wiring the cold junction sensors on the terminal block?

No. The Experion C300 architecture separates the active electronics module (CC-PAIM01) from the field wiring base (CC-TAIM01). The cold junction sensors remain on the IOTA terminal base, so you simply unlatch and replace the module without disturbing field wiring.
