Description
1. Product Overview
The Honeywell CC-PAOH01 is an industrial-grade 16-Channel HART Analog Output Module designed for Honeywell’s flagship Experion PKS C300 Distributed Control System (DCS). It serves as the critical control interface converting digital control algorithms from the C300 processor into precise 4 to 20 mA analog signals to drive control valve positioners, variable speed drives, and actuators across continuous process plants.
Beyond delivering high-accuracy loop current control, the CC-PAOH01 natively supports bi-directional HART digital communications. This enables real-time device management, allowing the Experion system to monitor smart valve positioner diagnostics, stem travel feedback, and valve signature metrics directly through Field Device Manager (FDM) without interrupting primary loop control.
Key Applications:
- Emergency DCS Control Cabinet Swap-Outs: Rapidly replacing faulted actuator output cards on active refinery or power plant control systems.
- Automated Process Overhauls: Restoring accurate 4 to 20 mA control valve command telemetry to the C300 controller.
- Obsolescence & Fleet Upgrades: Securing genuine Honeywell C300 Series C modules for long-term plant fleet support.
- System Expansion Projects: Instantly adding analog control output capacity to existing CC-TAOX01 terminal bases.
2. Technical Features
| Feature | Technical Specification |
| Module Identifier | Honeywell Model CC-PAOH01 |
| Output Channel Density | 16 Isolated Channels generating 4 to 20 mA DC loops with HART capability |
| HART Communication | Dedicated HART modems per channel for parallel digital communication |
| D/A Conversion Precision | High-resolution digital-to-analog converter ensuring fast response and minimal drift |
| Output Loop Powering | Powered directly via internal/external 24V DC field power supplied through the IOTA |
| Hot-Swappable Design | Full Live Insertion and Removal (LIR) capability without disrupting active loop outputs |
| Compliance Certifications | UL Listed, CE Mark, CSA Certified, Class I Div 2 / Zone 2 Hazardous Location Approved |
3. Shipping & Corporate Procurement Terms
- Model & Label Cross-Check: Send us a photo of your existing card label or failed rack slot; our technical logistics team instantly verifies CC-PAOH01 codes to confirm exact physical and functional fitment.
- Quotation Transparency: Receive quick, competitive tier-pricing detailing immediate warehouse availability, bulk volume rates, and fast shipping options.
- Smooth Customs Clearance: Immediate preparation of international shipping invoices, HS codes, and customs documentation to prevent transit holds.
- Proforma Invoice Transmission: Corporate Proforma Invoices (PI) are delivered within hours to streamline your company’s internal purchasing workflow.
- Verified Monetary Settlement: Flexible corporate payment options via wire transfer (T/T) or verified secure global payment channels.
- Rigorous Pre-Shipment Check: Every card undergoes visual connector pin inspection, status LED verification, and housing latch checks before final packing.
- Heavy-Duty Protective Packaging: Sealed inside anti-static ESD bags with moisture desiccants, cushioned with conductive shock foam, and boxed in rigid export cartons.
- Express Air Freight Routing: Direct dispatch via DHL Express, FedEx, or UPS with trackable tracking numbers provided immediately upon shipment.
4. Visual Product Showcase

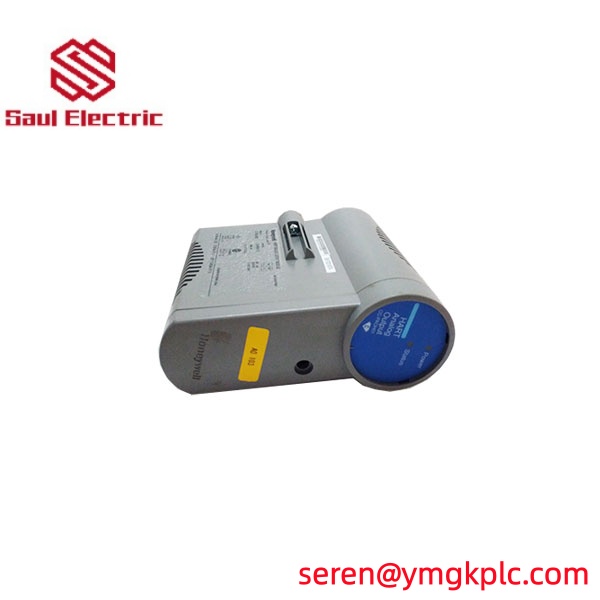

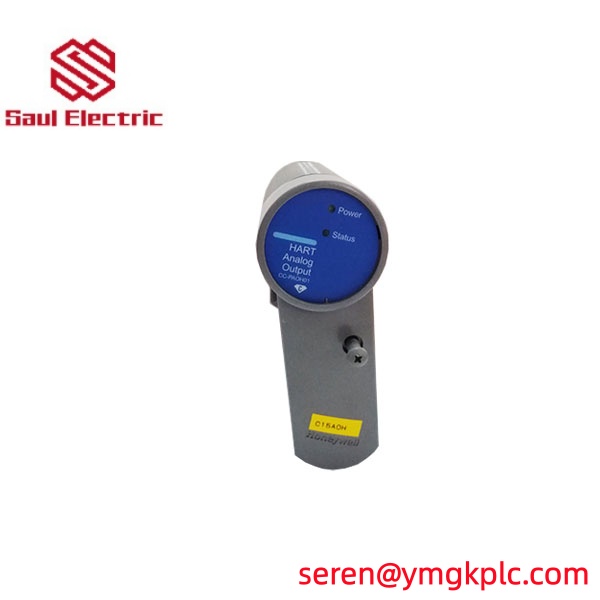

- [Product Photo 1]: Full front profile view of the Honeywell CC-PAOH01 module highlighting the blue “HART Analog Output” faceplate display.
- [Product Photo 2]: Detail photo focusing on the rear backplane connector interface and side ventilation grilles.
- [Product Photo 3]: Close-up view capturing the white Honeywell factory label displaying model CC-PAOH01 and serial tracking numbers.
5. Matching Honeywell Experion C300 Spares
- Honeywell CC-TAOX01 / CC-TAOX11 (HART Analog Output Terminal Assembly – IOTA)
- Honeywell CC-PAIX01 / CC-PAIH51 (16-Channel HART Analog Input Modules)
- Honeywell CC-PDOB01 / CC-SDOB01 (Digital Output Modules)
- Honeywell CC-PCNT01 / 8C-PCNT02 (C300 Controller Processor Modules)
- Honeywell CC-PAIH01
- Honeywell CC-PAIM01
6. Warranty Protection & Continuous Supply Assurances
- Extended 12-Month Supplier Warranty: Full 1-year replacement warranty protecting against internal electronic hardware defects under normal operating conditions.
- Authenticity Guarantee: We supply original factory-spec Honeywell hardware to ensure performance matches OEM standards.
- Automated Freight Tracking: Instant transmission of tracking coordinates for complete visibility from dispatch to facility delivery.
7. FAQ
Q: We have a critical control valve loop offline on our C300 system. How fast can this CC-PAOH01 module ship out?
Orders for in-stock Honeywell CC-PAOH01 modules are processed immediately. Once payment confirmation is received, your package is dispatched via express air freight (DHL/FedEx Priority) within 24 hours to minimize plant downtime.
Q: Does replacing a CC-PAOH01 module require re-wiring the valve positioner loops on the terminal block?
No. The Experion C300 architecture separates the active electronics module (CC-PAOH01) from the field wiring base (CC-TAOX01). Field cables remain securely wired to the terminal base, so you simply unlatch and replace the electronic module without disturbing field wiring.
