Honeywell CC-PAIX01 | Experion C300 16-Ch HART Analog Input Module

Honeywell CC-PAIX01 | Experion C300 16-Ch HART Analog Input Module

Original price was: $3,020.00.Current price is: $2,750.00.

  • Description: Honeywell Experion PKS C300 16-Channel HART Analog Input Module
  • Brand/Original Manufacturer: Honeywell Process Solutions (USA)
  • System Platform: Experion PKS Series / C300 Controller System
  • Hardware Module Model: CC-PAIX01
  • Associated Terminal Assembly: CC-TAIX01 / CC-TAIX11 (Analog Input IOTA)
  • Input Channels: 16 Single-Ended / Differential Channels (4 to 20 mA with HART pass-through)
  • Signal Support: Standard 4 to 20 mA DC & HART Protocol v5/v6/v7 Field Instruments
  • Condition: 100% Brand New Original Factory Sealed / Certified Tested Surplus
  • Country of Origin: USA / Puerto Rico
Get a Quote
Category: SKU: CC-PAIX01 Tags: Brand:
  • Need Help?
  • +86 13313703791
  • +86 13313703791
  • seren@ymgkplc.com
库存图标
100,000+ Models in Stock
保修图标
One-Year Warranty
响应图标
24h Fast Response

Description

1. Product Overview

The Honeywell CC-PAIX01 is a high-performance, industrial-grade 16-Channel HART Analog Input Module engineered specifically for Honeywell’s Experion PKS C300 Distributed Control System (DCS). It serves as the primary processing interface for standard 4 to 20 mA loop-powered field transmitters, including pressure, flow, level, and temperature units across critical continuous process plants.

In addition to converting analog current signals with high precision, the CC-PAIX01 seamlessly extracts bi-directional HART digital signals overlaid on the 4 to 20 mA loop. This enables the Experion platform to monitor secondary process variables, field device health diagnostics, and calibration parameters directly without requiring additional gateway hardware.

Key Applications:

  • Emergency DCS Control Rack Swap-Outs: Instant replacement of faulted 4 to 20 mA measurement channels on active process loops.
  • Preventive Plant Maintenance: Replacing aging input cards during scheduled turnaround maintenance windows.
  • HART Diagnostics Integration: Restoring digital field device health tracking in Experion Field Device Manager (FDM).
  • System Expansion Projects: Adding extra 4 to 20 mA instrument loops to spare CC-TAIX01 terminal slots.



2. Technical Features

Feature Technical Specification
Module Identifier Honeywell Model CC-PAIX01
Input Channel Density 16 Channels supporting 4 to 20 mA DC inputs with active HART support
HART Communication Full multi-drop HART pass-through to Experion Field Device Manager (FDM)
A/D Conversion Accuracy High-resolution analog-to-digital converter for low ripple and drift
Power Distribution Integrated transmitter loop power supply feed via matching IOTA
Hot-Swappable Design Full Live Insertion and Removal (LIR) capability without tripping adjacent I/O cards
Compliance Certifications UL Listed, CE Mark, CSA Certified, Class I Div 2 / Zone 2 Hazardous Approved



3. Commercial Procurement Protocol

  1. System Architecture Compatibility Audit: Our engineering team checks your I/O Terminal Assembly (IOTA) base coding and system software build to guarantee 100% plug-and-play fitment for CC-PAIX01.
  2. Itemized Quote Engineering: Receive clear, volume-tiered pricing options detailing real-time warehouse inventory and express global air freight routes.
  3. Global Trade & Export Verification: Swift export filter checks ensuring frictionless customs clearance across international borders.
  4. Proforma Invoice Transmission: Detailed corporate Proforma Invoices (PI) generated quickly to facilitate immediate corporate financial sign-off.
  5. Secure Financial Settlement: Monetary transactions completed safely via wire transfer (T/T) or verified corporate trade settlement channels.
  6. Pre-Dispatch Hardware Inspection: Physical verification of connector pins, enclosure clip integrity, and power-on diagnostic LED indicators.
  7. Anti-Static Export Cushioning: Vacuum-sealed inside ESD anti-static shielding packaging with inner foam padding in heavy-duty export boxes.
  8. Express Courier Dispatch: Sourced modules ship instantly via global couriers (DHL Express, FedEx, UPS) with full shipment tracking provided.



4. Visual Resource Library

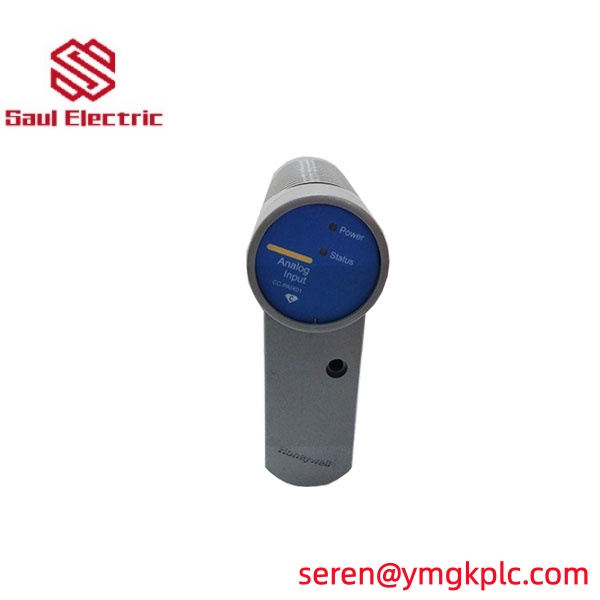

  • [Product Photo 1]: Straight portrait view of the Honeywell CC-PAIX01 module showing the blue front display and status LEDs.

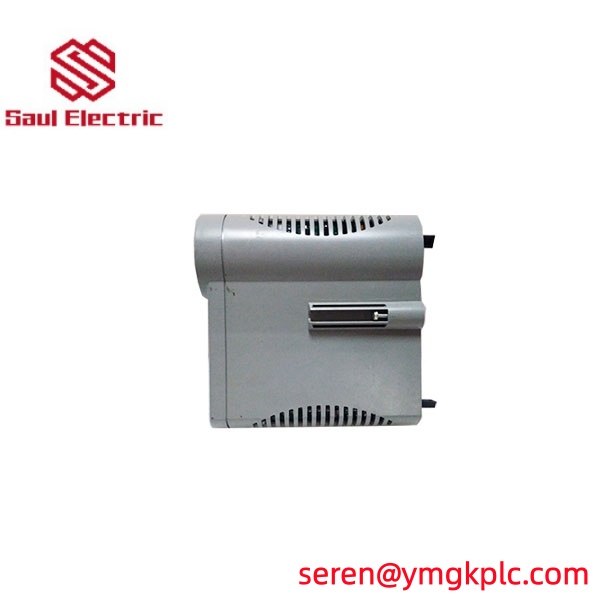

  • [Product Photo 2]: Side angle view displaying housing cooling vents and the backplane connector socket.

5. Related Fleet Spares Systems

  • Honeywell CC-TAIX01 / CC-TAIX11 (HART Analog Input Terminal Base)
  • Honeywell CC-PAOX01 (16-Channel HART Analog Output Module)
  • Honeywell CC-PDIL01 (Digital Input 24V Module)
  • Honeywell CC-PAIH01
  • Honeywell CC-PAIH51
  • Honeywell CC-PAIM01



6. Enterprise After-Sales Guarantees

  • 12-Month Replacement Warranty: Comprehensive 1-year warranty guarding against internal circuit defects under standard operational use.
  • 100% Genuine Hardware Assurance: We supply authentic Honeywell factory-manufactured equipment to protect critical control loops.
  • Technical Documentation Support: Access to technical manuals, pinout guides, and IOTA wiring configurations.



7. FAQ

Q: We have a critical flow transmitter offline on our C300 rack. How fast can this CC-PAIX01 module ship?

Orders for ready-to-ship Honeywell CC-PAIX01 modules are processed immediately. Upon payment confirmation, your order is packed and handed over to express air couriers (DHL/FedEx Priority) within 24 hours to help minimize downtime.

Q: Do we need to disconnect field wiring to replace a faulted CC-PAIX01 module?

No. Experion C300 hardware separates the active processing card (CC-PAIX01) from the terminal assembly (CC-TAIX01). Field wires remain attached to the terminal block while you unlatch and swap the electronic module.
