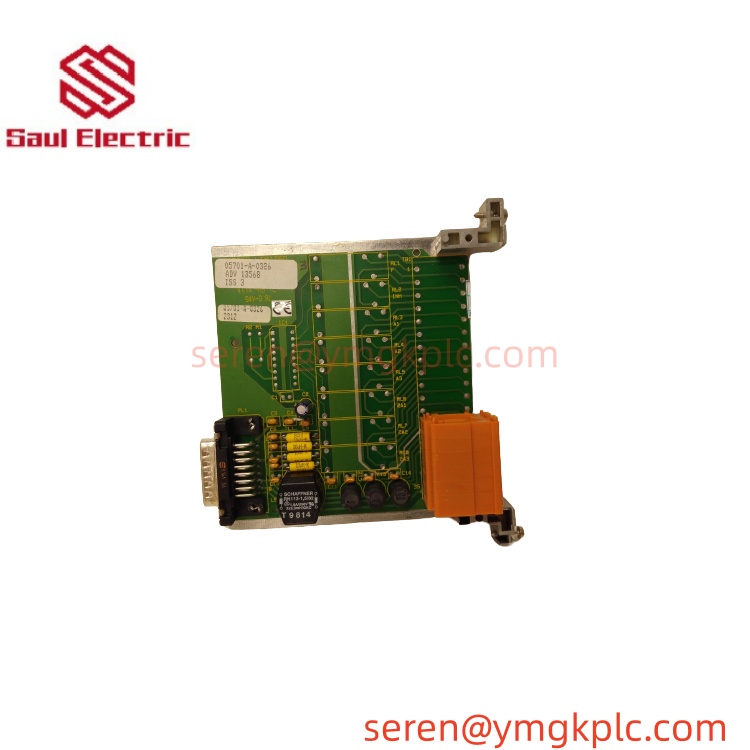

Honeywell 05701‑A‑0326 System 57 Field Interface Card

Description

Product Overview

The Honeywell 05701‑A‑0326 is a field‑interface plug‑in card designed for Honeywell Zellweger System 57 rack‑mount gas‑detection monitoring system. It provides dedicated wiring terminals for field gas‑detector cables, implements signal isolation and transient‑surge protection between field‑side sensors and internal single‑channel control cards. This card undertakes all field‑cable termination work, separates field‑wiring from the expensive main control card, avoids control‑card damage caused by field‑loop surge, short‑circuit or wiring‑fault. It adopts 3U standard plug‑in mechanical structure, installs into System 57 19‑inch sub‑rack, works cooperatively with 05701‑A‑0301 or 05701‑A‑0302 single‑channel gas‑detection control cards. Widely used for legacy System 57 gas‑monitoring‑system maintenance and spare‑part‑replacement projects for petrochemical, refinery and offshore‑platform sites.

Series

System 57 modular fire‑and‑gas safety‑monitoring hardware platform by Honeywell Zellweger Analytics. The rack‑based system includes gas‑detection control cards, field‑interface cards, relay output cards, DC‑input power‑interface cards and backplane assemblies for continuous toxic‑gas and combustible‑gas safety‑monitoring in industrial‑hazardous‑location cabinets.

Product Features

1. Dedicated field‑interface wiring termination for gas‑detector field‑cable connection
2. Built‑in transient‑surge‑protection circuit, protects downstream single‑channel control‑card hardware from field‑side surge‑voltage damage
3. Electrical‑isolation design separates field‑loop and rack‑internal‑circuit to restrain ground‑loop interference
4. Matches perfectly with System57 single‑channel control cards (05701‑A‑0301 / 05701‑A‑0302)
5. All field‑cables terminate onto this interface card; main control‑card avoids direct contact with field‑wiring fault risks
6. 3U plug‑in form‑factor, directly inserts into System 57 standard 19‑inch sub‑rack chassis
7. Supports hot‑swap replacement; replacement does not affect other channel operation inside the rack
8. Industrial‑grade hardware design for long‑term 24‑hour continuous‑operation inside safety‑monitoring cabinets

Product Parameters

表格

Product Specifications

• Physical form: 3U plug‑in field‑interface card for Honeywell System 57 sub‑rack
• Condition: New surplus / Tested used (stock subject to real‑time confirmation)
• Warranty: 365‑day warranty for supplied units
• Shipment: In‑stock goods ship within 3 working days after payment

Function

Provides wiring terminals for field‑gas‑detector cables; implements surge‑protection and electrical‑isolation for field‑loop signals; transmits sensor‑measuring‑signals to matched single‑channel‑control‑card through rack‑backplane; isolates field‑side electrical‑fault to prevent damage to core control‑card hardware.

05701-A-0301

05701-A-0325

Purpose

Acts as physical‑layer isolated‑wiring bridge between field‑gas‑detectors and rack‑internal gas‑detection control‑cards for Honeywell System 57 gas‑safety‑monitoring system.

Application Fields

‑ Petrochemical‑plant System 57 gas‑detection‑cabinet spare‑part‑replacement‑ Oil‑gas‑site and offshore‑platform legacy fire‑and‑gas‑monitoring‑system maintenance‑ Refinery hazardous‑area gas‑monitoring‑rack retrofits‑ Chemical‑plant Honeywell Zellweger System 57‑system overhaul‑projects‑ Hazard‑process‑industrial‑site fixed‑gas‑safety‑monitoring‑cabinet‑repair

Image search keyword for reference: Honeywell 05701‑A‑0326 System57 field interface card
