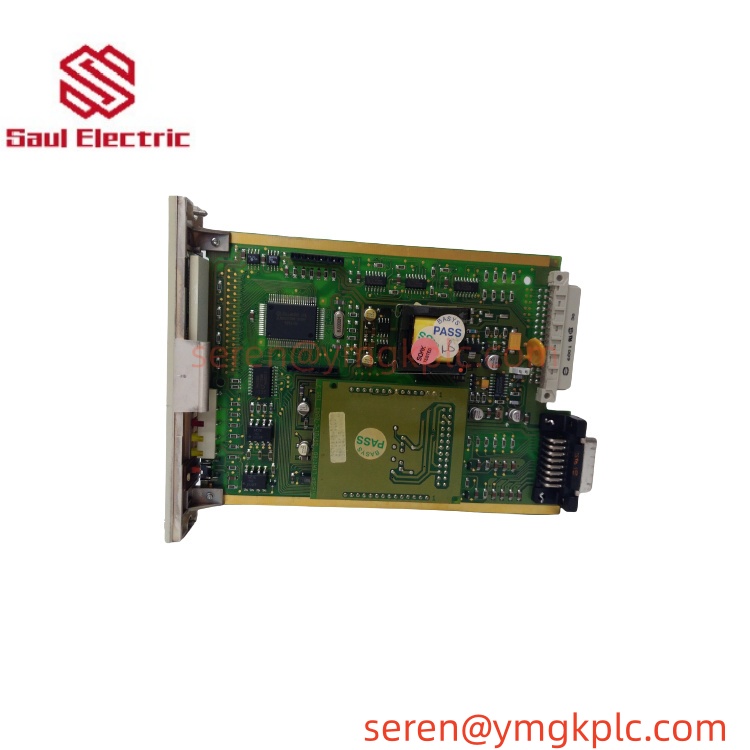

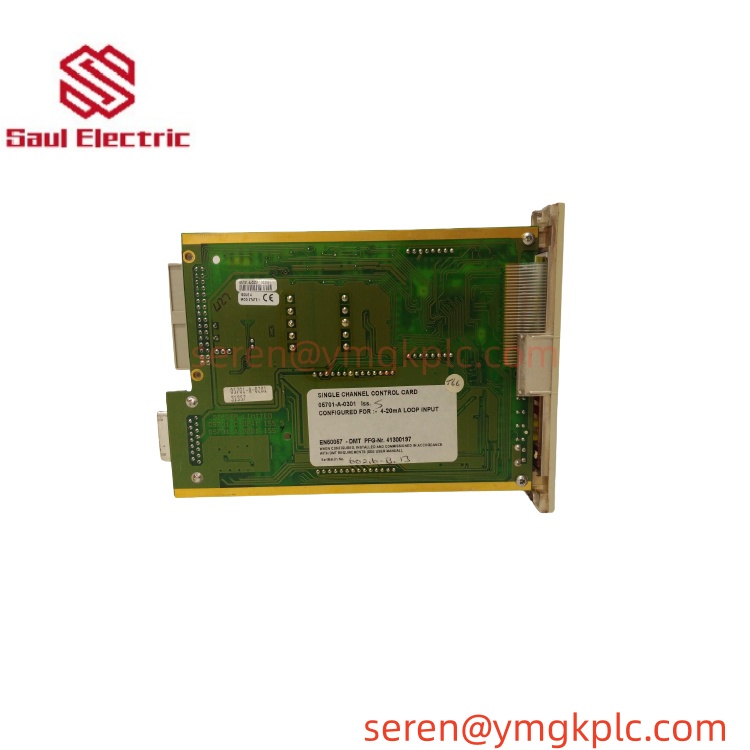

Honeywell 05701‑A‑0301 Zellweger System 57 Single‑Channel 4‑20mA Gas Detection Control Card

Honeywell 05701‑A‑0301 Zellweger System 57 Single‑Channel 4‑20mA Gas Detection Control Card

Original price was: $999.00.Current price is: $888.00.

Model： 05701‑A‑0301

Brand： Honeywell (Zellweger Analytics)

Series： System 57 / 5701 Gas Monitoring Series

Core Function： Single‑channel gas detection control card, processes 4‑20 mA gas transmitter input, calculates gas concentration, executes multi‑level alarm logic and provides isolated 4‑20 mA output for fixed hazardous‑gas safety monitoring systems

Product Type： Gas Detection Single‑Channel Control Card

Key Specifications： Single‑channel 4‑20 mA loop input, isolated 4‑20 mA analog output, A1/A2/A3 three‑stage gas alarm, STEL / LTEL / Rate alarm support, front‑panel LCD & LED indicators, 18‑32VDC power supply, 3U 1‑inch width plug‑in rack card for System 57 sub‑rack

End‑of‑life status： Obsolete OEM production, spare stock available

Get a Quote
Category: SKU: 05701‑A‑0301 Brand:
  • Need Help?
  • +86 13313703791
  • +86 13313703791
  • seren@ymgkplc.com
库存图标
100,000+ Models in Stock
保修图标
One-Year Warranty
响应图标
24h Fast Response

Description

Product Overview

The Honeywell 05701‑A‑0301 is a single‑channel plug‑in control card for Honeywell Zellweger System 57 rack‑mounted gas safety monitoring platform. It receives 4‑20 mA signal from field gas transmitters, performs concentration conversion, multi‑threshold alarm judgment and delivers isolated 4‑20 mA analog output to connect with DCS or PLC host systems. The front panel integrates multi‑segment LCD display, alarm/fault LED indicators and local reset button. Individual card replacement will not interrupt operation of other channels within the same rack. This module is widely used for spare‑part replacement and maintenance of legacy fixed gas‑detection systems in petrochemical, refinery and offshore hazardous‑area sites。

Series

System 57 / 5701 modular gas monitoring hardware by Honeywell Zellweger Analytics. 3U sub‑rack based system assembled with single‑channel control cards, power supply units and backplane components for continuous toxic and combustible‑gas monitoring in industrial hazardous locationsManualsLib.



Product Features

  1. Single‑channel 4‑20 mA loop input for receiving signal from field gas transmitters
  2. Isolated 4‑20 mA analog output for transmitting gas concentration value to upper‑level control system
  3. Supports multi‑mode alarm logics: A1/A2/A3 threshold alarm, STEL, LTEL and Rate‑of‑rise alarm functions

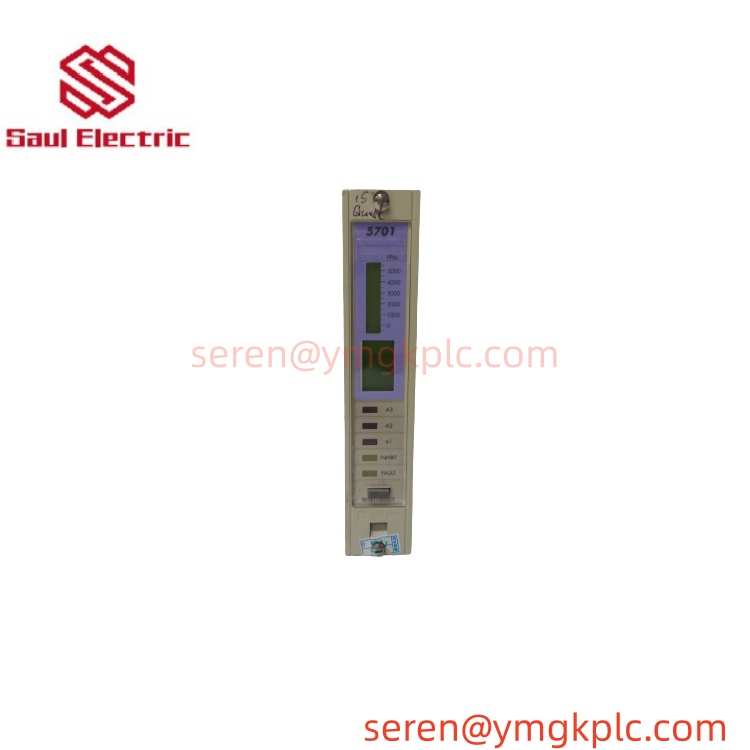

  4. Front‑panel multi‑segment LCD readout; dedicated LED indicators for A1/A2/A3 alarm, Fault and Inhibit status; local alarm‑reset push‑button
  5. Accepts remote inhibit and remote reset signals from external control devices
  6. 18‑32 VDC wide‑range DC power input; typical power consumption 3.25W under 4‑20mA input mode
  7. Hot‑swap capable card design; replacement of one channel does not affect other working channels in rack
  8. Built‑in self‑diagnosis for sensor loop break, signal over‑range and internal hardware failure
  9. Compact 1‑inch‑width 3U form‑factor, fits System 57 standard 19‑inch sub‑rack chassis
  10. Complies with industrial EMC requirements for long‑term 24/7 cabinet‑mount continuous operation

Product Parameters

Item Parameter
Model 05701‑A‑0301
Module Type Single‑Channel Gas Detection Control Card
Field Input Signal 4‑20 mA gas transmitter loop input
Analog Output Isolated 4‑20 mA concentration output
Alarm Levels A1, A2, A3; STEL / LTEL / Rate alarm supported
Front‑panel Interface Multi‑segment LCD; A1/A2/A3 / Fault / Inhibit LED; Reset push‑button
Power Supply 18‑32 VDC DC supply
Typical Power Consumption 3.25 W (4‑20 mA input mode)
Dimension 170 mm × 25 mm × 112 mm
Weight Approx. 165 g
Compatible Rack Honeywell Zellweger System 57 / 5701 sub‑rack chassis
Operating Temperature 0 ℃ ~ +60 ℃



Product Specifications

  • Physical form: 3U 1‑inch width plug‑in rack‑mount control card
  • Condition: New surplus / Tested used (stock subject to real‑time confirmation)
  • Warranty: 365‑day warranty for supplied units
  • Shipment: In‑stock goods ship within 3 working days after payment



Function

Receives 4‑20 mA measurement signal from field gas transmitters; converts raw signal into real‑time gas‑concentration reading; executes multi‑threshold alarm logic processing; outputs isolated 4‑20 mA analog signal to DCS/PLC; provides local visual display and alarm indication; responds to remote inhibit‑reset commands; detects field‑loop and internal hardware faults and triggers fault alarms.



Purpose

Realize single‑point hazardous‑gas measurement, alarm processing and signal transmission for Honeywell System 57 gas safety monitoring systems, provide gas‑safety input for plant safety‑protection logic.



Application Fields

‑ Petrochemical plant fixed combustible & toxic gas‑monitoring cabinets‑ Oil‑gas on‑site and offshore platform gas‑detection‑system maintenance‑ Refinery hazardous‑area gas‑safety monitoring retrofits‑ Chemical‑plant legacy Zellweger System 57 spare‑part replacement‑ Hazard‑process industrial site gas‑safety protection projects‑ Waste‑treatment plant toxic‑gas monitoring systems
