GE DS200DCFBG1BNC | DC FEEDBACK POWER BOARD FOR GE SPEEDTRONIC MARK V GAS & STEAM TURBINE CONTROL SYSTEM

Description

PRODUCT OVERVIEW

GE DS200DCFBG1BNC belongs to GE DS200 series rack PCB cards, serving as an upgraded revision DC feedback power board for the classic Speedtronic Mark V turbine control platform. This board undertakes two core core tasks inside the turbine control cabinet: converting dual AC input into multi-channel stable DC working power for all logic control cards in the Mark V rack, and real-time collection, conditioning and feedback of armature voltage, excitation field current, AC bus current and other drive operating signals for the host controller to execute closed-loop speed regulation, load control and equipment safety protection calculation.The PCB integrates power conversion circuit, SCR drive circuit, field signal sampling circuit and multi-stage EMI filtering isolation circuit. Equipped with onboard DIP toggle switches for on-site calibration of feedback signal gain and zero offset parameters without modifying system upper computer programs.

Multiple hardware protection mechanisms including overvoltage, overcurrent, short-circuit and reverse power access are embedded on the board to avoid cascading damage to the whole control rack caused by power grid surge and field wiring faults. Adopting standard plug-in rack installation structure, it is fully compatible with AC2000, DC2000, FC2000, ME2000, CB2000, EX2000 drive units matched with Mark V system. Widely applied in thermal power steam turbine generator sets, combined-cycle gas turbine units, petrochemical large turbine compressor equipment for control cabinet maintenance and spare parts replacement.

TECHNICAL SPECIFICATIONS

表格

COMMERCIAL PROCUREMENT PROTOCOL

1. Pre-Sale Turbine System Compatibility Audit: Professional power automation engineers verify your existing Mark V system hardware revision, cabinet slot wiring definition and original board version number to guarantee complete hardware matching without adaptive faults after circuit board replacement.

2. Volume-Based Hierarchical Preferential Pricing Mechanism: Provide differentiated discount policies corresponding to different procurement volumes, meanwhile synchronize real-time inventory data and full-cost quotation of global air freight logistics solutions.

3. Cross-Border Trade Compliance & Customs Declaration Service: Prepare standardized export documents and unified HS code filing materials to accelerate customs clearance procedures for importing countries worldwide.

4. Formal Corporate Standardized Proforma Invoice Issuance: Generate official standardized PI documents efficiently to cooperate with your internal financial audit approval and capital payment management workflows.

5. Secure Cross-Border Capital Settlement Channels: Support formal fund settlement via T/T telegraphic transfer and verified enterprise-level international trade payment platforms.

6. Multi-Dimensional Pre-Delivery Quality Validation Test: Implement standardized power-on burn-in test, multi-channel DC output precision test, feedback signal analog acquisition test and overall PCB appearance integrity inspection before goods delivery.

7. Standardized ESD Professional Export Packaging Solution: Adopt certified anti-static vacuum shielding bag + customized shock-absorbing foam filling + heavy-duty reinforced export carton to prevent PCB circuit damage during transnational long-distance logistics transportation.

8. Global Door-to-Door Express Delivery Execution: Arrange international transportation via authorized official channels of DHL Express, FedEx and UPS, and issue complete real-time logistics tracking number immediately after goods departure.

VISUAL PRODUCT SHOWCASE

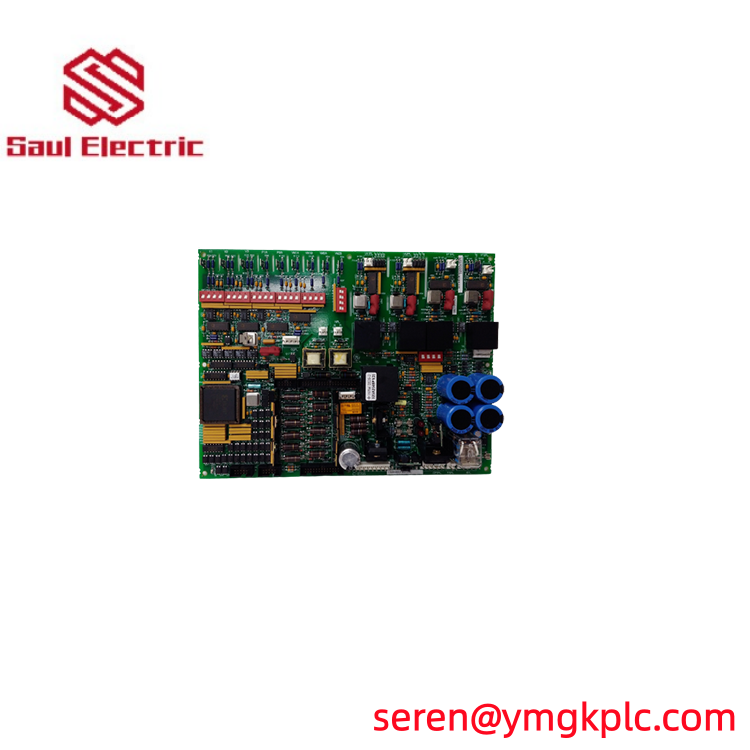

1. Product Photo 1: Component side overall photo of DS200DCFBG1BNC board, showing electrolytic capacitors, transformers and DIP calibration switches layout.

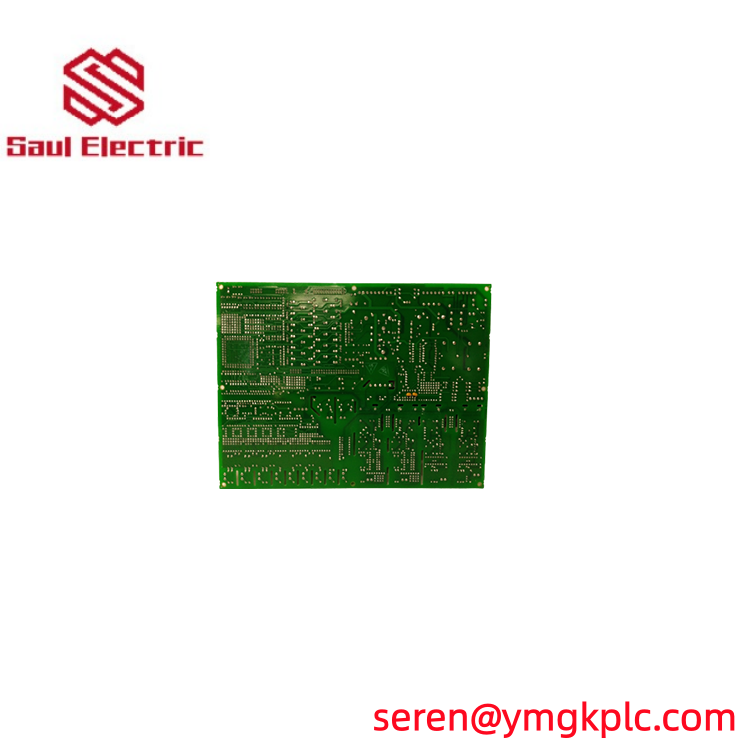

2. Product Photo 2: Rear copper foil circuit board shot, displaying complete PCB wiring and backplane golden finger contact area.

3. Product Photo 3: Board edge terminal block close-up, including power terminals, signal terminals and rack fixed buckle structure.

MATCHING GE SPARES AND ACCESSORIES

Full series DS200 Mark V control boards,

system rack backplane assembly,

original shielded signal cables,

cabinet cooling fan components,

GE Mark V system configuration software,

DS200DCFBG1BNC official wiring diagram & maintenance manual

GE DS200DCFBG1BGB

ENTERPRISE AFTER-SALES GUARANTEES

12-month full warranty service: Free maintenance or replacement for inherent hardware defects under standard rated operating conditions within the warranty periodGenuine original quality guarantee: All supplied DS200DCFBG1BNC boards are authentic GE original products (new sealed or strictly bench-tested used stock), fully compatible with original Mark V turbine control hardwareComplete technical document delivery: Electronically send official datasheets, circuit schematics, DIP switch parameter tables and board replacement operation guidesLong-term free technical support: Provide remote guidance for board disassembly replacement, power parameter debugging and turbine cabinet circuit fault troubleshooting

FAQ

1. What core functional positioning does GE DS200DCFBG1BNC occupy in the Mark V turbine control system?DS200DCFBG1BNC is the core power conversion and feedback signal acquisition board of Mark V control rack. It supplies stable DC working power for each control module inside the cabinet, and collects real-time operating feedback data of drive equipment to support the turbine main controller to execute closed-loop regulation and safety interlock protection logic operation.
2. What two groups of AC input power sources are adopted by the hardware of DS200DCFBG1BNC?The board adopts dual independent AC input of 38VAC and 115VAC. 38VAC is used for internal control power conversion, while 115VAC is specially used to provide power output for the cabinet forced cooling fan system.
3. What maximum load current can the 24VDC main control power output of this board bear?The rated maximum output current of the +24VDC main control power bus is 10A, which can stably supply power to all internal logic boards of the whole Mark V control cabinet under rated normal operating conditions.
4. Which series of drive devices can DS200DCFBG1BNC be matched with in the Mark V system platform?This circuit board is universally applicable to six mainstream drive models under the Mark V platform: AC2000, DC2000, FC2000, ME2000, CB2000 and EX2000, which are widely equipped in global thermal power plant turbine generator units.
5. Does DS200DCFBG1BNC support on-site manual calibration of feedback signal characteristic parameters?The PCB is pre-installed with a complete set of DIP dial switches. Professional field maintenance engineers can adjust the gain value and zero offset of collected feedback signals according to the actual operating state of the unit, without modifying the system upper computer configuration programs.
6. What anti-interference isolation design is arranged between the feedback signal loop and the main power loop of the board?A 2500VDC high-withstand-voltage optical isolation structure is arranged between the feedback sampling circuit and the main power circuit, which can effectively isolate on-site power grid voltage surge and electromagnetic radiation interference, and improve the overall anti-interference performance of the turbine control system.
7. Will the pre-owned DS200DCFBG1BNC circuit boards you supply pass standardized full-performance safety testing before leaving the warehouse?All second-hand circuit boards will complete long-term power-on aging test, multi-channel voltage output accuracy calibration and feedback signal continuous sampling stability test before delivery, to guarantee long-term safe and stable operation after being put into the formal turbine control system.
8. What is the actual shipment lead time for spot stock DS200DCFBG1BNC finished products?Spot inventory is stored in our domestic warehouse, and formal shipment procedures will be fully completed within 3 working days after we receive and complete the verification of your official payment voucher.
