Honeywell 05701-A-0325 System 57 | Engineering Card | Gas Detection Configuration Module

Description

【Product Overview】

The Honeywell 05701-A-0325 is the dedicated Engineering Card for the renowned System 57 Gas Detection System. Unlike standard channel control cards (such as the 05701-A-0301), this module functions as the central communication and configuration hub for the entire System 57 rack. It provides the essential interface for plant engineers to set up, calibrate, interrogate, and diagnose all connected gas monitoring channels from a single point.

Typically installed in a dedicated slot within the System 57 chassis, the Engineering Card allows for global rack commands, password-protected parameter adjustments, and firmware-level diagnostics. Without this vital interface, individual control cards cannot be properly commissioned or maintained. For offshore platforms and petrochemical plants relying on Honeywell’s legacy F&G architecture, having a fully functional 05701-A-0325 is non-negotiable for system compliance and safe operations.

【Key Features】

(1) Centralized Configuration: Allows users to program alarm setpoints, relay voting logic, and channel groupings across the entire System 57 rack.

(2) Calibration Interface: Simplifies routine sensor maintenance by providing a unified gateway to initiate and monitor calibration sequences for individual field detectors.

(3) Serial Communication Port: Features a front-mounted RS232 port for connection to a laptop or PC, enabling software-based system configuration and event logging.

(4) Password Protection: Ensures that critical safety parameters and alarm thresholds cannot be altered by unauthorized personnel.

(5) Global Diagnostics: Instantly polls the health of all inserted control cards and power supplies, displaying fault codes for rapid troubleshooting.

(6) Hot-Swappable: Can be inserted or removed from an active rack without tripping alarms or disrupting the continuous monitoring of the control cards.

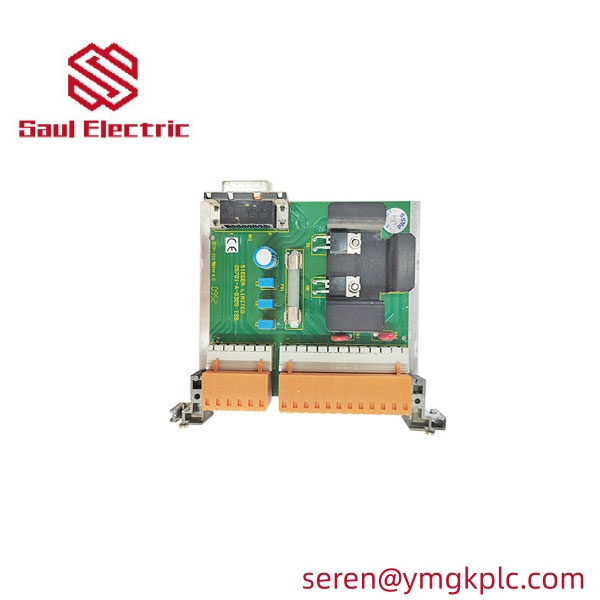

Honeywell 05701-A-0325 System 57 Engineering Card Front Panel frontview

【Applications】

(1) System Commissioning: Essential for initial setup and parameter programming of new Fire and Gas (F&G) racks in petrochemical facilities.

(2) Routine Maintenance: Used by instrument technicians for mandatory quarterly or annual gas sensor calibrations.

(3) Offshore Oil & Gas: Providing critical diagnostic capabilities for remote drilling platforms where system downtime is unacceptable.

(4) LNG Terminals: Managing complex voting logic configurations for large-scale combustible gas detection networks.

(5) Global Industrial Procurement: A highly sought-after “setup tool” spare part for EPC contractors and maintenance firms operating in the Middle East, Russia, and the CIS region.

【Related Models / System 57 Family】

The 05701-A-0325 is designed to work in conjunction with:

• 05701-A-0301: Single Channel Control Card (Combustible/Toxic).
• 05704-A-0121: Four Channel Control Card.
• 05704-A-0144: Relay Output Card for expanded shutdown logic.
• 05704-A-0145: System 57 Standard 19-inch Rack Chassis.

👉 We specialize in sourcing and testing complete Honeywell System 57 rack assemblies.

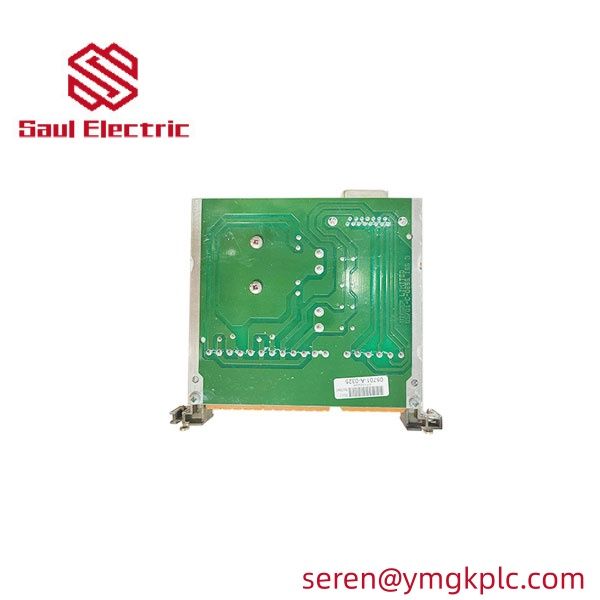

Honeywell 05701-A-0325 System 57 Engineering Card Front Panel backside

【Supply Advantage】

(1) Strategic Xiamen Inventory: We stock the 05701-A-0325 Engineering Card locally for immediate response to urgent global safety system requirements.

(2) Live Video Verification: To guarantee confidence before you buy, we offer WhatsApp video calls to demonstrate the physical condition, pristine circuitry, and original labels of your exact module.

(3) Rigorously Tested Quality: Every Engineering Card undergoes strict physical inspection and power-on testing in a simulated System 57 rack to ensure the communication ports and logic are flawless.

(4) Trade-Optimized Pricing: We provide Proforma Invoices (PI) within 24 hours, utilizing neutral export packaging to safeguard your B2B middleman margins.

(5) Global Logistics Excellence: Deep expertise in clearing critical automation spares through customs in high-demand markets like Kazakhstan, Saudi Arabia, and the UAE.

(6) 12-Month Guarantee: We back our rigorously verified inventory with a comprehensive one-year replacement warranty, giving you peace of mind.

【Why Choose Us】

(1) F&G Hardware Specialists: We understand the critical difference between control cards and engineering cards, ensuring you procure the exact logic components your end-user needs.

(2) Visual Accountability: We supply high-resolution photos of the specific board revisions, guaranteeing you receive equipment that meets original factory standards.

(3) Reliable Supply Backend: We serve as your dependable sourcing partner, providing the pristine safety hardware required to win and execute lucrative international tenders.

【Procurement Process】

(1) Inquiry: Contact us via Email or WhatsApp with the part number 05701-A-0325.

(2) Quote: Receive detailed pricing, shipping options (DHL/FedEx/UPS), and lead times within 24 hours.

(3) Confirm Order: Finalize the quantity and logistics method for your client.

(4) Secure Payment: Execute payment via standard Telegraphic Transfer (T/T).

(5) Inspection & Video Proof: We perform a final QA check and send you a live video or high-res photos of your packaged order.

(6) Dispatch: Rapid dispatch with secure, anti-static export packaging and real-time tracking.

【We Also Supply】

Consolidate your safety and DCS sourcing with our other premium brands:

• HONEYWELL: Safety Manager (SM), FSC system, and TDC 3000 modules.
• BENTLY NEVADA: 3500 series vibration monitors (3500/40M, 3500/53).
• TRICONEX: 3008 processors and 3503EN TMR digital input cards.
• HIMA: HIMax and HIQuad safety controllers.
• EMERSON: DeltaV SIS and Ovation DCS components.

【CTA】

Searching for the Honeywell 05701-A-0325 Engineering Card? Ensure your System 57 rack is fully configurable and compliant with a rigorously tested original module. Contact us today for a fast quote and worldwide shipping!

Send Inquiry Now | Request a WhatsApp Video Tour
