ABB ACU-01B 3HNA024871-001 Control Unit

ABB ACU-01B 3HNA024871-001 Control Unit

Original price was: $999.00.Current price is: $888.00.

Brand: ABB

Model: ACU-01B 3HNA024871-001

Type: Control Unit

Series: ABB Drive System

Core Function: Drive Control & System Communication

Country Of Origin: Finland

Condition: New Original

Availability: Ready Stock

Warranty: 12 Months

Get a Quote
Category: SKU: ACU-01B 3HNA024871-001 Brand:
  • Need Help?
  • +86 13313703791
  • +86 13313703791
  • seren@ymgkplc.com
库存图标
100,000+ Models in Stock
保修图标
One-Year Warranty
响应图标
24h Fast Response

Description

PRODUCT OVERVIEW

ABB ACU-01B with part number 3HNA024871-001 is a dedicated air pressure control unit matching ABB industrial painting robots. As the core gas path control component of the robot spraying system, it precisely regulates compressed air pressure, atomizing air and fan air pressure in real time according to operation instructions, stabilizing spraying flow and molding effect. Equipped with high-precision pressure detection sensor and closed-loop regulation circuit, it realizes millisecond-level fast response. Built-in multi-level surge, overpressure and short-circuit protection circuits, with metal sealed shell structure to resist paint mist, dust and damp erosion inside the spraying workshop. Mainly used for maintenance replacement and spare parts stocking of IRB5400, IRB5500 series automatic spraying robots in automobile painting, furniture coating and workpiece surface spraying industries.

TECHNICAL SPECIFICATIONS

Item Parameter Details
Model & PN ABB ACU-01B / 3HNA024871-001
Official Name Robot Spraying Air Control Unit
Working Power DC 24V standard power supply
Control Object Atomization air, shaping air, cleaning air pressure
Control Precision High precision closed-loop pressure adjustment
Communication Interface Internal bus + terminal hard-wired signal port
Built-in Protection Overpressure protection, short-circuit protection, overcurrent protection, anti-paint corrosion structure
Working Temperature -20℃ ~ +70℃ stable operation
Storage & Transportation Temp -40℃ ~ +85℃
Ambient Humidity 5% ~ 95% RH, non-condensing
Installation Mode Fixed installation inside robot arm or robot cabinet
Protection Grade IP20 for electrical part, corrosion-resistant gas circuit structure
Certifications CE, UL industrial robot safety certification
Product Attribute Original OEM spare part for ABB painting robot system

COMMERCIAL PROCUREMENT PROTOCOL

  1. Matching Inspection: Our technicians confirm your robot model and system firmware version to ensure plug-and-play compatible replacement.
  2. Tiered bulk pricing: Discounted price for bulk orders, real-time stock and international freight will be updated synchronously.
  3. Export document support: Provide complete customs documents and unified HS declaration to guarantee smooth customs clearance globally.
  4. Formal PI issuance: Issue official proforma invoice to support your internal financial approval and payment process.
  5. Payment method: Secure payment via T/T wire transfer and other formal enterprise trade ways.
  6. Strict pre-shipment test: Every unit undergoes air tightness test, pressure regulation calibration and robot communication matching test before delivery.
  7. Professional export package: ESD anti-static bag + shockproof foam + thickened reinforced carton to prevent gas pipeline joints and internal circuit damage during transit.
  8. Global shipping: Shipment by DHL, FedEx, UPS; tracking number will be provided once dispatched.

VISUAL PRODUCT SHOWCASE

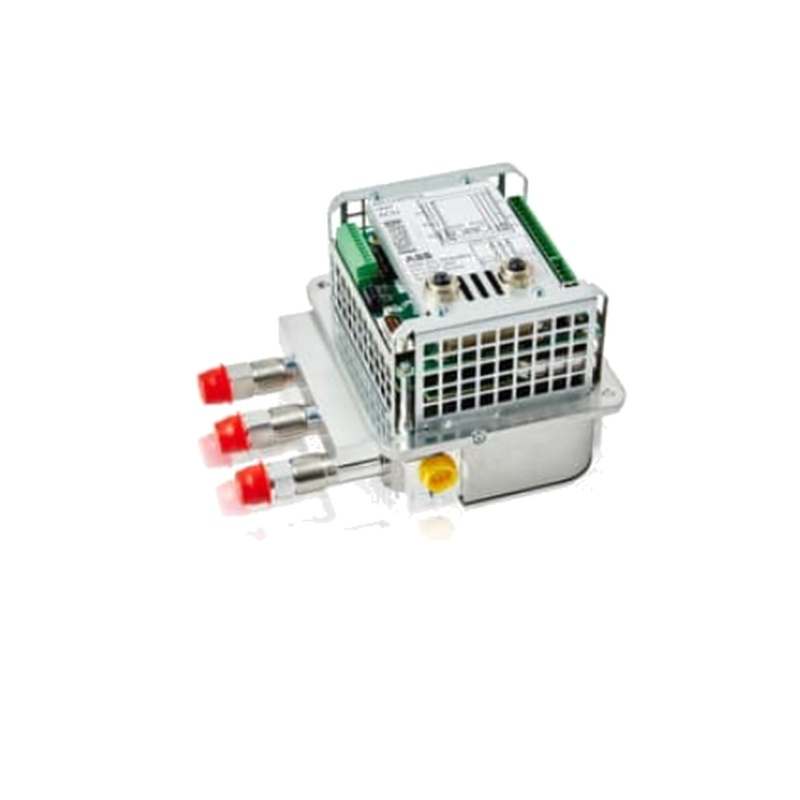

  1. Product Photo 1: Overall structural drawing of ACU-01B, marking gas interface terminals and electrical wiring area

ACU-01B Robotic paint control 3HNA024871-001 - xiongba automation

  1. Product Photo 2: Partial layout of internal pressure control circuit and proportional valve assembly

ABB+ACU-01B 3HNA024871-001 - Runsheng Automation

MATCHING SUPPORTING SPARES & TECHNICAL DOCUMENTS

ABB robot main controller unit, precision air filter element, high-pressure resistant air delivery hose, sealing maintenance gaskets, RobotStudio programming software, complete wiring schematic and standardized safety operation specification for ACU module disassembly & replacement

AFTER-SALES SERVICE & WARRANTY TERMS

A 12-month quality warranty period is provided for inherent hardware failures generated under rated normal operating conditions, with free repair or replacement service within the warranty scope. All supplied ABB ACU-01B modules are original genuine products (brand new original packaged goods or second-hand disassembled components after full bench testing), whose pressure control accuracy and installation physical dimensions are completely consistent with the original factory design standards. We provide electronic delivery of official datasheets, detailed wiring specifications and safety operation guidelines for field replacement work. Long-term free remote technical services cover module installation commissioning, spraying process parameter debugging and robot system abnormal fault diagnosis & elimination.

FAQ

What core role does ACU-01B 3HNA024871-001 undertake in the painting robot system?

It is the execution core of the robot spraying gas path control system. It receives pressure instructions from the upper computer in real time, dynamically adjusts the output air pressure of each channel of the spray gun, maintains consistent coating thickness and spraying quality in the whole robot motion track, and automatically alarms and protects under abnormal air pressure to avoid defective spraying products.

Does replacing this air control unit need to re-calibrate all spraying programs?

The spraying process parameters are stored in the robot controller memory. Hardware replacement will not lead to parameter loss, only simple zero calibration of air pressure output is required to resume normal production operation.

Are recycled used ACU modules subject to complete testing procedures before delivery?

All disassembled used modules will complete long-time pressure load aging test, gas tightness inspection, full-scale pressure precision calibration and robot host communication matching test item by item to fully meet original factory technical indicators before shipment.

Delivery cycle for spot inventory products?

Spot goods are stored in domestic warehouse, all delivery formalities can be fully completed within 3 working days after the buyer’s payment is reviewed and confirmed.

Contact info
