Product Overview

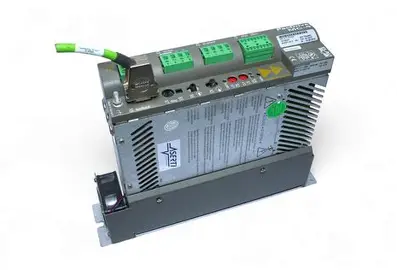

MC-4/11/10/400 is a standard digital servo drive under Schneider ELAU PacDrive motion control system. This integrated unit integrates main power supply circuit, power output stage and servo closed-loop regulator inside one compact housing, specially matched with SH series PacDrive servo motors for multi-axis synchronous motion control of high-speed packaging equipment. It adopts SERCOS fiber-optic real-time bus communication, features fast current loop response and built-in vibration suppression algorithm, supporting precise position, speed and torque closed-loop control. Rated continuous output current reaches 10A with 6.9kW matched motor power, perfectly adapted to the SH140 servo motor you previously consulted. Widely used in food packaging, pharmaceutical packaging, printing machinery and automatic material processing production lines for equipment maintenance and spare part replacement.
Core Technical Parameters
| Item | Parameter Details |
|---|---|
| Full Model | MC-4/11/10/400 |
| Brand System | Schneider ELAU PacDrive Motion Control Platform |
| Main Power Input | 3-phase AC 380 ~ 480V (tolerance ±10%), 48~62Hz |
| Control Auxiliary Power | DC 24V |
| Continuous Output Current | 10 A |
| Peak Output Current | 25 A (1 second overload) |
| Matched Motor Rated Power | 6.9 kW |
| Communication Interface | SERCOS fiber optic bus |
| Output Frequency Range | 0 ~ 600 Hz |
| Built-in Cooling | Internal fan forced cooling |
| Protection Grade | IP20 (cabinet installation only) |
| Working Ambient Temp | 5°C ~ 45°C |
| Physical Dimension | 69 × 310 × 260 mm |
| Net Weight | 3.6 kg |
Main Product Features
- All-in-one integrated structure saves cabinet layout space and reduces wiring workload between power supply and drive modules.
- SERCOS optical fiber communication realizes high-speed, anti-interference synchronous axis control, ensuring stable coordination of multi-axis linkage actions for packaging machines.
- Built-in auto-tuning function can automatically match motor parameters to simplify on-site drive debugging procedures.
- Complete overcurrent, overvoltage, overheat, short-circuit and encoder fault protection mechanisms effectively avoid equipment damage from abnormal operating conditions.
- Fully consistent with original factory communication protocol and hardware interface, plug-and-play replacement for old faulty drives without modifying machine programs.
Matched Devices & Typical Application Machines
Matching servo motor: Schneider ELAU SH series servo motors (SH140/30120/0/1/00/00/00/00/00)Applicable equipment: Vertical packaging machines, blister packing machines, carton forming & sealing machines, printing slitting machines, automatic conveying and sorting equipment
Commercial Supply Terms & After-Sales Support
- Compatibility verification: Our professional automation engineers confirm matching with customers’ existing PacDrive system versions and motor models to ensure seamless replacement.
- Volume tiered pricing mechanism: Discounted unit prices for bulk procurement orders; stock status and international freight expenses are updated synchronously for each inquiry.
- Complete export document service: We supply commercial invoices, packing lists, factory test reports and relevant certification papers to support smooth customs clearance for global overseas clients.
- Strict pre-shipment inspection: Every servo drive passes temperature cycle aging testing, SERCOS communication verification and full-load output characteristic testing before delivery.
- Standard anti-collision export packaging: ESD vacuum sealed bag + high-density customized shockproof foam + reinforced heavy-duty export carton to protect internal power boards and drive chips during cross-border long-distance logistics transportation.
- Formal warranty clause: 12-month quality warranty for inherent hardware faults under rated operating conditions. We provide official product datasheets and detailed replacement operation manuals via email, along with permanent free remote technical matching and debugging support.
Professional Technical FAQ
- Is controller parameter recalibration required after installing this replacement servo drive?All motion control parameters and axis configuration data are stored in the upper PacDrive controller. Only simple SERCOS communication confirmation is needed after drive installation and power-up, no modification to original machine control programs is required.
- Meaning of each segment in the MC-4/11/10/400 model codingMC-4 = MC4 generation servo drive hardware platform; 11 = internal hardware revision version number; 10 = nominal continuous output current 10A; 400 = designated 400V three-phase industrial main voltage grade.
- Testing standards for supplied refurbished servo drivesAll used disassembled drives are fully cleaned internally and externally, failed aging circuit components are eliminated, full-performance testing and 72-hour continuous powered load aging tests are carried out on professional calibration platforms to restore original factory technical indicators before shipment.
- Shipment lead time for in-stock productsAll stocked drives are stored in our domestic warehouse; all shipment procedures and document issuance can be finished within 3 working days once the buyer completes payment confirmation.
