Description
PRODUCT OVERVIEW
Kollmorgen CP310250 is a high-power servo driver under the classic SERVOSTAR series, matched with the part code PRD-P310250E-55, widely adopted in high-power motion control scenarios for industrial automation equipment. Adopting advanced digital servo control algorithm, this drive supports three closed-loop control of position, speed and torque, featuring ultra-low torque ripple, fast dynamic response and outstanding anti-interference capability for industrial electric environments.With 48kVA rated input power and high-current output capability, it can drive medium & large-power Kollmorgen synchronous servo motors steadily. The built-in high-efficiency heat dissipation fan and independent heat sink structure effectively solve heat accumulation under long-term full-load operation. It supports mainstream industrial bus communication modes, collocates with Kollmorgen Motion Explorer configuration software for parameter debugging, online monitoring and program uploading & downloading.
The drive owns complete hardware protection mechanisms including overvoltage, undervoltage, overcurrent, overload, overheating and short-circuit protection to avoid equipment damage caused by abnormal operation. Standard cabinet mounting design with IP20 protection grade is suitable for installation inside industrial control cabinets. It is widely used in CNC machine tools, automated production lines, packaging & printing machinery, multi-axis robotic equipment, textile machinery, metal processing equipment and other precision motion control fields.
TECHNICAL SPECIFICATIONS
表格
| Item | Parameter Details |
|---|---|
| Official Base Model | Kollmorgen CP310250 |
| Complete OEM Part Number | PRD-P310250E-55 |
| Product Classification | SERVOSTAR Series High Power AC Servo Drive Amplifier |
| Nominal Input Specification | 3 Phase 200V ~ 240V AC, 50 / 60Hz |
| Rated Input Apparent Power | 48 kVA |
| Rated Output Apparent Power | 33.5 kVA |
| Control Architecture | Triple closed-loop control: Position Loop / Speed Loop / Torque Loop |
| Dynamic Response Index | System response time ≤ 5ms |
| Static Position Control Accuracy | ±0.01mm positioning tolerance |
| Steady-State Speed Accuracy | ±0.1% of full-scale speed value |
| External Interface | Encoder interface, multi-channel digital I/O terminals, serial communication port |
| Supported Feedback Components | Resolver, incremental encoder, multi-turn absolute encoder |
| Supporting Configuration Tool | Kollmorgen Motion Explorer official configuration software |
| Integrated Protection Functions | Overvoltage, undervoltage, overcurrent, overtemperature, short-circuit, motor overload protection |
| Rated Operating Ambient Temperature | 0℃ ~ +50℃ |
| Allowable Storage & Transportation Temperature | -40℃ ~ +85℃ |
| Ambient Humidity Conditions | 5% ~ 95% relative humidity, non-condensing environment |
| Enclosure Protection Grade | IP20 (applicable to indoor control cabinet built-in installation only) |
| Thermal Dissipation Mode | Active forced air cooling with built-in industrial cooling fan |
| Compliance Certifications | CE conformity marking, UL industrial electrical safety certification |
| Country of Production | United States |
COMMERCIAL PROCUREMENT PROTOCOL
1. Motion System Matching Verification: Our technical engineers check your servo motor model, encoder type and upper controller communication mode to ensure zero matching errors after drive replacement.
2. Transparent Graded Bulk Quotation: Offer discounted prices corresponding to different purchase quantities, meanwhile update real-time stock quantity and global air freight cost information synchronously.
3. Global Customs Clearance Document Support: Complete formal export filing and unified HS code declaration to accelerate customs clearance efficiency in all importing countries.
4. Standard Corporate PI Issuance: Rapidly issue standardized proforma invoice documents to support your internal financial approval and payment procedures.
5. Safe International Payment Channels: Support secure fund settlement via T/T wire transfer and regular enterprise trade payment platforms.
6. Strict Pre-shipment Full Function Test: Carry out power-on test, communication test, load simulation test and appearance integrity inspection before shipment.
7. Professional Anti-static Export Packaging: Use ESD vacuum shielding bag + shockproof foam lining + thick reinforced export carton to prevent collision damage during cross-border transportation.
8. Global Express Delivery Service: Deliver goods via DHL, FedEx, UPS official channels, and provide real-time logistics tracking number after shipment.
VISUAL PRODUCT SHOWCASE

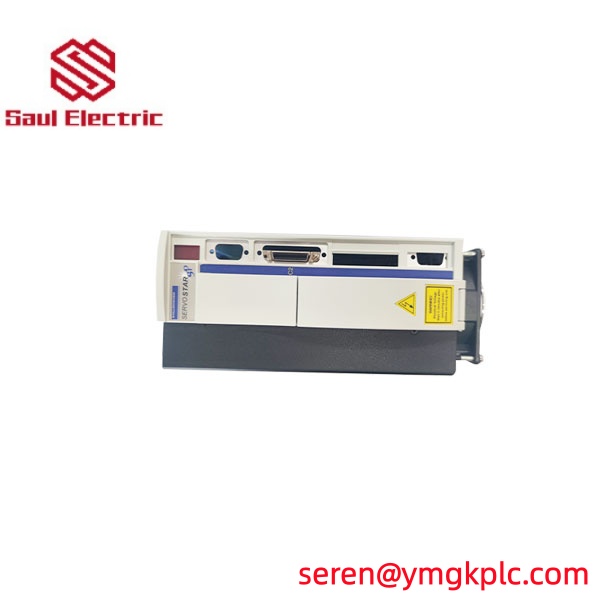

1. Product Photo 1: Front panoramic view of CP310250 servo drive, displaying front panel indicator lights, operation interface and external wiring terminal area.

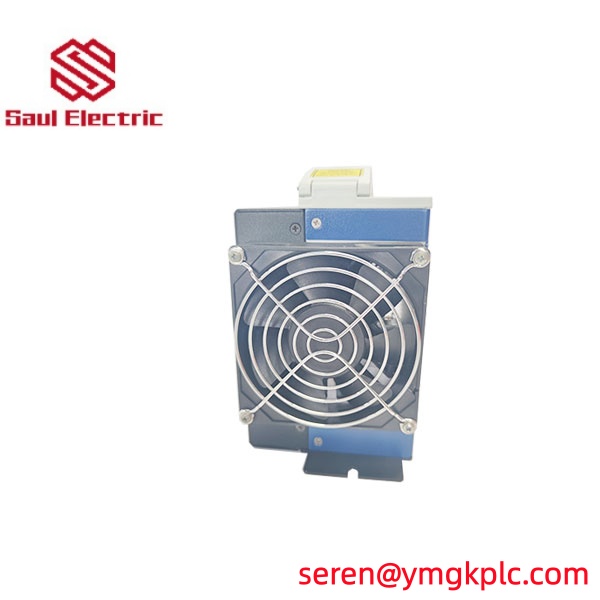

2. Product Photo 2: Top cooling fan structural close-up shot, showing built-in active heat dissipation assembly layout.

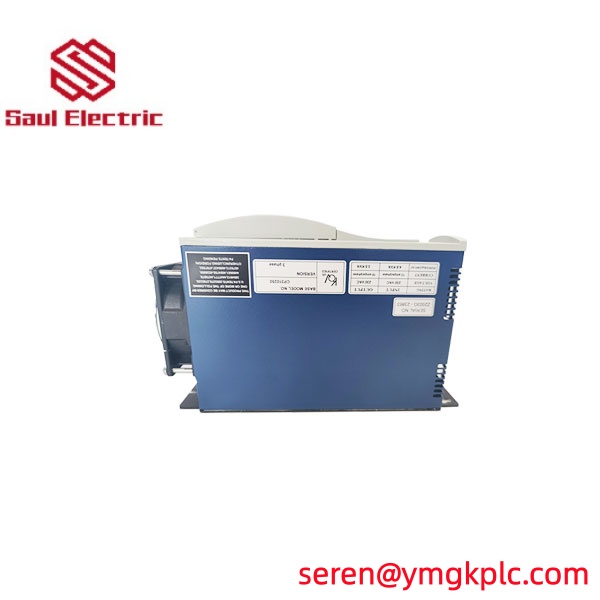

3. Product Photo 3: Rear factory nameplate close-up, including complete model code, electrical parameter data, unique serial number and official certification logos.
MATCHING KOLLMORGEN SPARES AND ACCESSORIES
Original Kollmorgen matched servo motors,
encoder signal cables, main power cables,
motor brake cables, terminal wiring connectors,
replacement cooling fan components,
official Motion Explorer configuration software suite,
original factory installation specification & maintenance service manuals
ENTERPRISE AFTER-SALES GUARANTEES
12-month full warranty service: Free maintenance or replacement for inherent hardware failures under standard rated operating conditions within the warranty periodGenuine original product guarantee: All supplied CP310250 drives are authentic original Kollmorgen products (new sealed or strictly bench-tested used stock), compatible with original firmware and motorsComplete technical document delivery: Electronically send official datasheets, wiring diagrams, parameter setting manuals and fault troubleshooting documentsLong-term free technical support: Provide remote guidance for drive installation, parameter tuning, fault diagnosis and system debugging
FAQ
- What is the main application of Kollmorgen CP310250 servo drive?CP310250 is a high-power servo driver used for precise motion control of servo motors, widely applied in CNC machine tools, packaging equipment, printing machinery, industrial robots and automated production lines.
- What closed-loop control modes does CP310250 support?It supports three mainstream closed-loop control modes: position loop, speed loop and torque loop, meeting diverse motion control demands of different mechanical equipment.
- What configuration software is used for parameter setting of CP310250?Official Kollmorgen Motion Explorer software is adopted for drive parameter configuration, online status monitoring and fault record query.
- Does CP310250 have complete safety protection functions?Yes, it is equipped with multi-layer protection mechanisms including overvoltage, undervoltage, overcurrent, overload, overheating and short-circuit protection to effectively protect the drive and matched servo motor.
- What is the input power specification of CP310250?The drive adopts 3-phase 200-240V AC input, rated input power is 48kVA, and the rated output power reaches 33.5kVA.
- What cooling method does the CP310250 servo drive adopt?Built-in axial flow cooling fan with forced air cooling design, which can maintain stable heat dissipation performance under long-term full-load working state.
- Is the used CP310250 you provide fully tested before delivery?All second-hand drives will undergo strict power-on aging test, communication test and load simulation test to ensure stable operation before delivery.
- How long is the delivery period for in-stock CP310250 products?Spot goods are stored in our domestic warehouse, and shipment will be arranged within 3 working days after your payment is confirmed.
