Description
PRODUCT OVERVIEW
Danaher S21260-SRS belongs to the classic S200 servo drive family, produced by Kollmorgen under the Danaher Motion brand, equipped with built-in SynqNet communication option card as standard configuration. This servo driver adopts high-speed digital vector control algorithm, supporting triple closed-loop control of position, speed and torque, with ultra-low current ripple and fast dynamic response performance, meeting high-precision motion control demands of precision industrial equipment.
This drive supports single-phase 120/240VAC universal power input, rated continuous output current 6ARMS and peak current up to 18ARMS (3 seconds peak duration). Built-in 16kHz high-frequency PWM modulation technology and multi-level EMC filter circuit, strong anti-interference capability for complex industrial electromagnetic environments. Equipped with complete overvoltage, undervoltage, overcurrent, overload, overheating and output short-circuit hardware protection system to effectively protect the drive and matched servo motors.
It adopts compact vertical cabinet installation structure with built-in cooling fan for forced heat dissipation. Matched with official software for parameter tuning, real-time status monitoring and fault diagnosis. Widely used in semiconductor wafer handling equipment, medical automation equipment, high-speed packaging machinery, SMT electronic assembly equipment, CNC precision processing equipment, printing labeling equipment and other high-end precision automation fields.
TECHNICAL SPECIFICATIONS
表格
| Item | Parameter Details |
|---|---|
| Official Model Code | DANAHER S21260-SRS (S200 Servo Drive Series) |
| Actual Manufacturing Entity | Kollmorgen (Danaher Motion Brand System) |
| Product Classification | Brushless AC Servo Drive with Integrated SynqNet Communication Card |
| Nominal AC Power Input | Single Phase 120VAC / 240VAC, 50Hz / 60Hz |
| Continuous Rated Output Current | 6 ARMS |
| Transient Peak Output Current | 18 ARMS (3 seconds allowable peak duration) |
| Internal PWM Switching Frequency | 16 kHz |
| Motion Control Architecture | Triple Closed-loop Control: Position Loop / Speed Loop / Torque Loop |
| Standard Communication Port | Embedded SynqNet bus (RJ45 physical interface), analog command I/O, universal encoder terminal |
| Supported Feedback Components | SFD smart feedback device, incremental encoder, quadrature position signal output |
| Adaptable Motor Winding Inductance | 0.9mH ~ 45mH |
| Matching External Regenerative Resistor | Resistance range: 8Ω ~ 50Ω |
| Thermal Dissipation Scheme | Built-in axial fan forced air cooling |
| Rated Operating Ambient Temperature | 0℃ ~ +50℃ |
| Allowable Storage & Transportation Temperature | -40℃ ~ +85℃ |
| Ambient Humidity Working Condition | 5% ~ 95% relative humidity, non-condensing environment |
| Integrated Hardware Protection Items | Overvoltage, Undervoltage, Overcurrent, Overtemperature, Output Short-circuit, Motor Overload Protection |
| Shell Ingress Protection Rating | IP20 (only applicable for built-in installation inside industrial control cabinets) |
| External Overall Dimension | 178.8mm (H) × 150.5mm (W) × 76.1mm (D) |
| Module Net Mass | 1.33 kg |
| Global Compliance Certifications | CE Conformity Marking, UL Industrial Electrical Safety Certification |
| Country of Manufacture | United States of America |
COMMERCIAL PROCUREMENT PROTOCOL
1. Pre-Sale Motion System Compatibility Audit: Professional automation engineers verify your matched servo motor electrical parameters, feedback encoder type and upper-layer SynqNet motion controller program architecture to achieve complete hardware matching without adaptive faults after drive replacement.
2. Volume-Based Hierarchical Preferential Pricing Mechanism: Provide graded discount policies corresponding to different procurement volumes, meanwhile synchronize real-time inventory data and full-cost quotation of global air freight logistics solutions.
3. Cross-Border Trade Compliance & Customs Declaration Service: Prepare standardized export documents and unified HS code filing procedures to streamline customs clearance processes for importers in various countries worldwide.
4. Formal Corporate Standardized Proforma Invoice Issuance: Generate official standardized PI documents efficiently to cooperate with your internal financial audit approval and capital payment approval workflows.
5. Secure Cross-Border Capital Settlement Channels: Support formal fund settlement via T/T telegraphic transfer and verified enterprise-level international trade payment platforms.
6. Multi-Dimensional Pre-Delivery Quality Validation Test: Complete standardized power-on burn-in test, SynqNet communication link verification, simulated load dynamic operation test and overall structural appearance inspection before goods delivery.
7. Standardized ESD Professional Export Packaging Solution: Adopt certified anti-static vacuum shielding bag + customized shock-absorbing foam filling + heavy-duty reinforced export carton to prevent hardware damage during transnational long-distance logistics transportation.
. Global Door-to-Door Express Delivery Execution: Arrange international transportation via authorized official channels of DHL Express, FedEx and UPS, and issue complete real-time logistics tracking number immediately after goods departure.
VISUAL PRODUCT SHOWCASE

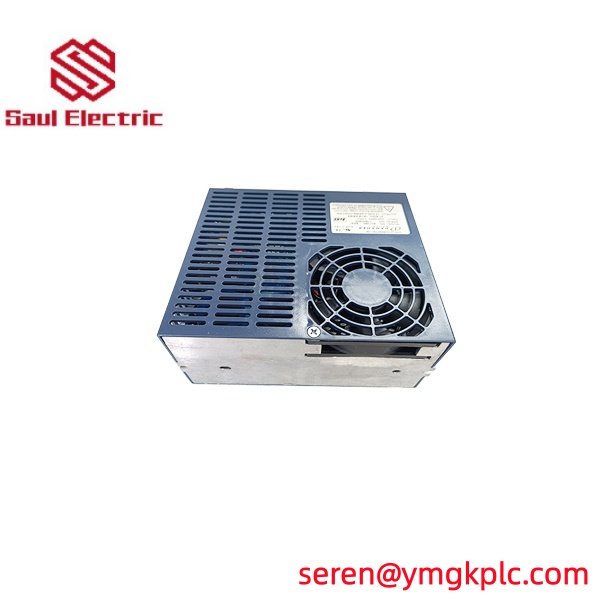

1. Product Photo 1: Front elevation full view of S21260-SRS servo drive, showing built-in cooling fan, running status indicator area and main power wiring terminals.

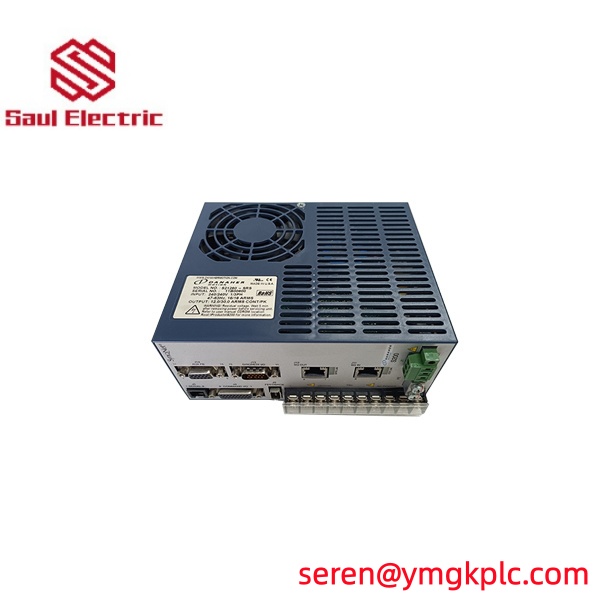

2. Product Photo 2: Side interface partial close-up, displaying RJ45 SynqNet communication port, encoder socket and analog signal input/output terminals.

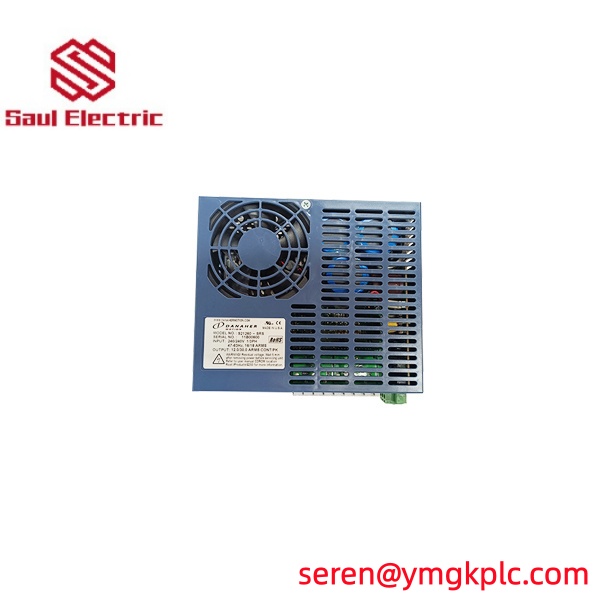

3. Product Photo 3: Rear official factory nameplate close-up, including complete model code, electrical parameter indexes, unique serial number and official certification logos.
ENTERPRISE AFTER-SALES GUARANTEES
12-month full warranty service: Free maintenance or replacement for inherent hardware defects under standard rated operating conditions within the warranty periodGenuine original quality commitment: All supplied S21260-SRS drives are genuine Danaher/Kollmorgen original products (new sealed or fully tested used stock), completely compatible with original SynqNet system and servo motorsComplete technical document delivery: Electronically send official datasheets, wiring diagrams, parameter setting manuals and fault troubleshooting documentsLong-term free technical support: Provide remote guidance for drive installation, parameter optimization tuning, network debugging and daily equipment fault elimination
FAQ
- Who manufactures the Danaher S21260-SRS servo drive?S21260-SRS belongs to Danaher Motion brand products, which is actually developed and produced by Kollmorgen, a subsidiary of Danaher Group.
- What is the biggest feature of S21260-SRS compared with ordinary S200 drives?This model is pre-installed with SynqNet communication board by default, supporting high-speed SynqNet bus motion control network connection without additional option cards.
- What are the continuous and peak output current parameters of this servo drive?Rated continuous output current is 6ARMS, peak current reaches 18ARMS, and the peak current can last stably for 3 seconds under instantaneous overload conditions.
- What power supply input specification does S21260-SRS adopt?It supports single-phase universal AC input of 120VAC or 240VAC, which is widely applicable to power supply standards of various countries around the world.
- What protection mechanisms are integrated inside the S21260-SRS drive?Built-in multi-dimensional protection including overvoltage, undervoltage, overcurrent, overload, overtemperature and output short-circuit protection to protect the drive and servo motor from damage caused by abnormal working conditions.
- What mainstream industries are S21260-SRS servo drives mainly applied to?It is widely used in semiconductor equipment, medical automation, high-speed packaging equipment, SMT assembly machines, CNC precision machining and other high-precision motion control occasions.
- Is the used S21260-SRS you supply subjected to complete performance testing before delivery?All second-hand drives will go through long-time power-on aging test, SynqNet communication compatibility test and simulated load operation test to ensure stable operation after installation.
- How long is the delivery cycle for in-stock S21260-SRS products?Spot goods are stored in our domestic warehouse, and shipment will be arranged within 3 working days after your payment is verified and confirmed.
