Description
1. Product Overview
The Honeywell CC-PFB401 is a high-performance Fieldbus Interface Module (FIM) purpose-built for Honeywell’s Experion PKS Series C I/O architecture within the C300 Distributed Control System (DCS). This fourth-generation FIM (FIM4) serves as the essential communication bridge between the Experion C300 control environment and FOUNDATION Fieldbus H1 intelligent field devices-14.
Supporting four independent H1 networks with up to 16 fieldbus devices per network, the CC-PFB401 delivers a total device capacity of 64 intelligent instruments per module–-14. The module assumes the critical role of Active Link Active Scheduler (LAS) for each H1 bus segment, ensuring deterministic, scheduled communication and uninterrupted fieldbus operations even in the event of primary controller communication interruption-14.
The “CC” prefix denotes conformal coating on all printed wiring boards, providing enhanced protection against harsh, humid, or corrosive industrial environments—a critical differentiator from the uncoated “CU” variant-14.
Key Applications:
- Refining & Petrochemical Processing: Integration of Foundation Fieldbus smart transmitters (pressure, temperature, flow) into Experion PKS for advanced process monitoring.
- Oil & Gas Production: Seamless connection of smart valve positioners and custody transfer instrumentation.
- Power Generation: Plant-wide integration of Fieldbus devices for boiler control, turbine monitoring, and emissions compliance.
- Chemical & Pharmaceutical Batch Plants: “Control-in-the-Field” architectures reducing C300 controller processing load.
- Water & Wastewater Treatment: Centralized monitoring of distributed Fieldbus instrumentation networks.
- Experion PKS DCS Expansions: Direct drop-in installation into Series C I/O Termination Assemblies (IOTA) for system upgrades or capacity expansion.
2. Technical Specifications
| Attribute | Specification |
|---|---|
| Module Identifier | Honeywell Model CC-PFB401 (Part No. 51405044-175)-14 |
| Module Type | Series C Fieldbus Interface Module (FIM4)-14 |
| Physical Interface | H1 FOUNDATION Fieldbus (31.25 kbps)-14 |
| H1 Networks Supported | 4 independent H1 links per module-14 |
| Device Capacity | Up to 16 devices per H1 network (64 total per FIM)-14 |
| Macrocycle Periods | 250ms, 500ms, 1s, 2s, 4s, 8s, 16s, 32s (configurable)-14 |
| Redundancy Support | Non-redundant or side-by-side redundant configurations on IOTA-14 |
| Power Supply | 24 VDC @ 210 mA (supplied via Series C chassis backplane)-14 |
| Thermal Design | Patented “tilted” heat-channeling form factor for optimized dissipation-14 |
| Protection Coating | Conformal coated for harsh/corrosive environment resistance-14 |
| Communication Methods | Publish/Subscribe and Client/Server- |
| Diagnostics | Comprehensive device diagnostics integrated into Experion PKS operator interface and Asset Management System (ASM) |
| Compliance Certifications | CE, UL, CSA, RoHS |
| Country of Origin | USA |
3. Commercial Procurement Protocol
- System Architecture Compatibility Audit: Our technical engineers verify your IOTA base keying, C300 controller firmware revision, and Experion PKS software release to ensure 100% plug-and-play compatibility.
- Itemized Quote Engineering: Access transparent, volume-tiered pricing options detailing real-time stock levels and global express air shipping routes.
- Global Trade Compliance: Rapid export filter verification ensuring fast, hassle-free customs clearance across international borders.
- Proforma Invoice Transmission: Detailed corporate Proforma Invoices (PI) generated quickly to facilitate immediate internal financial sign-off.
- Secure Financial Settlement: Monetary transactions completed safely via wire transfer (T/T) or verified corporate trade settlement platforms.
- Pre-Dispatch Hardware Inspection: Physical check verifying clean backplane connector pins, housing clip integrity, conformal coating integrity, and module LED status under bench power.
- Anti-Static Export Cushioning: Vacuum-sealed inside certified anti-static (ESD) shielding packaging with inner foam padding in heavy-duty export boxes.
- Express Courier Dispatch: Sourced modules ship instantly via global couriers (DHL Express, FedEx, UPS) with live tracking provided.
4. Visual Product Showcase

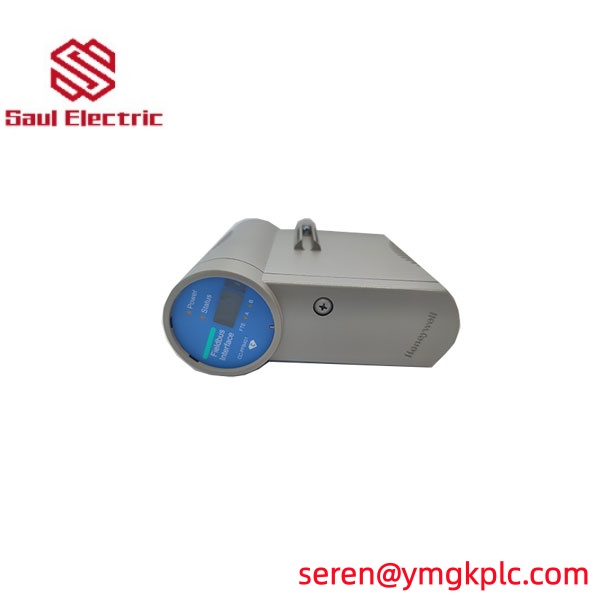

- [Product Photo 1]: Full front profile view of the Honeywell CC-PFB401 module highlighting the Series C faceplate with model identification and LED status indicators.

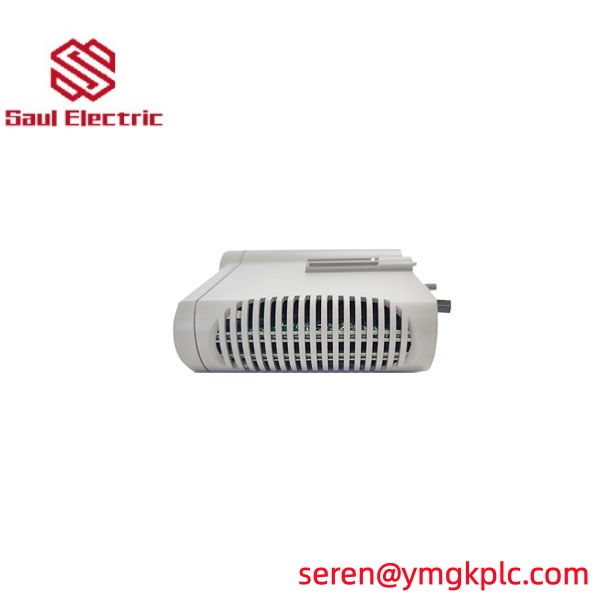

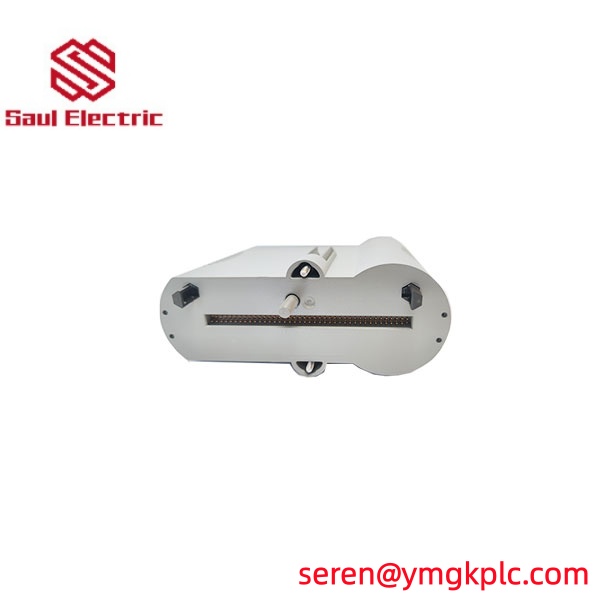

- [Product Photo 2]: Detail photo focusing on the patented heat-channeling form factor and rear backplane connector interface.
- [Product Photo 3]: Close-up view of the Honeywell factory label displaying model CC-PFB401, part number 51405044-175, and tracking serials.
5. Matching Honeywell Experion C300 Spares
- Honeywell CC-TFB402 (FOUNDATION Fieldbus H1 Terminal Assembly – IOTA)
- Honeywell CC-PCB901 (Redundant FIM4 Fieldbus Interface Module)
- Honeywell CC-PAOX01 / CC-PAIX01 (16-Channel HART Analog I/O Modules)
- Honeywell CC-PCNT01 / 8C-PCNT02 (C300 Controller Processor Modules)
- Honeywell CC-PDIL01 / CC-TDIL01 (24V DC Digital Input Modules & IOTA)
6. Enterprise After-Sales Guarantees
- Full 12-Month Vendor Warranty: Complete replacement warranty shielding your purchase against electronic internal component defects under standard operation.
- Certified Original Hardware Guarantee: We supply 100% authentic Honeywell factory hardware to ensure seamless integration into active DCS networks.
- Technical Document Provision: Digital access to official Honeywell C300 I/O specification sheets, FIM4 configuration guides, and IOTA wiring schematics.
7. FAQ
Q: What does the “CC” prefix in CC-PFB401 signify?
A: The “CC” prefix indicates that the module’s printed wiring boards are conformally coated for enhanced protection against harsh, humid, or corrosive industrial environments. The uncoated version carries the “CU” prefix-14.
Q: Does the CC-PFB401 support Link Active Scheduler (LAS) functionality?
A: Yes. The module provides active Backup LAS capability for all devices on each H1 link, ensuring that fieldbus communication continues uninterrupted even if primary controller communication is temporarily lost-14.
Q: Can the CC-PFB401 be configured redundantly?
A: Yes. Redundancy is achieved by installing two modules side-by-side on the same IOTA. No external cabling or dedicated redundancy control hardware is required-14.
Q: Is the CC-PFB401 hot-swappable while the system is live?
A: Yes. As a Series C module, the CC-PFB401 supports Live Insertion and Removal (LIR) . You can safely replace a faulted module without shutting down main cabinet power or affecting adjacent I/O modules.
Q: How many fieldbus devices can a single CC-PFB401 manage?
A: The module supports 4 independent H1 networks, each accommodating up to 16 devices, for a total capacity of 64 FOUNDATION Fieldbus devices per module-14.
Q: What is the difference between CC-PFB401 and CC-PFB411?
A: CC-PFB401 is the non-redundant variant, whereas CC-PFB411 is the redundant version used in fault-tolerant dual-module configurations.
Q: Is the CC-PFB401 a Profibus-DP module?
A: No. The CC-PFB401 is a FOUNDATION Fieldbus H1 interface module (FIM4) . Some third-party listings may incorrectly describe it as Profibus-compatible—please refer to Honeywell official specifications for accurate identification-14.
