GE DS200TCEAG1BNE | TCEA OVERSPEED PROTECTION BOARD

Description

PRODUCT OVERVIEW

GE DS200TCEAG1BNE belongs to GE DS200 series rack safety protection circuit boards, abbreviated as TCEA board, which is the independent hardware overspeed protection card of GE Speedtronic Mark V gas & steam turbine control system, independent of the main control logic to realize hard-loop overspeed trip protection for turbine rotating machinery.The board adopts a dedicated safety microprocessor + multi-group PROM solidified safety logic program, receiving pulse signals from three redundant magnetic pickup speed sensors on the turbine shaft. It monitors the actual speed value in real time, judges the overspeed state according to two-stage fixed protection thresholds, and outputs hard dry contact trip signals to drive the emergency shut-off valve and safety interlock loop once the threshold is exceeded, with a response speed less than 100ms to avoid turbine flying accidents.

Equipped with multiple external signal connectors (J1~J5) respectively for speed signal input, working power supply, trip contact output, 4-20mA status analog output and backplane bus communication; onboard hardware jumpers can match different types of speed sensors, and the whole PCB is coated with industrial three-proof conformal coating. Built-in signal surge suppression, overvoltage and overcurrent protection circuits, standard rack plug-in installation mode, matched with the TCPS power supply board for power supply. Widely used in thermal power steam/gas turbine units, petrochemical large turbine compressor equipment safety system maintenance and spare parts replacement work.

TECHNICAL SPECIFICATIONS

COMMERCIAL PROCUREMENT PROTOCOL

1. Turbine System Matching Inspection: Our technical engineers check your Mark V system firmware version, rack slot definition and original board hardware revision to eliminate compatibility risks after replacement.

2. Transparent Tiered Bulk Quotation: Provide volume-based preferential prices, synchronize real-time inventory quantity and global air freight cost data simultaneously.

3. Global Export Customs Clearance Support: Complete standardized export filing and unified HS code declaration to improve customs clearance passing efficiency for all importing countries.

4. Standard Corporate PI Issuance: Rapidly issue formal corporate proforma invoice documents to support your internal financial approval and payment execution procedures.

5. Secure International Payment Channels: Support safe fund settlement via T/T wire transfer and formal enterprise-level international trade payment platforms.

6. Strict Pre-Shipment Full-Function Test: Complete power-on aging test, three-channel speed signal simulation test, overspeed trip action test and contact output calibration before delivery.

7. Professional Anti-Static Export Packaging: Adopt ESD vacuum shielding bag + shockproof foam cushion + thickened reinforced export carton to prevent PCB circuit damage during cross-border long-distance transportation.

8. Global Express Delivery Service: Deliver goods via official DHL, FedEx, UPS logistics channels, and feed real-time tracking number immediately after shipment is arranged.

VISUAL PRODUCT SHOWCASE

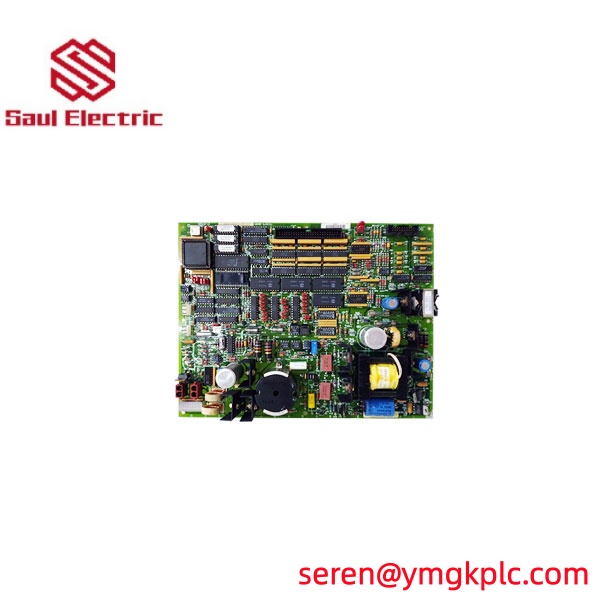

1. Product Photo 1: Front overall view of DS200TCEAG1BNE board, showing processor chip group, PROM components and each J-series connector terminal row.

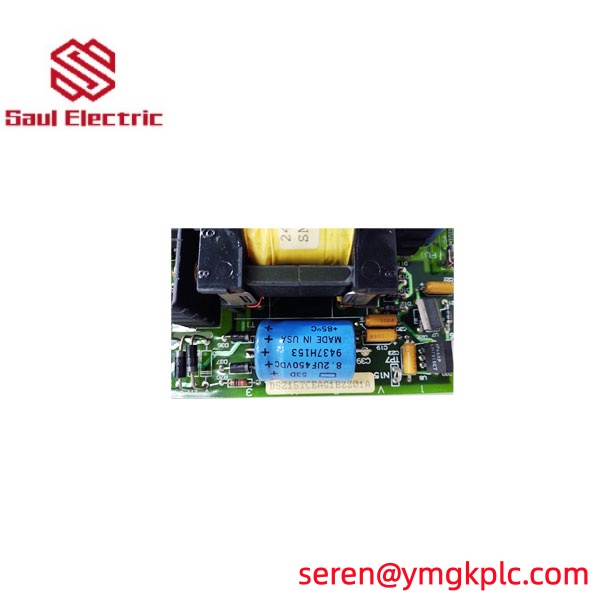

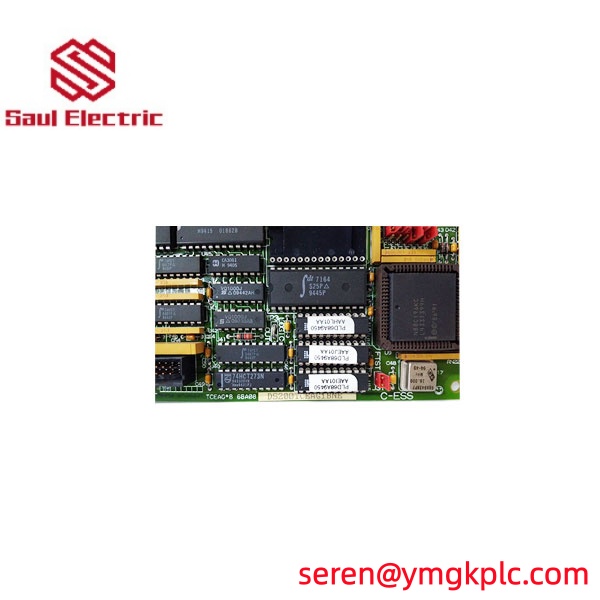

2. Product Photo 2: PCB front component layout close-up, displaying configuration jumpers, signal conditioning circuits and surge protection devices.

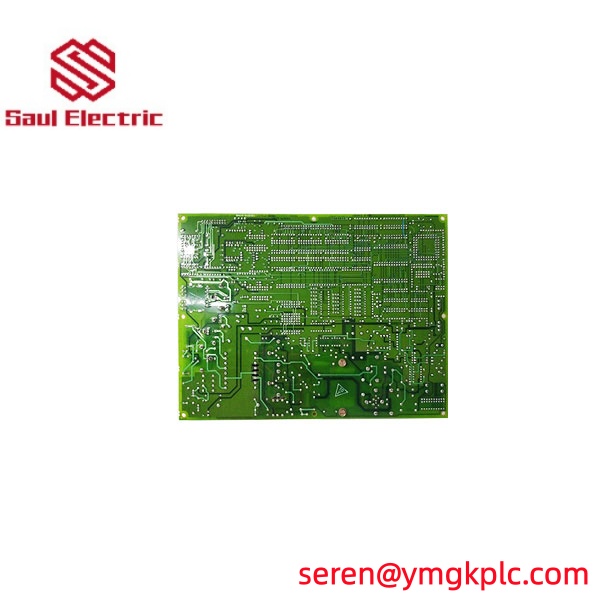

3. Product Photo 3: Rear copper foil circuit board photo, presenting complete PCB wiring traces and backplane golden finger contact area.

MATCHING GE SPARES AND ACCESSORIES

Mark V system TCPS dedicated power supply boards,

turbine original magnetic pickup speed sensors,

shielded pulse signal transmission cables, safety trip loop wiring terminals,

matched PROM solidified firmware chips, control cabinet backplane frame assemblies,

official Mark V safety system offline configuration debugging software suite,

original factory DS200TCEAG1BNE complete circuit schematic drawings and standardized field replacement maintenance specification documents

GE DS200DCFBG1BGB

GE DS200DCFBG1BNC

GE DS200LDCCH1AGA

GE DS200TCCAG1BAA

GE DS200SLCCG1AFG

ENTERPRISE AFTER-SALES GUARANTEES

12-month comprehensive product warranty coverage: Provide free maintenance service or product replacement for inherent hardware defects generated under rated standard operating conditions within the warranty validity periodGenuine original hardware quality commitment: All delivered DS200TCEAG1BNE circuit boards are verified authentic GE factory products (brand new factory sealed or strictly bench-tested used inventory), maintaining complete electrical compatibility with the original Mark V turbine overspeed safety protection system hardwareComplete official technical document provision: Electronically deliver official product datasheets, complete circuit schematic drawings, jumper parameter setting tables and standardized field board replacement operation guidance documentsLong-term professional technical consulting service: Provide remote technical guidance for on-site board disassembly & installation, speed measurement loop debugging and daily turbine safety protection loop fault diagnosis & troubleshooting

FAQ

1. What core safety functional positioning does GE DS200TCEAG1BNE undertake in the Mark V turbine distributed control system?DS200TCEAG1BNE is an independent hard-loop overspeed protection board separated from the main control logic. It collects multi-redundant shaft speed signals independently, executes safety judgment logic through dedicated safety chips, and outputs hard contact shutdown signals to realize the last safety defense line against turbine overspeed runaway faults.
2. What redundant design is adopted for the speed acquisition input of DS200TCEAG1BNE? What sensor signal types are supported?The board is designed with 3 mutually redundant speed sampling channels, compatible with two mainstream pulse output signals of field magnetic pickups: 120VAC alternating pulse and 24VDC direct pulse, and realizes signal voting judgment to improve the safety of measurement data.
3. What two-level overspeed protection threshold values are preset for DS200TCEAG1BNE? What is the index of protection action response speed?The primary alarm threshold is 110% of the turbine rated speed, and the secondary forced shutdown trip threshold is 115% of the rated speed; the hardware response time from detecting the overspeed state to the contact action is guaranteed to be less than 100ms.
4. What two forms of output signals are provided by DS200TCEAG1BNE for external system connection?One is 2 groups of passive dry contacts with 250VAC/5A load capacity, which are used for hard wiring of safety interlock and emergency shutdown loops; the other is standard 4~20mA analog current signal, which feeds back real-time speed operating parameters to the upper monitoring platform.
5. How to realize the adaptive matching between DS200TCEAG1BNE and different types of on-site speed sensors?Four groups of configurable hardware jumpers are reserved on the PCB surface. Maintenance engineers can switch the internal signal receiving mode of the board through jumper combination arrangement without rewriting the system firmware program to match different pickup signals.
6. What anti-interference and environmental adaptation reinforcement measures are configured on the hardware circuit of DS200TCEAG1BNE?Each signal input channel is equipped with surge absorption and voltage limiting protection devices; the whole PCB is coated with industrial three-proof coating, which can resist moisture, dust and corrosive gas erosion, adapting to the long-term uninterrupted working environment of power plant central control rooms.
7. Will the pre-owned DS200TCEAG1BNE circuit boards you supply pass standardized full safety performance inspection before leaving the warehouse?All second-hand circuit boards will complete long-term power-on aging test, multi-point overspeed threshold simulation trigger test and dry contact action durability test before delivery to ensure that the safety protection function is effective and reliable after being put into the formal turbine safety control loop.
8. What is the actual shipment lead time for spot stock DS200TCEAG1BNE finished products?Spot inventory is stored in our domestic warehouse, and formal shipment procedures will be fully completed within 3 working days after we receive and complete the verification of your official payment voucher.
