Bently Nevada 146031-01 Ethernet I/O Module | 3500/22M TDI Networking Interface

Description

1. Product Overview

The Bently Nevada 146031-01 is a high-speed Ethernet I/O Module designed specifically for the 3500/22M Transient Data Interface (TDI). This module is the rear-mounted component that provides the physical RJ45 Ethernet connection, enabling the 3500 Machinery Protection System to communicate over 10Base-T or 100Base-TX networks.

By using the 146031-01, plant operators can link the 3500 rack to Bently Nevada’s System 1® software for advanced vibration analysis and machinery diagnostics. It supports both steady-state data for routine monitoring and high-resolution transient data during critical machine events like start-ups or trips.

Key Applications:

• Plant-Wide Networking: Integrating the 3500 rack into the facility’s Ethernet LAN.
• Remote Diagnostics: Transmitting real-time dynamic data to diagnostic workstations.
• Software Integration: Providing the data link required for System 1® and Rack Configuration Software.

2. Data Sheet

3. Procurement Process

1. Technical Matching: We verify the 146031-01 hardware compatibility with your 3500/22M TDI main module.
2. Formal Quotation: Receive a detailed quote featuring competitive pricing, stock status, and global shipping options.
3. Order Confirmation: Finalize quantities and documentation needs (e.g., COO or Certificate of Conformance).
4. Sales Agreement: Issuance of a Proforma Invoice (PI) for secure transaction processing.
5. Secure Payment: Payment is completed via T/T (Bank Wire Transfer).
6. Inventory Allocation: Allocation of 100% original, brand-new modules from our industrial stock.
7. Quality Inspection: Verification of factory seal, RJ45 port integrity, and serial number.
8. Logistics Distribution: Fast worldwide shipping via DHL, FedEx, or UPS with shock-proof packaging.

4. Products Showcase (Photos & Video)

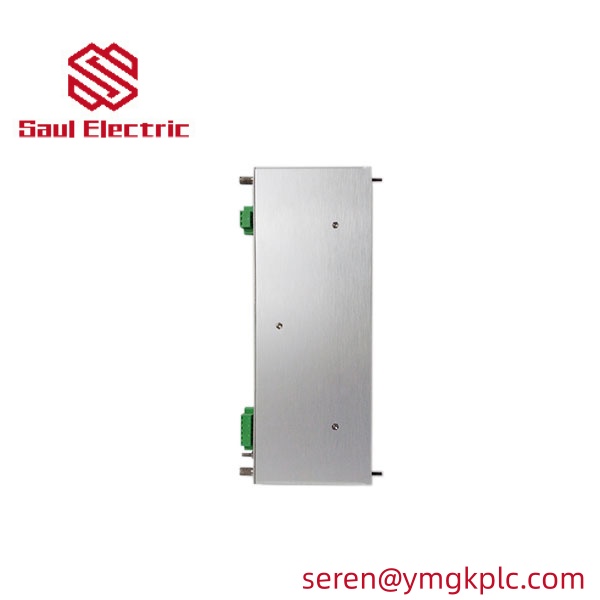

146031-01 backside

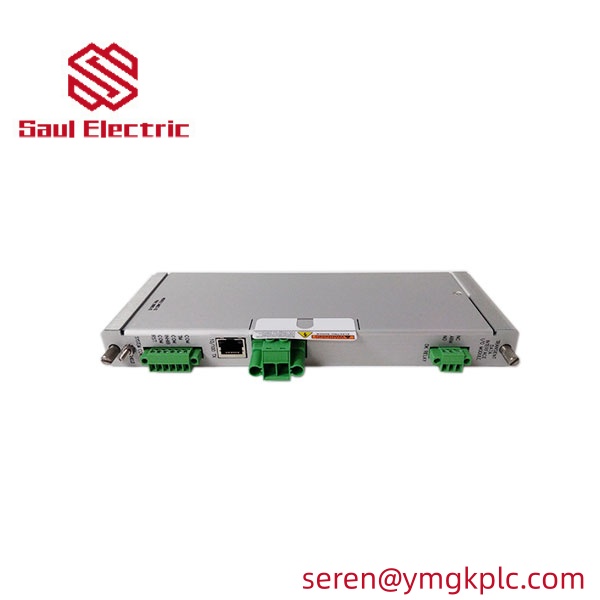

146031-01 front

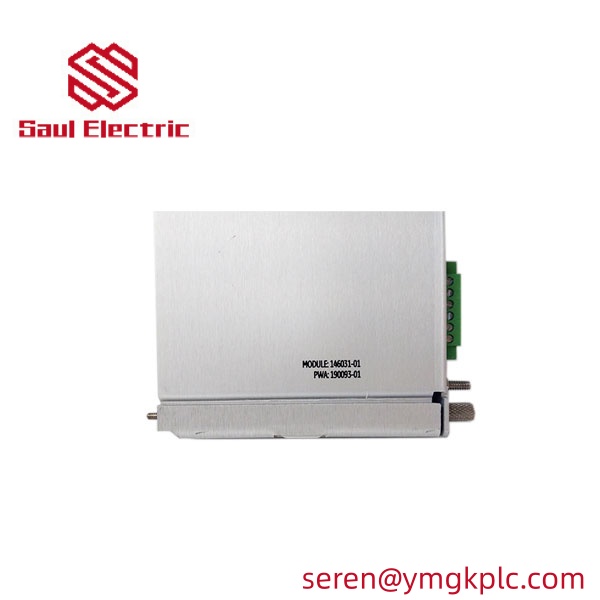

146031-01 detail

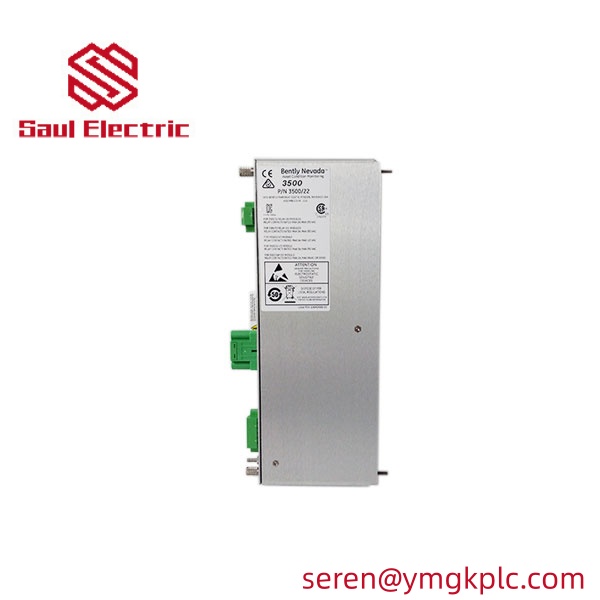

146031-01 label

5. Related Models

• Bently Nevada 3500/22M 288055-01 (Main TDI Monitor Module)
• Bently Nevada 133292-01 (TDI I/O with USB and Serial)
• Bently Nevada 133388-01 (TDI I/O with Ethernet and Serial)
• Bently Nevada 3500/15 127610-01 (Power Supply Module)

6. Warranty & After-Sales

• 12-Month Global Warranty: Full replacement or repair coverage for 1 year from the date of purchase.
• Authenticity Commitment: We supply only 100% genuine, brand-new Bently Nevada parts—never used or refurbished.
• Expert Support: Technical guidance for network configuration and IP address setup within the 3500 environment.

7. FAQ

Q: What is the difference between 146031-01 and 133323-01?

Both are Ethernet I/O modules for the TDI system. However, the 146031-01 is a later revision designed for enhanced reliability and performance on 10/100 Mbps networks. It is often the direct replacement for older Ethernet I/O versions.

Q: Does this module require a specific IP address?

The IP address is assigned to the 3500/22M TDI Main Module, not the I/O module. The 146031-01 acts as the physical bridge (the “port”) for that IP communication.

Q: Can I use a standard CAT6 cable with the 146031-01?

Yes, the module uses a standard RJ45 connector. While CAT5e is sufficient, using a shielded CAT6 cable is recommended for industrial environments to minimize electromagnetic interference (EMI).
