Bently Nevada 133292-01 TDI I/O Module | 3500/22M Interface Component

Description

1. Product Overview

The Bently Nevada 133292-01 is a specialized Transient Data Interface (TDI) I/O Module designed to work exclusively with the 3500/22M TDI Monitor. Installed in the rear of the 3500 rack, this module serves as the primary gateway for data communication between the machinery protection rack and external software systems like System 1®.

The 133292-01 provides the essential physical connections, including USB ports for local configuration and Ethernet/Serial ports for remote data collection. It is critical for capturing transient data (such as during machine start-up or coast-down), which is vital for advanced machinery diagnostics and long-term health monitoring.

Key Applications:

• Data Gateway: Facilitates the transfer of steady-state and transient dynamic data to diagnostic software.
• System Configuration: Enables local PC connection via USB for rack configuration.
• Communication Interfacing: Supports RS232/RS485 and Ethernet protocols for broad system integration.

2. Data Sheet

3. Procurement Process

1. Model Confirmation: We verify the 133292-01 version to ensure it supports your required communication protocols (Ethernet vs. Serial).
2. Formal Quotation: Receive a detailed quote featuring current pricing, stock status, and worldwide shipping options.
3. Product Ordering: Finalize the order quantity and specify any required technical certifications.
4. Sales Contract: Issuance of a Proforma Invoice (PI) and formal agreement for secure procurement.
5. Customer Remittance: Secure payment through T/T (Bank Wire Transfer).
6. Goods Allocation: Products are reserved from our original Bently Nevada automation stock.
7. Quality Inspection: Verification of the original factory seal, firmware revision (where applicable), and serial number.
8. Logistics Distribution: Expedited global shipping via DHL, FedEx, or UPS with shock-proof packaging.

4. Products Showcase (Photos & Video)

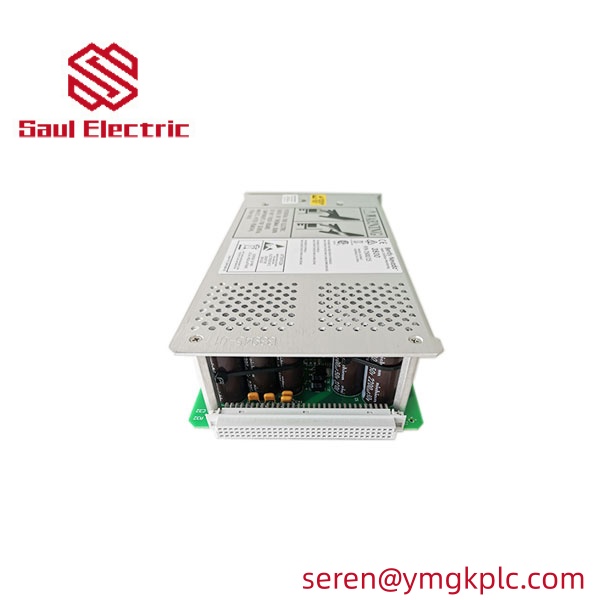

133292-01  sideview

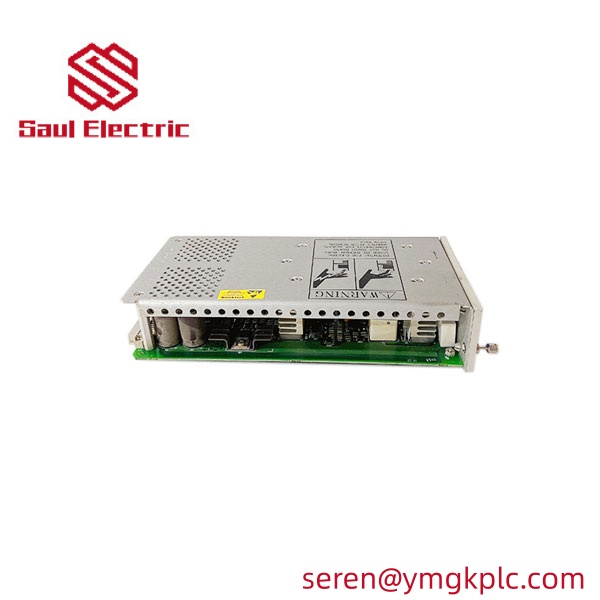

133292-01  sideview

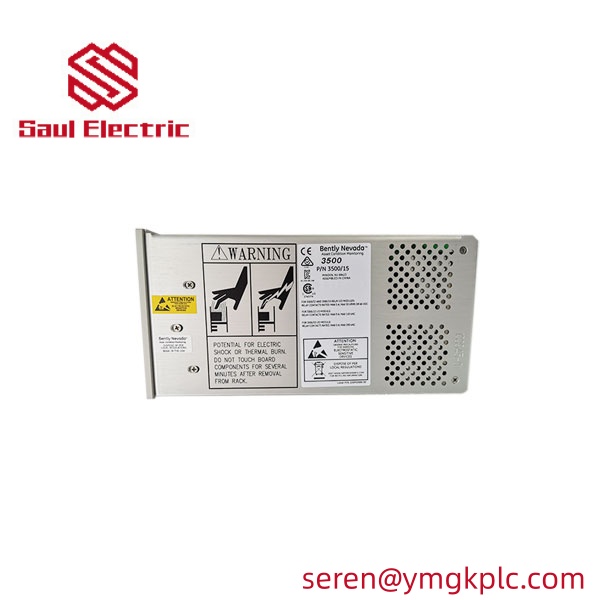

133292-01  label

5. Related Models

• Bently Nevada 3500/22M 288055-01 (Main TDI Monitor Module)
• Bently Nevada 133292-02 (TDI I/O with different communication options)
• Bently Nevada 146031-01 (10Base-T/100Base-TX I/O Module)
• Bently Nevada 3500/15 127610-01 (Power Supply Module)

6. Warranty & After-Sales

• 12-Month Global Warranty: Full coverage for one year against any functional or manufacturing defects.
• Originality Guarantee: We supply only 100% brand-new, genuine Bently Nevada parts—no refurbished units.
• Professional Logistics: Special anti-static and reinforced packaging to ensure safe arrival in the UAE, Kazakhstan, and worldwide.
