Bently Nevada 133388-01 TDI I/O Module | 3500/22M Serial & Ethernet Interface

Description

1. Product Overview

The Bently Nevada 133388-01 is a dual-communication Transient Data Interface (TDI) I/O Module designed for the 3500/22M system. Installed in the rear slot of the 3500 rack, this module provides the comprehensive physical connectivity required to bridge the machinery protection rack with external diagnostic environments.

Unlike standard single-protocol I/O modules, the 133388-01 supports both Ethernet (for high-speed data streaming to System 1® software) and Serial (RS232/RS485) communication (for integration with DCS or PLC via Modbus). It is the ideal choice for facilities requiring versatile data access and high-resolution transient event capturing.

Key Applications:

• Multi-Protocol Communication: Simultaneous support for Ethernet and Serial data paths.
• Advanced Diagnostics: Essential for transmitting high-speed vibration data to diagnostic workstations.
• System Integration: Connects the 3500 rack directly to plant control systems via Modbus protocols.

2. Data Sheet

3. Procurement Process

Professional Purchasing Workflow

1. Model Confirmation: Our technical team confirms the 133388-01 matches your specific communication requirements.
2. Formal Quotation: You receive an official quote including price, lead time, and global shipping fees.
3. Product Ordering: Finalize the quantity and provide project-specific technical requirements.
4. Sales Contract: We issue a Proforma Invoice (PI) and a formal sales agreement to ensure security.
5. Customer Remittance: Secure payment via T/T (Bank Wire Transfer).
6. Goods Allocation: Immediate picking from our specialized Bently Nevada automation stock.
7. Quality Inspection: Verification of the original factory seal, serial number, and communication port integrity.
8. Logistics Distribution: Expedited worldwide shipping via DHL, FedEx, or UPS with robust, anti-static packaging.

4. Products Showcase (Photos & Video)

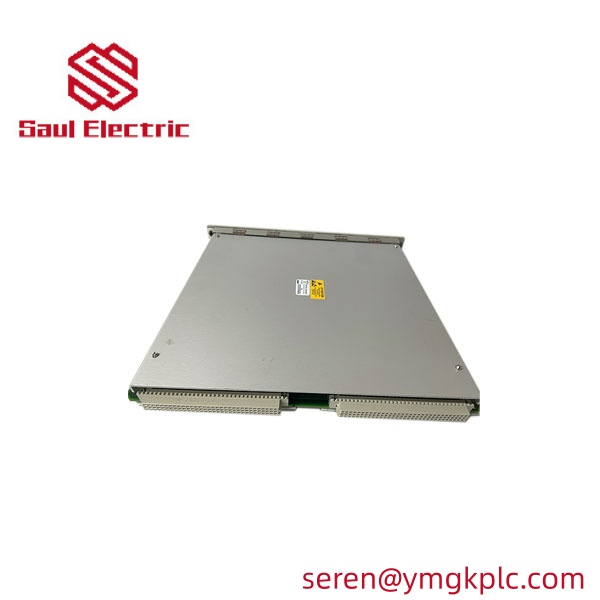

133388-01 sideview

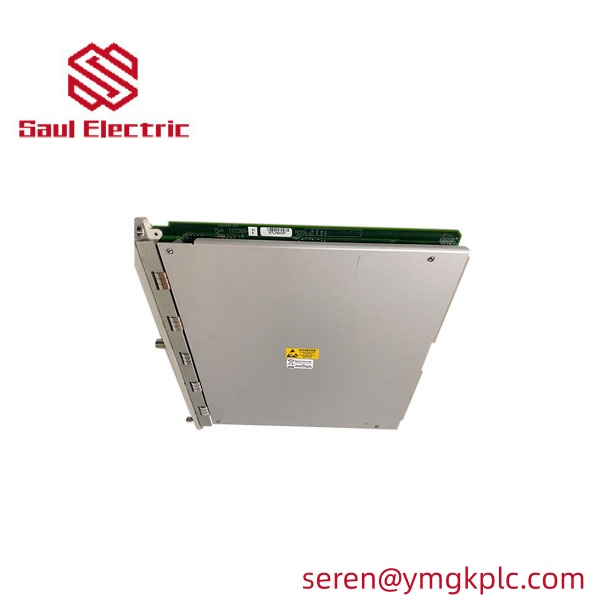

133388-01 sideview

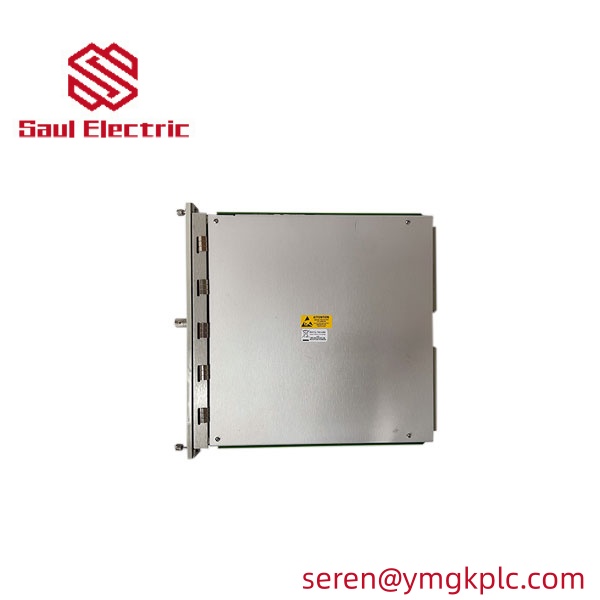

133388-01 backside

5. Related Models

• Bently Nevada 3500/22M 288055-01 (Main TDI Monitor Module)
• Bently Nevada 133292-01 (TDI I/O with USB and Serial)
• Bently Nevada 133323-01 (TDI I/O with Ethernet only)
• Bently Nevada 3500/92 (Communication Gateway Module)

6. Warranty & After-Sales

Our Service Standards

• 12-Month Global Warranty: Full one-year replacement or repair coverage.
• Authenticity Guaranteed: We supply only 100% original Bently Nevada products.
• Technical Assistance: Post-purchase guidance for network configuration and Modbus mapping.

7. FAQ

Q: What is the main advantage of the 133388-01 over the 133323-01?

The 133388-01 includes both Serial and Ethernet capabilities, whereas the 133323-01 only provides Ethernet. If your site requires a Modbus RTU (Serial) connection to an older PLC while simultaneously using Ethernet for System 1®, the 133388-01 is the correct choice.

Q: Does this I/O module require its own IP address?

The IP address is configured in the 3500/22M TDI Main Module, but the 133388-01 provides the physical port (RJ45) through which that network communication occurs.

Q: Can I use this module to capture transient data during a machine trip?

Yes, when used with the 3500/22M, the 133388-01 supports the transmission of high-resolution transient data (start-up, coast-down, and alarm events) to your diagnostic server.
