Bently Nevada 133323-01 Ethernet I/O Module | 3500/22M TDI Communication Interface

Description

1. Product Overview

The Bently Nevada 133323-01 is a high-performance Ethernet I/O Module specifically designed for the 3500/22M Transient Data Interface (TDI) system. This module provides the essential 10Base-T or 100Base-TX Ethernet connectivity required to integrate the 3500 Machinery Protection System into local or wide-area networks.

The 133323-01 is the rear-mounted component that enables high-speed communication between the 3500 rack and Bently Nevada’s diagnostic software, such as System 1®. It supports the seamless transfer of both steady-state and transient dynamic data, ensuring that plant engineers have real-time access to critical machinery health information.

Key Applications:

• Network Integration: Connects the 3500 rack to plant-wide Ethernet networks for remote monitoring.
• Diagnostic Data Transfer: Facilitates the high-bandwidth data stream required for System 1® vibration analysis.
• Remote Configuration: Allows for remote rack configuration and status checks via the TDI main module.

2. Data Sheet

3. Procurement Process

1. Model Confirmation: We verify the 133323-01 part number and check it against your existing TDI module version.
2. Formal Quotation: Receive a detailed quote including pricing, current availability, and worldwide express shipping costs.
3. Product Ordering: Confirmation of technical requirements and quantity.
4. Sales Contract: Issuance of a Proforma Invoice (PI) and formal sales agreement.
5. Customer Remittance: Secure payment via T/T (Bank Wire Transfer).
6. Goods Allocation: Picking from our specialized inventory of Bently Nevada automation components.
7. Quality Inspection: Verification of the original factory label, serial number, and physical port integrity.
8. Logistics Distribution: Fast global shipping via DHL, FedEx, or UPS with robust, shock-proof packaging.

4. Products Showcase (Photos & Video)

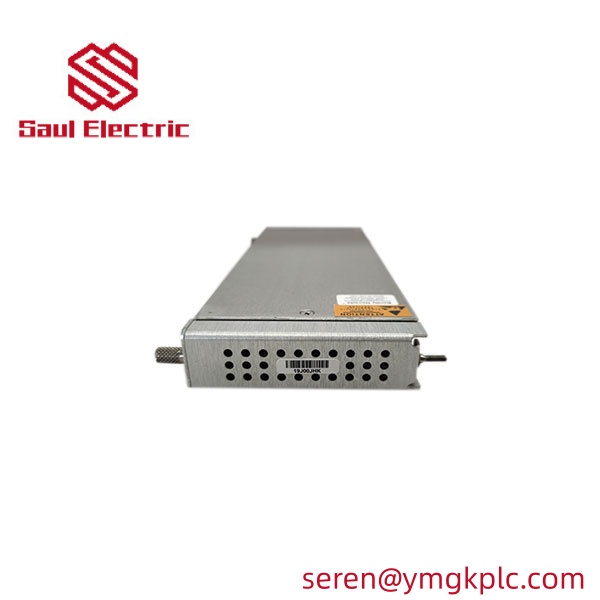

133323-01 sideview

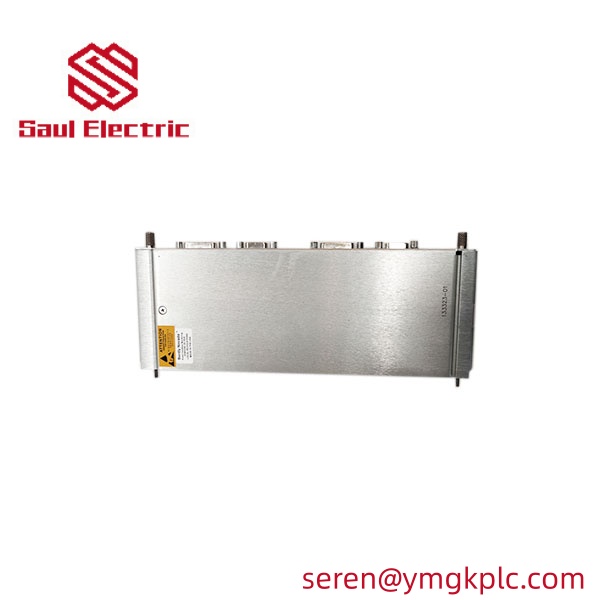

133323-01 backside

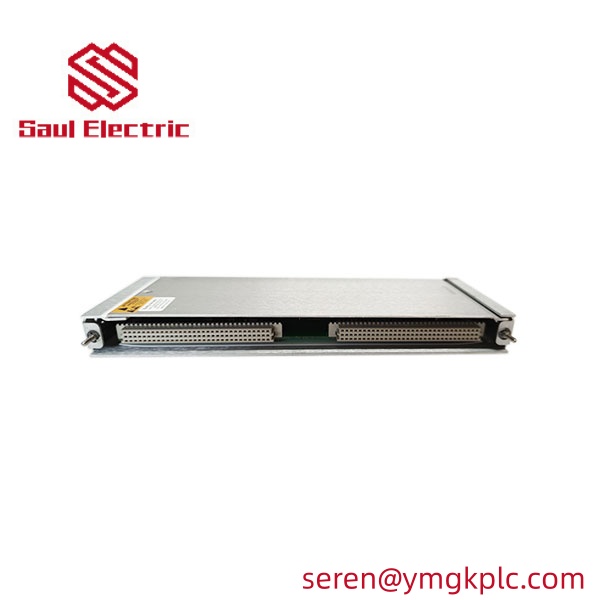

133323-01 sideview

5. Related Models

• Bently Nevada 3500/22M 288055-01 (Main TDI Monitor Module)
• Bently Nevada 133292-01 (Transient Data Interface I/O Module)
• Bently Nevada 136M2210-01 (Replacement TDI Faceplate)
• Bently Nevada 3500/92 (Communication Gateway Module)

6. Warranty & After-Sales

• 12-Month Global Warranty: Full 1-year coverage for repair or replacement on all brand-new modules.
• Guaranteed Authenticity: We supply only 100% original Bently Nevada products; no refurbished or used units.
• Expert Technical Support: Our team provides post-purchase assistance for network integration and configuration queries.

7. FAQ

Q: What is the main function of the 133323-01 in a 3500 rack?

The 133323-01 is the physical Ethernet interface for the 3500/22M TDI. Without this I/O module, the TDI cannot communicate with the System 1® software via a network, limiting you to local USB-only configuration.

Q: Can I use a standard Ethernet cable with this module?

Yes, the 133323-01 uses a standard RJ45 connector. We recommend using high-quality CAT5e or CAT6 shielded Ethernet cables to ensure reliable data transmission in electrically noisy industrial environments.

Q: Does this module support both 10Mbps and 100Mbps speeds?

Yes, it is designed for both 10Base-T and 100Base-TX and will automatically sense the speed of your network switch or connected workstation.
