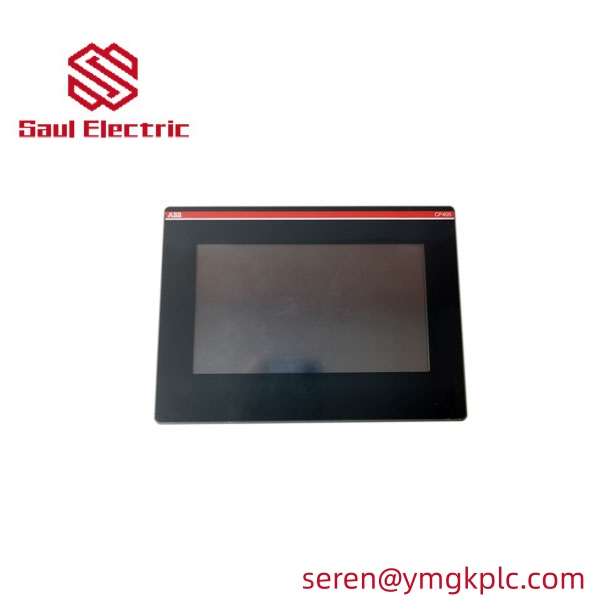

ABB CP405 A0 1SAP500405R0001 | 4.3″ TFT Touch HMI for Compact Automation

Description

1. Product Overview

The ABB CP405 A0 (1SAP500405R0001) is a high-quality, entry-level operator panel designed for simple to medium-complexity control tasks. Featuring a vibrant 4.3-inch TFT widescreen display with 65k colors, it offers excellent readability and intuitive touch control in a very compact housing.

As part of the CP600-e series, the CP405 is fully compatible with ABB’s PB610 Panel Builder 600 software, allowing engineers to design professional-grade user interfaces quickly. It is an ideal companion for ABB’s AC500-eCo PLCs, providing a cost-effective yet robust solution for localized machine control.

Key Applications:

• Machine Automation: Small-scale packaging, labeling, and conveyor systems.
• HVAC Systems: Monitoring and controlling air handling units and boiler systems.
• Food & Beverage: User interface for mixing, filling, and small-batch processing machines.
• Building Automation: Lighting, access control, and energy monitoring displays.

2. Technical Features

3. Procurement Process

1. Technical Match: We confirm the CP405 A0 firmware and hardware revision to ensure compatibility with your existing PLC drivers.
2. Formal Quotation: Receive a detailed quote including competitive pricing, current stock status, and global express shipping rates.
3. Order Confirmation: Finalizing quantities and any required documentation (e.g., Certificate of Origin, CoC).
4. Sales Agreement: Issuance of a Proforma Invoice (PI) for secure transaction management.
5. Secure Payment: Payment accepted via T/T (Bank Wire Transfer).
6. Quality Inspection: 100% verification of the touchscreen response, pixel integrity, and factory seals before dispatch.
7. Safe Packaging: Anti-static and shock-proof industrial packaging to protect the screen during international transit.
8. Global Distribution: Fast worldwide delivery via DHL, FedEx, or UPS for minimal machine downtime.

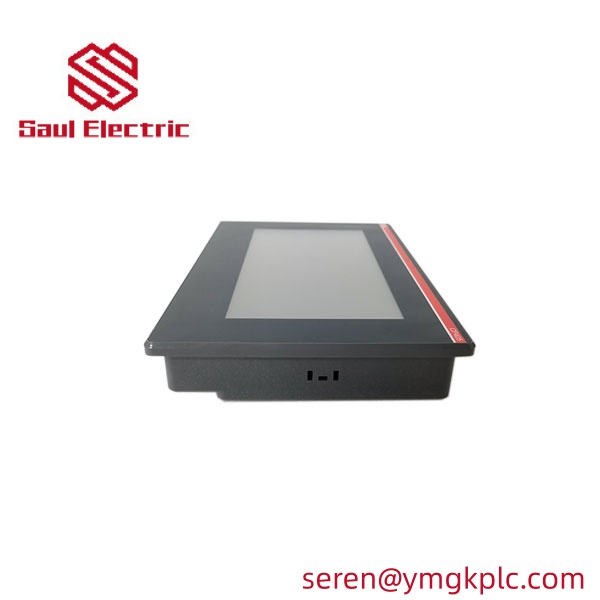

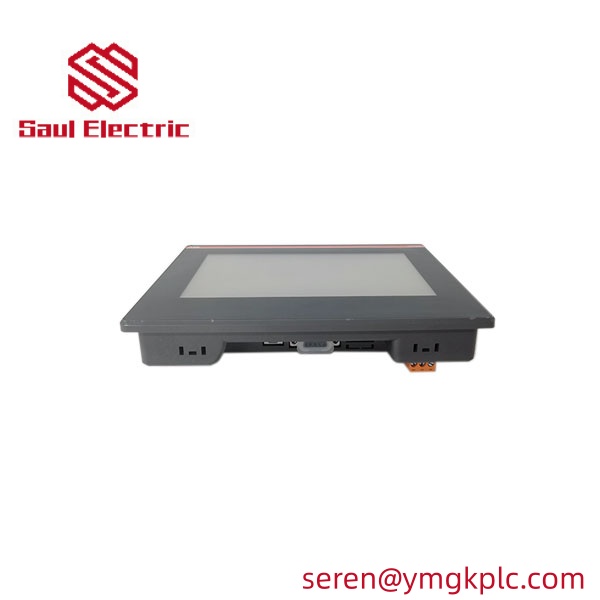

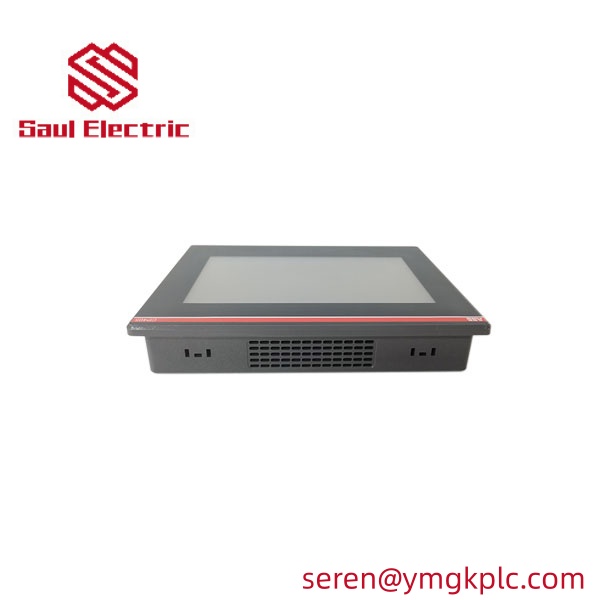

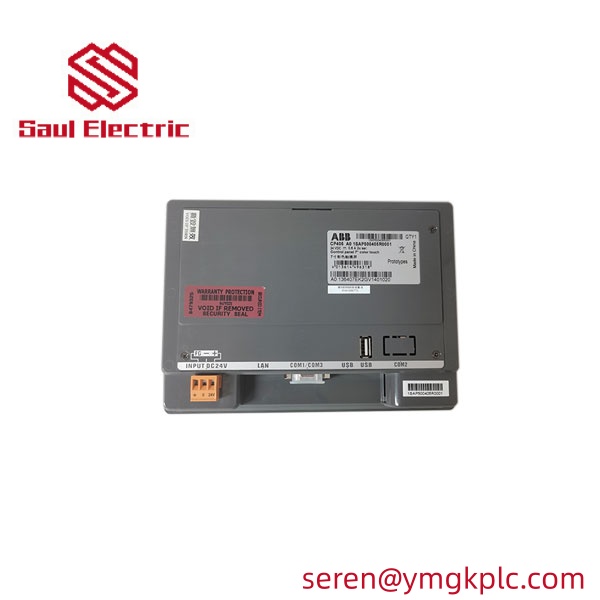

4. Products Showcase (Photos & Video)

5. Related Models

• ABB CP610 (10.1″ TFT HMI – CP600 Series)
• ABB CP607 (7.0″ TFT HMI – CP600 Series)
• ABB AC500-eCo PLCs (Recommended controller pairing)
• ABB PM554-TP-ETH (Compact CPU with Ethernet)

6. Warranty & After-Sales

• 12-Month Global Warranty: Full 1-year coverage against any functional or manufacturing defects.
• 100% Authenticity Guaranteed: We supply only genuine, factory-new ABB parts; no refurbished or “A-grade” copies.
• Technical Support: Access to basic documentation for HMI communication setup and IP configuration.

7. FAQ

Q: What software do I need to program the CP405 A0?

The CP405 A0 is programmed using PB610 Panel Builder 600. This software allows you to create modern graphics, manage alarms, and configure communication with ABB or third-party PLCs.

Q: Does the CP405 support Ethernet communication?

Yes, unlike some entry-level panels, the CP405 A0 (1SAP500405R0001) comes standard with an RJ45 Ethernet port, supporting protocols like Modbus TCP/IP and ABB’s native communication.

Q: Can this HMI replace older CP400 series panels?

Yes, the CP405 is the modern successor to many legacy CP400 series panels. While the physical cutout may differ slightly, the functional capabilities and modern communication options make it a recommended upgrade.
