PRODUCT OVERVIEW
The ABB CP435T (Order Code: 1SBP260193R1001) is a high-performance 7-inch TFT color touch panel HMI from ABB’s CP400 series, designed to provide operators with real-time visualization and intuitive interaction with industrial automation processes. This panel serves as the human-machine interface (HMI) between operators and industrial equipment or systems, enabling real-time monitoring of equipment status and parameters, receiving user input commands, and achieving remote operation and control of equipment.
The CP435T features a 7-inch TFT color touchscreen with 800 by 480 pixel resolution and 64K colors, delivering clear and detailed image display for straightforward and intuitive operation. Powered by an ARM Cortex-A8 processor at 600 MHz, with 128 MB RAM and 256 MB flash memory, the panel ensures responsive performance for machine-level HMI applications.
With its IP65-rated front panel, the CP435T is protected against dust and water jets, making it suitable for deployment in harsh industrial environments. The panel supports resistive touch technology that enables reliable operation even when operators are wearing gloves.
The CP435T is fully compatible with ABB AC500 series PLCs and can be configured using Automation Builder software, allowing PLC variables to be directly bound to HMI screen elements such as buttons, numeric displays, trends, and alarms without requiring an OPC middleware layer. The panel also supports SD card hot-swap for project backup and restore, as well as 9-level password user access management.
Key applications include industrial automation production lines for controlling and monitoring manufacturing equipment and robots, process control in chemical, oil and gas industries for monitoring temperature, pressure, flow and other parameters, machine tools and injection molding machine operation and monitoring, power systems for remote control and status monitoring of electrical equipment, building automation for lighting, HVAC, and security system control, data centers for monitoring server and equipment status, and traffic control and monitoring systems.
TECHNICAL SPECIFICATIONS
Module Model: ABB CP435T
Order Code: 1SBP260193R1001
Product Type: HMI Touch Panel / Operator Interface
Series: ABB CP400 Series
Display Size: 7-inch TFT LCD
Resolution: 800 by 480 pixels (WQVGA)
Display Colors: 64K (65,536 colors)
Brightness: 250 candela per square meter
Touch Technology: Resistive (analog)
Processor: ARM Cortex-A8, 600 MHz
Memory: 128 MB RAM / 256 MB Flash
User Data Storage: 512 KB RAM
User Program Storage: 8 MB ROM
Communication Interfaces: Dual Ethernet ports, RS-232/422/485 serial ports, USB 2.0 (2 ports)
Supported Protocols: Modbus RTU, Modbus TCP, PROFIBUS DP, Ethernet
Power Supply: 24 V DC
Power Consumption: Approximately 15 W to 20 W maximum
Operating Temperature: 0 degrees Celsius to 50 degrees Celsius
Storage Temperature: -10 degrees Celsius to 60 degrees Celsius
Protection Rating: IP65 (front panel), IP20 (rear)
Dimensions (Width by Height by Depth): 231 mm by 176 mm by 47 mm
Weight: 0.47 kg to 0.86 kg (variant dependent)
Certifications: CE, UL
Country of Origin: Sweden / Taiwan
Important notes:
-
The CP435T is an HMI touch panel (operator interface), not a PLC CPU module or I/O module.
-
The panel is fully compatible with ABB AC500 series PLCs and can also interface with third-party control systems via Modbus, PROFIBUS DP, or Ethernet.
-
Configuration is performed using Automation Builder or CP400 Builder software.
-
The front panel is IP65-rated for protection against dust and water jets; the rear panel is IP20-rated and suitable for cabinet installation only.
-
Always verify system compatibility and power supply requirements (24 V DC) before installation.
COMMERCIAL PROCUREMENT PROTOCOL
System Architecture Compatibility Audit: Our technical engineers verify your PLC system compatibility (AC500 or third-party), communication protocol requirements, and panel mounting dimensions to ensure 100 percent plug-and-play compatibility with CP435T integration.
Itemized Quote Engineering: Access transparent, volume-tiered pricing options detailing real-time stock levels and global express air shipping routes.
Global Trade Compliance: Rapid export filter verification ensuring fast, hassle-free customs clearance across international borders.
Proforma Invoice Transmission: Detailed corporate Proforma Invoices (PI) generated quickly to facilitate immediate internal financial sign-off.
Secure Financial Settlement: Monetary transactions completed safely via wire transfer (T/T) or verified corporate trade settlement platforms.
Pre-Dispatch Hardware Inspection: Physical check verifying LCD display integrity, touchscreen functionality, communication ports, SD card slot, and housing integrity under bench power.
Anti-Static Export Cushioning: Vacuum-sealed inside certified anti-static (ESD) shielding packaging with inner foam padding in heavy-duty export boxes.
Express Courier Dispatch: Sourced modules ship instantly via global couriers (DHL Express, FedEx, UPS) with live tracking provided.
VISUAL PRODUCT SHOWCASE

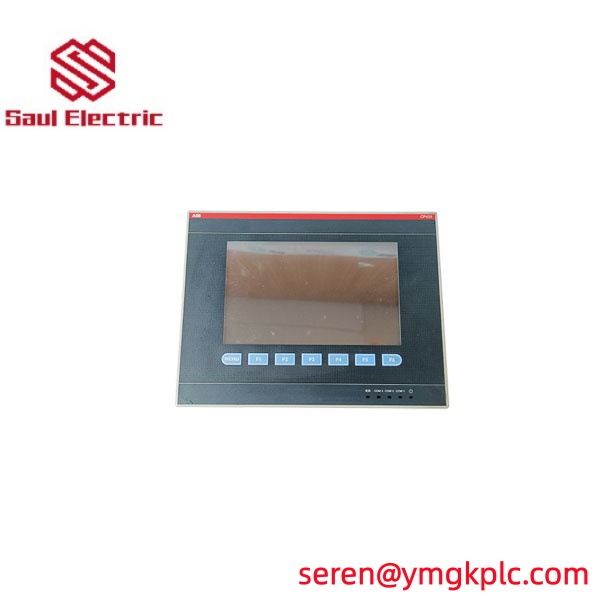

Product Photo 1: Full front profile view of the ABB CP435T HMI touch panel highlighting the 7-inch display, model identification, and front bezel.

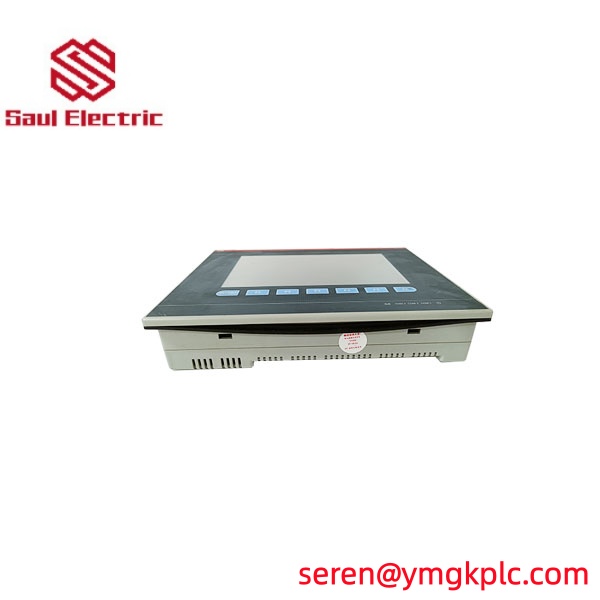

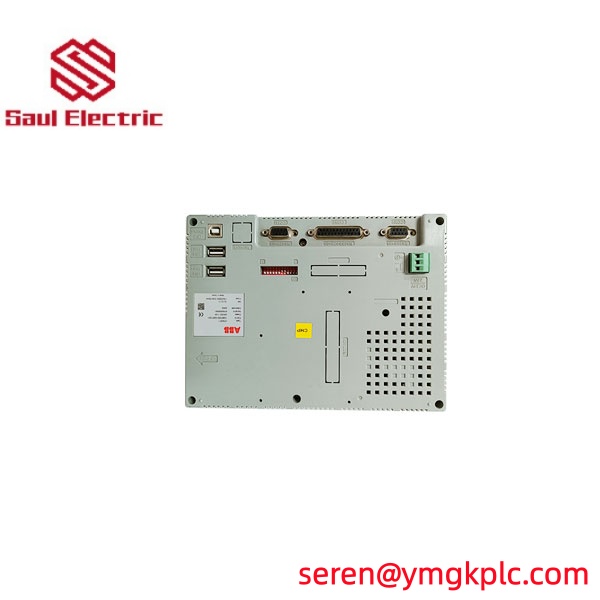

Product Photo 2: Detail photo focusing on the rear panel interfaces including dual Ethernet ports, serial ports, USB ports, and power terminal.
Product Photo 3: Close-up view of the ABB factory label displaying model CP435T, order code 1SBP260193R1001, and tracking serials.
MATCHING ABB SPARES AND ACCESSORIES
ABB AC500 Series PLCs (PM5xx, PM56x, and others),
ABB CP400 Series HMI Panels (CP420, CP430, and others),
ABB Automation Builder Software,
ABB CP-E Series 24V DC Power Supplies, SD Cards for Project Backup and Restore,
ABB Communication Cables and Adapters.
ENTERPRISE AFTER-SALES GUARANTEES
Full 12-Month Vendor Warranty: Complete replacement warranty shielding your purchase against electronic internal component defects under standard operation.
Certified Original Hardware Guarantee: We supply 100 percent authentic ABB factory hardware to ensure seamless integration into active automation systems.
Technical Document Provision: Digital access to official ABB CP435T specification sheets, installation manuals, and configuration guides.
FAQ
What is the ABB CP435T 1SBP260193R1001?
The CP435T is a 7-inch TFT color touch panel HMI from ABB’s CP400 series, designed for industrial automation human-machine interface applications. It provides real-time visualization and intuitive interaction with industrial processes.
What is the display size and resolution of the CP435T?
The CP435T features a 7-inch TFT LCD display with 800 by 480 pixel resolution (WQVGA) and 64K colors.
Which PLC systems is the CP435T compatible with?
The CP435T is fully compatible with ABB AC500 series PLCs and can also interface with third-party control systems via Ethernet, Modbus RTU, Modbus TCP, or PROFIBUS DP.
What communication interfaces does the CP435T provide?
The CP435T provides dual Ethernet ports, RS-232/422/485 serial ports, and two USB 2.0 ports.
Is the CP435T suitable for harsh industrial environments?
Yes. The front panel is IP65-rated, providing protection against dust and water jets, making it suitable for deployment in harsh industrial conditions.
What processor and memory does the CP435T have?
The CP435T is powered by an ARM Cortex-A8 processor at 600 MHz with 128 MB RAM and 256 MB flash memory.
Is the CP435T a PLC CPU module?
No. The CP435T is an HMI touch panel (operator interface), not a PLC CPU module. It is designed to work with PLC systems such as ABB AC500.
What software is used to configure the CP435T?
Configuration is performed using Automation Builder or CP400 Builder software, allowing PLC variables to be directly bound to HMI screen elements without requiring an OPC middleware layer.
What is the power supply requirement for the CP435T?
The CP435T requires a 24 V DC power supply with typical power consumption of approximately 15 W to 20 W maximum.
What is the difference between CP435T and other CP400 series panels?
The CP435T is a 7-inch model within the CP400 series. Other models in the series include the CP420 (4.3-inch) and CP430 (various sizes), with different display sizes and feature sets to suit different application requirements.
