1. Product Overview
The ABB CMA130 (Order Code: 3DDE300410) is a rugged Display Front Panel designed as a core human-machine interaction (HMI) component for ABB industrial control systems. It serves as the “visual interaction window” between operators and control systems, integrating display, operation, and status feedback functions to enable real-time monitoring, parameter setting, command issuance, and fault diagnosis of industrial processes.
The CMA130 features an 8-line × 40-character LCD display with blue backlight, delivering twice the display capacity of its predecessor, the CMA112. This allows operators to clearly view critical parameters such as RPM and temperature from a distance without straining.
Equipped with navigation keys and function buttons, the panel supports local parameter viewing, alarm acknowledgment, and operating mode switching—eliminating the need to return to the host computer for routine operations. The tri-color LED indicators (green for running, yellow for warning, red for shutdown) provide instant visual status feedback at a glance.
The CMA130 is typically installed on the front panel of control cabinets or operator consoles, and is widely used in diesel generator sets, ACS800 series drives, and various specialized control devices. Communication with the controller is established via an RS-485 interface using the Modbus RTU protocol.
Key Applications:
- Diesel Generator Sets (Synpol D): Local monitoring of voltage, current, frequency, RPM, and oil temperature
- Marine & Offshore Vessels: Engine room control panels for ship automation systems
- Data Center Backup Power: Generator status monitoring and emergency control panels
- ACS800 Series Drives: Local HMI for variable frequency drives
- ACS880 / ACS580 Series Drives: Local operator interface for advanced drives
- Industrial Power Plants: On-site monitoring and control of generator excitation and auxiliary systems
- Legacy Panel Upgrades: Direct replacement for CMA112 panels in existing installations
2. Technical Specifications
| Attribute | Specification |
|---|---|
| Module Model | ABB CMA130 |
| Order Code | 3DDE300410 |
| Product Type | Display Front Panel / HMI (Human-Machine Interface) |
| Display | 8 lines × 40 characters LCD with blue backlight (brightness adjustable) |
| Backlight Color | Blue (adjustable brightness) |
| Communication Interface | RS-485 (Modbus RTU protocol) |
| Operation Method | Navigation keys + function buttons |
| Status Indicators | Tri-color LED (green: running / yellow: warning / red: shutdown) |
| Mounting Type | Panel flush mounting |
| Dimensions | 288 mm × 200 mm × 40 mm |
| Weight | Approx. 0.78 kg |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Protection Rating | IP20 (panel mount) |
| Power Supply | 12 VDC or 24 VDC (cabinet DC distribution, verify label) |
| Certifications | CE, UL, CSA (verify with factory label) |
| Country of Origin | Sweden / Finland |
Important Notes:
- The CMA130 is a panel-mounted display component, not a slot-mounted I/O or communication module. It mounts on the inside of a control cabinet door or the instrumentation area of a cabinet.
- Power supply voltage must be verified from the physical label—typical options are 12VDC or 24VDC.
- The module connects via multi-pin headers or ribbon cables to a backplane or relay board, not via RJ45 or BNC network ports.
- This is a non-intelligent display panel that receives and drives display signals (typically parallel/discrete level signals), not a standalone Modbus/Profibus network device.
3. Commercial Procurement Protocol
- System Architecture Compatibility Audit: Our technical engineers verify your application (diesel generator / ACS800 drive), cabinet drawings, power supply voltage, and connector configuration to ensure 100% compatibility.
- Itemized Quote Engineering: Access transparent, volume-tiered pricing options detailing real-time stock levels and global express air shipping routes.
- Global Trade Compliance: Rapid export filter verification ensuring fast, hassle-free customs clearance across international borders.
- Proforma Invoice Transmission: Detailed corporate Proforma Invoices (PI) generated quickly to facilitate immediate internal financial sign-off.
- Secure Financial Settlement: Monetary transactions completed safely via wire transfer (T/T) or verified corporate trade settlement platforms.
- Pre-Dispatch Hardware Inspection: Physical check verifying LCD display integrity, backlight functionality, LED indicators, connector pin condition, and housing integrity under bench power.
- Anti-Static Export Cushioning: Vacuum-sealed inside certified anti-static (ESD) shielding packaging with inner foam padding in heavy-duty export boxes.
- Express Courier Dispatch: Sourced modules ship instantly via global couriers (DHL Express, FedEx, UPS) with live tracking provided.
4. Visual Product Showcase

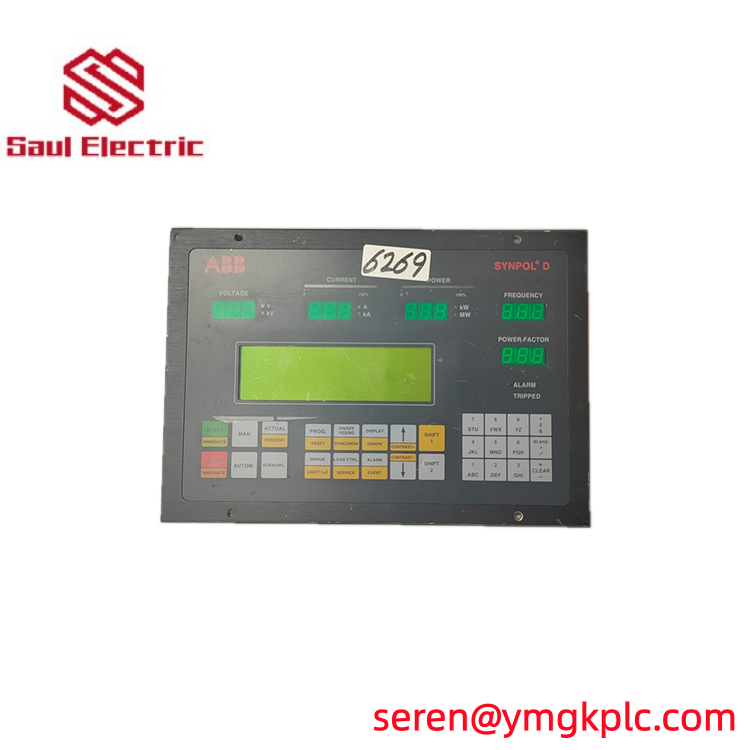

- [Product Photo 1]: Full front profile view of the ABB CMA130 display front panel highlighting the LCD screen, LED indicators, and keypad layout.

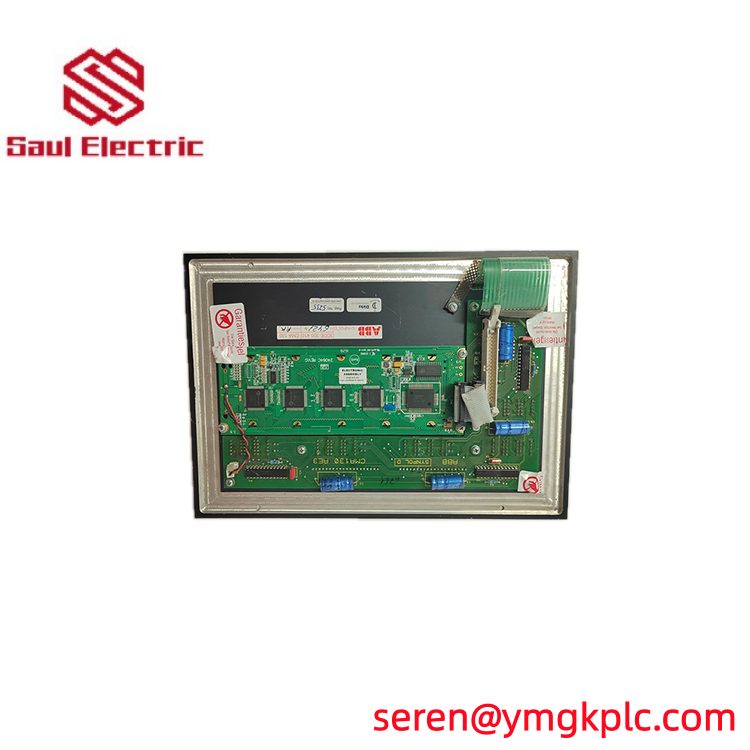

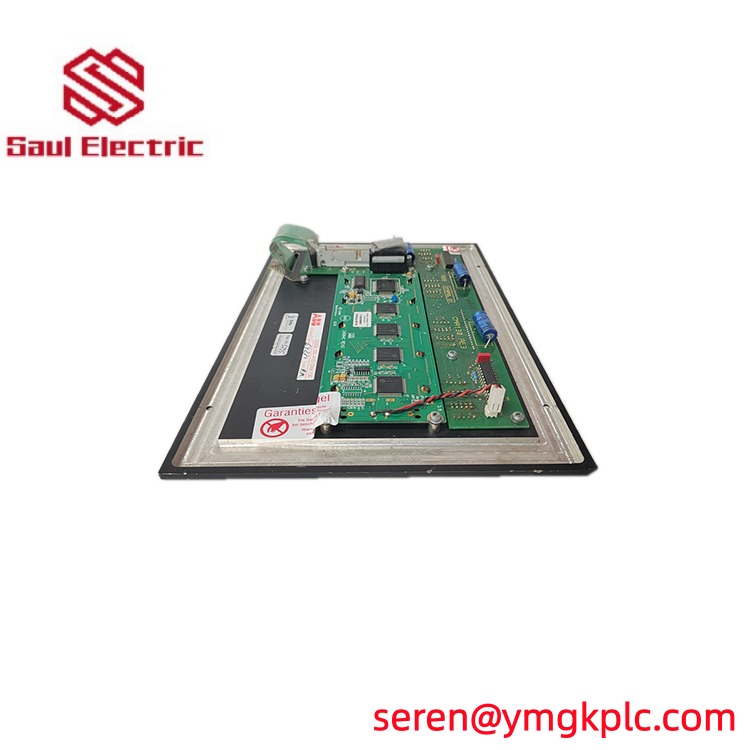

- [Product Photo 2]: Detail photo focusing on the rear connector interface (multi-pin headers/ribbon cable connectors) and mounting frame.
5. Matching ABB Spares & Accessories
- ABB CMA112 (Predecessor display panel—4 lines × 20 characters)
- ABB ACS800 Series Drives (Primary compatible drive platform)
- ABB ACS880 / ACS580 Series Drives (Advanced compatible drive platforms)
- ABB Synpol D (Diesel generator control system)
- ABB Symphony Plus / AC 800M (Compatible control systems)
6. Enterprise After-Sales Guarantees
- Full 12-Month Vendor Warranty: Complete replacement warranty shielding your purchase against electronic internal component defects under standard operation.
- Certified Original Hardware Guarantee: We supply 100% authentic ABB factory hardware to ensure seamless integration into active control systems.
- Technical Document Provision: Digital access to official ABB CMA130 specification sheets, wiring schematics, and cabinet mounting guides.
7. FAQ
Q: What is the ABB CMA130?
A: The CMA130 is a Display Front Panel (HMI) designed for ABB industrial control systems. It features an 8-line × 40-character LCD with blue backlight, navigation keys, function buttons, and tri-color LED status indicators.
Q: Is the CMA130 a communication module?
A: No. The CMA130 is a display front panel / HMI device, not a communication module. It mounts on the front of a control cabinet and provides local operator interface for monitoring and control.
Q: What communication protocol does the CMA130 use?
A: The CMA130 communicates via RS-485 using the Modbus RTU protocol.
Q: What systems is the CMA130 compatible with?
A: The CMA130 is used with ABB ACS800 series drives, diesel generator control systems (Synpol D), and various ABB industrial control systems including AC 800M and Symphony Plus.
Q: What is the difference between CMA130 and CMA112?
A: CMA130 features an 8-line × 40-character display, doubling the capacity of the CMA112 which has a 4-line × 20-character display. The CMA130 is the upgraded replacement for the CMA112 in most applications.
Q: Is the CMA130 hot-swappable?
A: No. The CMA130 is a panel-mounted component and requires cabinet power to be off for installation or removal.
Q: What power supply does the CMA130 require?
A: The CMA130 typically operates on 12VDC or 24VDC from the cabinet’s internal DC distribution. Verify the voltage from the physical label before connection—do not assume compatibility.
Q: How is the CMA130 physically connected?
A: The CMA130 connects via multi-pin headers or ribbon cable connectors to a backplane or relay board. It does not use RJ45, BNC, or other standard network ports.
Q: Can the CMA130 be used as a replacement for the CMA112?
A: Yes. In most applications, the CMA130 serves as the direct upgrade/replacement for the CMA112, offering significantly more display capacity. However, always verify mechanical fitment and connector compatibility for your specific cabinet.
