ABB PP846A 3BSE042238R2 | Panel 800 Operator Interface

Description

ABB identifies the PP846A as a Panel 800 operator panel with a 10.4-inch TFT color display and 800×600 resolution. The official ABB catalog lists the PP846A under Panel 800 and specifies a 20-button function-key interface.

3. Key Technical Specifications

The ABB catalog specifies the PP846A with a 10.4-inch, 800×600 TFT display, 20 function keys, 32 MB flash memory, 64 MB RAM, and a 20–30 VDC power supply. It also lists RS422/RS485, RS232C, Ethernet, and USB interfaces.

ABB’s installation documentation gives the PP846A panel dimensions as approximately 382 × 252 × 60 mm, with a 343 × 208 mm cutout and about 2.3 kg net weight.

4. Product Introduction (Anti-Template)

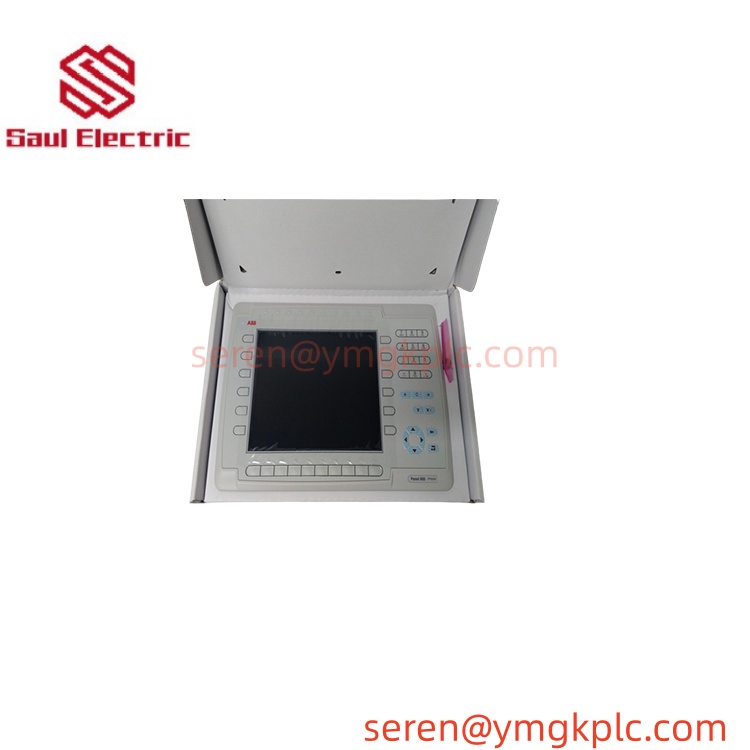

Operating as part of the ABB Panel 800 family, the PP846A provides the operator-facing interface for industrial control applications where process values, alarms, status information, and control commands need to be presented on a dedicated HMI. Its 10.4-inch TFT display provides 800×600 graphics, while the 20 two-color function keys give operators direct access to configured control functions.

The important point during replacement is that PP846A is a key-panel HMI, not the touch-screen PP845A. Both models use a 10.4-inch, 800×600 display, but their operator interaction methods are different. Do not order based on screen size alone. Honestly, checking the front-panel layout before shipment can prevent a surprisingly expensive installation mistake.

5. QC, Procurement & Logistics SOP

1. Inbound Verification
   The incoming unit is checked against PP846A / 3BSE042238R2, including the nameplate, product identification, front-panel layout, display, function keys, connectors, and revision information. The exact suffix is recorded because closely related Panel 800 models can have different interfaces or operator controls.
2. Live Rig Testing
   When compatible test equipment is available, the HMI is powered using the specified DC supply range. Display initialization, function-key response, Ethernet interface, serial interfaces, USB ports, and basic application loading are checked. For a used or refurbished unit, the display and keypad condition deserve particular attention because these are functional components rather than passive housing parts.
3. QA & Anti-Static Packaging

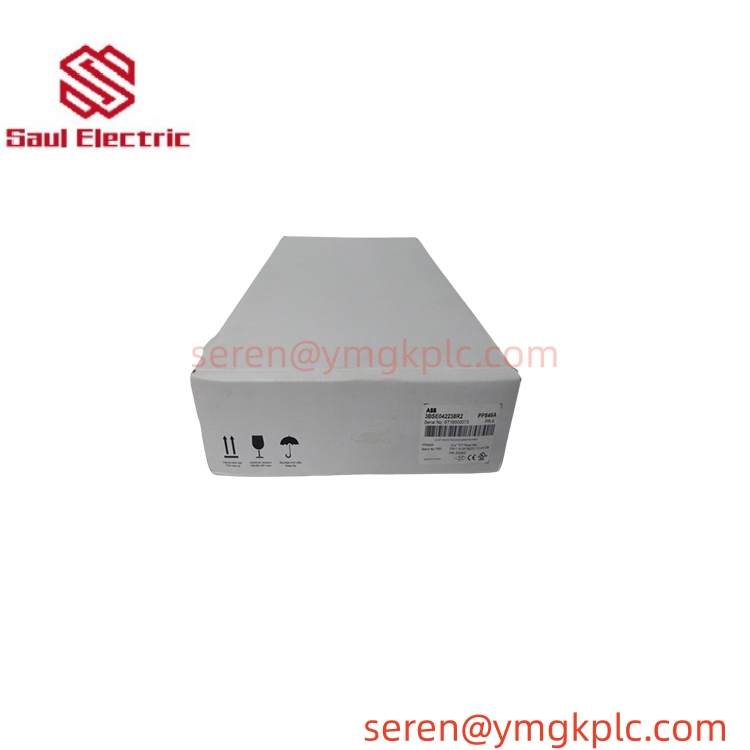

   The electronic assembly is handled under ESD precautions. The front display and function-key area are protected against scratches and impact, while the rear connectors are cushioned to prevent mechanical loading during transportation. The panel should be immobilized inside the carton rather than allowed to shift during air or sea freight.
4. Global Logistics & Export Compliance
   Export documents should identify the product accurately as an ABB Panel 800 PP846A operator panel with product ID 3BSE042238R2. HS classification should be reviewed according to the actual HMI function and destination customs requirements. For urgent plant maintenance, air freight is generally the practical option; sea freight can be considered for consolidated cargo. Secure packaging is essential because the 10.4-inch display and front-panel assembly are vulnerable to impact.

6. Technical Pitfalls & Integration Warnings

1. Firmware / Application Revision Mismatch
   A replacement panel can power up normally without being ready to run the existing HMI application. The application project, Panel Builder version, firmware compatibility, and communication settings should be checked before commissioning. ABB documentation states that PP846A configuration requires Panel Builder 800.
2. Configuration Errors
   Communication parameters and the loaded HMI application must correspond to the existing control system. An incorrect IP address, serial configuration, or application file can make a perfectly functional panel appear to be defective. Save the existing configuration before removing the original unit whenever possible.
3. Wiring / Interface Incompatibility

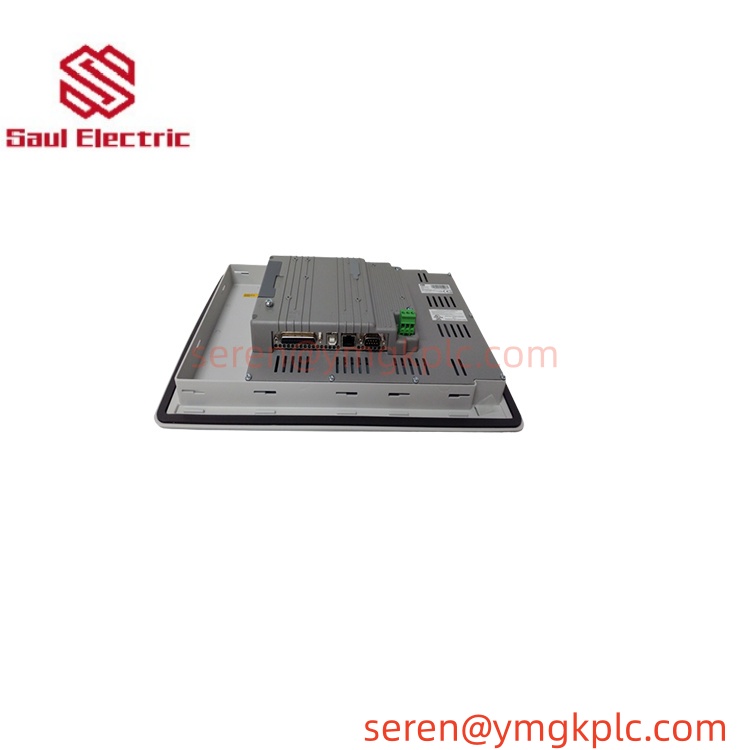

   PP846A provides RS422/RS485 and RS232C serial interfaces, plus Ethernet and USB. The exact port and cable arrangement must match the existing installation. Do not assume that a cable from another Panel 800 model can be reused simply because the connector appears similar.
4. ESD and Mechanical Damage During Unboxing
   The electronics should remain protected until installation. At the same time, the front display and function keys need mechanical protection. A panel can pass an electrical inspection and still arrive with a damaged display if the packing allows movement inside the carton.

7. Frequently Asked Questions (FAQ)

Q1: “What is the ABB PP846A used for?”

The PP846A is a Panel 800 operator interface used to display process information and provide operator controls for industrial automation systems. It uses a 10.4-inch color TFT display with 800×600 resolution and 20 function keys.

Q2: Is PP846A a touch-screen HMI?

No. The PP846A uses a function-key interface. The ABB catalog distinguishes it from the PP845A, which is a 10.4-inch resistive-touch panel. Both have 800×600 resolution, but the operator interface is different.

Q3: “Can I replace an older PP846 with PP846A?”

Compatibility should be checked before purchase. The PP846A belongs to the same Panel 800 family, but the exact hardware revision, firmware, application project, communication configuration, and system version should be verified. ABB’s documentation lists PP846A as a later Panel 800 variant.

Q4: Can the PP846A be hot-swapped?

Do not assume it can. Removing an HMI from an energized control cabinet can interrupt operator communication and may affect the connected control system. Unless the site’s approved maintenance procedure explicitly allows live replacement, isolate the panel before disconnecting power and communication cables.

Q5: “What is the international shipping weight?”

ABB’s product catalog gives the PP846A net weight at approximately 2.3 kg. For freight planning, allow additional weight for the protective carton, cushioning, and export packaging.

Q6: What software is required to configure the PP846A?

ABB documentation specifies Panel Builder 800 for configuring the Panel 800 family. The software version should be matched to the HMI’s hardware and firmware revision before attempting to restore an existing project.

Q7: What should I provide before ordering a replacement?

For a precise compatibility check, provide:

• Existing PP846A nameplate photo
• Full product ID and revision
• Front-panel photo
• Current HMI application or project information
• Connected controller/system model
• Communication interface currently in use
• Quantity required
• Destination country
• Required delivery date

For an existing ABB installation, the full product ID and front-panel photo are especially useful. They quickly distinguish PP846A from similar Panel 800 models.
