We have stocked original German ELAU motion control spare parts, including SH series high dynamic servo motor and PacDrive MC-4 dedicated servo driver. As core motion components for packaging equipment, printing presses, textile warp knitting machines and automated filling production lines, ELAU PacDrive system occupies a dominant position in high-speed multi-axis synchronous control equipment maintenance market worldwide. Our in-stock goods support equipment emergency repair, annual spare parts stocking and old machine renovation projects for global automation system integrators and factory maintenance departments.
SCHNEIDER and ELAU
Schneider Electric fully acquired German automation manufacturer ELAU AG in 2005. As a professional motion control brand focusing exclusively on packaging machinery automation, ELAU and its classic PacDrive servo system were retained as an independent product line under the Schneider group system.
ELAU’s MC-4 drives and SH series servo motors keep original German design, production standards and technical architecture, becoming Schneider’s core dedicated motion control hardware for high-speed packaging, printing and pharmaceutical equipment. All original ELAU spare parts are officially certified Schneider genuine components, with unified global after-sales warranty and technical support system.
Detailed Introduction for Each Product
1. ELAU SH140/30120/0/1/00/00/00/00/00 – High Dynamic AC Servo Motor
Belongs to ELAU SH140 frame size heavy-duty servo motor series, matched perfectly with MC-4 drive unit. Built-in Hiperface SinCos high-precision encoder, realizes ultra-high precision position feedback; the whole motor housing reaches IP67 protection grade, stable operation under workshop dust, humidity and oil mist environment.Features excellent dynamic response, strong overload capacity (250% short-time overload), stable torque output during frequent start-stop, high-speed reciprocating movement. Widely used in bag making machines, carton packaging, printing registration control, textile weaving main shaft driving. Common faults like motor jitter, positioning deviation, encoder failure will directly cause production line shutdown, being one of the most replaced wearing parts of ELAU original equipment.

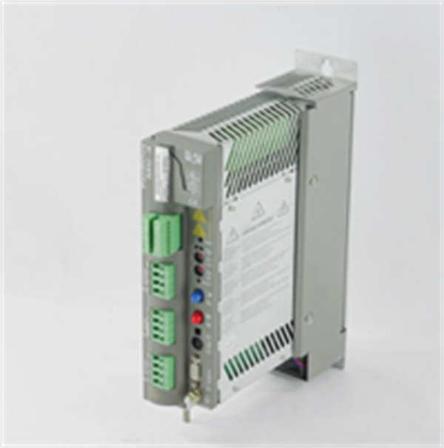

2. ELAU PacDrive MC-4/11/10/400 – Integrated Servo Drive Controller
MC-4 series is classic integrated single-axis servo amplifier of ELAU PacDrive platform, input voltage 380~480V three-phase AC, rated continuous output current 10A. This driver integrates power supply, power amplification unit and motion regulation circuit in one compact casing, adopting SERCOS real-time optical fiber bus communication to achieve high-speed data interaction with upper control system.Supports electronic cam, electronic gear, multi-axis synchronous following and closed-loop control of position/speed/torque. With automatic motor identification function, it can automatically match parameters with SH series servo motors without complicated manual debugging. DIN rail installation design saves cabinet layout space, with complete overcurrent, overvoltage, overheat, short-circuit protection functions, high stability for long-term continuous operation.
Matching Relationship & Parameter Comparison Table
表格
| Part Number | Product Type | Core Function | Typical Failure Phenomenon | Main Application Industry | Replacement Priority |
|---|---|---|---|---|---|
| SH140/30120/0/1/00/00/00/00/00 | Servo Motor | Power execution, precision positioning | Position offset, motor vibration, encoder alarm | Food packaging, printing, textile machinery | ★★★★★ Core vulnerable part |
| MC-4/11/10/400 | Servo Drive | Motion command operation & power driving | Drive alarm, no output, communication loss | All equipment equipped with SH series motors |
System Matching Value
MC-4 driver + SH140 motor forms a complete closed-loop motion control solution. Most packaging machinery manufacturers and after-sales maintenance companies will purchase the matched combination for emergency spare parts, which can quickly replace faulty components to minimize production line downtime loss. Our long-term stable supply of original ELAU spare parts can help customers establish safe spare parts inventory system.
Supply Commitment
All stocked products are genuine original new goods with complete factory certificates and inspection records. Strict incoming quality inspection procedures are implemented for each batch of goods, and third-party test reports can be provided upon customer request. Global standardized logistics distribution is supported, and standardized after-sales warranty services are provided for all delivered products. Our technical team can provide remote parameter debugging, fault troubleshooting and model selection consultation services. Welcome to contact us for formal quotation and technical documents.
