Description
Product Overview

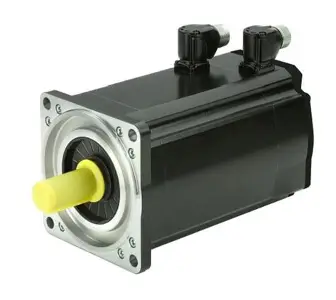

This synchronous permanent magnet servo motor belongs to the ELAU PacDrive product family under Schneider Electric. The SH140 series is specially developed for high-speed, high-precision motion control demands of packaging equipment, automated production lines and processing machinery. Model SH140/30120/0/1/00/00/00/00/00 features a 140mm flange frame, rated speed of 3000rpm and 11.4Nm standstill torque, matched with HIPERFACE SinCos single-turn absolute encoder for high-resolution position feedback. Adopting low-inertia rotor design and optimized stator winding structure, it delivers fast dynamic response and low cogging torque to guarantee stable positioning accuracy during frequent start-stop and reciprocating movement. It is fully compatible with Schneider PacDrive servo drive systems, widely deployed in food packaging, pharmaceutical packaging, printing machinery and material handling automatic equipment.
Core Technical Parameters
| Item | Parameter Data |
|---|---|
| Full Model | SH140/30120/0/1/00/00/00/00/00 |
| Series Brand | Schneider ELAU PacDrive Servo Motor |
| Flange Size | 140 mm square flange |
| Nominal Power | 2.89 kW |
| Standstill Torque | 11.4 Nm |
| Peak Torque | 23 Nm |
| Rated Speed | 3000 rpm |
| Max Operating Speed | 4000 rpm |
| Supply Voltage | 3-phase 400V / 480V AC |
| Rotor Inertia | 7.41 kg·cm² |
| Encoder Configuration | HIPERFACE SinCos single-turn absolute encoder |
| Shaft Form | Standard keyed shaft |
| Cooling Method | Natural convection self-cooling |
| Protection Grade | IP50 (IP65 optional for shaft side) |
| Thermal Class | Class F insulation |
| Net Weight | 11.9 kg |
Core Competitive Advantages for Industrial Clients
- Low inertia rotor architecture shortens acceleration/deceleration time effectively, raising the overall operation beat and production capacity of high-speed packaging equipment.
- Minimal cogging torque & smooth torque output eliminate speed fluctuation under low-speed working conditions, ensuring high precision for sealing, cutting and precise material positioning processes.
- Absolute encoder configuration retains axis position data after power failure, eliminating mandatory homing action during equipment restart to improve production operation safety and efficiency.
- Strict factory standardized testing and mature mechanical structure guarantee long service life under continuous heavy-load cyclic operation, reducing equipment unexpected downtime and maintenance costs.
- Strictly consistent with original factory mechanical dimensions and electrical protocols, realizing one-to-one direct replacement for failed old motors without modifying mechanical installation and control programs.
Compatible Matching Parts & Main Industrial Application Scenarios
Supporting matched components: PacDrive servo drive modules, dedicated motor power cables, encoder feedback cables, motor mounting flanges & couplingsTarget Application Devices: Vertical form fill seal packaging machines, blister packing equipment, pharmaceutical bottle filling lines, printing roll slitting machines, automatic carton sealing & palletizing equipment
Commercial Supply Terms & After-Sales Support
- Compatibility verification: Our professional automation engineers confirm model matching and parameter adaptability according to customers’ existing PacDrive system versions to ensure seamless replacement.
- Volume tiered pricing mechanism: Preferential unit price for bulk procurement orders; real-time stock status and international freight costs will be updated synchronously for each inquiry.
- Complete export document support: We provide commercial invoices, packing lists, product test reports and CE certification documents to support smooth customs clearance for global overseas buyers.
- Rigorous pre-delivery inspection: Each servo motor undergoes torque characteristic testing, encoder signal integrity inspection and long-time energized aging screening before outbound delivery.
- Standard anti-collision export packaging scheme: ESD vacuum sealed bag + high-density customized shockproof foam + heavy-duty reinforced export carton to protect motor stator winding and precision encoder during long-distance cross-border logistics transportation.
- Official warranty agreement: 12-month quality warranty covering inherent hardware defects under rated operating conditions. We provide official motor datasheets and step-by-step replacement operation guidance via email, together with permanent free remote technical debugging support for system matching.
FAQ
- Will motor replacement affect the original machine motion programs?All motion logic and positioning parameters are stored in the PacDrive controller. Direct replacement of the servo motor will not overwrite any machine programs; only simple encoder pairing check after power-on is needed.
- What does each segment of the SH140 model code stand for?SH140 = 140mm flange size; 30120 = 3000rpm rated speed + 11.4Nm standstill torque; subsequent digits represent encoder type, shaft style, brake option, seal grade and other customized configurations.
- Delivery time for in-stock items?Goods are stored in domestic warehouse, all delivery formalities can be finished within 3 working days after payment confirmation.
