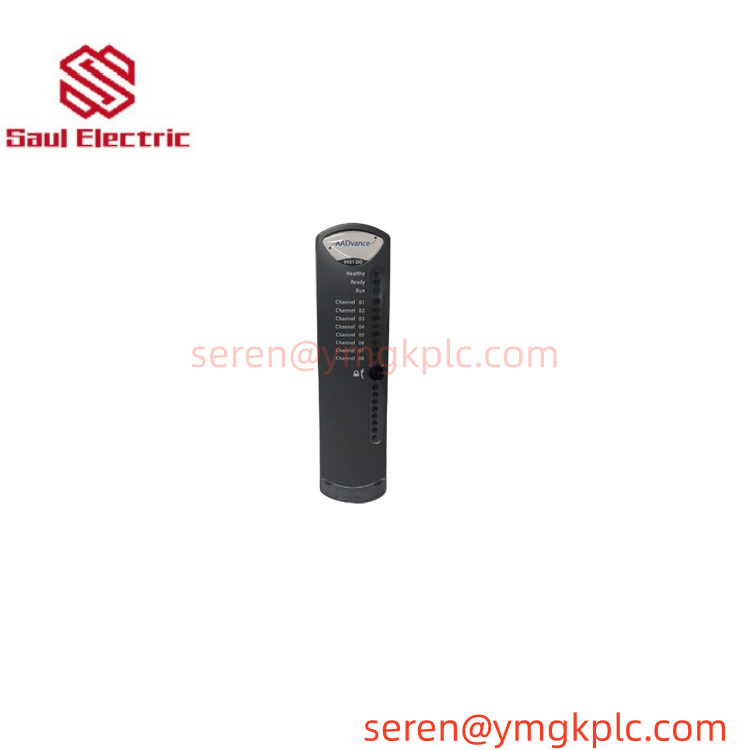

ICS Triplex T9451 | 8-Channel Isolated Safety Output

Description

The T9451 is an AADvance Digital Output Module, not a Trusted TMR processor or a 40-channel digital input module. Rockwell Automation’s AADvance documentation specifies eight output channels and a maximum switching capability of 1 A at 32 VDC per field device.

3. Key Technical Specifications

Rockwell’s AADvance reference documentation specifically lists the T9451 as an 8-channel, 24 VDC isolated digital output module. The module supports redundant +24 VDC power, 18–32 VDC module supply, output monitoring, reverse-current protection, and open/short-circuit line monitoring.

The module can be used in different AADvance safety architectures. For example, Rockwell’s documentation shows T9451 in SIL 2 and SIL 3 fault-tolerant output arrangements, with the required redundancy depending on the application and whether the outputs are de-energize-to-action or energize-to-action.

4. Product Introduction (Anti-Template)

When a safety controller has to drive valves, solenoids, alarms, relays, or other field devices without allowing a single internal fault to create an unsafe stuck-on condition, the T9451 provides the output interface. It contains eight isolated digital output channels and incorporates channel monitoring and protection functions as part of the AADvance safety architecture.

The important detail is that T9451 is an AADvance I/O module. It should not be confused with similarly numbered modules from other ICS Triplex families. The termination assembly, processor configuration, output architecture, and application safety requirements all matter. Honestly, checking the existing T9300 base and T9851/T9852 termination arrangement before ordering can prevent a very avoidable installation problem.

5. QC, Procurement & Logistics SOP

1. Inbound Verification

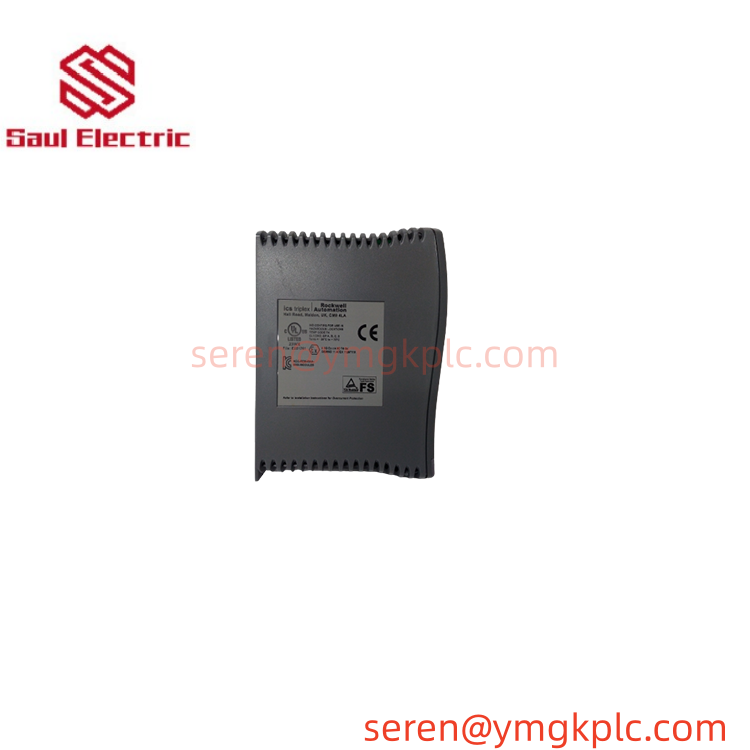

   Verify the complete T9451 identification, including catalog number, hardware revision, serial label, front-panel condition, connector interface, and housing. The revision should be recorded because Rockwell’s compatibility documentation identifies specific T9451 hardware and firmware combinations.
2. Live Rig Testing
   Where a compatible AADvance test setup is available, verify module initialization, channel operation, output switching, field-voltage monitoring, diagnostic status, and communication with the processor. A simple LED or power test is not enough to validate all eight output channels.
3. QA & Anti-Static Packaging

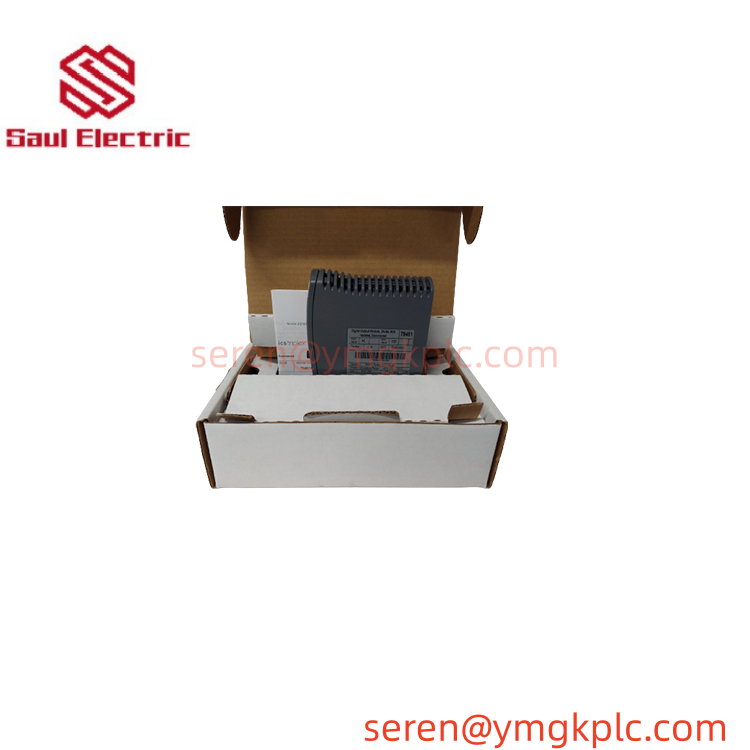

   The module is handled under ESD-controlled conditions and placed in anti-static packaging. The front connector and housing are cushioned against impact. During shipment, the module should be immobilized so repeated vibration does not damage the connector or PCB.
4. Global Logistics & Export Compliance
   Export documentation should clearly identify the equipment as an ICS Triplex T9451 AADvance 8-channel Digital Output Module. HS classification should be reviewed against the actual product function and destination customs requirements. For urgent safety-system maintenance, air freight is generally preferable; sea freight can be considered for planned consolidated shipments.

6. Technical Pitfalls & Integration Warnings

1. Firmware / Hardware Revision Mismatch
   This is one of the first things to check with a legacy T9451. Rockwell compatibility documentation lists specific hardware revisions and firmware requirements. For example, older T9451 hardware revisions can have compatibility limitations with newer system releases.
2. Termination Assembly Mismatch
   The T9451 is used with AADvance termination assemblies. Rockwell documentation identifies T9851 for simplex output arrangements and T9852 for certain dual arrangements. Installing the wrong termination assembly can create wiring and safety-architecture problems.
3. Output Architecture Errors
   Do not assume that one T9451 is suitable for every safety application. Rockwell specifies different arrangements for SIL 2, SIL 3, high-demand operation, and energize-to-action applications. In some high-demand configurations, dual output modules are required.
4. ESD and Field Wiring Errors
   Disconnecting or reconnecting field wiring incorrectly can create unexpected output states. During replacement, document each channel before removing the original module, maintain ESD protection, and verify the field power polarity and load before commissioning.

7. Frequently Asked Questions (FAQ)

Q1: “What is the ICS Triplex T9451 used for?”

The T9451 is an AADvance 8-channel digital output module. It sends controlled digital signals to field devices such as valves, solenoids, relays, and alarms while providing output monitoring and fault-detection functions.

Q2: Is T9451 an input or output module?

It is a digital output module (DO). It has eight output channels. Some secondary product listings incorrectly describe it as a digital input module, so the original catalog documentation should be used when determining its function. Rockwell’s official AADvance documentation clearly identifies T9451 as an 8-channel digital output module.

Q3: “What voltage does T9451 use?”

The module uses a nominal 24 VDC supply, with the documented module supply range of 18–32 VDC. Each output can switch up to 1 A at 32 VDC under the specified conditions.

Q4: Can I hot-swap the T9451?

The AADvance architecture supports maintenance strategies involving module replacement, but do not treat that as permission to remove any T9451 under any operating condition. The correct procedure depends on the controller architecture, output configuration, process state, and site’s approved maintenance procedure.

For a safety output, placing the process in a safe maintenance state before replacement is the conservative approach.

Q5: “Can I use an older T9451 with my newer AADvance system?”

Possibly, but the hardware revision and firmware compatibility must be checked. Rockwell’s release documentation identifies specific T9451 revisions that are functionally identical or compatible with particular firmware levels, while older revisions can be incompatible with newer releases.

Q6: What termination assembly goes with T9451?

The exact termination arrangement depends on the safety architecture. Rockwell documentation identifies T9851 as a simplex digital-output termination assembly and T9852 as a dual arrangement for applicable configurations.

Q7: “What should I send before ordering a replacement T9451?”

Please provide:

• Existing T9451 nameplate photo
• Hardware revision
• Firmware/system version
• T9300 I/O base information
• T9851 or T9852 termination assembly
• Output wiring photo
• Current safety architecture
• Quantity required
• Destination country
• Required delivery date

For this module, the hardware revision is particularly important. Rockwell’s own compatibility records show that T9451 revisions are not universally interchangeable across every AADvance firmware generation.
