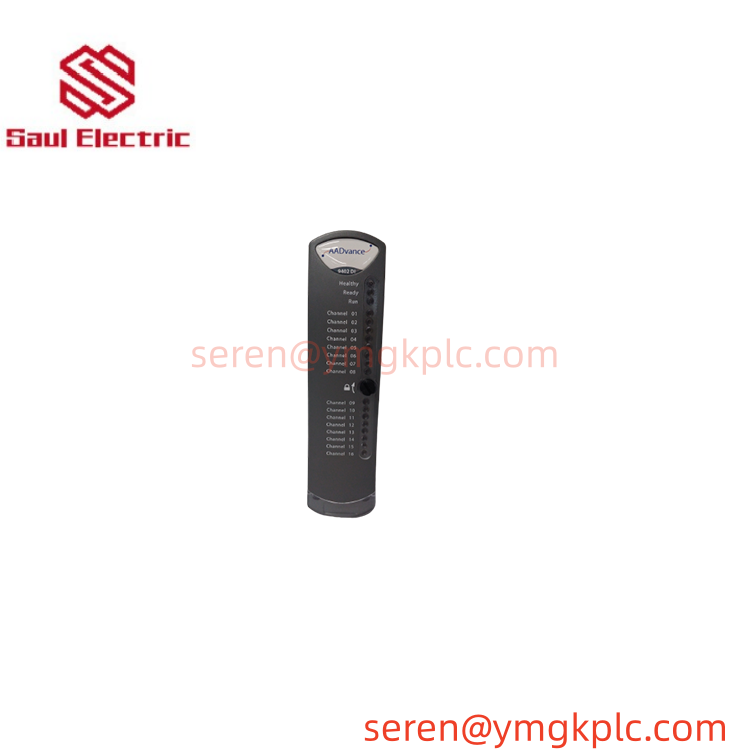

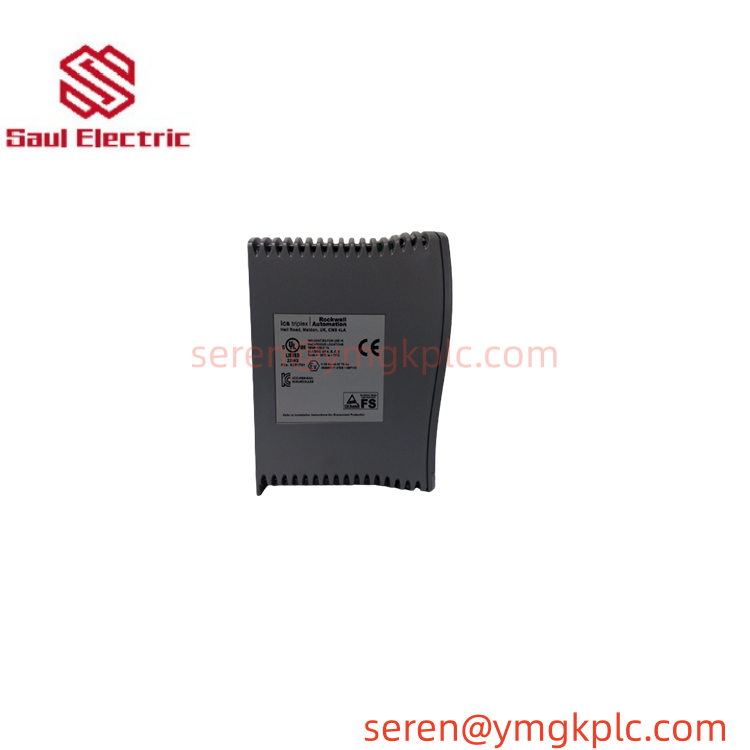

ICS Triplex T9402 | Authentic OEM Rockwell AADvance Safety Control Module

ICS Triplex T9402 | Authentic OEM Rockwell AADvance Safety Control Module

Original price was: $999.00.Current price is: $888.00.

  • Model: T9402
  • Brand: ICS Triplex (Rockwell Automation)
  • Series: AADvance Safety Instrumented System
  • Core Function: Acquires 24 VDC digital field signals from limit switches, pressure interlocks and fire/gas detectors, feeds validated status data to AADvance safety controllers for safety logic execution
  • Category: Safety Digital Input Module (DI)
  • Key Specs: 16 isolated input channels, 24 VDC nominal, hot-swappable, IEC 61508 SIL 3 certified, channel-level diagnostics
  • Availability & Condition: New Surplus, In Stock, Ready for immediate dispatch
Get a Quote
Category: SKU: T9402 Tags: Brand:
  • Need Help?
  • +86 13313703791
  • +86 13313703791
  • seren@ymgkplc.com
库存图标
100,000+ Models in Stock
保修图标
One-Year Warranty
响应图标
24h Fast Response

Description

3. Key Technical Specifications

  • Channel Count: 16 galvanically isolated digital inputs
  • Nominal Field Voltage: 24 VDC (operating range: 18–32 VDC)
  • Input Sensing Current: 6.5 mA typical
  • Logic Threshold: Logic 0 ≤15 VDC; Logic 1 ≥19 VDC
  • Backplane Supply: 24 VDC, max 260 mA
  • Isolation Rating: Field side to system backplane galvanic isolation
  • Feature: Hot-swappable online replacement
  • Diagnostics: Open-circuit detection, module health monitoring, per-channel status LED
  • Safety Certification: IEC 61508 SIL 3, TÜV approved
  • Operating Temperature: 0 °C to +60 °C, non-condensing
  • Humidity Tolerance: 5%–95% RH
  • Mounting: AADvance rack chassis slot mounting
  • Weight: ~0.36 kg
  • Matching Terminal Assembly: T9833 triple terminal board

4. Product Introduction

When safety interlock loops produce inconsistent status indications and trigger spurious safety trips, degraded digital input modules often evade routine loop testing. Operating as the safety-rated field interface for AADvance SIS platforms, the T9402 validates binary sensor signals before passing data to safety logic solvers.Unlike general-purpose PLC DI cards, this unit undergoes continuous background self-testing to uncover latent faults required for SIL3 safety applications. Honestly, built-in open-circuit diagnostics simplify periodic safety proof testing on refinery and power plant safety systems.



5. QC, Procurement & Logistics SOP

  1. Inbound Verification: Confirm full T9402 part marking, inspect front channel LEDs and rear backplane edge connector for bent pins or abrasion. Cross-reference serial identifiers against global procurement portal records.
  2. Live Rig Testing: Complete power-on initialization, backplane bus recognition, per-channel input simulation, and diagnostic function verification to confirm all channels register status reliably.

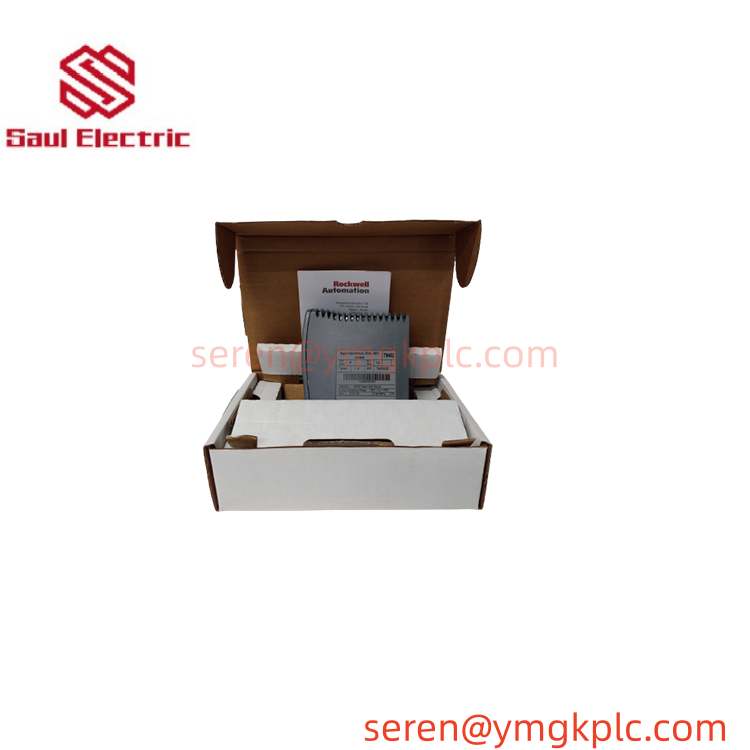

  3. QA & Anti-Static Packaging: Seal module inside static shielding bag, add rigid foam padding to protect edge connectors; attach signed bench test report to each shipment.
  4. Global Logistics & Export Compliance: Assign accurate HS classification for safety instrumented control spare parts. Reinforced carton packaging suitable for air freight or sea freight —though customs clearance in the EU might add 2 days to transit timelines.



6. Technical Pitfalls & Integration Warnings

  1. Firmware Revision Mismatch: Older AADvance engineering software lacks hardware definitions for later T9402 firmware variants. A technician downloading existing project configurations will encounter module recognition faults after installation.
  2. Chassis Platform Confusion: T9402 belongs to AADvance series; it cannot be installed into Trusted TMR chassis. Direct insertion into Trusted racks causes backplane communication failure.
  3. Field Wiring Configuration Errors: Open-circuit fault detection requires external termination resistors. Missing resistors will generate constant false wiring fault alarms in safety logic.
  4. ESD destruction during unboxing: The exposed backplane edge connector contains sensitive safety logic circuitry. Static discharge can create silent partial damage that only appears during safety proof tests.

7. Frequently Asked Questions (FAQ)

Q: What global lead times apply if on-hand inventory runs out?A: Standard sourcing lead time runs 6–10 weeks. Expedited sourcing options can shorten delivery to 16–24 working days, subject to upstream stock availability.Q: Can I remove and insert this module while the AADvance rack remains energized?A: Hot swap is officially supported. Always lock out associated field safety loops before replacement to avoid unintended safety logic transitions.Q: Does T9402 work with Trusted TMR system racks?A: No. Hardware backplane protocol differs. T9402 is exclusive to AADvance SIS hardware and incompatible with Trusted series chassis.Q: What shipping options exist for cross-border industrial spare deliveries?A: Air express for urgent safety system shutdowns, standard air freight for scheduled turnaround maintenance, and sea freight for bulk spare part orders. Complete export documentation accompanies every shipment.Q: Can I replace T9402 directly with T9401 or other DI variants?A: Channel quantity and internal diagnostic logic differ. Direct swap requires project hardware reconfiguration and full safety loop recommissioning.Q: What warranty coverage applies to New Surplus units?A: Each unit carries a 12-month limited warranty covering verified bench test failures. Warranty excludes damage caused by overvoltage field transients, wiring shorts, or improper ESD handling.Q: Is this module suitable for Emergency Shutdown (ESD) and Fire & Gas (F&G) safety loops?A: Yes. SIL3 certification makes it compliant for use within safety instrumented loops subject to IEC 61508 and IEC 61511 standards.
