Description
Product Overview

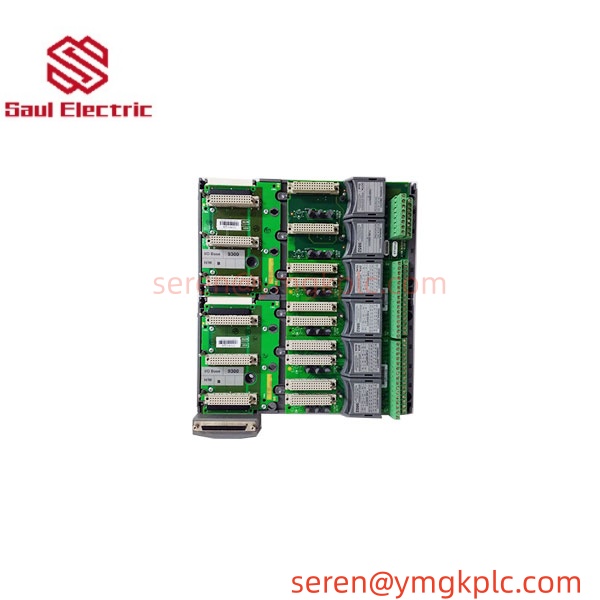

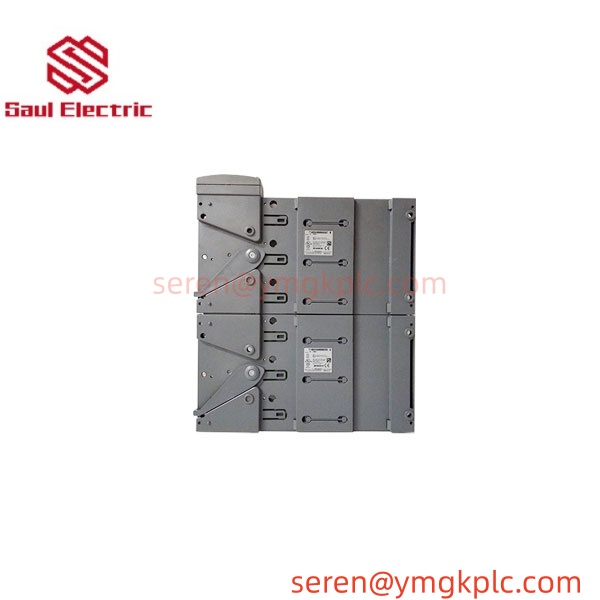

The ICS TRIPLEX 9300‑9852‑9802 is a triple‑modular‑redundant communication interface hardware for Trusted safety instrumented system. It features dual‑channel Ethernet network hardware, delivering high‑reliability data transmission for safety‑critical control loops. It exchanges real‑time process values, system diagnostic alarms, SOE sequence‑of‑events logs between SIS controller and upper‑level DCS, HMI, SCADA, and supports peer‑to‑peer inter‑controller communication for multiple Trusted subsystems. Hot‑swap design allows online module replacement without shutting down the safety system. Widely used as spare replacement for legacy petrochemical, oil‑gas and power plant safety systems.
Series
Trusted TMR SIS Series by ICS TRIPLEX. This fault‑tolerant safety platform adopts triple‑modular redundant voting architecture to achieve IEC 61508 SIL 3 safety integrity level. The 9300‑9852‑9802 communication module works cooperatively with Trusted processor units, I/O modules and power supply modules to build complete safety interlock protection solutions.
Product Features
- Dual‑port redundant 10/100 Mbps auto‑negotiation Ethernet hardware, improves communication link fault tolerance
- Supports Modbus TCP Master / Slave mode and proprietary Trusted peer‑to‑peer safety communication protocol
- Hot‑swap capable, online replacement without interrupting SIS safety‑loop operation
- Complies with IEC 61508 SIL 3 safety standard for high‑risk process safety applications
- Transmits process variables, fault diagnostics, alarm messages and SOE event records
- Continuous hardware self‑diagnosis for network link breakage, module internal hardware anomalies and communication failures
- Front‑panel multi‑LED indicators for network link status, module health and fault alarm notification
- Industrial rugged construction, suitable for cabinet‑mount installation under harsh plant electromagnetic interference environments
Product Parameters
表格
| Item | Parameter |
|---|---|
| Ethernet Interface | Dual 10/100 Mbps auto‑negotiation Ethernet ports |
| Communication Protocol | Modbus TCP (Master/Slave), Trusted Peer‑to‑Peer safety protocol |
| Safety Certification | IEC 61508 SIL 3 |
| Installation | Slot‑mount inside Trusted main chassis |
| Hot‑Swap Support | Yes |
| Diagnostic Function | Network link detection, internal hardware self‑test, communication fault monitoring |
| Operating Temperature | 0°C ~ +60°C |
| Storage Temperature | -40°C ~ +70°C |
Product Specifications
- Unit Model：9300‑9852‑9802
- Brand：ICS TRIPLEX (Honeywell / Rockwell Automation)
- Series：Trusted TMR Safety Instrumented System
- Weight：Approx.1.6 kg
Function
- Supply redundant high‑integrity Ethernet communication channel for Trusted SIS TMR controller
- Realize Modbus TCP data interaction between safety system and external DCS / HMI / SCADA host
- Execute peer‑to‑peer safety data exchange among multiple Trusted SIS controllers
- Upload real‑time process data, system alarms, diagnostic information and SOE event logs
- Detect network link and module hardware faults, output visual LED alarm signals
- Support hot‑swap maintenance without disturbing safety‑loop normal running
Purpose
Build stable redundant network connection for Trusted safety instrumented system; serve as spare‑part replacement for legacy ICS Triplex SIS communication channel, guarantee reliable transmission of safety‑control‑related data.
Application Fields
Oil & gas production, petrochemical refineries, chemical process plants, thermal power generation, offshore platforms, fertilizer plants, safety interlock system data monitoring, legacy Trusted SIS maintenance & retrofitting.
Image search keyword:

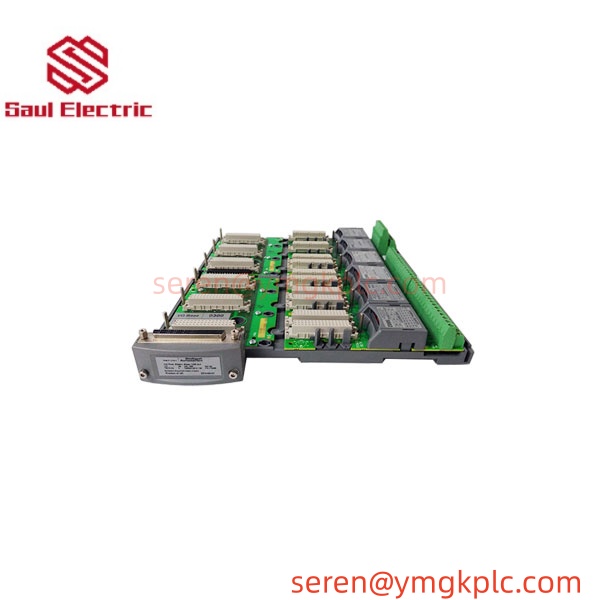

ICS TRIPLEX 9300‑9852‑9802 Trusted communication interface module
