Description
Product Overview
The ICS TRIPLEX 9300‑9852 is a high‑reliability communication interface module for the Trusted triple‑modular‑redundant safety instrumented system. It provides redundant Ethernet communication channels for SIS controllers, supports Modbus TCP and safety‑oriented peer‑to‑peer inter‑controller communication. It transmits safety‑loop process data, system diagnostic alarms and SOE event logs to upper‑level DCS, HMI or monitoring hosts, and supports data exchange between multiple Trusted SIS subsystems. Hot‑swap capability permits online replacement without interrupting safety‑critical system operation. Widely used as spare‑part replacement for legacy petrochemical and oil‑gas safety systems.
Series
Trusted TMR SIS Series by ICS TRIPLEX. This fault‑tolerant safety system adopts triple‑modular redundant hardware voting architecture to achieve IEC 61508 SIL 3 safety level. The 9300‑9852 communication module works with Trusted processor modules, I/O modules and power supplies to build complete safety interlock control systems.
Product Features
- Dual‑port Ethernet redundant network design, improves communication link reliability for safety‑related data transmission
- Supports Modbus TCP Master / Slave mode and Trusted peer‑to‑peer safety communication protocol
- Hot‑swap supported, module online replacement without SIS system shutdown
- IEC 61508 SIL 3 safety compliance for high‑risk process‑safety applications
- Real‑time transmission of process variables, fault diagnostics, alarm messages and SOE sequence‑of‑events data
- Built‑in hardware self‑diagnosis for link failure, module internal fault and communication abnormality
- Front‑panel LED indicators for network status, module health and fault alarm
- Industrial rugged design, suitable for cabinet installation in harsh plant electromagnetic environments
Product Parameters
| Item | Parameter |
|---|---|
| Ethernet Interface | Dual 10/100 Mbps auto‑negotiation Ethernet ports |
| Supported Protocol | Modbus TCP (Master/Slave), Trusted Peer‑to‑Peer safety protocol |
| Safety Certification | IEC 61508 SIL 3 |
| Installation | Slot‑mount inside Trusted main chassis |
| Hot‑Swap Support | Yes |
| Diagnostics | Network link detection, internal hardware self‑test, communication fault monitoring |
| Operating Temperature | 0°C ~ +60°C |
| Storage Temperature | -40°C ~ +70°C |
Product Specifications
- Unit Model：9300‑9852
- Brand：ICS TRIPLEX (Honeywell / Rockwell Automation)
- Series：Trusted TMR Safety Instrumented System
- Weight：Approx.1.6 kg
Function
- Provide redundant high‑integrity Ethernet communication channel for Trusted SIS controller
- Realize Modbus TCP data interaction between SIS and external DCS / HMI / SCADA host
- Execute peer‑to‑peer safety communication among multiple Trusted safety controllers
- Upload real‑time process values, system alarms, diagnostic information and SOE event records
- Detect network link and module hardware faults, output visible LED alarm signals
- Support hot‑swap maintenance without affecting safety‑loop normal operation
Purpose
Establish reliable network connection for Trusted SIS safety instrumented system; serve as spare‑part replacement for legacy ICS Triplex safety system communication channel, guarantee stable transmission of safety‑control‑related data.
Application Fields
Oil & gas production, petrochemical refineries, chemical process plants, thermal power generation, offshore platforms, fertilizer plants, safety interlock system data monitoring, legacy Trusted SIS maintenance & retrofitting.
Image search keyword:

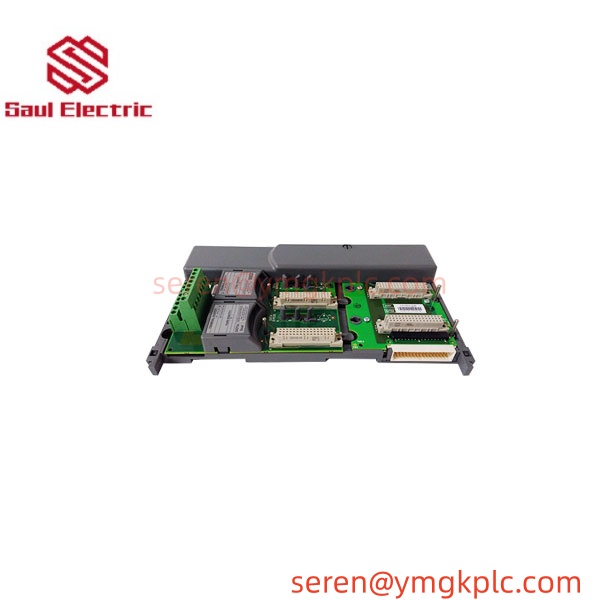

ICS TRIPLEX 9300‑9852 Trusted communication interface module
