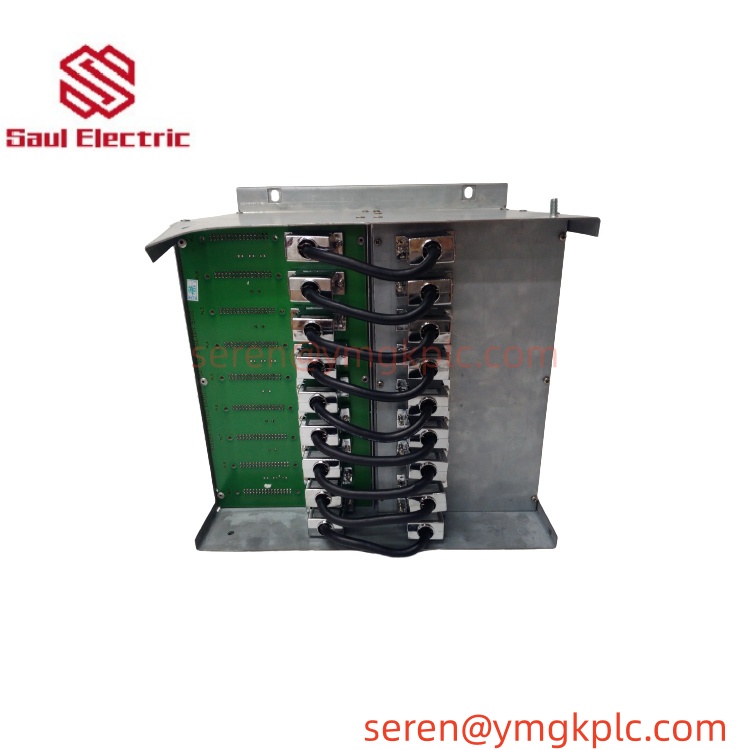

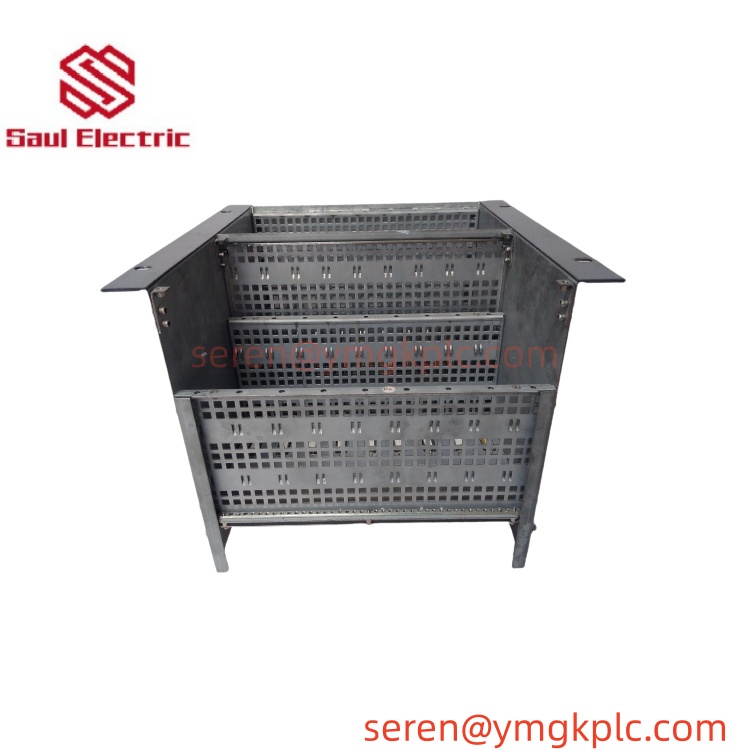

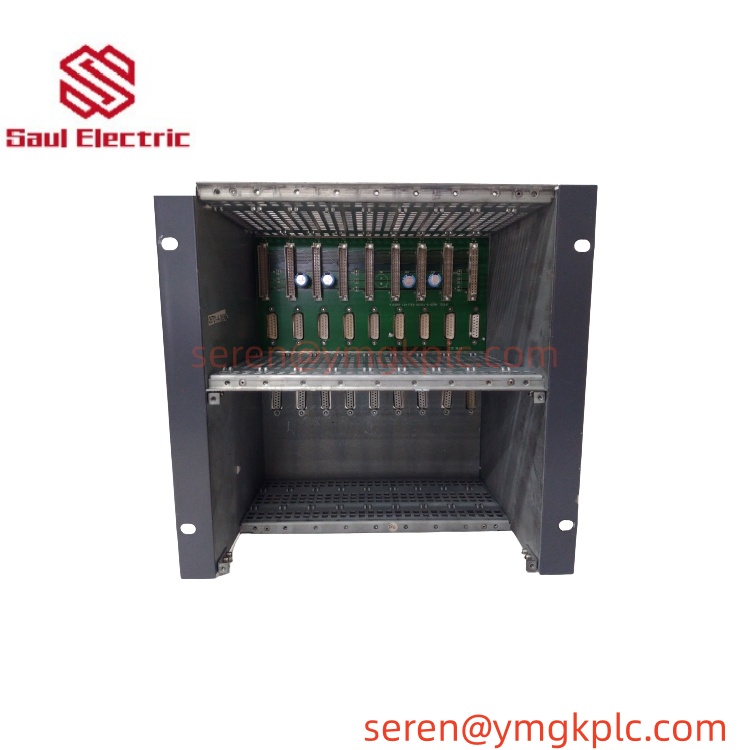

Honeywell 05701‑A‑0502 System 57 6U Front‑Wiring Sub‑Rack Assembly

Honeywell 05701‑A‑0502 System 57 6U Front‑Wiring Sub‑Rack Assembly

Original price was: $999.00.Current price is: $888.00.

Model： 05701‑A‑0502

Brand： Honeywell (Zellweger Analytics)

Series： System 57 Gas & Fire Monitoring System

Core Function： 6U half‑width front‑access sub‑rack chassis assembly for System57 fire‑and‑gas monitoring system, provides backplane bus and mechanical housing for plug‑in control cards, power cards, relay and field‑interface cards with front‑side wiring access design

Product Type： System Sub‑Rack Chassis Assembly

Key Specifications： 6U half‑19‑inch width, front‑field‑wiring access, integrated system backplane bus, dual‑compartment EMC‑shielded housing, supports multiple plug‑in functional cards, for Honeywell System 57 gas‑detection hardware installation

Get a Quote
Category: SKU: 05701‑A‑0502 Brand:
  • Need Help?
  • +86 13313703791
  • +86 13313703791
  • seren@ymgkplc.com
库存图标
100,000+ Models in Stock
保修图标
One-Year Warranty
响应图标
24h Fast Response

Description

Product Overview

The Honeywell 05701‑A‑0502 is a 6U half‑width front‑access sub‑rack chassis for Honeywell Zellweger System 57 modular fire‑and‑gas safety‑monitoring platform. It adopts front‑wiring‑access mechanical structure, all field‑cable termination operations can be completed from rack front side without rear‑side cabinet access. The internal structure is divided into two independent EMC‑shielded compartments; one compartment accommodates control cards, the other holds field‑interface and relay output cards, connected by dedicated system backplane bus board. This rack accepts full series of System57 plug‑in modules: gas‑detection control cards, DC‑input power‑interface card, field‑interface cards, relay‑output cards and engineering card. Widely used for legacy System 57 gas‑monitoring‑system cabinet reconstruction, chassis replacement and spare‑part‑replacement in petrochemical, refinery and offshore‑hazardous‑area sites.

Series

System 57 modular fire‑and‑gas safety‑monitoring hardware platform by Honeywell Zellweger Analytics. The rack‑based system consists of sub‑rack chassis, backplane bus, gas‑detection control cards, field‑interface cards, relay‑output cards, DC‑input power‑interface cards and engineering‑card components for continuous toxic‑gas and combustible‑gas safety‑monitoring for industrial hazardous‑location cabinets.



Product Features

  1. 6U half‑19‑inch width sub‑rack with front‑access wiring design, field‑cable wiring and maintenance work completed from rack front panel, no rear‑cabinet‑space requirement
  2. Dual‑compartment EMC‑shielded internal housing, separates control‑card area and field‑relay‑interface‑card area to restrain electromagnetic interference between circuits
  3. Integrated dedicated System57 backplane bus board, realizes power‑distribution and signal‑interconnection for all plug‑in functional cards
  4. Supports full‑range System57 plug‑in modules: gas‑detection control card, power‑interface card, field‑interface card, relay‑output card and engineering‑card
  5. Standard mechanical locating slot for each card position, supports hot‑swap function of each plug‑in module
  6. Robust metal rack housing, suitable for long‑term 24‑hour continuous‑operation inside industrial safety‑monitoring cabinets
  7. Matches System57 wall‑mount cabinet accessories for complete fire‑and‑gas monitoring system assembly



Product Parameters

Item Parameter
Model 05701‑A‑0502
Module Type 6U Half‑Width Front‑Access Sub‑Rack Assembly
Mechanical Specification 6U height, half‑19‑inch width, front‑field‑wiring access
Internal Structure Dual‑compartment EMC‑shielded housing, built‑in system backplane bus board
Compatible Cards System57 full‑series plug‑in gas‑control, power‑interface, field‑interface, relay‑output and engineering‑cards
Application Scene Honeywell Zellweger System 57 fire‑and‑gas‑monitoring system
Operating Temperature 0℃ ~ +60℃



Product Specifications

  • Physical form: Complete metal sub‑rack chassis assembly with integrated backplane
  • Condition: New surplus / Tested used (stock subject to real‑time confirmation)
  • Warranty: 365‑day warranty for supplied units
  • Shipment: In‑stock goods ship within 3 working days after payment

Function

Provides mechanical installation housing and fixing positions for all System57 plug‑in functional cards; delivers power‑supply distribution and signal interconnection via built‑in backplane bus; realizes front‑side field‑cable wiring access; isolates internal circuit via EMC‑shielded compartment to suppress external electromagnetic interference.



Purpose

Act as mechanical and bus‑interconnection foundation for Honeywell System 57 fire‑and‑gas safety‑monitoring rack; realize unified installation, power‑supply and signal‑communication for multi‑channel gas‑detection functional cards.



Application Fields

‑ Petrochemical‑plant System 57 gas‑detection‑cabinet chassis‑replacement projects‑ Oil‑gas‑site and offshore‑platform legacy fire‑and‑gas‑monitoring‑system maintenance‑ Refinery hazardous‑area gas‑monitoring‑rack retrofits‑ Chemical‑plant Honeywell Zellweger System 57‑system overhaul‑projects‑ Hazard‑process‑industrial‑site fixed‑gas‑safety‑monitoring‑cabinet‑repair

Image search keyword for reference: Honeywell 05701‑A‑0502 System57 6U front‑wiring sub‑rack
