Bently Nevada 330180-91-05 | 3300 XL 9m Proximitor Sensor

Description

1. Product Overview

The Bently Nevada 330180-91-05 is the high-performance signal conditioning core of the 3300 XL 5mm/8mm Proximity Transducer System. Operating as an advanced radio-frequency (RF) oscillator and demodulator block, this Proximitor device generates a continuous micro-amp eddy-current loop via the probe tip. It converts micro-inch mechanical dynamic shaft vibration, axial thrust movement, or Keyphasor timing ticks into a clean, noise-free analog voltage output directly proportional to the physical gap distance.

The specific parameters of the 330180-91-05 configuration make it an industry standard for distributed control cabinets. The code designates a 9.0 Meter Total System Length, tuned to pair perfectly with a 1-meter probe coupled to an 8-meter extension line, or a 0.5-meter probe bound to an 8.5-meter extension block. Featuring a factory-integrated 35mm DIN-rail mounting plate, it eliminates the requirement for separate electrical isolation isolation spacers. Furthermore, its -05 Suffix Multiple Approvals envelope ensures intrinsic safety compliance across worldwide petrochemical processing sectors holding ATEX, IECEx, and CSA hazardous zone mandates.

Key Applications:

• Hydrocarbon Refinery Gas Compressors: Providing continuous radial vibration loops to detect high-frequency rotor instability or aerodynamic surging.
• Power Plant Steam Turbine-Generators: Precision monitoring of static axial thrust gap shifts to prevent massive cataclysmic rotor-to-stator blade wreckage.
• Ethylene Cracking Plant Turbomachinery: Operating within severe Class I, Division 1 and Zone 0 hazard perimeters under certified intrinsic safety barrier architectures.
• Machinery Diagnostics Upgrades: Transforming legacy, distorted analog sensor streams into sharp, calibrated voltage waveforms ready for modern edge-computing data analyzers.

2. Technical Features

3. Commercial Procurement Protocol

1. System Loop Verification: Our technical division verifies that your connected field probe and extension line combination perfectly totals 9.0 meters to ensure zero dynamic scaling shift on the 330180-91-05 module.
2. Itemized Commercial Proposal: You receive an itemized commercial layout detailing specific tiered discounts, real-time physical inventory counts, and automated logistics windows.
3. Trade Controls Clearance: Rapid verification ensuring complete alignment with standard ECCN codes, dual-use industrial asset laws, and destination regulations.
4. Proforma Invoice Transmission: Detailed Proforma Invoices (PI) are dispatched quickly to synchronize with your corporate supply chain auditing guidelines and accelerate spending clearance.
5. Secure Financial Processing: Monetary settlement processed safely through premium enterprise banking networks via secure Telegraphic Transfer (T/T wire channels).
6. Pre-Dispatch Quality Assurance: Visual manual checking of co-axial terminal thread paths, terminal block screws, and logging the unique factory identification matrix.
7. Premium Shock Packaging: Vacuum-sealed inside specialized anti-static (ESD) shielding bags and cradled by custom-molded high-density foam inside extra-strength outer boxes.
8. Express Global Cargo Delivery: Sourced items are immediately passed to elite express couriers (DHL Express, FedEx, UPS) with live automated tracking data.

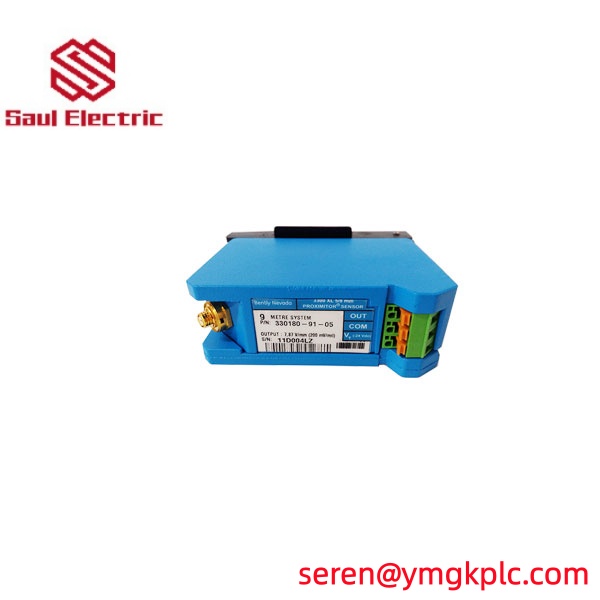

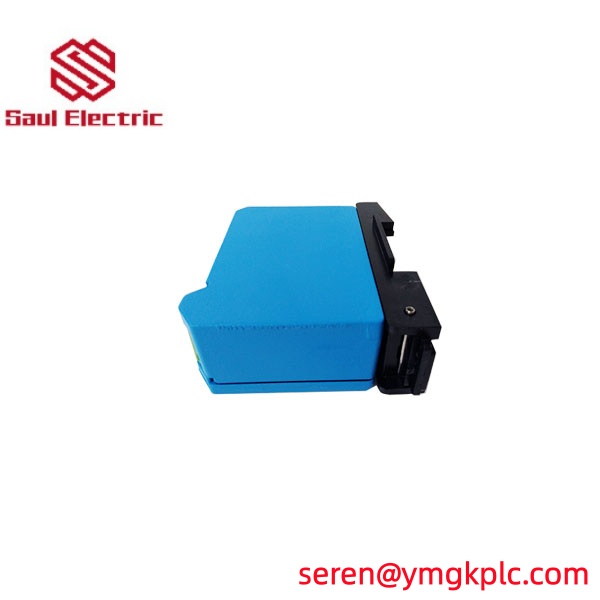

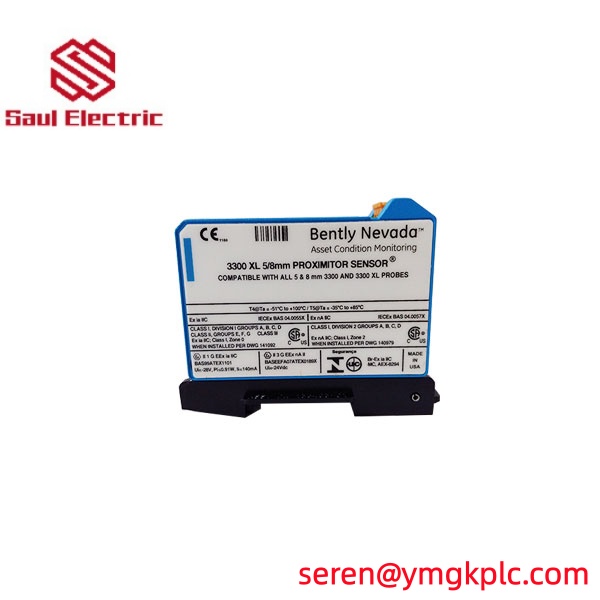

4. Visual Product Showcase

5. Related Fleet Spares Systems

• Bently Nevada 330103-00-03-05-02-05 (3300 XL 8mm Armored Proximity Probe, Metric M10x1)
• Bently Nevada 330104-00-05-10-02-00 (3300 XL 8.0 Meter Armored Extension Cable)
• Bently Nevada 3500/40M (176449-01) (Alternative 3500 Series Proximitor Monitor Front Interface Cards)

6. Warranty Protection & Continuous Supply Assurances

• Extended 12-Month Supplier Warranty: Comprehensive 1-year swap-out or repair warranty shielding your operation against component or processing defects under normal use.
• Authenticity Guarantee: We supply only authentic, original factory-branded parts to protect the structural specifications of your plant panels.
• Consistent Logistics Tracking: Provision of automated shipping notification routes and complete customs declaration sheets for reliable delivery.

7. FAQ

Q: Can I use a 330180-91-05 (9-meter) Proximitor with a probe loop that only measures 5.0 meters in total length?

No, you cannot. Eddy-current calibration relies heavily on the total resistance and capacitance of the cable loop. Connecting a 5.0-meter probe/cable assembly to a 9.0-meter Proximitor will cause a massive scale factor shift, destroying the accuracy of your vibration readings and causing major voltage measurement drift. You must always match a 9m Proximitor with a 9m total length cable loop.

Q: What is the purpose of the built-in isolation base on the -91 mounting configuration option?

The -91 configuration features a specialized non-conductive mounting base that physically isolates the Proximitor’s internal circuit ground from the structural steel of the control panel rack. This prevents hazardous ground loops—stray electrical currents that can inject false noise frequencies into your machinery protection monitor, which could trigger a false emergency shutdown trip.

Q: Does the -05 multiple approval suffix cover installations under explosive dust and gas atmospheres concurrently?

Yes. The -05 designation combines major global certifications, including ATEX, IECEx, and North American CSA standards. It covers Class I (Flammable Gases/Vapors) and Class II (Combustible Dusts) environments when wired through an approved intrinsic safety barrier, allowing you to standardize on a single part number across your entire facility.
