Description

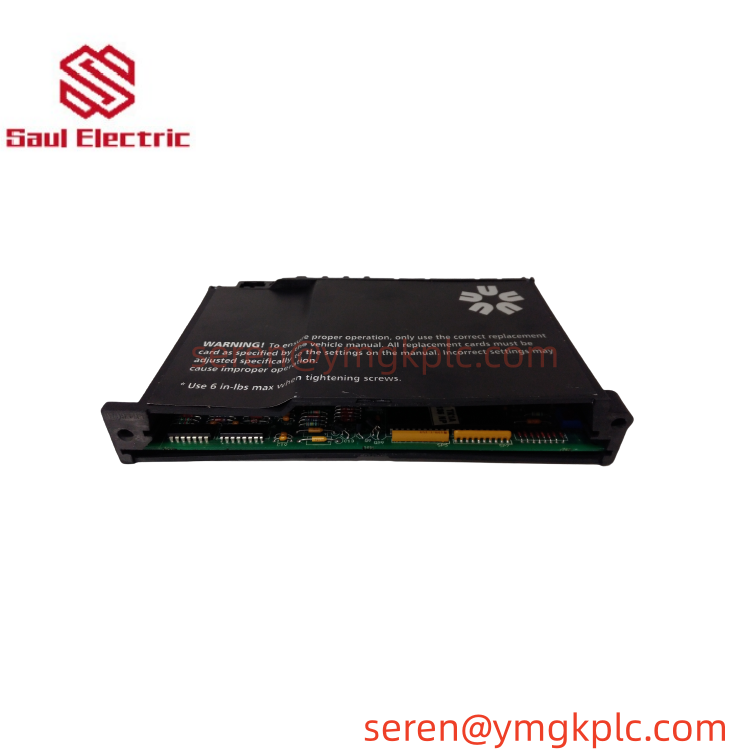

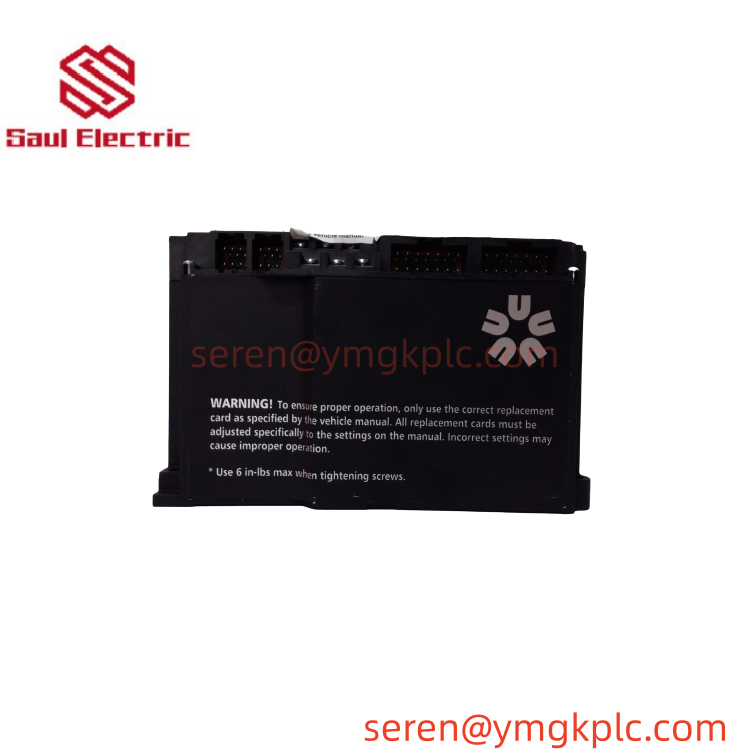

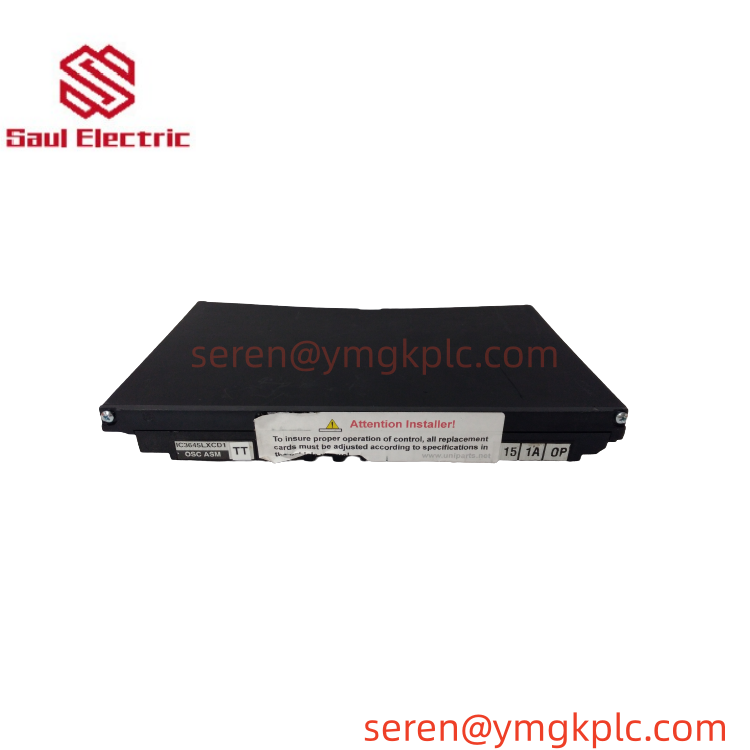

GE IC3645LXCD1TT is a dedicated traction control circuit board designed for electric drive systems equipped with separately excited DC traction motors. The module executes closed-loop speed and torque regulation, manages forward/reverse direction switching, and controls regenerative braking to recycle energy back to the battery pack. Multiple onboard protection mechanisms prevent damage caused by overload, short-circuit and overheating. It serves as critical replacement spare hardware for legacy electric utility vehicles, industrial material handling equipment and battery-powered traction machinery.
Series
The EV100 LX series consists of solid-state motor control assemblies developed by GE for battery-powered electric traction equipment. The lineup includes main control boards, dash interface modules and auxiliary driver boards to realize complete DC traction control solutions.
Product Features
- Optimized control logic for separately excited DC traction motors.
- Adjustable acceleration ramps, maximum current limits and top speed parameters.
- Native regenerative braking control to improve battery operating efficiency.
- Comprehensive protection functions: overcurrent, overvoltage, under-voltage, thermal overload and short-circuit protection.
- Onboard status indicator circuits for fault diagnosis and operational monitoring.
- Standard plug-in PCB structure, convenient for direct replacement during on-site maintenance.
- Rugged industrial PCB layout adapted to vibration and temperature fluctuations in mobile equipment environments.
- Legacy end-of-life hardware; not available for new vehicle project design.
Product Parameters
| Item | Details |
|---|---|
| Part Number | IC3645LXCD1TT |
| Brand | General Electric |
| Series | EV100 LX Traction Control System |
| Controlled Motor Type | Separately excited DC traction motor |
| Operating Supply Voltage | 24–48 VDC battery system |
| Main Control Current Rating | Up to 200 A nominal |
| Protection Functions | Overcurrent, overvoltage, undervoltage, thermal shutdown, short-circuit protection |
| Mounting | Plug-in PCB assembly inside traction controller housing |
| Operating Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Humidity | 5–95% RH, non-condensing |
| Discontinued Status | Obsolete, spare-part only |
Product Specifications
- Certification: CE compliant
- Remark: Parameter configuration must match motor rating and battery pack specification; improper setup may trigger protection lockout.
Function
- Execute closed-loop speed and torque regulation for DC traction motors.
- Control forward/reverse travel direction and smooth acceleration/deceleration.
- Manage regenerative braking operation to feed energy back to the battery system.
- Continuously monitor operating conditions and activate protection circuits upon fault detection.
- Output status signals to vehicle dash display modules for operator fault indication.
Purpose
Main traction control board for battery-powered electric vehicles and industrial traction equipment, responsible for motor drive logic and safety protection.
Application Fields
- Electric utility vehicle maintenance
- Industrial battery-powered material handling equipment repair
- Airport ground support vehicle control system retrofit
- Port electric carrier equipment spare-part replacement
- Legacy GE EV100 LX traction system equipment maintenance
