Description
PRODUCT OVERVIEW
Duplomatic DDC4-10-40020 belongs to the DDC4 digital servo control rack series, specially developed for SM, TRM-S, FL series CNC tool turrets, adopting full DSP digital operation architecture upgraded from the old DDC2 generation controllerManualsLib. This servo driver is the core control unit of machine tool hydraulic / electric turrets, executing precise positioning, rapid tool change, zero-point calibration and inertia matching control of turret brushless motors.The module adopts 3-phase 400VAC main power input with 10A maximum output current, matched with independent 24VDC auxiliary power supply for internal I/O circuits, cancelling the traditional 230VAC auxiliary power supply structure for simpler on-site wiringManualsLib.
It supports multi-position tool number configuration, high/low inertia switching and maintenance speed adjustment via official DDC4SW diagnostic software without replacing hardware EPROM chipsManualsLib. Built-in complete fuse protection, overcurrent, overvoltage and anti-vibration design, equipped with RS232 communication interface for parameter uploading, fault reading and equipment debugging. Widely used in CNC lathes, turning-milling composite machines, automatic machining centers and other metal processing equipment turret maintenance replacement work.
TECHNICAL SPECIFICATIONS
| Item | Parameter Details |
|---|---|
| Official Part Number | DUPLOMATIC DDC4-10-40020 (Standard code: DDC4-10-400/20) |
| Component Classification | CNC Turret Special Digital DSP Servo Control Rack |
| Compatible Turret Hardware | Duplomatic SM / TRM-S / FL series numerical control automatic turrets |
| Nominal Three-Phase Main Power | 400VAC (+15% upper tolerance, -10% lower tolerance), 50 / 60Hz ±2Hz |
| Maximum Rated Motor Output Current | 10 Amps |
| Nominal Auxiliary Control Power | 24VDC ±10%, total power consumption: 35W |
| I/O Signal Loop Power Supply | 24VDC ±10%, maximum output current: 3A |
| Serial Debugging Interface | RS232 interface, fixed communication parameter: 19200,n,8,1 |
| Official Supporting Configuration Tool | DDC4SW dedicated PC diagnosis & parameter setting software |
| Internal Safety Fuse Matching | F2:250mA, F5:250mA, F6:2A, F7:1A, F8:500mA |
| Rated Operating Ambient Temperature | 0℃ ~ +55℃ |
| Allowable Storage & Transportation Temperature | -40℃ ~ +85℃ |
| Operating Ambient Humidity Range | 30% ~ 95% relative humidity, non-condensing environment |
| Mechanical Vibration Resistance Index | Continuous working anti-vibration: 0.5g RMS; instantaneous impact resistance: 4g RMS |
| Enclosure Protection Standard | IP20 protection rating (only suitable for built-in installation inside electrical control cabinets) |
| International Compliance Certifications | CE Marking, EN 61800-2, EN 61800-3 industrial drive safety standards |
| Country of Manufacturing | Italy |
| Product Iteration Attribute | Performance upgraded replacement product for the original DDC2 generation turret controller |
COMMERCIAL PROCUREMENT PROTOCOL
1. Turret System Matching Inspection: Our technical staff verify your turret model, motor parameters and CNC system signal definition to ensure zero compatibility faults after module replacement.
2. Transparent Tiered Bulk Quotation: Provide volume-based preferential prices, synchronize real-time inventory quantity and global air freight cost data at the same time.
3. Global Export Customs Clearance Support: Complete standardized export filing and unified HS code declaration to improve customs clearance speed for all importing countries.
4. Standard Corporate PI Issuance: Quickly issue formal corporate proforma invoice documents to support your internal financial approval and payment processes.
5. Secure International Payment Methods: Support safe fund settlement via T/T wire transfer and regular enterprise trade payment platforms.
6. Strict Pre-Shipment Full Functional Test: Complete power-on aging test, turret analog action test, communication test and appearance inspection before delivery.
7. Professional Anti-Static Export Packaging: Adopt ESD vacuum shielding bag + shockproof foam + thickened reinforced export carton to avoid collision damage during cross-border long-distance transportation.
8. Global Express Delivery Service: Deliver goods via official DHL, FedEx, UPS channels, and provide real-time logistics tracking number right after shipment.
VISUAL PRODUCT SHOWCASE

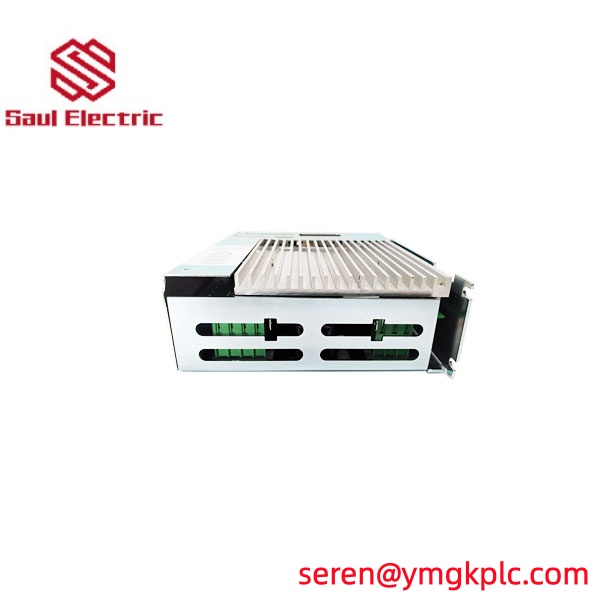

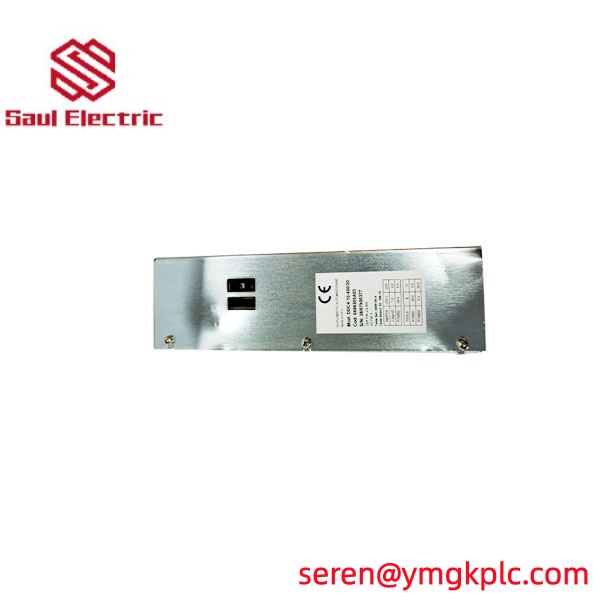

1. Product Photo 1: Overall front metal casing view of DDC4-10-40020 controller, showing nameplate, status indicator window and fixed bolts.
2. Product Photo 2: Internal circuit board close-up shot, displaying DSP main control chip, fuse components and wiring terminal layout.

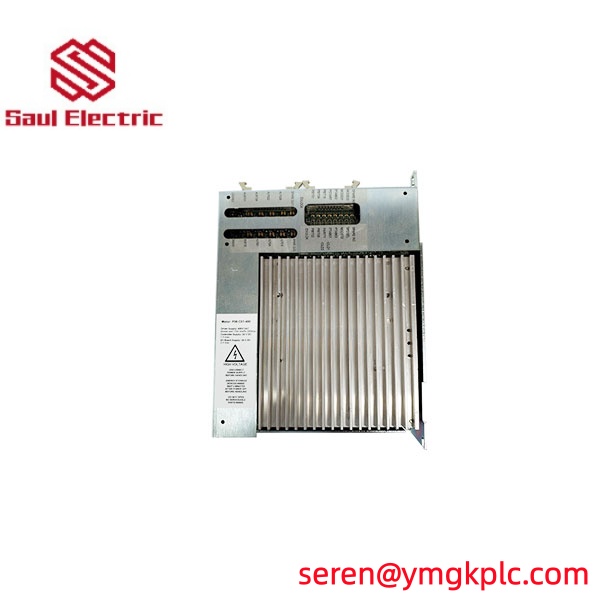

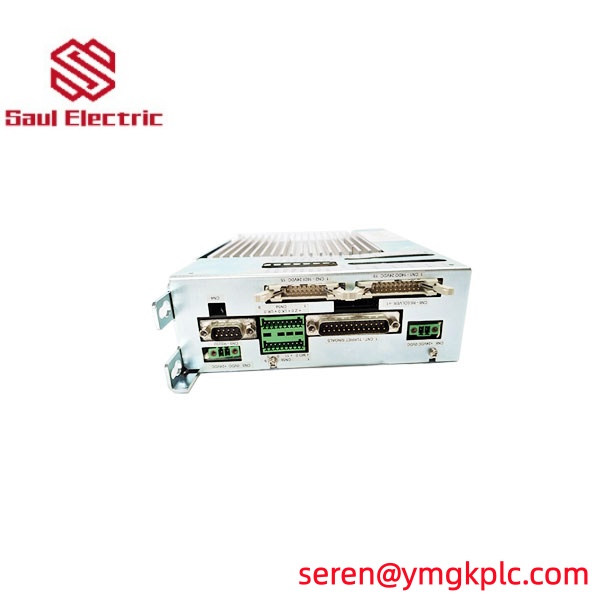

3. Product Photo 3: Rear wiring interface panel photo, including power terminals, motor wiring ports and RS232 debugging socket.
MATCHING DUPLOMATIC SPARES AND ACCESSORIES
Duplomatic turret brushless servo motor, turret position feedback encoder, power connecting cables, RS232 debugging data line, original DDC4SW configuration software, turret mechanical lock switch, official controller installation and wiring manual
ENTERPRISE AFTER-SALES GUARANTEES
12-month comprehensive product warranty coverage: Provide free maintenance service or product replacement for inherent hardware defects generated under rated standard operating conditions within the warranty validity periodGenuine original hardware quality commitment: All delivered DDC4-10-40020 servo controllers are verified authentic Duplomatic factory products (brand new factory sealed or strictly bench-tested used inventory), maintaining complete electrical matching performance with original CNC turret systemComplete official technical document provision: Electronically deliver official product datasheets, complete system wiring diagrams, fault code query tables and standardized field parameter setting operation guidance documentsLong-term professional technical consulting service: Offer remote technical guidance for on-site controller disassembly & replacement, turret dynamic parameter debugging and daily CNC machine turret system fault diagnosis & troubleshooting
FAQ
- What is the core application purpose of Duplomatic DDC4-10-40020 controller?DDC4-10-40020 is a dedicated digital servo control rack for CNC lathe tool turrets, used to drive turret brushless motors to realize automatic tool change, accurate positioning and zero position correction functions.
- What are the differences between DDC4 series and the old DDC2 controller?DDC4 adopts full DSP digital processing chip, cancels 230V auxiliary power supply, realizes software parameter modification instead of EPROM replacement, and uses independent DDC4SW special debugging software for management.
- What is the maximum output current of this DDC4-10-40020 servo controller?The module is rated for 10A maximum output current, which can stably drive the matched Duplomatic turret brushless motor for long-term operation.
- Which communication interface is used for parameter debugging and fault reading?Equipped with standard RS232 serial port, the fixed communication parameter is 19200,n,8,1, matched with official DDC4SW PC software for data reading and parameter modification.
- Does the controller have complete internal safety fuse protection?Multiple groups of built-in fuses with different specifications are configured inside the module to realize segmented protection for main power, I/O loop and auxiliary power circuit to prevent circuit burnout caused by short circuit.
- What environmental vibration resistance can this controller withstand during machine tool operation?It can bear 0.5g continuous vibration for a long time, and resist instantaneous 4g impact vibration, adapting to the vibration environment generated by CNC machine tool cutting processing.
- Are the supplied used DDC4-10-40020 controllers fully tested before delivery?All second-hand controllers will pass continuous power-on aging test, turret action simulation test and communication function detection to ensure stable operation after installation on machine tools.
- How long is the delivery period for in-stock DDC4-10-40020 products?Spot goods are stored in our domestic warehouse, and shipment will be arranged within 3 working days after your payment is verified and confirmed.
