Description
Product Overview

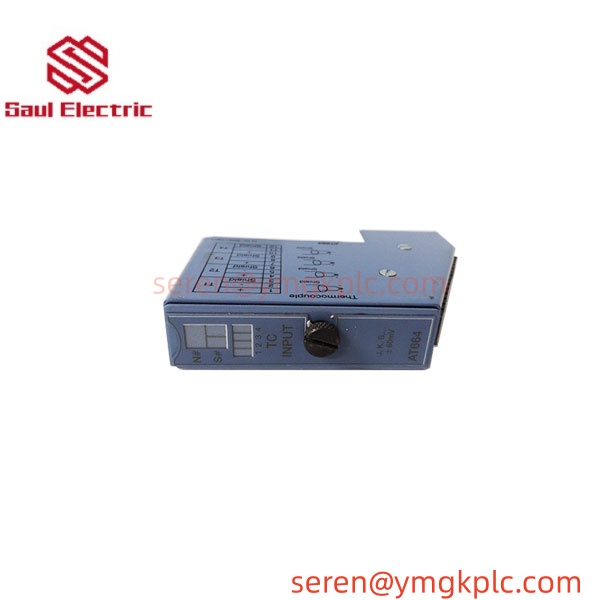

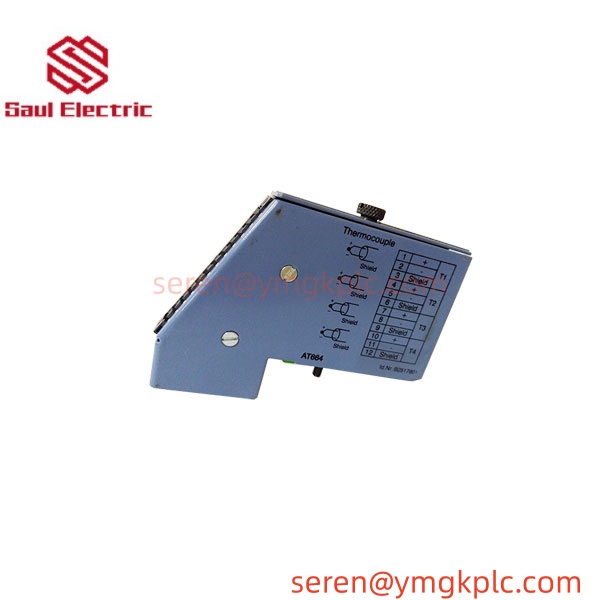

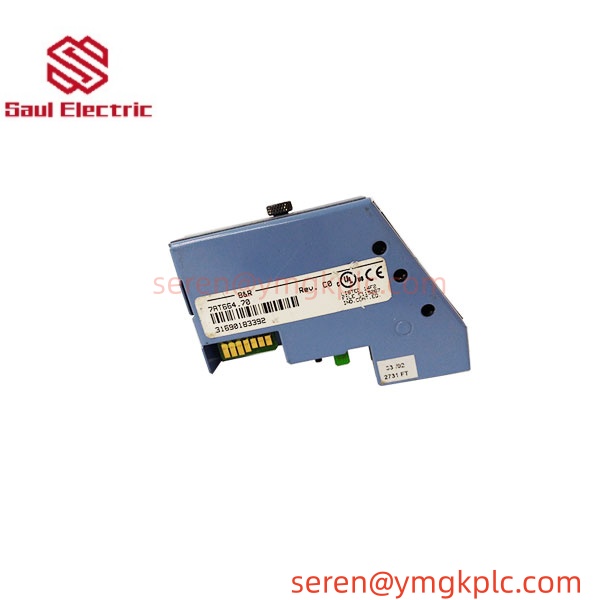

The B&R 7AT664.70 is a screw‑in analog input module within the B&R 2003 I/O system, specially designed for thermocouple temperature measurementB& R Indus…. It provides four independent input channels to collect millivolt‑level signals from thermocouple sensors, converts analog thermal‑voltage values into high‑precision 16‑bit digital readings and transmits temperature data to the automation CPU. This module needs external terminal block 7TB712.9 /7TB712.91 for field wiring connectionB& R Indus…. Built‑in cold‑junction compensation ensures accurate temperature acquisition, widely used for temperature monitoring and closed‑loop thermal control on machinery and process‑automation retrofit projects.
Series
2003 I/O series, compact screw‑in modular I/O hardware for B&R automation platforms, covering analog input, analog output and digital signal modules for machine‑level and small‑scale process‑control applications.
Product Features
- 4 independent thermocouple input channels for multi‑point temperature sampling
- High‑precision 16‑bit A/D conversion for stable temperature measurement
- Built‑in cold‑junction compensation to improve thermocouple measuring accuracy
- Screw‑in hot‑swap‑capable module design for rack‑mount installation
- Requires separate terminal block 7TB712.9 (screw‑clamp) or 7TB712.91 (cage‑clamp) for field wiringB& R Indus…
- Supports multiple thermocouple types, measuring range from ‑270℃ up to +1372℃
- Industrial‑grade hardware with CE, UKCA and cULus Class I Div.2 hazardous‑location certificationB& R Indus…
- Channel‑level fault diagnosis for open‑sensor circuit detection
Product Parameters
| Item | Parameter |
|---|---|
| Model | 7AT664.70 |
| Module Type | Thermocouple Analog Input Module |
| Number of Input Channels | 4 |
| Resolution | 16‑bit |
| Measuring Range | ‑270 ℃ ~ +1372 ℃ (depend on thermocouple type) |
| Installation Type | Screw‑in module |
| Required Terminal Block | 7TB712.9 / 7TB712.91 (sold separately)B& R Indus… |
| Operating Temperature | 0 ℃ ~ +60 ℃ |
| Certifications | CE, UKCA, cULus HazLoc Class I Div.2B& R Indus… |
| Weight | Approx. 210 g |
Product Specifications
- Physical form: Compact plug‑in I/O module for B&R 2003 backplane rack
- Condition: New surplus / Tested used (stock subject to real‑time confirmation)
- Warranty: 365‑day warranty for supplied units
- Shipment: In‑stock goods ship within 3 working days after payment
Function
Receives weak millivolt‑level thermocouple signals from field temperature sensors; performs cold‑junction compensation and 16‑bit analog‑to‑digital conversion; sends processed temperature digital values to B&R controller; detects sensor open‑circuit faults and uploads diagnostic alarms.
Purpose
Accurately collect multi‑point temperature data from thermocouple sensors, realize temperature monitoring, thermal‑loop closed‑loop control and over‑temperature alarm for industrial equipment.
Application Fields
‑ Plastic injection & extrusion machinery temperature control‑ Packaging & printing production lines‑ Furnace, oven and thermal‑processing equipment‑ General‑purpose machine‑tool automation‑ Process‑control system retrofits & spare‑part replacement‑ Hazardous‑location Class I Div.2 industrial sites
Image search keyword for reference:
B&R 7AT664.70 thermocouple analog input module 2003 series
