Description
Product Overview

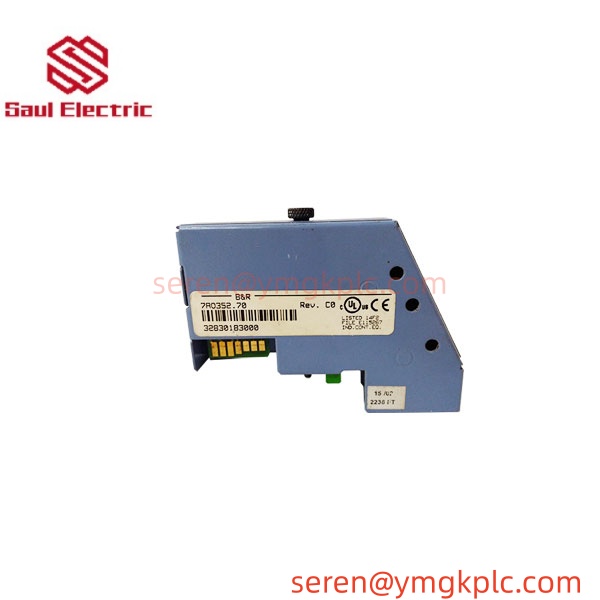

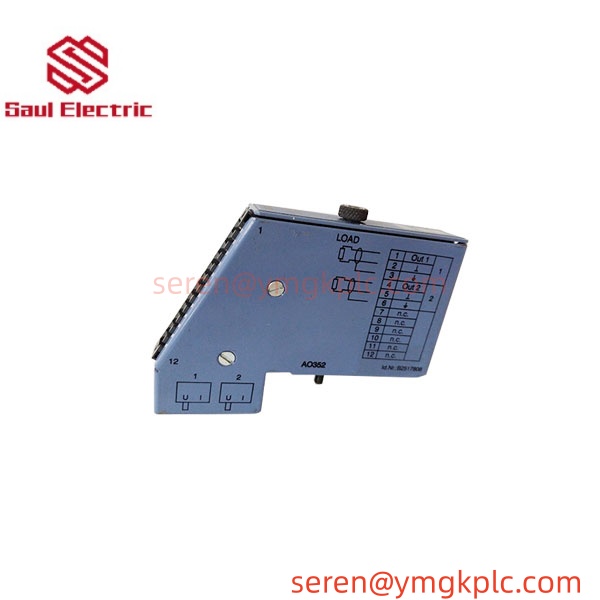

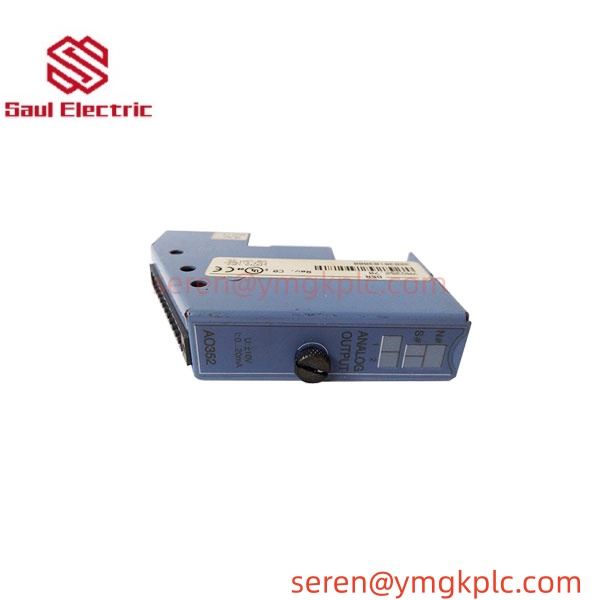

The B&R 7AO352.70 is a compact 2003‑series analog output I/O module for B&R distributed automation systemsB& R Indus…. It delivers two channels of high‑precision analog output supporting ±10 V voltage and 0‑20 mA current modes with 12‑bit resolution. This screw‑in type module needs an external terminal block (7TB712.9 /7TB712.91) for field wiring connectionB& R Indus…. It translates internal digital control values into standard analog signals to drive proportional valves, positioning actuators and other analog‑controlled equipment, widely used in machine‑building and process‑automation retrofit projects.
Series
2003 I/O series, compact modular I/O hardware for B&R automation platforms, providing analog input, analog output and digital signal modules for machine‑level control.
Product Features
- Dual configurable analog output channels: ±10 V voltage or 0‑20 mA current signal
- 12‑bit conversion resolution for stable analog signal output
- Screw‑in hot‑swap‑capable module design for rack‑mount installation
- Requires separate terminal block 7TB712.9 (screw‑clamp) or 7TB712.91 (cage‑clamp) for field wiringB& R Indus…
- Industrial‑grade hardware with CE, UKCA and cULus Class I Div.2 hazardous‑location certificationB& R Indus…
- Short‑circuit protection on output channels to resist field‑side wiring faults
- Compact form factor, saves cabinet installation space
Product Parameters
表格
| Item | Parameter |
|---|---|
| Model | 7AO352.70 |
| Module Type | Analog Output Module |
| Number of Channels | 2 |
| Signal Range | ±10 V / 0‑20 mA per channel |
| Resolution | 12‑bit |
| Installation Type | Screw‑in module |
| Required Terminal Block | 7TB712.9 / 7TB712.91 (sold separately)B& R Indus… |
| Operating Temperature | 0 ℃ ~ +60 ℃ |
| Certifications | CE, UKCA, cULus HazLoc Class I Div.2B& R Indus… |
| Weight | Approx. 200 g |
Product Specifications
- Physical form: Compact plug‑in I/O module for B&R 2003 backplane rack
- Condition: New surplus / Tested used (stock subject to real‑time confirmation)
- Warranty: 365‑day warranty for supplied units
- Shipment: In‑stock goods ship within 3 working days after payment
Function
Receives digital set‑point commands from B&R CPU/controller, converts digital values into standard ±10 V or 0‑20 mA analog output signals; provides channel‑level fault detection for short‑circuit conditions, feeds diagnostic status back to automation controller.
Purpose
Generate accurate analog control signals to regulate proportional valves, motor drives, actuators and other analog‑controlled field devices within B&R automation systems.
Application Fields
‑ Packaging machinery production lines‑ Plastics & rubber processing equipment‑ Textile industrial automation‑ General‑purpose machine‑tool control‑ Process‑control system retrofits & spare‑part replacement‑ Hazardous‑location Class I Div.2 industrial sitesB& R Indus…
