Bently Nevada 149992-01 3500/33 16-Channel Relay Module | Original Machinery Protection Part

Description

1. Product Overview

The Bently Nevada 149992-01 is a high-density 16-Channel Relay Module designed for the 3500 Machinery Protection System. As the primary control unit for the 3500/33 system, it provides 16 independent, fully programmable relay outputs to facilitate complex alarm and shutdown logic.

This module is specifically engineered for industrial environments where a high concentration of discrete outputs is required in a minimal footprint. By utilizing the 3500 Rack Configuration Software, users can assign any combination of monitor channel statuses to any of the 16 relays, supporting sophisticated “voting” logic (e.g., 2-out-of-3) to ensure maximum asset protection and operational uptime.

Key Applications:

• High-Density Alarm Management: Ideal for systems requiring extensive discrete signaling to annunciator panels or DCS.
• Automatic Machinery Shutdown: Critical for triggering Emergency Shutdown (ESD) sequences based on vibration or temperature alarms.
• Complex Logic Implementation: Handles “AND/OR” logic across multiple monitor modules within a single 3500 rack.

2. Data Sheet

3. Procurement Process

1. Technical Verification: We confirm the 149992-01 version and firmware to match your existing 3500 rack requirements.
2. Formal Quotation: Receive a comprehensive quote including pricing, stock availability, and global express shipping rates.
3. Order Confirmation: Finalizing quantity and any required certifications (e.g., Certificate of Conformance).
4. Sales Agreement: Issuance of a Proforma Invoice (PI) for a secure and transparent transaction.
5. Secure Payment: Processing via T/T (Bank Transfer).
6. Inventory Allocation: Allocation of 100% original, factory-new modules from our industrial automation stock.
7. Quality Inspection: Verification of factory seal, serial number, and physical integrity of the LEDs and handle.
8. Global Distribution: Fast-track shipping via DHL, FedEx, or UPS with robust protective packaging.

4. Products Showcase (Photos & Video)

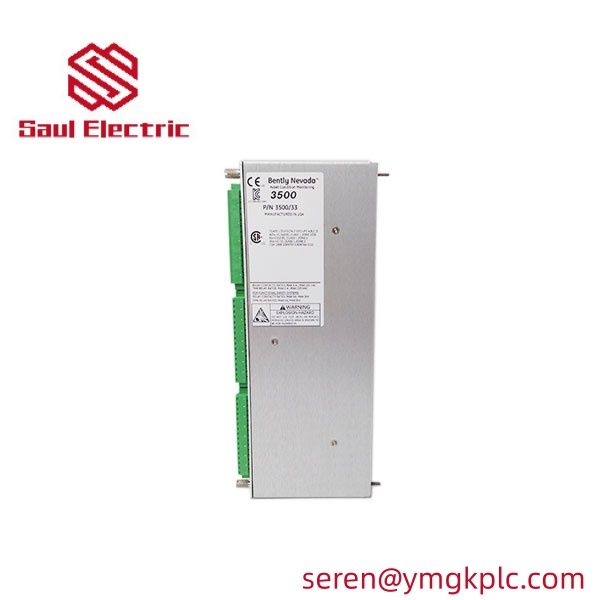

149992-01 backside

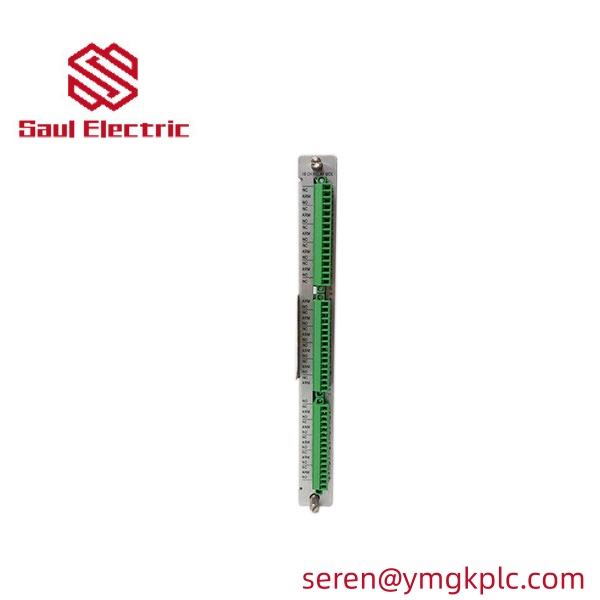

149992-01 sideview

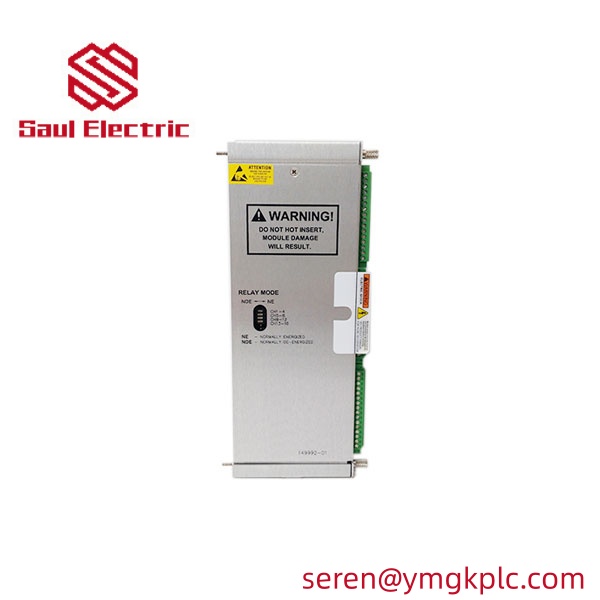

149992-01 front

5. Related Models

• Bently Nevada 136180-01 (16-Channel Relay I/O – Internal Terminations)
• Bently Nevada 136188-01 (16-Channel Relay I/O – External Terminations)
• Bently Nevada 3500/32 (Standard 4-Channel Relay Module)
• Bently Nevada 3500/22M (Transient Data Interface)

6. Warranty & After-Sales

• 12-Month Global Warranty: Full 1-year replacement or repair coverage against manufacturing defects.
• Authenticity Guaranteed: We only supply 100% original, brand-new Bently Nevada products; no refurbished or high-copy units.
• Expert Technical Support: Assistance with module configuration and integration within the 3500 framework.

7. FAQ

Q: What is the advantage of using the 149992-01 over the 4-channel 3500/32?

The 149992-01 (3500/33) provides four times the output capacity in the same rack space. It is significantly more cost-effective for applications requiring many discrete outputs, and it allows for more complex logic combinations that are not possible with the 4-channel module.

Q: Is the 149992-01 compatible with older 3500 racks?

Yes, it is designed for the standard 3500 rack backplane. However, you must ensure that your Rack Configuration Software is updated to a version that supports the 3500/33 16-channel module.

Q: Does this module include the rear terminal block?

No, 149992-01 is the main monitor module (front). To connect your field wiring, you must also have the corresponding rear I/O module (e.g., 136180-01 for internal wiring). Please let us know if you need both.
