Bently Nevada 136180-01 16-Channel Relay I/O Module | 3500/33 Internal Terminations

Description

1. Product Overview

The Bently Nevada 136180-01 is a high-density 16-Channel Relay I/O Module designed for use with the 3500/33 16-Channel Relay Module. This module features Internal Terminations, providing 16 independent relay outputs that can be wired directly to the terminal blocks at the rear of the 3500 rack.

The 136180-01 is essential for complex machinery protection systems that require multiple discrete outputs to trigger alarms, annunciators, or interface with external control systems (DCS/PLC). Each relay is fully programmable using the 3500 Rack Configuration Software, allowing for sophisticated logic based on the status of various monitor channels within the rack.

Key Applications:

• Multi-Point Alarm Annunciation: Providing discrete signals for various alarm states across multiple machine trains.
• System Integration: Interfacing 3500 rack statuses with plant-wide DCS or Emergency Shutdown (ESD) systems.
• Redundant Logic Control: Enabling complex “voting” logic for machine protection across 16 independent channels.

2. Data Sheet

3. Procurement Process

1. Model Confirmation: We verify the 136180-01 part number to ensure it matches your 3500/33 main module configuration.
2. Formal Quotation: You receive a detailed official quote including competitive pricing, current stock status, and international shipping rates.
3. Product Ordering: Review and confirm quantities and project-specific technical requirements.
4. Sales Contract: Issuance of a Proforma Invoice (PI) to protect your procurement interests.
5. Customer Remittance: Secure payment via T/T (Bank Wire Transfer).
6. Goods Allocation: Products are reserved immediately from our specialized industrial automation warehouse.
7. Quality Inspection: Verification of factory seal, serial number, and physical integrity before dispatch.
8. Logistics Distribution: Fast global shipping via DHL, FedEx, or UPS with robust, anti-static packaging.

4. Products Showcase (Photos & Video)

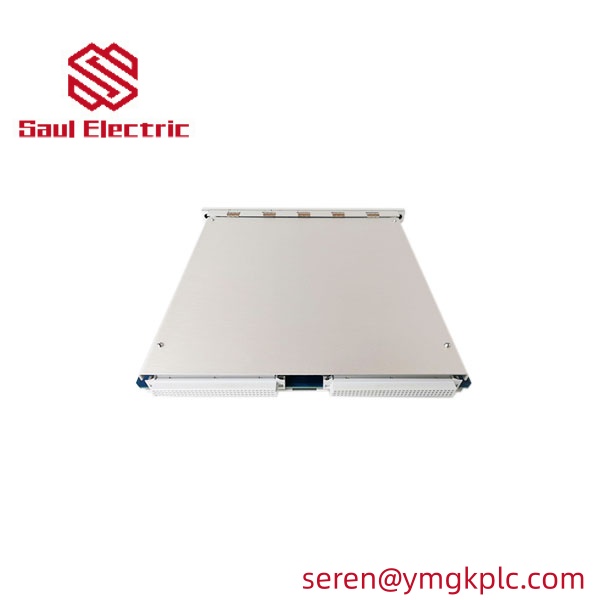

136180-01 sideview

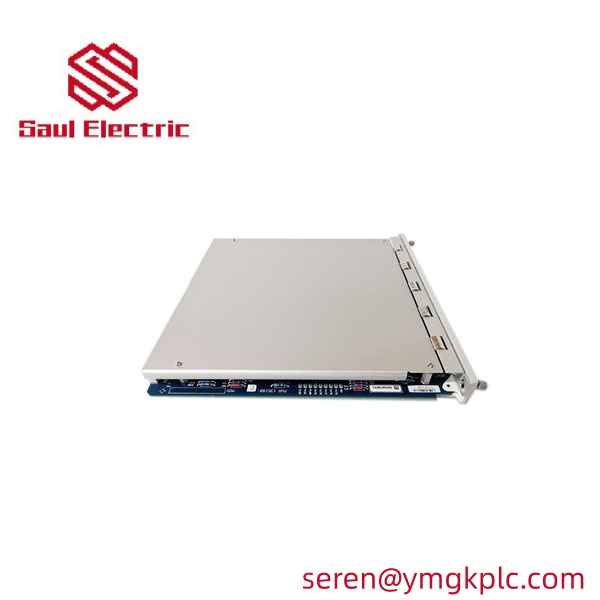

136180-01 sideview

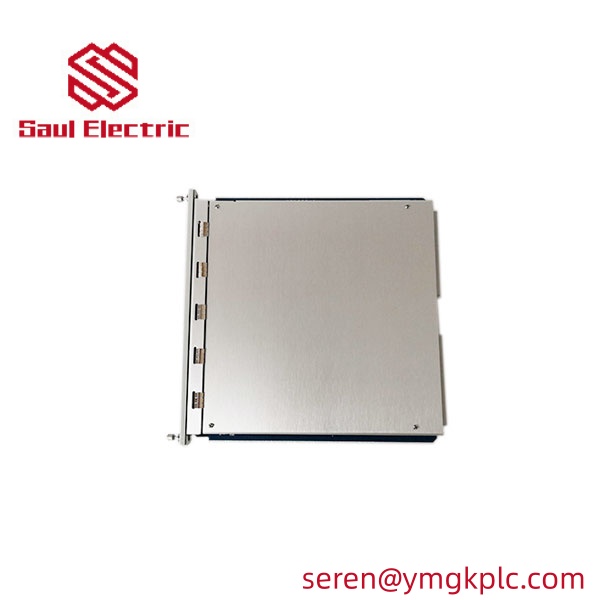

136180-01 front

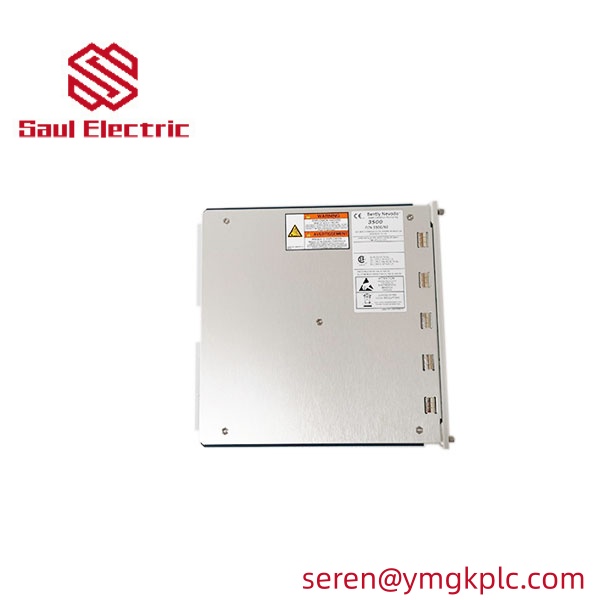

136180-01 backside

5. Related Models

• Bently Nevada 3500/33 149986-01 (16-Channel Relay Main Module)
• Bently Nevada 136188-02 (16-Channel Relay I/O with External Terminations)
• Bently Nevada 125720-01 (Standard 4-Channel Relay I/O Module)
• Bently Nevada 3500/32 (4-Channel Relay Module)

6. Warranty & After-Sales

• 12-Month Global Warranty: All 136180-01 modules are covered by a full 1-year replacement or repair guarantee.
• Guaranteed Originality: We strictly supply 100% brand-new, factory-original Bently Nevada parts.
• Professional Logistics: Specialized packaging and documentation support for smooth delivery to Central Asia, the Middle East, and worldwide.

7. FAQ

Q: What is the difference between 136180-01 and 136188-01?

The 136180-01 features Internal Terminations, where field wires are connected directly to the module. The 136188-01 is for External Terminations, requiring a separate cable and an External Termination Block (ETB).

Q: Can I use this I/O module with a 3500/32 Relay Module?

No, the 136180-01 is specifically designed for the 3500/33 16-Channel Relay Module. The 3500/32 is a 4-channel module and uses its own specific I/O modules, such as the 125720-01.

Q: Are the terminal blocks included with the module?

Yes, all of our brand-new 136180-01 modules include the necessary terminal block connectors in the box, ready for immediate installation.
