Bently Nevada 125840-02 Proximitor/Seismic I/O Module | External Terminations

Description

1. Product Overview

The Bently Nevada 125840-02 is a 4-channel Proximitor/Seismic I/O Module specifically designed to work with the 3500/42M Proximitor Seismic Monitor. This module serves as the critical interface between field transducers and the 3500 rack.

Unlike the internal termination version, the 125840-02 is engineered for External Terminations. It allows field wiring to be connected to an External Termination Block (ETB) rather than directly to the back of the rack. This configuration is preferred in large-scale industrial setups to simplify cable management and enhance system maintainability.

Key Applications:

• High-Density Wiring: Ideal for projects using centralized termination panels.
• Vibration Analysis: Provides signal conditioning for radial vibration, thrust position, and casing vibration.
• Asset Protection: Critical for monitoring turbines, compressors, and large motors in the oil, gas, and power sectors.

2. Data Sheet

3. Procurement Process

Step-by-Step Ordering Workflow

1. Model Confirmation: We verify the 125840-02 part number and check compatibility with your existing cables and ETBs.
2. Formal Quotation: Receive an official quote including competitive pricing and estimated lead times.
3. Product Ordering: Confirmation of the final order quantity and delivery details.
4. Sales Contract: Issuance of a Proforma Invoice (PI) to secure the transaction.
5. Customer Remittance: Payment is made via secure T/T (Bank Transfer).
6. Goods Allocation: Products are reserved and prepared in our specialized inventory.
7. Quality Inspection: Final verification of the original factory seal, serial number, and physical condition.
8. Logistics Distribution: Expedited worldwide shipping via DHL, FedEx, or UPS with full tracking provided.

4. Products Showcase (Photos & Video)

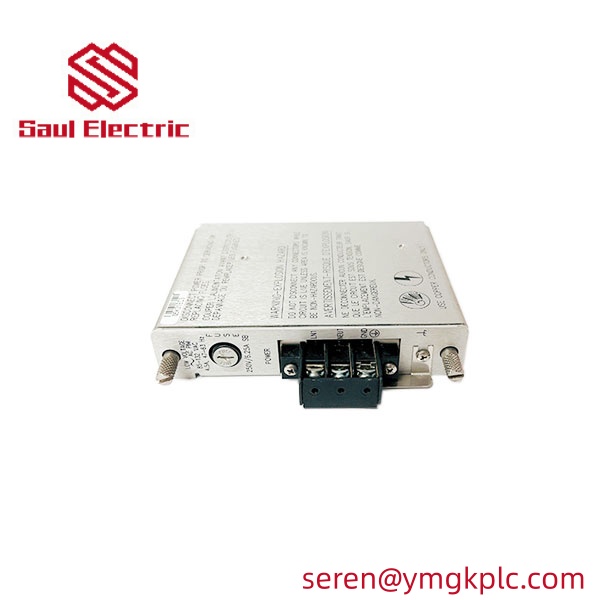

125840-02 sideview

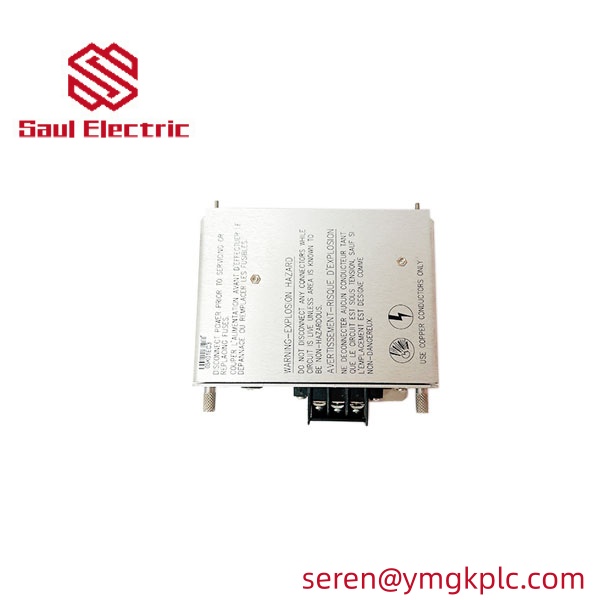

125840-02 backside

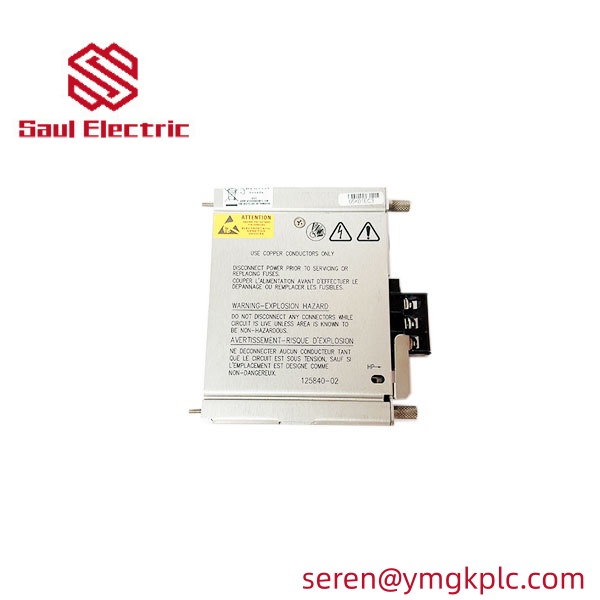

125840-02 label

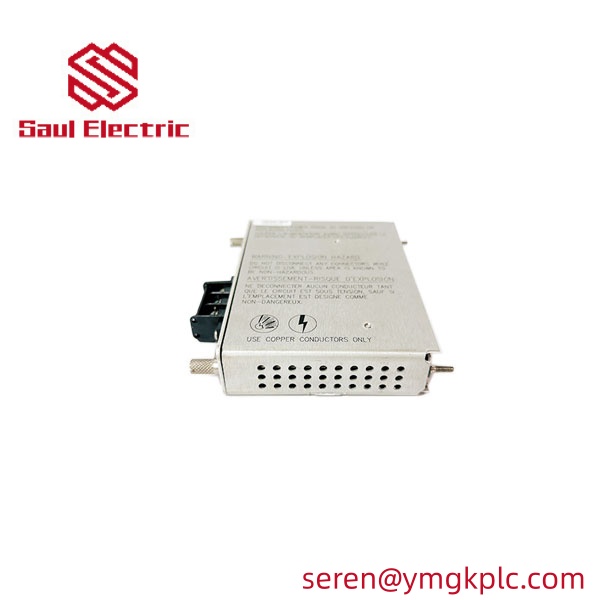

125840-02 sideview

5. Related Models

• Bently Nevada 125840-01
• Bently Nevada 125800-01
• Bently Nevada 125792-01
• Bently Nevada 125712-01

6. Warranty & After-Sales

Our Service Commitment

• 12-Month Global Warranty: Full coverage for one year against any manufacturing defects.
• Guaranteed Originality: We supply only 100% brand-new, genuine Bently Nevada parts.
• Technical Support: Post-purchase assistance for wiring configurations and compatibility checks.

7. FAQ

Q: What is the main difference between 125840-02 and 125840-01?

The 125840-01 features Internal Terminations, where field wires are connected directly to terminal blocks on the module. The 125840-02 uses External Terminations, meaning it connects via a cable to a separate terminal block (ETB) mounted elsewhere. Choose the -02 version if your cabinet uses a centralized wiring design for easier maintenance.

Q: Does this module include the External Termination Block (ETB) and cables?

No, the 125840-02 refers specifically to the I/O module that fits into the 3500 rack. The interface cables and the ETB are separate components. Please contact us if you need the full assembly for a new installation.

Q: Is the 125840-02 interchangeable with other I/O modules?

It is only interchangeable with other 3500/42M I/O modules, but you must ensure your wiring matches (Internal vs. External). You cannot use it with a 3500/32 or 3500/25 main module.
