Bently Nevada 125800-01 Keyphasor I/O Module | Non-Isolated Internal Termination

Description

1. Product Overview

The Bently Nevada 125800-01 is a Keyphasor I/O Module designed for use with the 3500/25 Enhanced Keyphasor Module within the 3500 Series Machinery Protection System. This specific I/O module features Internal Terminations and is Non-Isolated, providing the physical interface to connect Keyphasor transducers (such as proximity probes) to the 3500 rack.

Installed in the rear of the 3500 rack, the 125800-01 ensures that the raw signals from the sensors are accurately transmitted to the main 3500/25 monitor for processing. It is an essential component for any system requiring stable phase reference and machine speed data.

Key Applications:

• Signal Interfacing: Connects proximity probes or magnetic pickups to the 3500/25 monitor.
• Machinery Protection: Part of the infrastructure for vibration analysis and speed monitoring.
• Rack Integration: Standard I/O interface for both half-rack and full-rack Bently Nevada 3500 configurations.

2. Data Sheet

3. Procurement Process

1. Model Confirmation: We verify if the 125800-01 (Non-Isolated) or the 126006-01 (Isolated) version is required for your specific site environment.
2. Formal Quotation: You receive a detailed quote including the latest price, stock status, and express shipping costs.
3. Product Ordering: Finalize the purchase order based on your project requirements.
4. Sales Contract: We provide a formal Proforma Invoice (PI) with our company bank details.
5. Customer Remittance: Secure payment via T/T bank transfer.
6. Goods Allocation: Immediate pick-and-pack from our industrial automation inventory.
7. Quality Inspection: Verification of the original factory label, part number, and physical condition.
8. Logistics Distribution: Fast worldwide shipping via DHL, FedEx, or UPS with tracking provided.

4. Products Showcase (Photos & Video)

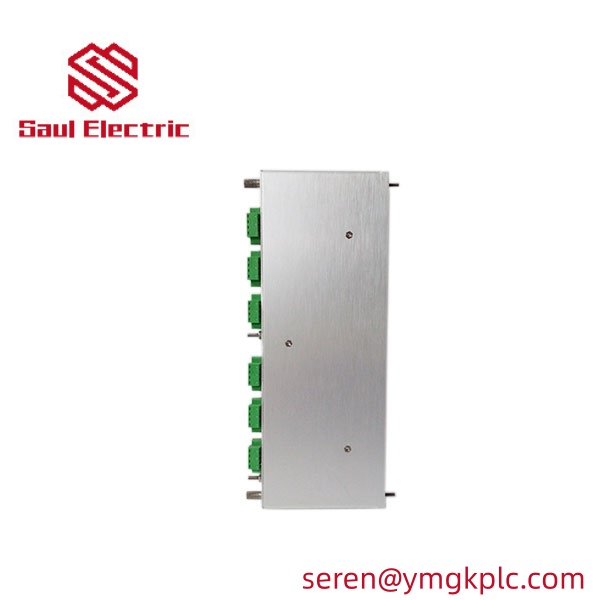

125800-01 front

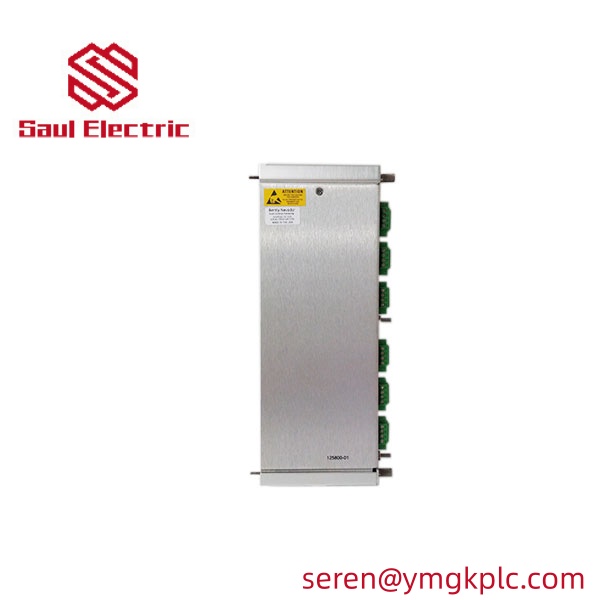

125800-01 backside

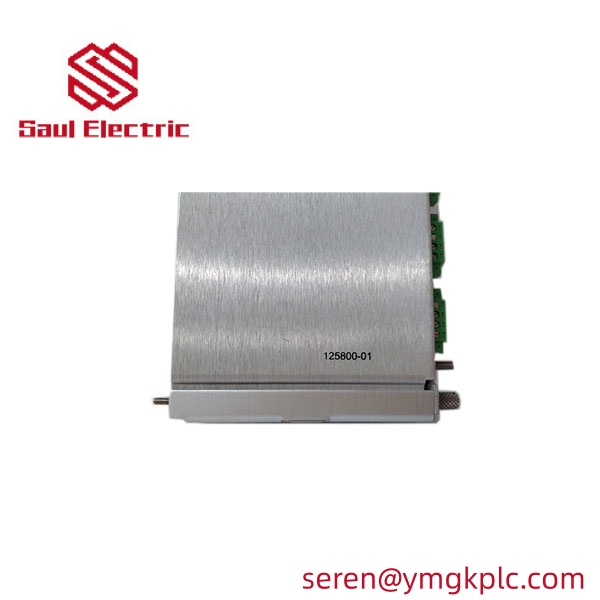

125800-01 detail

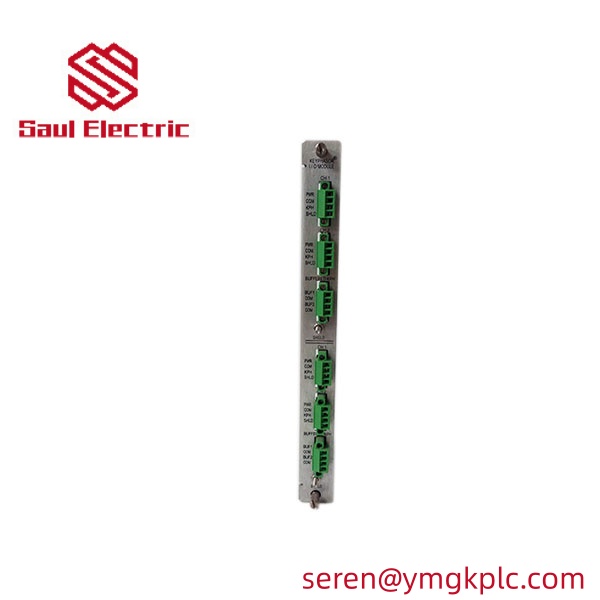

125800-01 sideview

5. Related Models

125712-01
125792-01
125840-01
125840-02
126615-01
127610-01
128229-01

6. Warranty & After-Sales

• 12-Month Quality Guarantee: Full warranty coverage for 1 year from the date of purchase.
• Originality Commitment: We guarantee all Bently Nevada parts are 100% genuine and brand new.
• Technical Assistance: Our team can provide wiring diagrams and installation guidance for the 125800-01 I/O module.

7. FAQ

Q: What is the difference between 125800-01 and 126006-01?

The 125800-01 is the Non-Isolated version, typically used in standard industrial environments. The 126006-01 is the Isolated version, which is required if your application needs galvanic isolation to prevent ground loops or protect against high-voltage surges between the field sensors and the rack.

Q: Can this I/O module be used with any 3500 monitor?

No, the 125800-01 is specifically designed for the 3500/25 Keyphasor Module. Other monitors like the 3500/42M or 3500/32 use their own specific I/O modules.

Q: Is the terminal block included with the module?

Yes, our brand-new 125800-01 modules come complete with the necessary terminal blocks for wiring. We ensure the package is ready for immediate installation upon arrival.
