Description
Product Overview

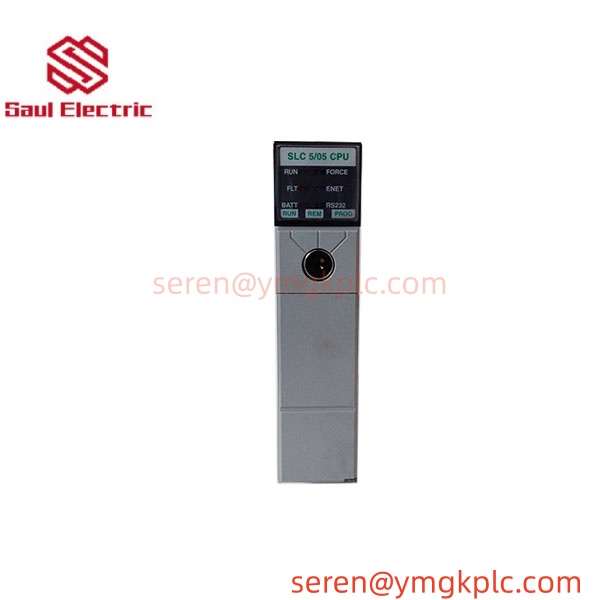

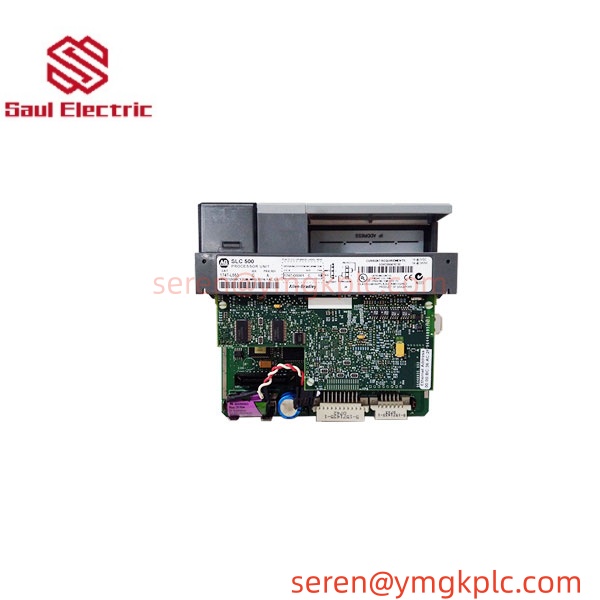

The Allen‑Bradley 1747‑L553 is the high‑end SLC 5/05 processor for SLC 500 modular PLC platform. It features 64K combined program and data memory, built‑in 10Base‑T Ethernet TCP/IP for programming, peer‑to‑peer messaging and remote monitoring, plus an RS‑232 serial channel supporting DH485, DF1 and ASCII protocolsRockwell A…. Installed in slot 0 of 1746‑series chassis, it executes ladder‑logic applications, scans local chassis I/O and communicates with remote‑I/O adapters such as 1747‑ASB. Lithium battery preserves RAM memory during power loss. Status LED indicators and key‑operated mode switch support RUN / PROG / REM modes. Widely used for legacy Rockwell SLC 500 system maintenance and spare‑part replacementRockwell A….
Series
SLC 500 control platform, modular PLC hardware including SLC 5/01‑5/05 CPUs, 1746 I/O racks, power supplies and communication modules for classic discrete‑process factory automation.
Product Features
- 64 KB combined program and data memory for complex ladder‑logic applicationsRockwell A…
- Integrated 10Base‑T Ethernet TCP/IP port for programming, data messaging and remote diagnosticsRockwell A…
- Channel 0 RS‑232 serial port supports DH485, DF1 full/half duplex, ASCII protocol
- Supports local 1746 I/O plus Remote I/O (RIO) scanner function for distributed remote racks
- Physical key‑switch for RUN / PROG / REM operating mode selection; multi‑LED status indication
- Lithium battery backup retains RAM program and data when power is removed
- Works with RSLogix 500 programming software; supports peer‑to‑peer MSG instructions over Ethernet
- Single‑slot CPU for 1746 backplane chassis; compatible with full range of 1746 digital / analog I/O modules
Product Parameters
| Item | Parameter |
|---|---|
| Model | 1747‑L553 |
| Processor Type | SLC 5/05 CPU Controller |
| Memory | 64 KB program & data memoryRockwell A… |
| On‑board Ports | 10Base‑T Ethernet TCP/IP; RS‑232 serial (DH485 / DF1 / ASCII)Rockwell A… |
| Backplane Current Draw | 1.0 A @ 5 VDC |
| Operating Modes | RUN / PROG / REM (key switch) |
| Memory Backup | Lithium battery for RAM retention |
| Compatible Chassis | 1746 series PLC chassis, slot 0 installation |
| Supported I/O | Local 1746 I/O + Remote I/O slave racks |
| Operating Temperature | 0 ℃ ~ +60 ℃ |
| Programming Software | RSLogix 500 |
Product Specifications
- Physical form: Single‑slot plug‑in CPU module for Allen‑Bradley 1746 chassis
- Condition: New surplus / Tested used (stock subject to real‑time confirmation)
- Warranty: 365‑day warranty for supplied units
- Shipment: In‑stock goods ship within 3 working days after payment
Function
Executes user ladder‑logic control program; scans local chassis I/O and remote RIO nodes; handles Ethernet and serial communication; stores application logic and data in battery‑backed RAM; provides system‑level diagnostics and fault reporting to programming software.
Purpose
Acts as main control core for SLC 500 PLC systems; performs logic control, data processing, I/O management and network communication for industrial automation equipment.
Application Fields
‑ Automotive assembly‑line control retrofits‑ Conveyor & material‑handling automation‑ Water‑wastewater treatment plant control‑ Petrochemical auxiliary‑process control cabinets‑ Pulp‑and‑paper mill legacy Rockwell system maintenance‑ General‑purpose factory automation SLC500 spare‑part replacement
Image search keyword for reference:
Allen‑Bradley 1747‑L553 SLC 5/05 CPU module
