Description
1. Product Overview
The ABB CI867K01 (Order Code 3BSE043660R1) is a high-performance Modbus TCP communication interface module purpose-built for ABB’s AC 800M controller series and 800xA distributed control system (DCS). This module serves as the critical protocol gateway between ABB automation systems and third-party Modbus TCP-enabled devices—including PLCs, variable frequency drives (VFDs), intelligent instruments, protective relays, HMIs, and SCADA systems.
The CI867K01 mounts directly onto the AC 800M I/O backplane via the CEX-Bus and connects to external networks through its Ethernet ports. Featuring an independent onboard processor, the module handles all communication tasks without consuming main controller CPU scan cycles—ensuring control logic real-time performance remains uncompromised.
Operating in both Modbus TCP Master and Slave modes, the CI867K01 provides exceptional flexibility for data acquisition and remote monitoring applications. Its dual Ethernet port design with redundancy and hot-swap support makes it the ideal solution for system upgrades, multi-vendor equipment integration, and DCS expansions in demanding industrial environments.
Key Applications:
- Power Generation: Integration of non-ABB smart meters, protective relays (e.g., REC670), and excitation systems into AC 800M for energy monitoring and control.
- Oil & Gas / Petrochemical: Connecting third-party flow computers, custody transfer instruments, and valve positioners to 800xA DCS for process optimization.
- Water & Wastewater Treatment: Centralized data acquisition from distributed Modbus TCP pump stations, analyzers, and actuation networks.
- Metallurgy & Mining: Real-time communication with VFDs, weigh feeders, and conveyor drives for bulk material handling control-.
- SCADA Integration: Acting as the Modbus TCP interface between AC 800M and centralized SCADA systems for plant-wide monitoring and control.
- Legacy System Upgrades: Retrofitting existing Modbus TCP field devices into ABB control architectures without replacing proven infrastructure.
2. Technical Specifications
| Attribute | Specification |
|---|---|
| Module Model | ABB CI867K01 |
| Order Code | 3BSE043660R |
| Product Type | Communication Interface Module / Modbus TCP Interface |
| Compatible Systems | ABB AC 800M Series & 800xA DCS |
| Communication Protocol | Modbus TCP (Master/Slave), Modbus RTU over TCP |
| Ethernet Ports | 2 × RJ45 (10/100 Mbps + 10 Mbps) |
| Maximum Connections | Up to 70 slaves & 8 masters (combined) |
| Power Supply | 24V DC (supplied via CEX-Bus backplane) |
| Operating Temperature | -20°C to +70°C |
| Protection Rating | IP20 |
| Dimensions (W × H × D) | 59 mm × 186 mm × 127.5 mm |
| Weight | Approx. 0.62 – 0.7 kg |
| Installation | CEX-Bus rack mounting with TP867 base |
| Redundancy Support | Yes (1+1 module redundancy) |
| Hot Swappable | Yes (with TK812A redundant base) |
| Configuration Software | ABB Control Builder M |
| Data Types Supported | Coils, Discrete Inputs, Holding Registers, Input Registers |
| Certifications | CE, UL, IEC 61000-6 Series |
| Country of Origin | Sweden / Finland |
3. Commercial Procurement Protocol
- System Architecture Compatibility Audit: Our technical engineers verify your AC 800M controller model, CEX-Bus backplane configuration, and Control Builder M software revision to ensure 100% plug-and-play compatibility-18.
- Itemized Quote Engineering: Access transparent, volume-tiered pricing options detailing real-time stock levels and global express air shipping routes.
- Global Trade Compliance: Rapid export filter verification ensuring fast, hassle-free customs clearance across international borders.
- Proforma Invoice Transmission: Detailed corporate Proforma Invoices (PI) generated quickly to facilitate immediate internal financial sign-off.
- Secure Financial Settlement: Monetary transactions completed safely via wire transfer (T/T) or verified corporate trade settlement platforms.
- Pre-Dispatch Hardware Inspection: Physical check verifying clean backplane connector pins, housing clip integrity, RJ45 port condition, and module LED status under bench power.
- Anti-Static Export Cushioning: Vacuum-sealed inside certified anti-static (ESD) shielding packaging with inner foam padding in heavy-duty export boxes.
- Express Courier Dispatch: Sourced modules ship instantly via global couriers (DHL Express, FedEx, UPS) with live tracking provided.
4. Visual Product Showcase

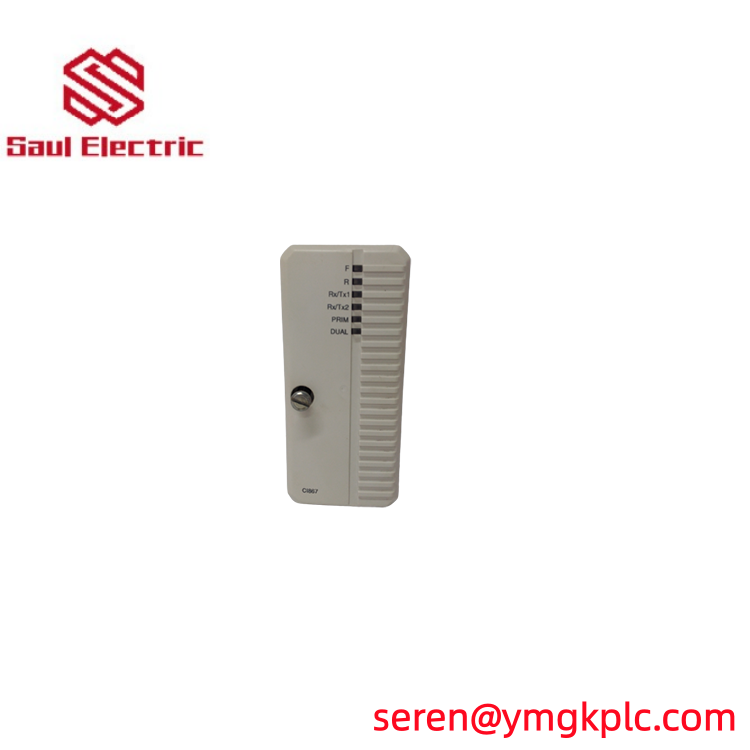

- [Product Photo 1]: Full front profile view of the ABB CI867K01 module highlighting the model identification and LED status indicators.

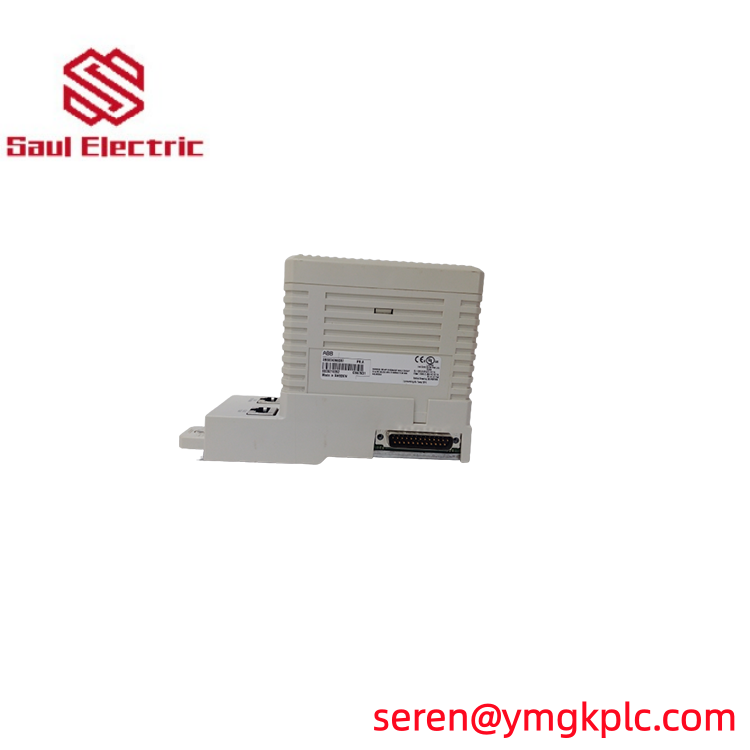

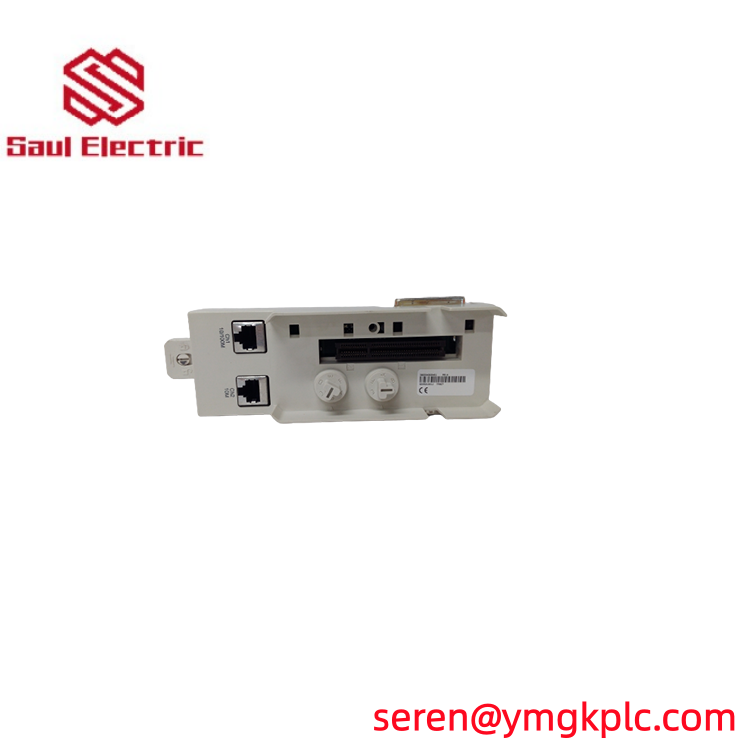

- [Product Photo 2]: Detail photo focusing on the dual RJ45 Ethernet ports and rear CEX-Bus backplane connector interface.
5. Matching ABB AC 800M Spares
- ABB TP867 (CI867 Base Plate / Termination Unit for CEX-Bus mounting)
- ABB TK812A (Redundant Base for CI867 series modules)-
- ABB PM851 / PM856 / PM860 / PM864 (AC 800M Controller Processor Modules)
- ABB DI810 / DO810 / AI810 / AO810 (S800 I/O Modules)
- ABB CI854 (Modbus RTU Serial Communication Module for serial device integration)
- ABB CI801 (PROFIBUS DP Communication Interface Module)
6. Enterprise After-Sales Guarantees
- Full 12-Month Vendor Warranty: Complete replacement warranty shielding your purchase against electronic internal component defects under standard operation.
- Certified Original Hardware Guarantee: We supply 100% authentic ABB factory hardware to ensure seamless integration into active DCS networks.
- Technical Document Provision: Digital access to official ABB CI867K01 specification sheets, Control Builder M configuration guides, and wiring schematics.
7. FAQ
Q: What is the ABB CI867K01 used for?
A: The CI867K01 is a communication interface module that enables ABB AC 800M controllers and 800xA DCS systems to communicate with Modbus TCP devices including PLCs, VFDs, intelligent instruments, HMIs, and SCADA systems
Q: Which ABB systems are compatible with the CI867K01?
A: The CI867K01 is compatible with ABB AC 800M series controllers (PM851, PM856, PM860, PM864, etc.) and 800xA DCS systems
Q: Does the CI867K01 require an external power supply?
A: No. The module draws its operating power directly from the AC 800M backplane via the CEX-Bus, eliminating the need for external power wiring
Q: Can the CI867K01 be used in a redundant configuration?
A: Yes. The CI867K01 supports 1+1 module redundancy. When paired with the TK812A redundant base, automatic failover ensures uninterrupted communication in the event of a primary module failure
Q: Is the CI867K01 hot-swappable?
A: Yes. With the appropriate redundant base (TK812A), the CI867K01 supports Live Insertion and Removal (LIR) , allowing replacement without system shutdown-.
Q: How do I configure the CI867K01?
A: Configuration is performed using ABB Control Builder M engineering software. You add the module to the hardware structure, set IP parameters, define Modbus register address ranges, and map them to controller internal variables (BOOL, REAL, INT, etc.)
Q: What is the difference between CI867K01 and CI854?
A: CI867K01 is a Modbus TCP (Ethernet) communication module, while CI854 is a Modbus RTU (serial) communication module. Choose CI867K01 for Ethernet-based Modbus TCP networks and CI854 for serial Modbus RTU applications
Q: Is the CI867K01 a PROFIBUS DP module?
A: No. The CI867K01 is a dedicated Modbus TCP interface module. For PROFIBUS DP connectivity, please refer to the ABB CI801 module. Some third-party listings may contain inaccurate protocol information—always consult ABB official documentation
