ABB BC810 3BSE008522R1 | ModuleBus Interconnection Unit for S800 I/O System

Description

1. Product Overview

The ABB BC810 is a specialized Interconnection Unit designed for the S800 I/O distributed system. Its primary role is to extend the ModuleBus communication from a controller (like the AC 800M) to multiple I/O clusters or to connect different parts of an I/O station over a distance.

The BC810 acts as a bridge, ensuring that data signals remain strong and synchronized across extended distances or complex cabinet layouts. By using the BC810, engineers can design more flexible control architectures, allowing I/O modules to be placed closer to the field sensors while maintaining high-speed communication with the central processing unit.

Key Applications:

• I/O Cluster Expansion: Connecting additional I/O modules when a single rack is full.
• Distributed Control Layouts: Bridging ModuleBus signals between different cabinets.
• System Scalability: Allowing for the seamless addition of S800 I/O clusters to an existing AC 800M system.
• Signal Strengthening: Ensuring signal integrity in large-scale industrial I/O configurations.

2. Data Sheet

3. Procurement Process

1. Technical Match: We verify the BC810 (3BSE008522R1) hardware version to ensure it aligns with your AC 800M firmware and I/O bus requirements.
2. Formal Quotation: You will receive a detailed quote including pricing, stock availability, and global express shipping options.
3. Order Confirmation: Finalizing quantities and any required documentation (e.g., Certificate of Origin).
4. Sales Agreement: Issuance of a Proforma Invoice (PI) for secure transaction management.
5. Secure Payment: Payment accepted via T/T (Bank Wire Transfer).
6. Quality Inspection: 100% verification of factory seals, serial numbers, and physical connector pins before dispatch.
7. Secure Packaging: Industrial-grade anti-static and shock-proof packaging to protect the module during international transit.
8. Global Distribution: Expedited shipping via DHL, FedEx, or UPS for minimal downtime.

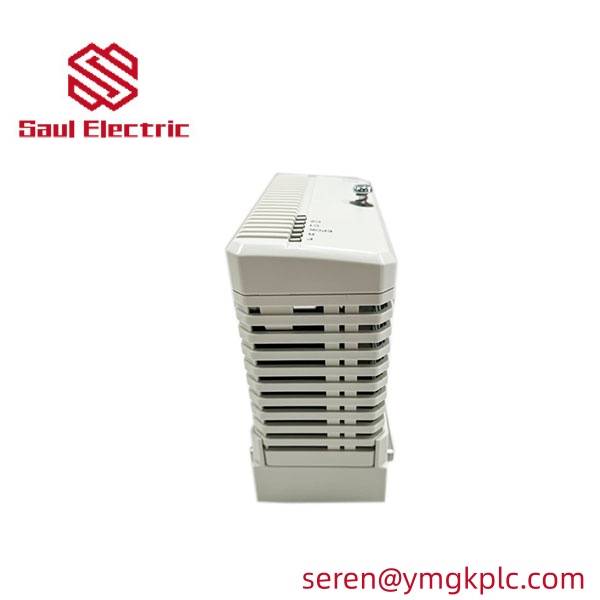

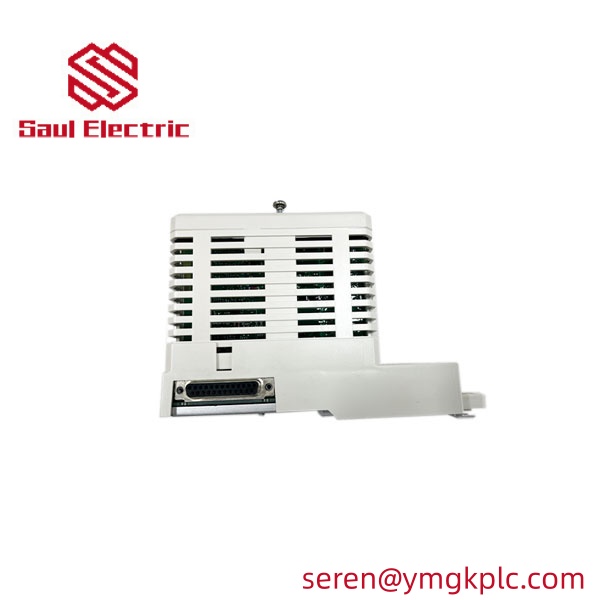

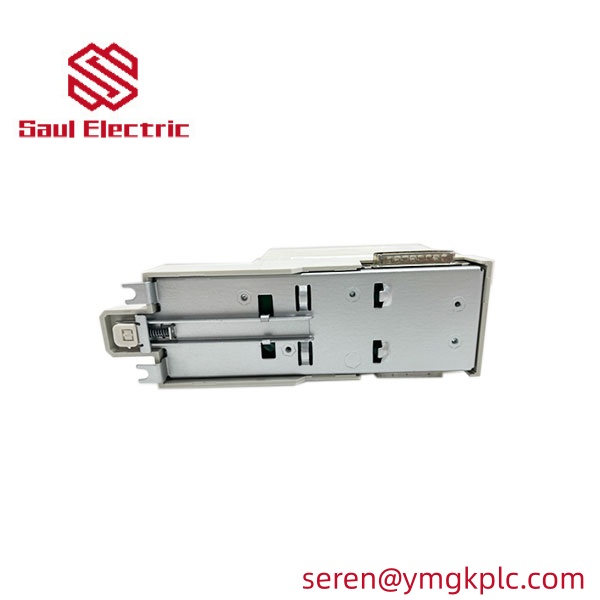

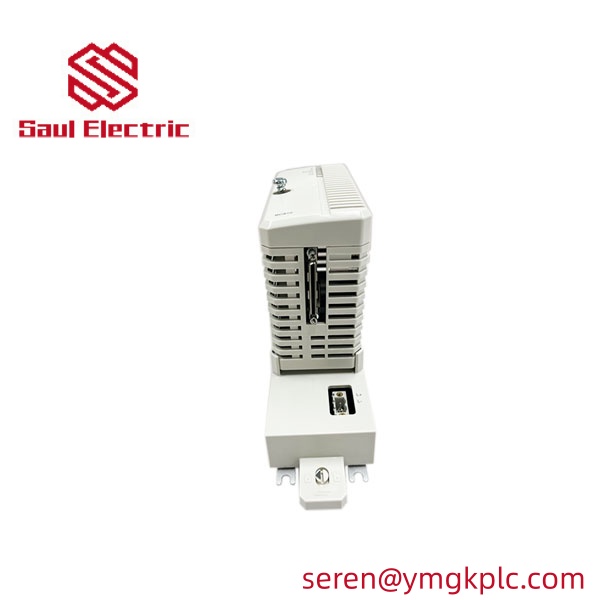

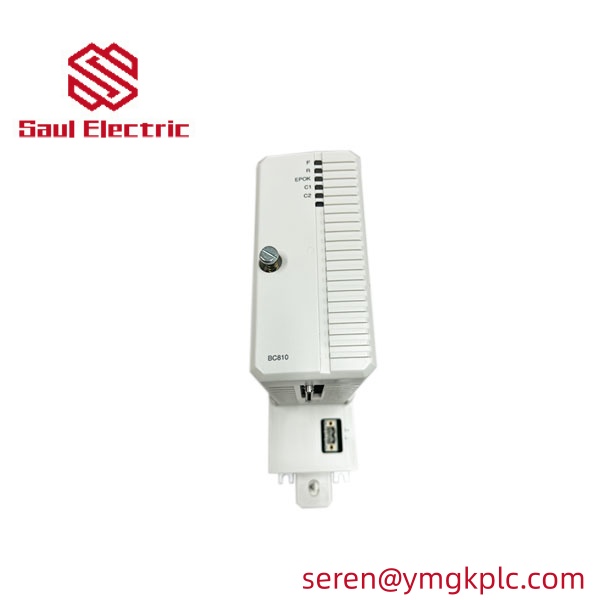

4. Products Showcase (Photos & Video)

5. Related Models

• ABB BC820 (Redundant Interconnection Unit)
• ABB PM864 / PM866 (AC 800M Controller CPUs)
• ABB AI810 / AI625 (Fieldbus Communication Interfaces)
• ABB TU810 / TU812 (S800 Termination Units)

6. Warranty & After-Sales

• 12-Month Global Warranty: Full 1-year coverage against any manufacturing or functional defects.
• 100% Authenticity Guarantee: We supply only genuine, factory-new ABB parts; no refurbished or third-party units.
• Technical Support: Access to documentation for I/O cluster configuration and bus termination.

7. FAQ

Q: What is the difference between BC810 and BC820?

The BC810 is for single (non-redundant) ModuleBus interconnection, while the BC820 is designed for redundant ModuleBus applications, often used in high-availability systems where dual controllers are employed.

Q: Does the BC810 require a specific termination unit?

Yes, the BC810 is typically mounted on a termination unit like the TU810 or similar models that provide the physical connections for the ModuleBus cable.

Q: Can I use the BC810 to connect I/O modules over a distance of 10 meters?

The ModuleBus has specific distance limitations. For distances beyond a few meters, you may need to use fiber optic extensions or specialized communication interfaces (like CI801 for PROFIBUS) instead of a simple BC810 interconnection.
