ABB 1MRK002247-AGR00 Analog Input Module | ABB Relion Protection & Control

Description

PRODUCT OVERVIEW

ABB 1MRK002247-AGR00 is the original front-end transformer input board (TRM) matched for ABB Relion 650 & 670 series protection control devices. It directly accesses secondary CT current and PT voltage signals from the substation primary system, completes electrical isolation, voltage/current amplitude conversion, impedance matching and preliminary filtering of analog quantity signals, and transmits conditioned standard analog signals to the rear AD acquisition board for analog-to-digital conversion and calculation by the main CPU.The board adopts reinforced insulation design and built-in lightning surge absorption circuits, effectively suppressing high-frequency interference and transient overvoltage in strong electromagnetic environments of high-voltage substations, thermal power plants and new energy booster stations. Widely used for fault replacement, routine maintenance and emergency spare backup of transformer protection, line protection, busbar protection and generator protection IEDs in power transmission & distribution systems.

TECHNICAL SPECIFICATIONS

COMMERCIAL PROCUREMENT PROTOCOL

1. Compatibility Verification: Our power automation engineers verify the protection model (RET670/REL670/REB670 etc.) and hardware version to guarantee plug-and-play replacement.
2. Tiered bulk pricing: Preferential unit price for bulk orders; real-time stock data and international freight cost are updated synchronously.
3. Export document support: Complete customs clearance documents + unified HS code declaration to guarantee smooth customs clearance for global customers.
4. Formal PI issuance: Issue official proforma invoice for your internal financial approval and payment procedures.
5. Payment Method: Safe settlement via T/T wire transfer and other standard corporate payment channels.
6. Strict pre-delivery test: Each board undergoes 48h power-on aging test, full-channel signal amplitude calibration and transmission stability inspection before shipment.
7. Export Protective Packaging: ESD anti-static vacuum bag + customized shockproof foam + thickened reinforced carton to prevent PCB and miniature transformer damage during long-distance international transportation.
8. Global Logistics Delivery: Shipped via official DHL, FedEx, UPS channels; tracking number will be issued immediately after shipment arrangement.

VISUAL PRODUCT SHOWCASE

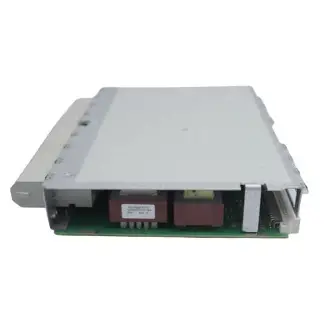

1. Product Photo 1: Overall structural drawing of 1MRK002247-AGR00 board, marking isolation transformers, filter components and golden finger connector area

1. Product Photo 2: Internal layout drawing of signal conditioning circuit and surge protection components

MATCHING SUPPORTING SPARES & TECHNICAL DOCUMENTS

AD analog sampling board, main control CPU board, device power supply card, switching input/output module, relay frame backplane assembly, ABB official test report, complete installation dimension drawing and standardized safe replacement operation specification for TRM input board, ABB 1MRK002239-BBr01, ABB 1MRK000614-ABr01,ABB 1MRK002133-ABr03,ABB 1MRK000284-ABr02

AFTER-SALES SERVICE & WARRANTY CLAUSES

12-month quality warranty covers inherent hardware faults generated under rated normal operating conditions, with free testing and replacement service within the warranty scope. All supplied ABB 1MRK002247-AGR00 boards are original genuine products (brand new original packaged spare parts or dismantled used boards after full professional bench calibration). Its signal transformation precision parameters and physical installation dimensions are completely consistent with the original factory design standards. We provide electronic delivery of official datasheets, detailed disassembly & replacement specifications and field construction safety guidelines. Long-term free remote technical services cover on-site module replacement guidance, whole protection device analog channel joint debugging and diagnosis & elimination of sampling source abnormal faults.

FAQ

What system operation value does this TRM transformer input board bring to substation protection equipment?As the physical boundary between the power grid primary equipment and secondary protection device, it realizes electrical isolation and safe signal transmission, avoids high voltage surges from primary equipment breaking down the protection main control chip, and lays the most basic accurate data foundation for the whole set of protection algorithms to realize fault removal and grid safety guarantee.Does replacing this transformer input board require long-time bay power outage calibration?The backplane pin definition and channel wiring sequence are fully matched with the original board. After physical replacement, only the device automatic sampling self-test needs to be executed, and the protection device can be put into normal operation rapidly without modifying any protection fixed values and communication configuration files.Are recycled second-hand TRM boards required to complete full performance calibration before delivery?All dismantled recycled boards will complete deep cleaning of PCB dust and oxide layers, screening of aging transformer devices, full-channel transformation ratio calibration and 72-hour continuous load aging test on professional standard signal source test benches item by item to restore the original factory design signal conversion performance before shipment.Delivery lead time for spot inventory products?Spot goods are stored in domestic warehouse, all delivery procedures can be fully completed within 3 working days after the buyer’s payment review and confirmation.
