YOKOGAWA CP451-51 | UPGRADED FCS PROCESSOR MODULE FOR YOKOGAWA CENTUM VP DCS PLATFORM

Description

PRODUCT OVERVIEW

The Yokogawa CP451-51 is a high-performance upgraded processor unit exclusively developed for the Field Control Station (FCS) hardware framework of the CENTUM VP distributed control system, acting as the core computing execution kernel for closed-loop process control in large-scale continuous process industries. Iteratively optimized based on the classic CP451-10 hardware framework, this processor elevates overall computing throughput, real-time data processing efficiency and redundant fault switching reliability. It undertakes core tasks including multi-loop PID regulation operation, safety interlock logic computation, analog & digital field signal acquisition & output distribution, as well as bidirectional data interaction between field control layer and upper monitoring management layer including HIS operator stations and engineering configuration workstations.Adopting upgraded 32-bit RISC high-speed computing architecture paired with expanded high-reliability RAM and non-volatile flash storage media, CP451-51 supports processing loads up to 2304 independent control loops and 9216 I/O channel tags, with a deterministic minimum control scanning cycle of 8ms, effectively satisfying ultra-high real-time control requirements for high-risk process industries such as petrochemical refining and thermal power generation. The hardware natively supports dual-module hot redundant architecture, achieving bumpless automatic failover upon primary module abnormal failure, eliminating unplanned production shutdown risks caused by single CPU fault and improving the overall safety integrity level of the DCS control system.Integrated with dual hardware-redundant Vnet/IP Ethernet communication interfaces and standardized internal ESB system bus connectors, the module ensures low-latency and stable transmission of process variables, system event alarms, historical trend data and operator command signals across the control network. The module adopts industrial ruggedized structural design with optional PCB conformal three-proof coating to strengthen resistance against field vibration, mechanical impact and wide ambient temperature fluctuation. With IP20 shell protection standard for cabinet installation, it is completely physically and electrically compatible with AFV10D and AFV10S series FCS backplanes, realizing hot-swappable replacement without overall reconstruction of system configuration programs.Typical application scenarios cover petrochemical complex refining systems, crude oil & natural gas gathering & long-distance transportation pipelines, thermal power unit auxiliary thermal control systems, fine chemical & pharmaceutical manufacturing processes, municipal industrial wastewater & clean water treatment facilities, pulp and paper production lines, LNG receiving terminal cryogenic process management and other industrial control occasions requiring high operational stability.

TECHNICAL SPECIFICATIONS

表格

COMMERCIAL PROCUREMENT PROTOCOL

1. System Compatibility Inspection: Our technical engineers check your existing CENTUM VP system version, FCS backplane model and redundant configuration scheme to ensure zero compatibility faults after module replacement.

2. Transparent Tiered Quotation Service: Offer preferential prices according to purchase quantity, synchronize real-time inventory quantity and global air freight cost details.

3. Global Customs Clearance Support: Complete export filing and unified HS code declaration to speed up customs clearance in all destination countries.

4. Standard PI Issuance: Quickly issue formal corporate proforma invoice for your internal financial approval and payment arrangement.

5. Safe Payment Channel: Accept secure payment via T/T wire transfer and mainstream international enterprise trade settlement platforms.

6. Strict Pre-Shipment Testing: Complete power-on self-test, communication link test, loop simulation test and appearance inspection before delivery.

7. Professional Anti-Static Export Packaging: ESD vacuum bag + shockproof foam + thickened export carton to avoid damage during long-distance international transportation.

8. Global Express Delivery: Deliver goods by DHL, FedEx, UPS, and provide real-time tracking number after shipment.

VISUAL PRODUCT SHOWCASE

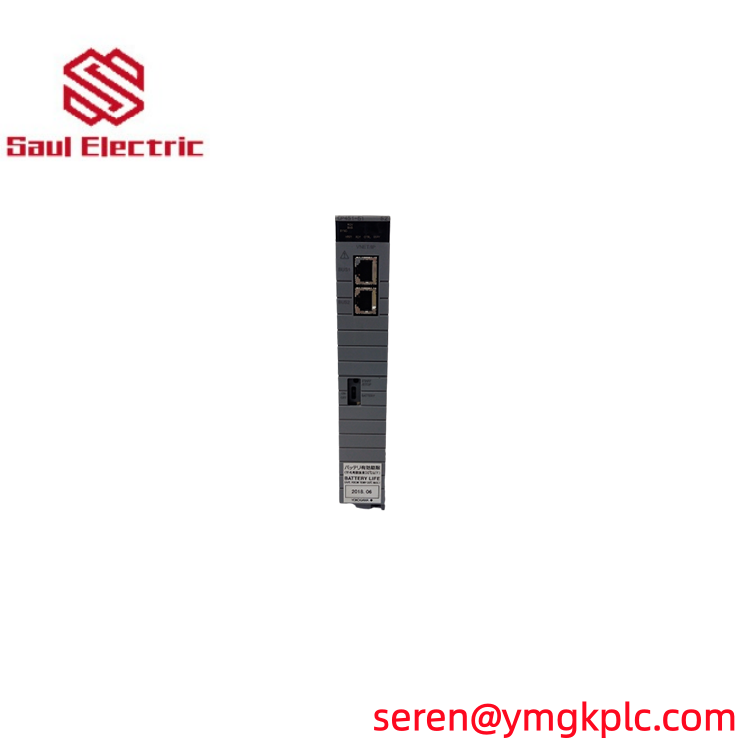

1. Product Photo 1: Overall front view of CP451-51 module, showing dual Vnet/IP Ethernet interfaces, battery window and module running indicator area.

2. Product Photo 2: Close-up of the rear factory nameplate, including Yokogawa logo, model code, serial number and CE certification mark.

MATCHING YOKOGAWA SPARES AND ACCESSORIES

Yokogawa AFV10D/AFV10S FCS backplane,

original CP451 series spare CPU modules,

AAI analog input/output modules,

ADV digital I/O modules,

dedicated Vnet/IP network cables,

module backup lithium batteries,

CENTUM VP system configuration software,

original installation & maintenance manuals

Yokogawa CP451-10

Yokogawa CP401-10

Yokogawa CP451-50

ENTERPRISE AFTER-SALES GUARANTEES

12-month comprehensive product warranty coverage: Provide free maintenance service or product replacement for inherent hardware defects generated under rated standard operating conditions within the warranty validity periodGenuine original hardware quality assurance: All delivered CP451-51 modules are verified authentic Yokogawa factory products (brand new sealed or strictly bench-tested used inventory), maintaining complete compatibility with original CENTUM VP system official firmwareComplete official technical document provision: Electronically deliver the official Yokogawa datasheet, installation specification, wiring schematic and system configuration guidance documentsPermanent professional technical consulting service: Provide remote technical guidance for field module replacement, redundant system parameter debugging and routine system fault diagnosis & troubleshooting

FAQ

1. What core functional positioning does Yokogawa CP451-51 undertake in the CENTUM VP DCS system?CP451-51 serves as the upgraded core central processor unit of FCS equipment for CENTUM VP distributed control system, responsible for executing process control algorithms, processing field I/O signal data and realizing end-to-end data transmission inside the whole control network.
2. Does the CP451-51 module support redundant hot standby operating architecture?Affirmative. Two CP451-51 modules can form a dual hot redundant backup group, which can realize non-disturbance automatic switching when the main module fails, so as to ensure continuous and stable operation of industrial production processes.
3. What are the performance differences between CP451-51 and the old generation CP451-10 processor?CP451-51 is the performance-upgraded successor model of CP451-10, featuring stronger overall computing capability, expanded memory configuration, shorter control scanning cycle and higher stability of redundant switching action.
4. What standard power supply specification is required for the normal operation of CP451-51?The module adopts industrial standard 24VDC power supply input, the allowable voltage fluctuation range is 20.4VDC ~ 26.4VDC, and the maximum power consumption under full-load working condition is 22W.
5. What installation and ambient conditions are applicable to this processor module?The module is designed for built-in installation inside indoor industrial control cabinets, with a rated working temperature range of -20℃ to +60℃. The module itself is IP20 protection grade, and the control cabinet bears the overall dust-proof and splash-proof protection function.
6. Can CP451-51 realize plug-and-play replacement on the original FCS backplane?This module is fully matched with AFV10D and AFV10S standard FCS backplanes in physical size and electrical performance; it can be inserted into the card slot directly for operation after simple system identification without modifying any hardware structure of the original cabinet.
7. What communication protocols are adopted for data interaction of CP451-51?The module mainly applies Yokogawa exclusive Vnet/IP bus protocol for internal data interaction of DCS system, and is compatible with Modbus TCP general industrial protocol to complete data docking with third-party peripheral auxiliary control equipment.
8. What is the actual shipment lead time for in-stock CP451-51 products?Spot inventory is stored in our domestic warehouse, and the goods can be delivered within 3 working days after we receive and complete the verification of your payment voucher.
