Description
PRODUCT OVERVIEW
Yaskawa CPS-150F is a dedicated built-in control power supply module matched for Yaskawa classic MOTOMAN XRC and NX100 robot controller cabinets. This power module is responsible for stably converting industrial AC input into standard +5VDC and +24VDC dual DC power outputs, supplying power for controller I/O boards, power-on control units, teach pendant and internal core circuit components of the robot cabinetManualsLib.Adopting industrial isolation step-down circuit design together with built-in filtering circuit, the module can restrain voltage surge and harmonic interference from factory power grid, ensuring stable and ripple-free DC output under long-term continuous operation.
Multiple hardware fault detection circuits are integrated inside the unit, with corresponding indicator lights for power input, 5V overvoltage/overcurrent, 24V overcurrent and internal overheating faults for quick on-site troubleshootingManualsLib.The module adopts standard rack card structure, plug-in installation inside the robot controller rack with good compatibility and easy replacement maintenance. Widely used in automotive welding robots, handling robots, palletizing robots, painting robots and other MOTOMAN robot equipment maintenance and spare parts replacement scenarios.
TECHNICAL SPECIFICATIONS
| Item | Parameter Details |
|---|---|
| Official Model | Yaskawa CPS-150F |
| Product Classification | Rack Mount Control Power Supply Module for Robot Controller |
| Applicable Control Hardware | Yaskawa MOTOMAN XRC Controller, NX100 Robot Controller Cabinet |
| Nominal AC Input Parameter | 200 ~ 220 VAC, 50 / 60Hz |
| Allowable Input Voltage Deviation | 170 VAC ~ 242 VAC (+10% upper limit, -15% lower limit) |
| Primary DC Output | +5 VDC, Rated Output Current: 10 Amps |
| Secondary DC Output | +24 VDC, Rated Output Current: 4.0 Amps |
| Normal Operating Indicators | SOURCE (Green), POWER ON (Green) |
| Fault Alarm Indicators | +5V Overvoltage/Overcurrent(Red), +24V Overcurrent(Red), OHT Internal Overheat(Red) |
| Overtemperature Protection Trigger Point | Internal core temperature reaches approximately 65℃ |
| Rated Operating Ambient Temperature | 0℃ ~ +50℃ |
| Allowable Storage & Transportation Temperature | -40℃ ~ +85℃ |
| Ambient Humidity Requirement | 5% ~ 95% relative humidity, non-condensing working environment |
| Integrated Protection Functions | Overvoltage protection, output overcurrent protection, internal overtemperature shutdown protection |
| Enclosure Protection Standard | IP20 protection rating (only for built-in installation inside control cabinet) |
| Overall External Dimension | 254mm (W) × 178mm (H) × 51mm (D) |
| Module Net Mass | Approximately 1.5 kg |
| Compliance Certifications | CE conformity certification for industrial electrical equipment |
| Country of Manufacture | Japan |
COMMERCIAL PROCUREMENT PROTOCOL
1. Robot Model Compatibility Inspection: Our technicians verify your robot model, controller cabinet version and original power supply wiring definition to ensure zero matching errors after replacement.
2. Transparent Tiered Quotation & Bulk Discount: Provide preferential prices according to purchase quantity, meanwhile update real-time stock quantity and global air freight cost synchronously.
3. Cross-Border Export Declaration Support: Complete standard export filing and unified HS code declaration to accelerate customs clearance efficiency in all importing countries.
4. Standard Corporate PI Issuance: Quickly issue formal proforma invoice documents for your internal financial approval and payment procedures.
5. Safe International Payment Methods: Support secure fund settlement via T/T wire transfer and regular enterprise trade payment platforms.
6. Strict Pre-Shipment Full Functional Test: Carry out power-on aging test, output voltage detection, indicator function test and appearance inspection before delivery.
7. Professional Anti-Static Export Packaging: Adopt ESD vacuum shielding bag + shockproof foam + thickened reinforced export carton to prevent collision damage during international long-distance transportation.
8. Global Express Delivery Arrangement: Deliver goods by DHL, FedEx, UPS official channels, and feed real-time logistics tracking number right after shipment.
VISUAL PRODUCT SHOWCASE

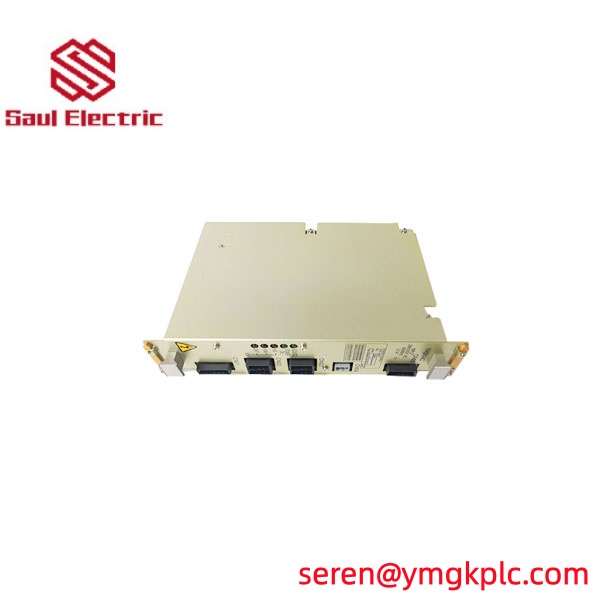

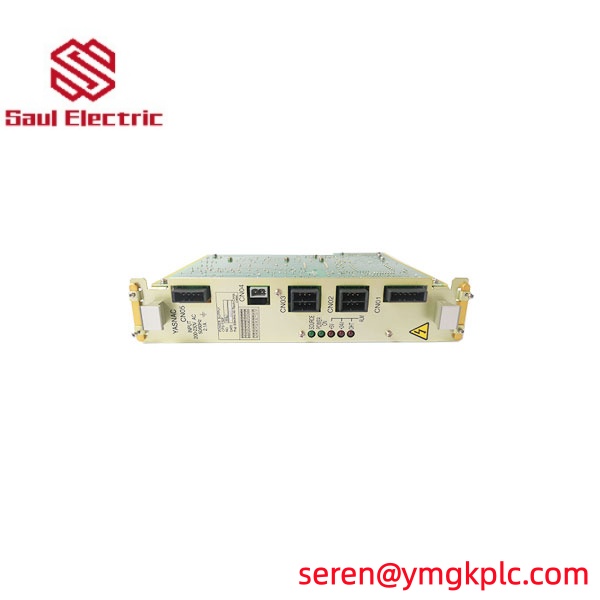

1. Product Photo 1: Front panoramic view of CPS-150F module front panel, displaying status indicator area and multi-group CN interface terminals.

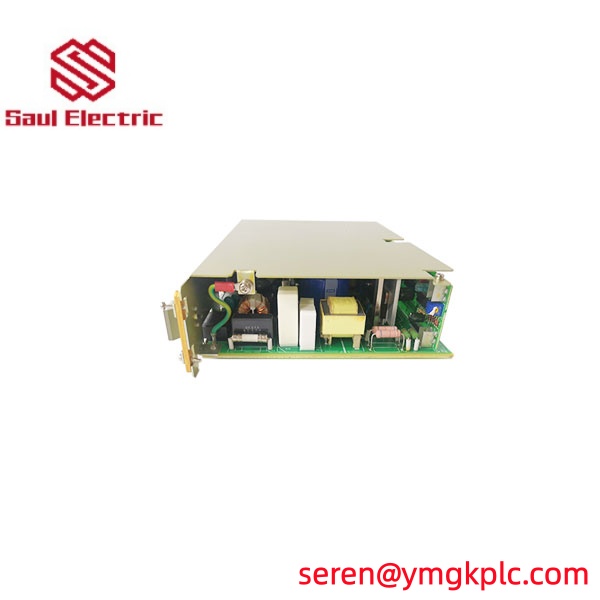

2. Product Photo 2: Lateral structural shot of the module casing, showing internal power circuit layout and heat dissipation structural design.

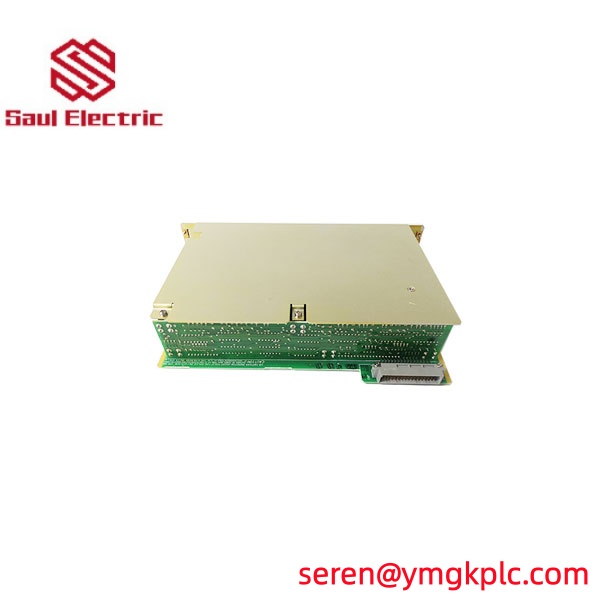

3. Product Photo 3: Rear printed circuit board close-up view, displaying circuit layout and backplane golden finger connector terminals.
MATCHING YASKAWA SPARES AND ACCESSORIES
Yaskawa XRC / NX100 controller main control boards, robot handheld teach pendants, internal controller signal connecting cables, power wiring terminal plugs, original controller rack mounting frame, official MOTOMAN robot system maintenance manuals, original CPS-150F installation & replacement specification documents
ENTERPRISE AFTER-SALES GUARANTEES
12-month full warranty service: Free maintenance or replacement for inherent hardware failures under standard rated operating conditions within the warranty periodGenuine original quality guarantee: All supplied CPS-150F power modules are original Yaskawa products (new sealed or strictly bench-tested used stock), fully matched with original robot controller hardwareComplete technical document delivery: Electronically send official datasheets, wiring diagrams, fault code explanation documents and module replacement operation tutorialsLong-term free technical support: Provide remote guidance for module disassembly replacement, power supply troubleshooting and robot cabinet power debugging
FAQ
- What is the core application of Yaskawa CPS-150F power supply module?CPS-150F is a special control power supply built into Yaskawa MOTOMAN XRC and NX100 robot controllers, used to supply stable 5V and 24V DC power for each circuit board and handheld teach pendant inside the robot cabinet.
- What DC voltage and current outputs does CPS-150F provide?It outputs +5VDC/10A and +24VDC/4.0A two groups of stable DC power to meet the power demand of each control component in the robot cabinet.
- What do the red indicator lights on the front panel stand for?The +5V red light lights up for 5V overvoltage or overcurrent fault; the +24V red light lights up for 24V overcurrent fault; the OHT red light lights up when the module internal temperature exceeds 65℃ overheating protection.
- Which robot controllers are compatible with CPS-150F?It is perfectly applicable to Yaskawa MOTOMAN XRC system controllers and NX100 series robot control cabinets, being a universal replacement spare part for original power supply damage.
- Does the module have complete overcurrent and overheating protection functions?Yes, the module is built with multi-layer protection logic including overvoltage, overcurrent and overtemperature protection, which will automatically cut off abnormal output to protect the whole robot control circuit.
- Is the used CPS-150F you provide fully tested before shipment?All second-hand modules will pass continuous power-on aging test, accurate output voltage calibration and indicator function inspection to ensure stable operation after installation.
- What is the normal working AC input range of this power module?Rated input is 200~220VAC 50/60Hz, allowable input fluctuation range is 170VAC ~ 242VAC to adapt to unstable factory power supply environment.
- How long is the delivery time for in-stock CPS-150F goods?We have spot goods stored in domestic warehouse, and shipment will be arranged within 3 working days after your payment is verified and confirmed.
