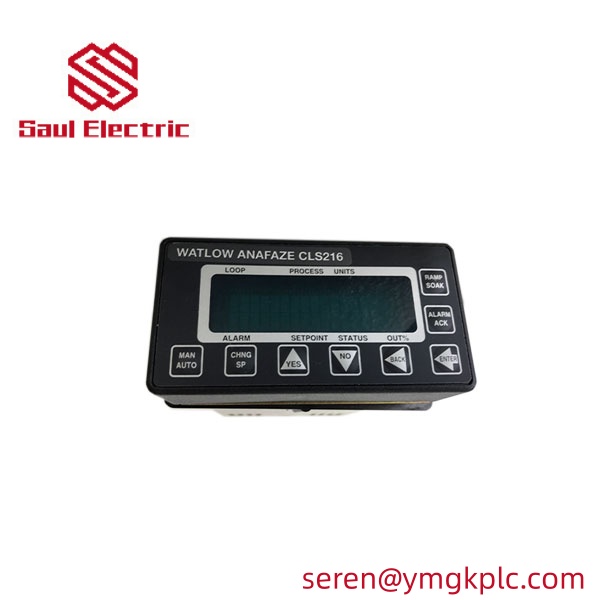

Watlow CLS216 | 16-Loop Series CLS200 PID Temperature & Process Controller

Description

1. Product Overview

The Watlow CLS216 is a versatile and compact 16-loop controller part of the Series CLS200 family. It is an ideal solution for industrial thermal processes that require multiple control loops in a small footprint, such as plastic processing, semiconductor manufacturing, and packaging machinery.

The CLS216 offers sophisticated PID control for each of its 16 channels, ensuring precise temperature stability and process accuracy. Its DIN-rail mount design allows for easy integration into control cabinets, while its robust communication capabilities enable seamless data exchange with PLCs, HMIs, or PC-based SCADA systems. By consolidating 16 controllers into one module, the CLS216 significantly reduces wiring time, hardware costs, and maintenance complexity.

Key Applications:

• Plastic Extrusion & Injection Molding: Multi-zone barrel and die temperature control.
• Semiconductor Processing: Precise wafer heating and chemical delivery systems.
• Packaging Machinery: Managing multiple heat-sealing bars and glue application zones.
• Laboratory & Medical Equipment: Multi-chamber environmental control and incubation.

2. Technical Features

3. Procurement Process

1. Technical Specification Check: We verify the CLS216 hardware suffix to confirm specific input/output types and communication options required for your system.
2. Formal Quotation: You will receive a detailed quote including competitive pricing, current lead times, and global express delivery options.
3. Order Confirmation: Finalizing quantities and any required documentation (e.g., Certificate of Origin, CoC).
4. Sales Agreement: Issuance of a Proforma Invoice (PI) for secure transaction management.
5. Secure Payment: Payment accepted via T/T (Bank Wire Transfer).
6. Quality Inspection: 100% verification of Watlow factory seals, serial numbers, and terminal block integrity.
7. Anti-Static Packaging: Specialized industrial packaging to protect the electronic circuitry from ESD and transit vibrations.
8. Global Distribution: Fast worldwide shipping via DHL, FedEx, or UPS to keep your production lines running.

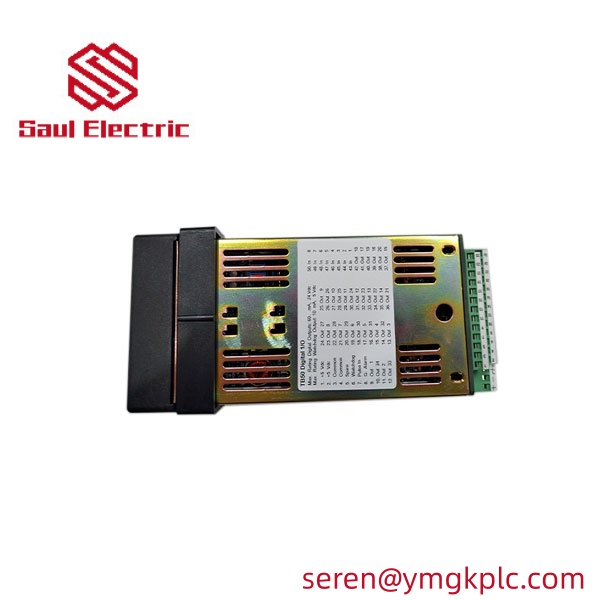

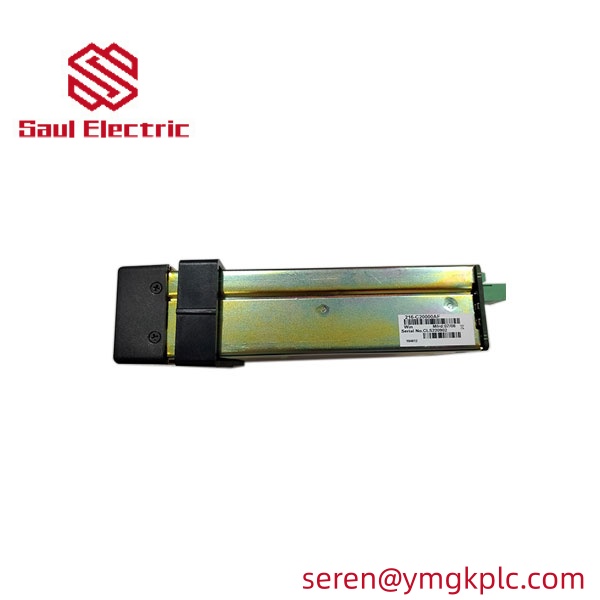

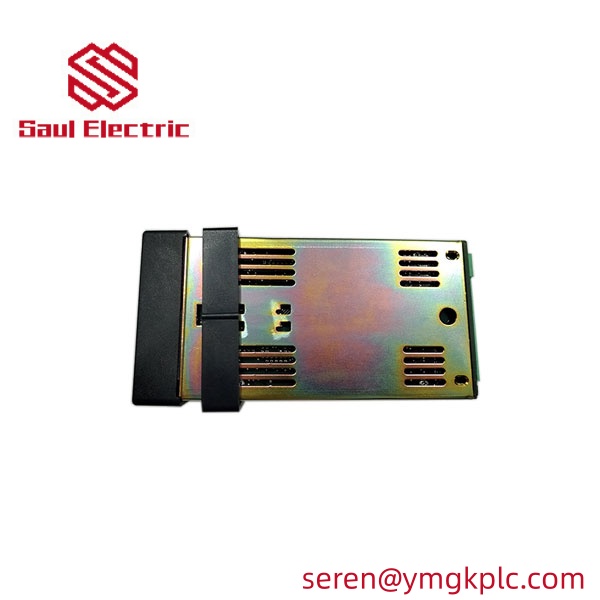

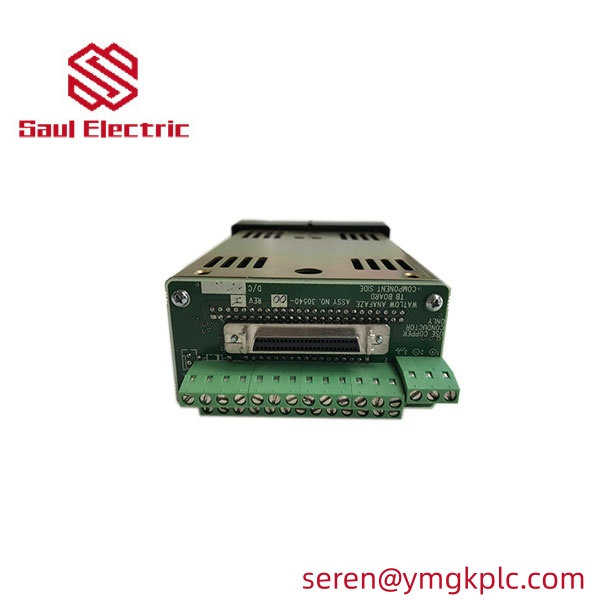

4. Products Showcase (Photos & Video)

5. Related Models

• Watlow CLS208 (8-Loop version of the Series CLS200)
• Watlow EZ-ZONE® RM (Modular Rail Mount Controllers)
• Watlow F4T (1/4 DIN Touchscreen Process Controller)
• Watlow PM6 (1/16 DIN EZ-ZONE® Controller)

6. Warranty & After-Sales

• 12-Month Global Warranty: Full 1-year coverage against any manufacturing or functional defects.
• 100% Authenticity Guarantee: We supply only genuine, factory-new Watlow products; no refurbished or “generic” alternatives.
• Technical Support: Access to technical manuals and basic wiring guidance for multi-loop configurations.

7. FAQ

Q: Can the CLS216 handle different input types on different loops simultaneously?

Typically, the CLS200 series is configured for a specific group of input types. However, its universal input design allows for significant flexibility. Check your specific model suffix (e.g., CLS216-XXXX) for the exact input configuration.

Q: Is there software available to configure all 16 loops at once?

Yes, Watlow provides configuration software (such as WATVIEW) that allows you to set up, monitor, and log data for all 16 loops from a single PC interface via the Modbus™ port.

Q: What happens if one loop fails?

The CLS216 is designed for high reliability. Because the loops are independent in software, a sensor failure on one loop will not affect the PID execution of the other 15 loops.
