Product Overview

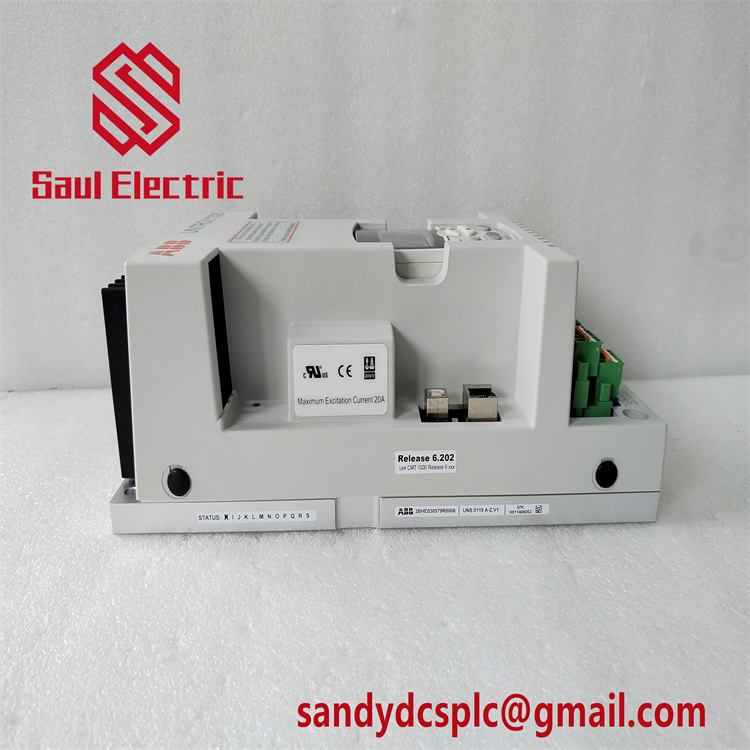

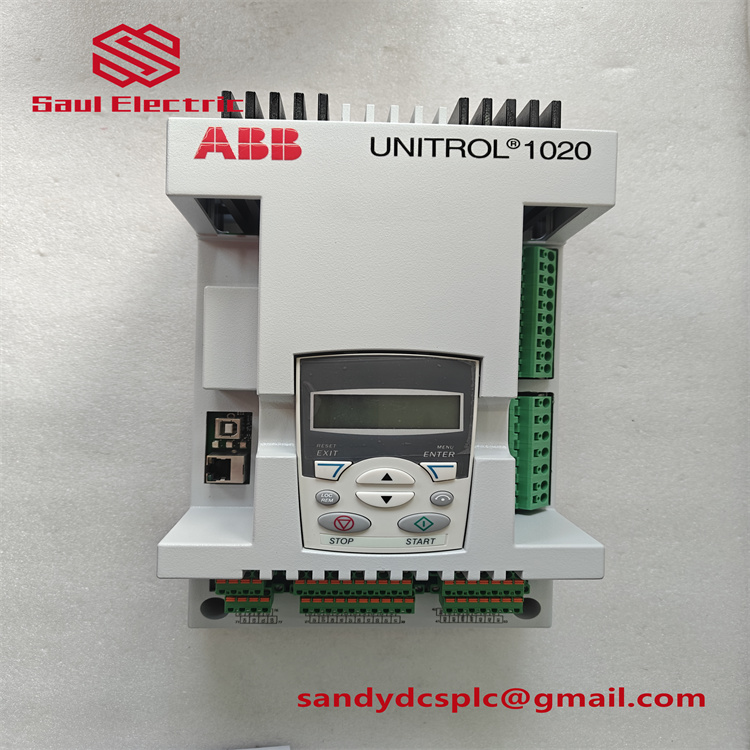

The ABB UNITROL 1020 is a high-performance Automatic Voltage Regulator (AVR) designed for small to medium-sized synchronous generators and industrial machines, belonging to the UNITROL 1000 series new.abb.com. As a core component of excitation systems, this module ensures stable voltage regulation, reactive power control, and dynamic performance optimization in power generation and industrial processes. It combines advanced microprocessor technology with IGBT semiconductors to deliver up to 10 A continuous excitation current, making it ideal for applications requiring precise control under harsh environmental conditions jlplc.com.
Key functionalities include dual-channel support for load distribution, rotating diode monitoring, and automatic synchronization, which enhance system reliability in parallel operation scenarios . The ABB UNITROL 1020 integrates seamlessly with automation systems through multiple communication protocols (e.g., Modbus, Ethernet, USB), enabling real-time data logging and remote diagnostics jlplc.com. Its compact design and wide operating temperature range (-20°C to +50°C) make it suitable for diverse industries, from power plants to non-ferrous metal processing facilities . By maintaining grid stability and reducing downtime, the UNITROL 1020 plays a critical role in enhancing operational efficiency and safety across mission-critical applications.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | UNITROL 1020 |
| Manufacturer | ABB |
| Product Type | Automatic Voltage Regulator (AVR) |
| Input Voltage Range | 90–540 VAC |
| Output Current | Up to 10 A DC continuous |
| Communication Protocols | Modbus RTU (RS485), Ethernet, USB |
| Operating Temperature | -20°C to +50°C |
| Protection Class | IP20 (standard), IP54 (optional) |
| Physical Dimensions | 245 mm (height) × 500 mm (length) × 335 mm (width) |
| Weight | 6.71 kg |
| Control Methods | PID control for voltage, power factor, and reactive power |
| Data Logging | Event logging, trend analysis, and user-configurable data recording |
| Compliance | UL, DNV, and VDE-AR-N 4110/4120 grid code standards new.abb.com |
Main Features and Advantages
Precision Control and Flexibility: The ABB UNITROL 1020 employs a PID controller to maintain voltage accuracy within ±1% of the setpoint, even during rapid load changes new.abb.com. Its dual-channel architecture allows seamless load sharing between parallel generators, while rotating diode monitoring prevents potential failures by detecting open-circuit conditions .
Robust Performance: Built with rugged components and an IP54-rated enclosure (optional), the module withstands high vibrations, dust, and moisture, ensuring long-term reliability in industrial environments . The wide input voltage range (90–540 VAC) and temperature tolerance enable stable operation across diverse geographical and operational conditions .
Advanced Connectivity: Equipped with Ethernet and USB interfaces, the UNITROL 1020 supports remote configuration, firmware updates, and real-time monitoring via the CMT 1000 commissioning tool jlplc.com. Its built-in data logger records critical events and trends, facilitating predictive maintenance and reducing downtime jlplc.com.
Cost-Effective Design: The compact form factor minimizes installation space, while modular construction simplifies maintenance and reduces spare part inventory. Compliance with international standards (UL, DNV) ensures compatibility with global power systems new.abb.com.
Application Areas
Power Generation: The ABB UNITROL 1020 is widely used in diesel generators, hydropower plants, and combined heat and power (CHP) systems to stabilize grid voltage and optimize reactive power output new.abb.com. Its automatic synchronization feature streamlines generator integration into existing power networks, reducing startup time and operational risks.
Industrial Machinery: In steel mills, aluminum smelters, and mining operations, this AVR ensures consistent voltage supply to high-power motors, preventing production delays caused by voltage fluctuations . It also supports tension control in wire and cable manufacturing, maintaining product quality during high-speed processing .
Marine and Offshore: With its IP54-rated enclosure and compliance with DNV standards, the UNITROL 1020 is suitable for marine generators and offshore platforms, where reliability under harsh environmental conditions is critical jlplc.com.
Renewable Energy: The module’s adaptive control algorithms make it compatible with wind turbines and solar inverters, enabling efficient voltage regulation in renewable energy systems new.abb.com.
Related Products
- UNITROL 1010: A lower-power variant (up to 10 A DC) for smaller generators, sharing similar features but optimized for cost-sensitive applications new.abb.com.
- UNITROL 6000 Light: A higher-power solution for large industrial generators, offering advanced grid compliance and fault ride-through capabilities new.abb.com.
- CMT 1000 Commissioning Tool: A software suite for configuring, monitoring, and troubleshooting UNITROL series products .
- ABB IGBT Power Modules: Complementary components for high-efficiency power conversion in excitation systems jlplc.com.
- ABB ACS880 Drives: Variable speed drives that integrate with UNITROL 1020 for motor control in industrial processes .
Installation and Maintenance
Installation Preparation: Ensure the mounting location is dry, well-ventilated, and free of corrosive gases. Mount the UNITROL 1020 vertically to facilitate cooling, leaving at least 10 mm clearance on both sides for airflow . Verify input voltage compatibility (90–540 VAC) and secure all connections using torque-controlled terminals.
Maintenance Recommendations: Regularly inspect the module for dust accumulation and loose connections, especially in high-vibration environments. Use the CMT 1000 tool to review event logs and update firmware quarterly to benefit from the latest features and bug fixes . Replace electrolytic capacitors every 5–7 years as part of preventive maintenance to maintain optimal performance.
Product
The ABB UNITROL 1020 comes with a 1-year warranty covering material defects and workmanship. ABB provides 24/7 technical support for installation guidance, troubleshooting, and firmware updates. Comprehensive documentation, including user manuals and safety guidelines, is available for download. Spare parts are stocked globally to ensure rapid replacement in case of failures, minimizing downtime. ABB’s commitment to quality is underscored by rigorous testing and compliance with international standards, ensuring the UNITROL 1020 delivers reliable performance throughout its lifecycle.
