Description
PRODUCT OVERVIEW
Triconex DO3401 is a high-density digital output module specially matched for Tricon triple modular redundancy (TMR) safety instrument system (SIS), which converts safety logic commands issued by the main controller into on-site switching signals to drive solenoid valves, safety relays, emergency shutdown actuators and field indicator lights.Adopting native TMR three-channel independent redundant operation architecture, each output channel is equipped with isolated drive circuit, real-time loopback detection and hardware self-check function, meeting SIL3 highest safety integrity level certification standard. The module adopts hot-swappable rack plug-in design, which can be replaced online without shutting down the whole SIS system, effectively reducing equipment maintenance downtime.
Built-in channel independent overcurrent, short-circuit and reverse voltage protection circuit, with front panel LED indicator for single-channel status, module fault and power supply alarm. Cooperate with supporting 2401 series terminal base to complete field wiring docking, widely used in petrochemical ESD emergency shutdown systems, natural gas pipeline safety interlock, thermal power boiler protection, refinery fire & gas safety control and other high-risk process safety control occasions.
TECHNICAL SPECIFICATIONS
| Item | Parameter Details |
|---|---|
| Official Part Number | TRICONEX DO3401 |
| Component Classification | Tricon TMR Safety Instrument System Digital Output Module |
| Total Physical Output Channels | 32 Channels Sink Type Digital Output |
| Nominal Field Operating Voltage | 24 VDC (allowable operating range: 18 VDC ~ 32 VDC) |
| Maximum Permissible Current per Single Channel | 0.5 A rated load current |
| Standard Channel Switching Response Time | ≤ 5ms signal transmission delay |
| Internal Redundancy Mode | Triple Modular Redundancy (TMR) independent hardware voting architecture |
| Authoritative Safety Qualification | SIL3 safety integrity level certification in accordance with IEC 61508 |
| Channel Isolation Mode | Optical isolation design between each signal channel and system backplane bus |
| Integrated Hardware Protection | Channel short-circuit protection, overcurrent protection, power reverse connection anti-damage protection |
| Compatible Supporting Baseplate | TRICONEX 2401 standard base / 2401L current-limiting type termination base |
| Installation Form | Standard cabinet rack hot-pluggable card installation |
| Rated Operating Ambient Temperature | -20℃ ~ +60℃ |
| Allowable Storage & Transportation Temperature | -40℃ ~ +85℃ |
| Ambient Humidity Service Condition | 5% ~ 95% relative humidity, non-condensing environment |
| Shell Protection Standard | IP20 protection rating (only suitable for built-in installation inside industrial control cabinets) |
| Overall External Dimension | 265mm (W) × 142mm (H) × 48mm (D) |
| Module Net Mass | Approximately 1.4 kg |
| Global Compliance Certifications | CE Marking, CSA safety certification, FM industrial hazardous area certification |
| Country of Manufacturing | United States of America |
COMMERCIAL PROCUREMENT PROTOCOL
1. Pre-Sale SIS System Compatibility Audit: Professional safety control engineers verify your Tricon controller firmware version, cabinet backplane slot configuration parameters and actual field load electrical characteristics to guarantee complete hardware matching without adaptive faults after module replacement.
2. Volume-Based Hierarchical Preferential Pricing Mechanism: Provide differentiated discount policies corresponding to different procurement volumes, meanwhile synchronize real-time inventory data and full-cost quotation of global air freight logistics solutions.
3. Cross-Border Trade Compliance & Customs Declaration Service: Prepare standardized export documents and unified HS code filing procedures to accelerate customs clearance progress in importing countries worldwide.
4. Formal Corporate Standardized Proforma Invoice Issuance: Generate official standardized PI documents efficiently to cooperate with your internal financial audit approval and capital payment management workflows.
5. Secure Cross-Border Capital Settlement Channels: Support formal fund settlement via T/T telegraphic transfer and verified enterprise-level international trade payment platforms.
6. Multi-Dimensional Pre-Delivery Quality Validation Test: Implement standardized TMR redundant operation test, full 32-channel output characteristic test, fault alarm simulation verification and overall structural appearance inspection before goods delivery.
7. Standardized ESD Professional Export Packaging Solution: Adopt certified anti-static vacuum shielding bag + customized shock-absorbing foam filling + heavy-duty reinforced export carton to prevent hardware structural damage during transnational long-distance logistics transportation.
8. Global Door-to-Door Express Delivery Execution: Arrange international transportation via authorized official channels of DHL Express, FedEx and UPS, and issue complete real-time logistics tracking number immediately after goods departure.
VISUAL PRODUCT SHOWCASE

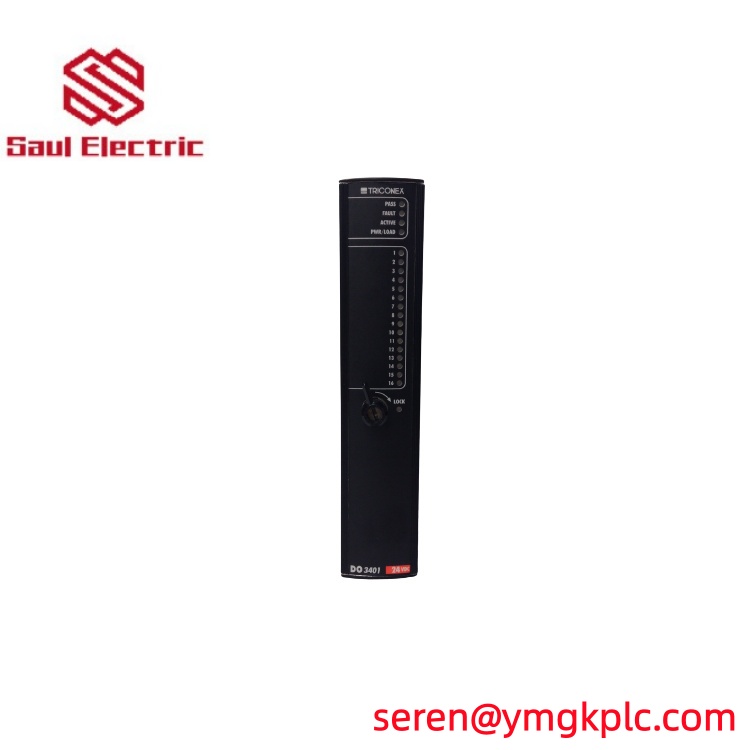

1. Product Photo 1: Front panel overall photo of DO3401 module, showing channel status LED indicator area, module running status lights and lock switch.

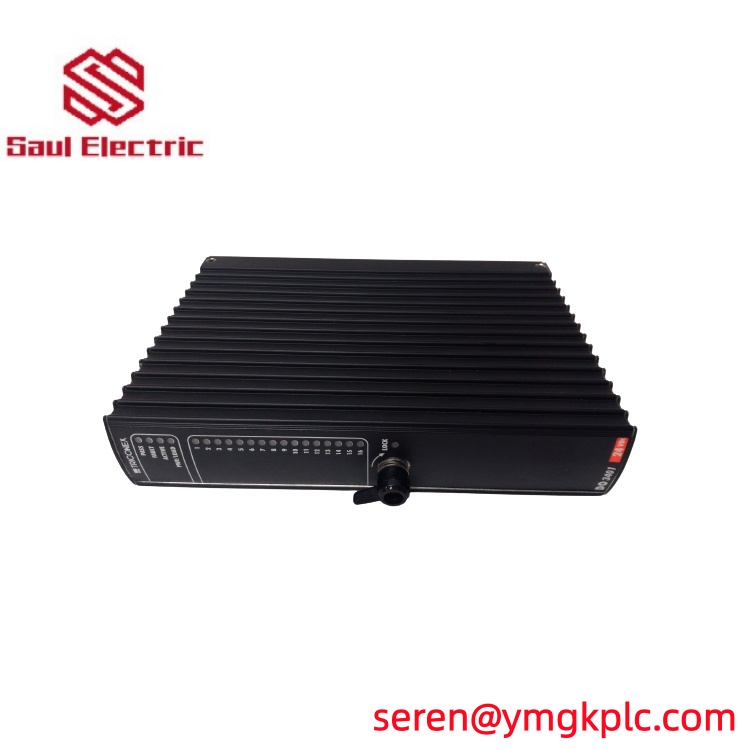

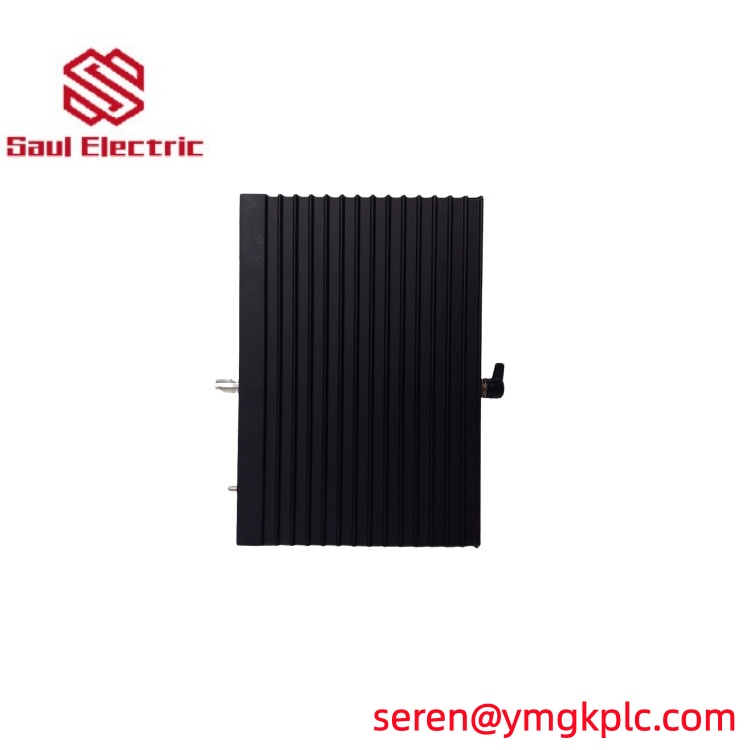

2. Product Photo 2: Side radiator overall physical photo of the module, displaying integral heat dissipation tooth structure and shell outline.
3. Product Photo 3: Rear backplane golden finger and terminal interface board photo, including dual DB wiring sockets and FS safety identification mark.
MATCHING TRICONEX SPARES AND ACCESSORIES
Triconex 2401/2401L terminal baseplate, SIS system main CPU module, Tricon backplane rack assembly, field 24VDC signal cables, module fixing accessories, official Tricon system configuration software, original DO3401 installation and maintenance manual
ENTERPRISE AFTER-SALES GUARANTEES
12-month full warranty service: Free maintenance or replacement for inherent hardware defects under standard rated operating conditions within the warranty periodGenuine original quality guarantee: All supplied DO3401 modules are original Triconex factory products (new sealed or strictly bench-tested used stock), fully matched with original Tricon SIS system firmwareComplete technical document delivery: Electronically send official datasheets, wiring diagrams, SIL safety manual and module hot swap replacement operation guidesLong-term free technical support: Provide remote guidance for module hot plug replacement, TMR system debugging and SIS safety loop troubleshooting
FAQ
- What core functional positioning does Triconex DO3401 undertake in the Tricon safety instrument system?DO3401 is a 32-channel safety-grade digital output card specially configured for Tricon TMR safety instrument system, which is used to transmit safety logic control signals to drive on-site emergency shutdown valves, safety actuators and safety interlock execution equipment in petrochemical and thermal power safety protection systems.
- What redundant hardware design is adopted by DO3401 to meet high industrial safety standards?The module adopts built-in Triple Modular Redundancy (TMR) three independent hardware channel voting output mechanism, which can avoid safety system failure caused by single-point hardware failure and has obtained formal SIL3 international safety certification.
- What is the channel quantity and single-channel load driving capability of DO3401 output terminals?The module is equipped with 32 sink-type digital output channels in total, each channel can stably drive 24VDC loads with a maximum current of 0.5A, which is applicable to most safety solenoid valve loads on industrial sites.
- Does the DO3401 module support non-stop hot plug replacement during the normal operation of the SIS system?This module supports online hot swap under the normal operating state of the safety instrument system, no need to shut down the overall safety control system during maintenance replacement, effectively reducing production downtime and safety maintenance risks.
- Which supporting accessories need to be matched when DO3401 is applied to on-site engineering wiring?Field wiring must be matched with Triconex original 2401 standard termination base or 2401L current-limiting dedicated base to realize safe docking of system signals and field equipment lines.
- Does each output channel of DO3401 have independent hardware protection and self-diagnosis functions?Every single channel is equipped with independent short-circuit, overcurrent and reverse power connection hardware protection circuits, matched with real-time loopback self-test function to upload channel abnormal fault data to the upper safety controller in real time.
- Will the pre-owned DO3401 safety modules you supply pass standardized full-performance safety testing before warehouse delivery?All second-hand modules will complete long-term power-on aging test, TMR redundant logic operation test and full 32-channel output accuracy test before leaving the warehouse to ensure long-term stable and safe operation when put into formal safety control loops.
- What is the actual shipment lead time for spot stock DO3401 finished products?Spot inventory is stored in our domestic warehouse, and formal shipment procedures will be fully completed within 3 working days after we receive and complete the verification of your official payment voucher.
